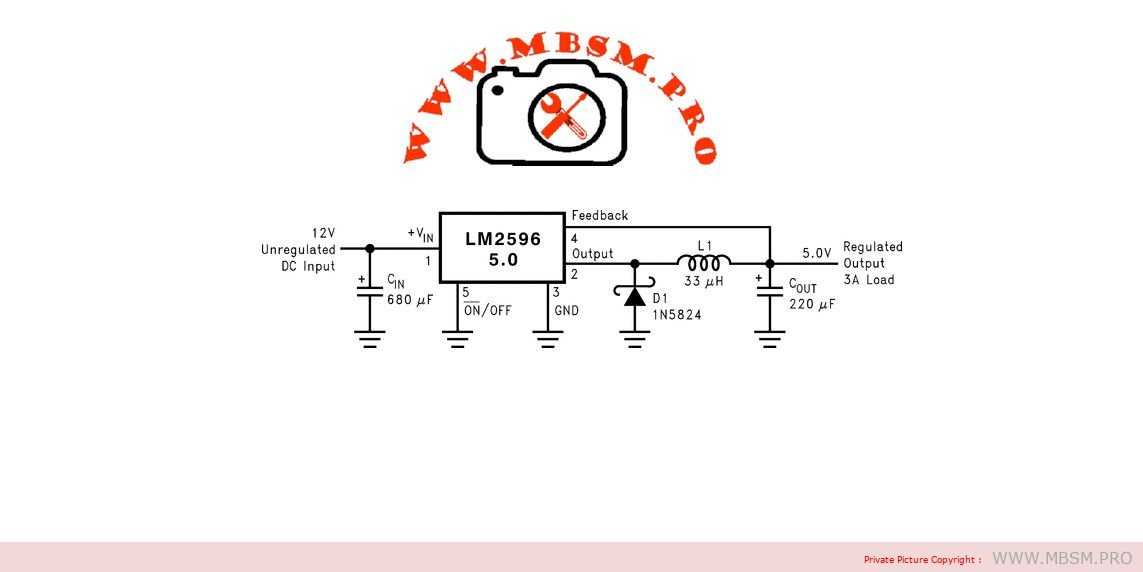

Mbsm.pro, 3A Adjustable voltage regulator circuit from 12 v to 5 v DC

Download Attachments

  • High Efficiency: Ideal for high-current applications due to their efficient power conversion, reducing heat generation.
  • Wide Input Voltage Range: Often handle a broad range of input voltages.
  • Compact Size: Typically smaller than linear regulators with similar current ratings.
  • Adjustability: Some switching regulator ICs offer built-in adjustable output voltage control.

  • Simpler Design: Uses a linear regulator IC, an external power transistor, and adjustable control components.
  • Less Efficient: Dissipates excess power as heat, requiring adequate heatsinking.
  • Linear Regulator IC: Provides basic voltage regulation, but with a limited current output.
  • Power Transistor: Handles high current flow.
  • Heatsink: Dissipates heat from the transistor.
  • Adjustable Resistors: Allow for fine-tuning of the output voltage.
  • Heat Dissipation: Both switching and linear regulators with high currents generate heat. Provide sufficient heatsinking.
  • Input Voltage Range: Ensure the regulator can handle your input voltage range.
  • Desired Adjustment Range: Choose a regulator that offers the level of output voltage adjustability you need.
  • Safety Features: Consider regulators with overcurrent protection, thermal protection, and short-circuit protection.
  • Depend on your exact current, voltage, and adjustability requirements.
  • Consult datasheets and application notes for the chosen regulator ICs for detailed guidance.
