Symbols

image_pdfimage_print

FC : Fan cooling
OC : Oil cooling
ST : Static

************************

ASHRAE CONDITIONS (LBP)
Evaporating Temp. : -23.3℃ (-10℉)
Condensing Temp. : 54.4℃ (130℉)
Gas Superheated to : 32.2℃ (90℉)
Liquid sub-cooled to : 32.2℃ (90℉)
Ambient Temp. : 32.2℃ (90℉)

***********************

ASHRAE CONDITIONS (MBP)
Evaporating Temp. : -6.7℃ (20℉)
Condensing Temp. : 54.4℃ (130℉)
Gas Superheated to : 35.0℃ (95℉)
Liquid sub-cooled to : 46.1℃ (115℉)
Ambient Temp. : 35.0℃ (95℉)

**********************

MOTOR TYPE
RSIR : Resistance Start Induction Run
RSCR : Resistance Start Capacitor Run
CSIR : Capacitor Start Induction Run
CSR : Capacitor Start Capacitor Run

**********************

ASHRAE CONDITIONS (HBP)
Evaporating Temp. : 7.2℃ (45℉)
Condensing Temp. : 54.4℃ (130℉)
Gas Superheated to : 35.0℃ (95℉)
Liquid sub-cooled to : 46.1℃ (115℉)
Ambient Temp. : 35.0℃ (95℉)

************************

(D) Discharge
(S) Suction 7.94
(P) Process

************************



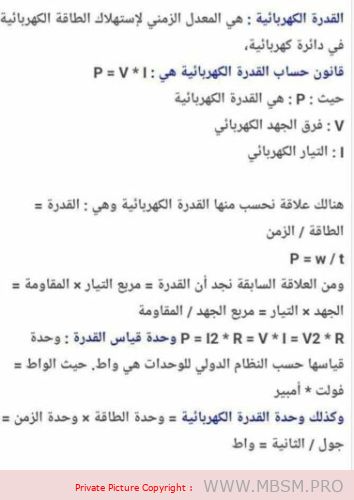

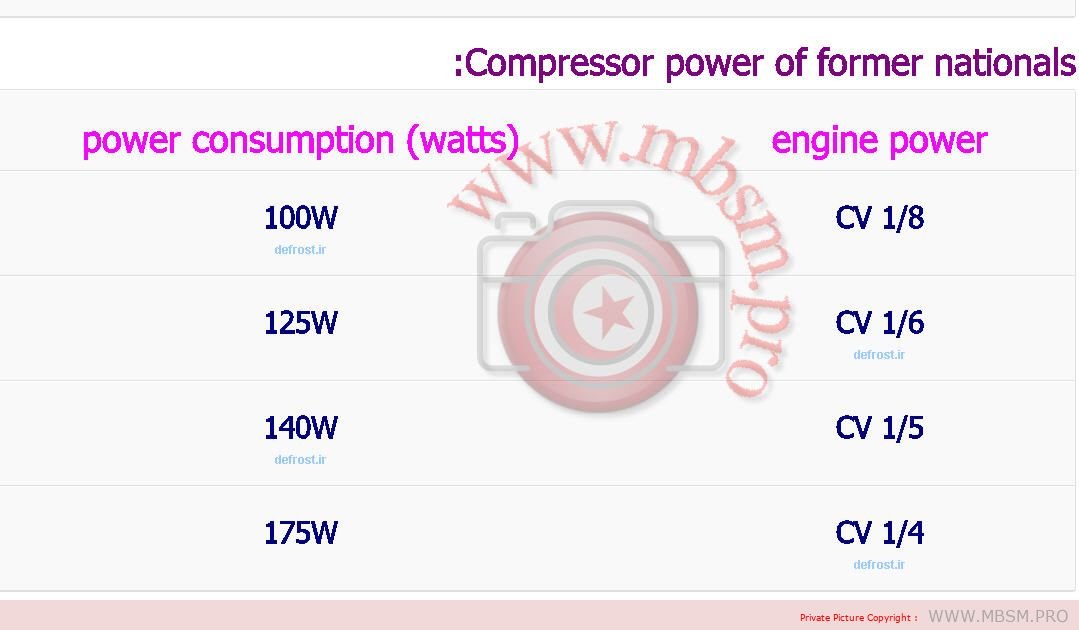

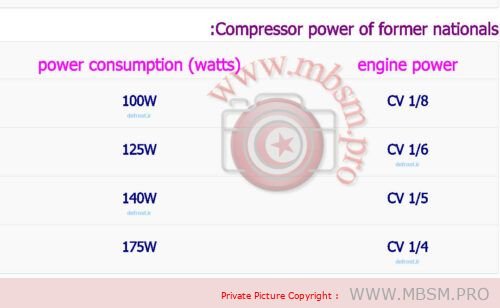

Compressor Motor Types
RSIR = Resistive start inductive run
CSIR = Capacitor start inductive run
CSR  = Capacitor start and run



Terminology
LT (LBP) Low Temperature – Evaporating Temp Range -40˚C / -10˚C
HT (HBP) High Temperature – Evaporating Temp Range -15˚C / +15˚C
HT W (M/HBP) High Temperature Wide Range – Evaporating Temp Range -25˚C / +15˚C
AC Air Conditioning – Evaporating Temp Range -10˚C / +10˚C
S/F Static Cooled/Fan Cooled
F Fan Cooled
SOC Static with oil cooler
CAP Capillary Controlled
CAP/TEV Capillary or Expansion Valve Controlled
For suitable compressor oils, please see Lubricants Section on page 180.
M Mineral Oil
AB Alkylbenzene Oil
P Polyolester Oil
Warranty: See Warranty section at rear of catalogue for more details
