Compressor, Tecumseh/Taikang Piston Compressor Model: TPA1390YKS/TP1390YS, Type: Low Back Pressure, Refrigerant: R-134a, Supply Voltage: 220-240V ~ 50Hz, Tecumseh/Taikang TPA1390YKS/TP1390YS a

Product Family

Model Number	Decription	Manufacturer
TPA1380YXA	TP104AR-003-J7 1/4 HP R-134	Tecumseh Product Co.
TPA1390YXA	TP101AR-003-J7 1/4HP R134A	Tecumseh Product Co.
TPA1410YXA	TP Series Compressors	Tecumseh Product Co.

Tecumseh/Taikang piston compression TPA1390YKS/TP1390YS detailed parameters:

product description

Product number	product type	application	Refrigerant	Supply Voltage/Frequency	Version
TPA1390YKS (TP1390YS)	Piston	LBP – Low Back Pressure	R-134a	220-240V ~ 50Hz	N/A

Performance/Performance/Performance

condition	Test voltage	cooling capacity	input power	effectiveness	Evaporation temperature	Condensing temperature	ambient temperature	return air temperature	liquid temperature
Btu/h	kcal/h	W	W	Btu/Wh	kcal/Wh	W/W
ASHRAE	220V ~ 50HZ	750	189	220	159	4.72	1.19	1.38	-23°C (-10°F)	54°C (130°F)	32°C (90°F)	32°C (90°F)	32°C (90°F)
CECOMAF	220V ~ 50HZ	560	141	164	154	3.64	.92	1.07	-25°C (-13°F)	55°C (131°F)	32°C (90°F)	32°C (90°F)	55°C (131°F)

General / General / General

Evaporation temperature range:	-34.4°C to -12.2°C (-30°F to 10°F)
Motor torque:	Low Start Torque (LST)
Compressor cooling:	Static

Mechanical/Mechanical Properties/Mechanical Properties

weight:	11
Weight unit:	KG
Displacement (cc):	7.28
Oil Type:	N/A
Viscosity (cSt):	N/A
Oil quantity (cc):	0

Electrical/Electricity/Electricity

Voltage range (50 Hz):	198-253
Voltage range (60 Hz):	N/A
Locked Rotor Amps (LRA):	9.5
Rated load current (RLA 50 Hz):	1.17
Rated load current (RLA 60 Hz):	0
Maximum Continuous Current (MCC in Amps):	0
Motor Resistance (Ohms) – Main:	9.23
Motor Resistance (Ohms) – Start:	11.31
Motor Type:	RSIR
Overload Type:	N/A
Relay Type:	N/A

Attachment	Type	Link

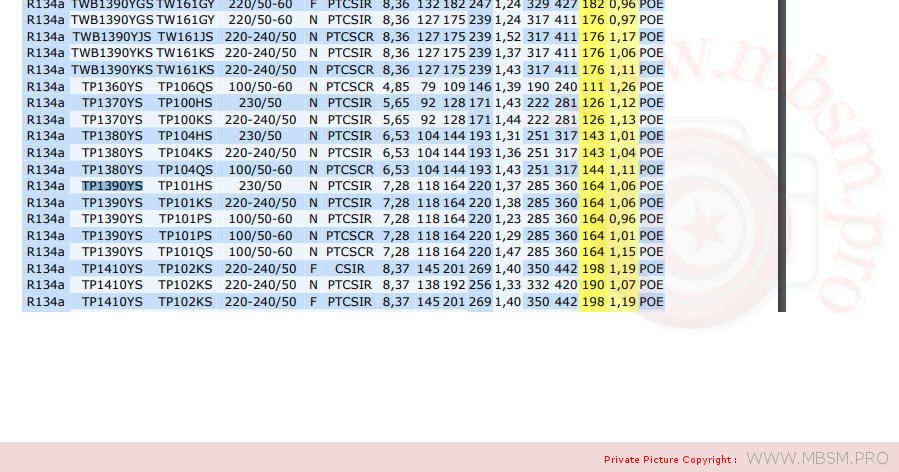

Mbsm_dot_pro_private_picture_TP1390YS-2	image/jpeg	Get Link
