Compressor, hermetic, medium temperature, 7 HP, r22, POE, MT80HP4, MT80 HP4, 400/3/50, 460/3/60 volt, 1-3/4″ RL – 1-1/8″ x 1-1/4″ RL – 3/4″

image_pdfimage_print

Product details

Gross weight41.58 kg
Net weight39.1 kg
EAN5702428839525



Approval standardCE
UL
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V/Ph/Hz]400/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Cylinder2
DescriptionMT080-4
Diameter [mm]288 mm
Discharge connection height [mm]74 mm
Discharge connection mounting torque [Nm]90 Nm
Discharge connection pipe size [in]3/4 in
Discharge connection rotolock size [in]1 1/4 in
Discharge connection size [in]1 1/4 in
Discharge connection sleeve pipe size [in]3/4 in
Drawing number8502012g
EconomizerNo
Factory HP [bar]25 bar
Factory LP [bar]25 bar
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Generation codeB
Glass mountingThreaded
Glass torque [Nm]50 Nm
GP LP torque [Nm]15 Nm
High side max pressure (Ps)27.8 bar
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.6 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]460 V
High value of voltage range at 60Hz [V]506 V
IP protection classIP55 (with cable gland)
Low side max pressure (Ps)18.4 bar
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume16.5 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA80 A
MCC18 A

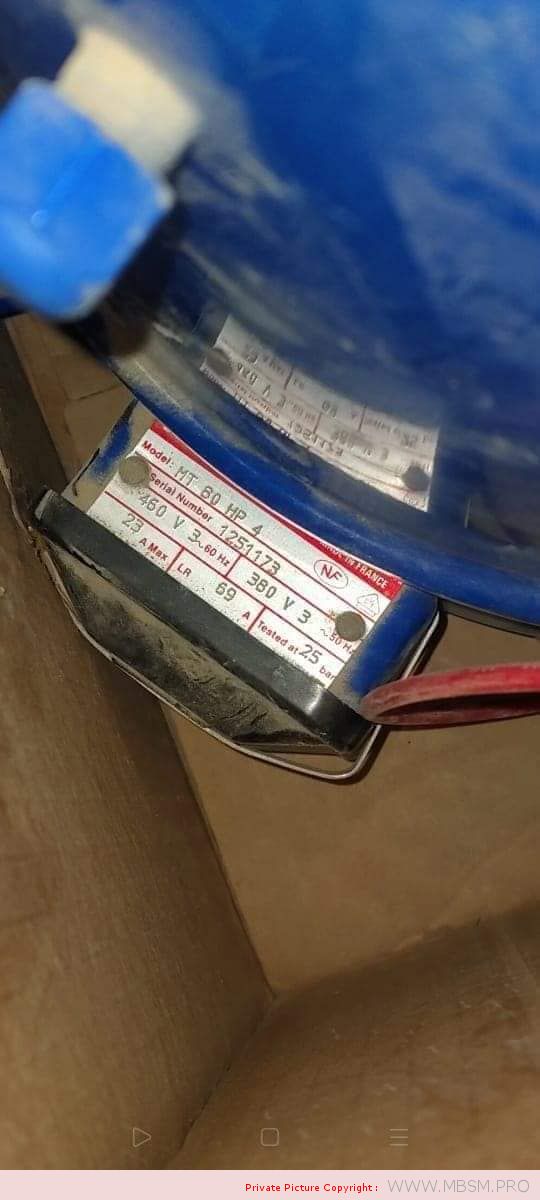

Model numberMT80HP4AVE
Motor protectionInternal overload protector
Mounting torque [Nm]15 Nm
Nominal cooling capacity 60 kBTU/h80.2 kBtu/h
Nominal cooling capacity at 50Hz17.8 kW
Nominal cooling capacity at 60Hz23.5 kW
Number of starts per hour [Max]12
Oil charge [L]1.8 L
Oil equalization3/8” flare SAE
Oil equalization torque [Nm]30 Nm
Oil reference160P
Packaging height [mm]455 mm
Packaging length [mm]395 mm
Packaging weight [Kg]44 kg
Packaging width [mm]365 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsSpade
RefrigerantR22
Refrigerant charge [kg] [Max]5 kg
Relief valve30 bar/8 bar
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageAir conditioning
Refrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]265 mm
Suction connection mounting torque [Nm]110 Nm
Suction connection pipe size [in]1 1/8 in
Suction connection rotolock size [in]1 3/4 in
Suction connection size [in]1 3/4 in
Suction connection sleeve pipe size [in]1 1/8 in
Swept volume [cm3]135.78 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 Nm
Torque power [Nm]3 Nm
Total height [mm]413 mm
TypeMT
Type designationCompressor
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]1.94 Ohm
