Product Description
Donper Refrigeration Compressr r134A
– Famous and Popular Compressors
– D series hermetic compresors for R134A mainly are designed for applications in water dispenser, small freezer. The main characteristics of D series are light weight, compact size, high reliability, low noise and low vibration.
– R134A S series hermetic compressor mainly are designed for applications in water dispenser, small refrigerator, small freezer. The main characteristics of S series are light weight and compact size, reliability, low noise and high low vibration. By the optimal design of the suspension system and the continuous curvarure design of its housing, low operating vibration and sound levels have been achieved.
| R600a Series | |||||||||||
| Refrige-rant | Applica-tion | Model | Series | Power | Cooling | Motor type | Power supply | Cooling capacity | COP W/W | ||
| *ASHRAE -23.3 | *CECOMAF -25 | *ASHRAE -23.3 | *CECOMAF -25 | ||||||||
| R600a | LBP | W40CY | IN | 1/14 | S | hatch | 220/50 | 55 | 43 | 0.9 | 0.75 |
| R600a | LBP | S53CY | S | 1/10 | S | hatch | 220/50 | 75 | 57 | 1.2 | 0.95 |
| R600a | LBP | S65CY | S | 1/8 | S | hatch | 220/50 | 95 | 72 | 1.2 | 0.95 |
| R600a | LBP | S75CY | S | 1/7 | S | hatch | 220/50 | 118 | 86 | 1.2 | 0.95 |
| R600a | LBP | SK53CY | S | 1/10 | S | RSCR | 220/50 | 75 | 57 | 1.3 | 1.03 |
| R600a | LBP | L76CY | L | 1/6 | S | hatch | 220/50 | 132 | 100 | 1.36 | 1.07 |
| R600a | LBP | L88CY | L | 1/5 | S | hatch | 220/50 | 153 | 116 | 1.36 | 1.07 |
| R600a | LBP | QD60AY | NOT | 1/7 | S | hatch | 100/60 | 125 | 95 | 1.35 | 1.07 |
| R600a | LBP | QD76Y | NOT | 1/6 | S | hatch | 220/50 | 132 | 100 | 1.36 | 1.07 |
| R600a | LBP | QD88Y | NOT | 1/5 | S | hatch | 220/50 | 153 | 116 | 1.36 | 1.07 |
| R600a | LBP | QD100Y | NOT | 1/5 + | S | hatch | 220/50 | 170 | 129 | 1.38 | 1.09 |
| R600a | LBP | QD123Y | NOT | 1/4 | S | hatch | 220/50 | 187 | 142 | 1.38 | 1.09 |
| R600a | LBP | LK88CY | L | 1/5 + | S | RSCR | 220/50 | 160 | 122 | 1.58 | 1.25 |
| R600a | LBP | QD100YG | NOT | 1/4 + | S | RSCR | 220/50 | 180 | 137 | 1.58 | 1.25 |
| R600a | LBP | QD135YG | NOT | 1/4 + | S | RSCR | 220/50 | 215 | 163 | 1.58 | 1.23 |
| R600a | LBP | QD153YG | NOT | 1/4 + | S | RSCR | 220/50 | 246 | 184 | 1.58 | 1.23 |
| R600a | LBP | LU68CY | L | 1/7 | S | RSCR | 220/50 | 120 | 91 | 1.56 | 1.22 |
| R600a | LBP | QD68YU | NOT | 1/7 | S | RSCR | 220/50 | 120 | 91 | 1.56 | 1.22 |
| R600a | LBP | QD76YU | NOT | 1/6 | S | RSCR | 220/50 | 140 | 106 | 1.65 | 1.3 |
| R600a | LBP | QD88YU | NOT | 1/5 | S | RSCR | 220/50 | 160 | 122 | 1.68 | 1.33 |
| R600a | LBP | QD100YU | NOT | 1/4 | S | RSCR | 220/50 | 180 | 137 | 1.7 | 1.34 |
| R600a | LBP | QD123YU | NOT | 1/4 | S | RSCR | 220/50 | 196 | 150 | 1.68 | 1.3 |
| R600a | LBP | QD135YU | NOT | 1/4 + | S | RSCR | 220/50 | 220 | 168 | 1.68 | 1.3 |
| R600a | LBP | QD153YU | NOT | 1/4 + | S | RSCR | 220/50 | 248 | 189 | 1.65 | 1.28 |
| R600a | LBP | QD68YZ | NOT | 1/6 | S | RSCR | 220/50 | 120 | 91 | 1.8 | 1.42 |
| R600a | LBP | QD76YZ | NOT | 1/6 | S | RSCR | 220/50 | 140 | 106 | 1.8 | 1.42 |
| R600a | LBP | QD88YZ | NOT | 1/5 + | S | RSCR | 220/50 | 165 | 125 | 1.8 | 1.42 |
| R600a | LBP | QD100YZ | NOT | 1/4 + | S | RSCR | 220/50 | 185 | 141 | 1.8 | 1.42 |
| R600a | LBP | QD135YZ | NOT | 1 / 3- | S | RSCR | 220/50 | 220 | 168 | 1.8 | 1.42 |
| R600a | LBP | QD60YT | NOT | 1/8 | S | ESCR | 220/50 | 106 | 81 | 1.88 | 1.48 |
| R600a | LBP | QD68YT | NOT | 1/7 | S | ESCR | 220/50 | 126 | 96 | 1.9 | 1.5 |
| R600a | LBP | QD76YT | NOT | 1/6 | S | ESCR | 220/50 | 146 | 111 | 1.94 | 1.53 |
| R600a | LBP | LU68PY | L | 1/7 | S | BLDC | 220/50 | 120 | 91 | 1.65 | 1.3 |
| R600a | LBP | LU68PY | L | 1/5 | S | BLDC | 220/50 | 160 | 122 | 1.65 | 1.3 |

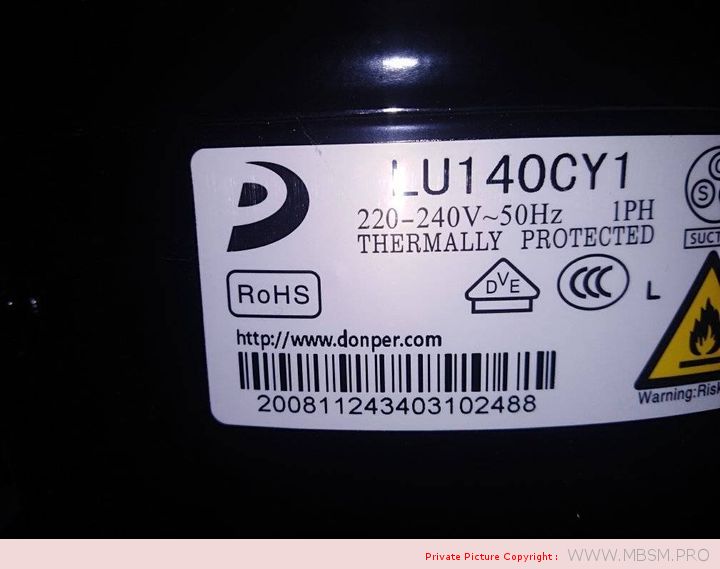

| Model no | L140CY1 | Refrigerant | R600a |
| Cooling capicity | 230W | Input power | 170W |
| Hose Power | 1/3- HP | Temperature application | LBP |
| Displacement | 14cm³ | Working Current | 1.3A |
| Voltage | 220V~240V/50Hz | COP | 1.35W/W |
| Motor type | RSIR | Cylinder capacity | 14cm³ |
| Cooling type | Need a fan motor | Weight | 8.6±0.4kg |
