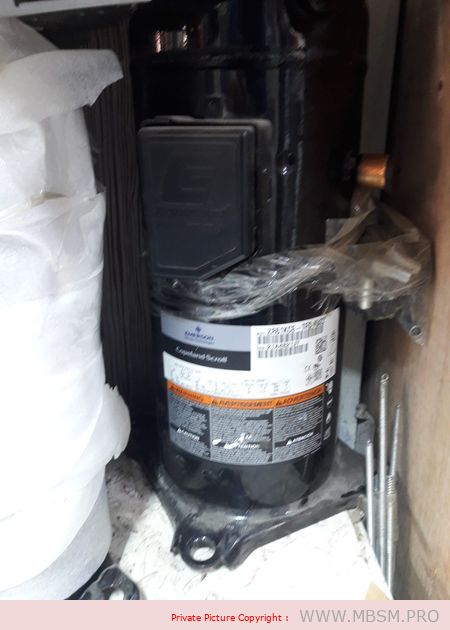

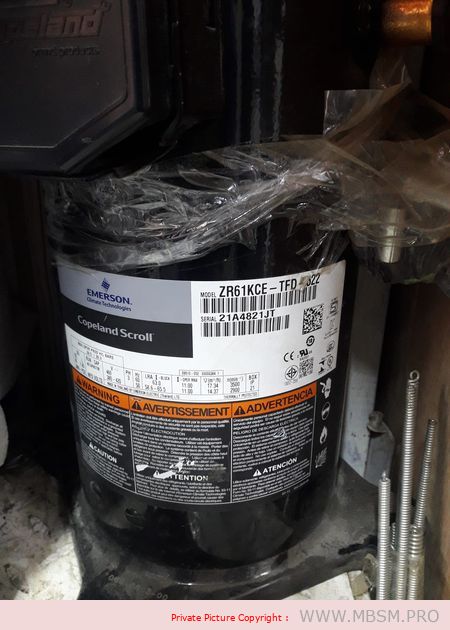

Mbsm.pro, COPELAND, COMPRESSOR, ZR61KCE-TFD-522, 5.1 hp, 5 ton, 58000 btu

Product information “Compressor COPELAND ZR61KCE TFD 522”
Hermetic compressor Copeland Scroll ZR61KCE-TFD 522 – R22, R407C, 380-420V/50Hz, with protective gas filling, oil filling and rubber vibration damper, suitable for air conditioning and normal cooling. Delivery volume: 14.4 m³/h Power: 5 PS Engine type: TFD Evaporating temperature: -20 to +10°C Cooling capacity (0°C): 13,44 kW Noise level: 60 dB – 1 m Oil filling: 1.66 L max Operating current (FLA): 11 A Dimensions (LxWxH): 241x247x438 mm Connections: 7/8″ x 1/2 “x 1/2”. Net weight: 79.5 kg Recommended oil sump heater (capacity/diameter): 70 W / 165 mm. during the development of the Copeland Scroll compressors for air-conditioning technology, particular attention was paid to high efficiency and reliability at their special operating point in air-conditioning technology and process cooling (evaporation temperatures of approx. +5°C) Properties such as soldered joints, the possibility of using two compressors as a tandem or suitability for different refrigerants meet the requirements of an increasingly demanding market, cooling capacity measured for condensation temperature of: 40°C, refrigerant R407C, measuring conditions: EN12900
Anschluss / Verdichtervariante: TFD-522
Compressor type: Scroll
Condensation temperature: 40 °C
Condensing units Compressors: Compressor
Connection Size: Connection Size
Cooling capacity (W) at To -5°C: 14700
Cooling capacity (W) at To 5°C: 10100
Delivery and suction volume (m3): 14,4
Design: Design, Design
Dimensions ( length × width × height ): 24.10 × 24.70 × 45.10 cm
Displacement: 82.59
Field of application: Field of application
Info: Oil prefilled
Manufacturer: Copeland, Copeland Emerson
Max. Operating current (A): 11
Max. Starting current (A): 65
Measuring conditions: EN12900
Model range / field of application: ZR
Oil quantity (l): 1,66
Power (W): 12500
Power + model variant: 61KCE
Power range (C): -20 C to +12.5 C
Power range (W): 10 – 15 kW
Power range (hp): 4-6
Power supply: 400 V
Pressure line (inch): 1/2
Rated power (hp): 5
Refrigerant: R22, R134a, R404A, R407C, R507A
Scope of application: HBP
Series: ZR
Suction line (inch): 7/8
Suction side: 7/8″
Voltage: 380-420V
cooling capacity (W) at To -10°C: 8250
cooling capacity (W) at To -15°C: 6600
cooling capacity (W) at To -20°C: 5050
cooling capacity (W) at To 0°C: 12200
cooling capacity (W) at To 10°C: 17600
dbA @ 1m: 60
Numéro De Modèle Source De Courant Capacité R22 À 7,2 Degrés C SST Charge D’huile Lester
ZR28K3E-TFD-522 415V N / A 6900W 1,01 litre 25,4 kg
ZR40K3E-TFD-522 415V N / A 10300W 1,12 litre 27,7 kg
ZR47KCE-TFD-522 415V N / A 11500W 1,24 litre 29,9 kg
ZR48KCE-TFD-522 415V N / A 11850W 1,24 litre 28,1 kg
ZR54KCE-TFD-522 415V N / A 13200W 1,83 litre 35,8 kilogrammes
ZR57KCE-TFD-522 415V N / A 13900W 1,83 litre 36,3 kg
ZR61KCE-TFD-522 415V N / A 14900W 1,83 litre 37,2 kg
ZR68KCE-TFD-522 415V N / A 16800W 1,66 litre 38,6 kilogrammes
ZR72KCE-TFD-522 415V N / A 17700W 1,66 litre 38,6 kilogrammes
ZR81KCE-TFD-522 415V N / A 19900W 1,66 litre 39,9 kg
ZR94KCE-TFD-522 415V N / A 23300W 2,4 litres 57,2 kilogrammes
ZR108KCE-TFD-522 415V N / A 26400W 3,13 litres 60,3 kg
ZR125KCE-TFD-522 415V N / A 31100W 3,13 litres 61,2 kg
ZR144KCE-TFD-522 415V N / A 35200W 3,13 litres 61,2 kg
ZR160KCE-TFD-522 415V N / A 37700W 3,38 litres 64,9 kg
ZR190KCE-TFD-522 415V N / A 45900W 3,38 litres 66,2 kilogrammes
Des modèles Puissance
nominale
Capacité Puissance d’entrée
(W)
Courant
(A)
COP
(W/W)
EER
(Btu/Wh)
Cylindrée
(cc/ Rev.)
Quantité d’huile
(l)
Poids net
(Kg)
LRA
(A)
Pression sonore
à 1 m
(dBA)
(W) (Btu/h)
TFD 5.1 12 350 42 200 3 550 6.4 3.49 11.9 82,6 1,95 36.1 63,0 63,0
TF5 12 150 41 500 3 710 13.1 3.28 11.2 35.4 128,0
