Mbsm.pro, Compressor, kcn463hag, COPELAND, R134A, 0.5HP, 1538W

Download Attachments

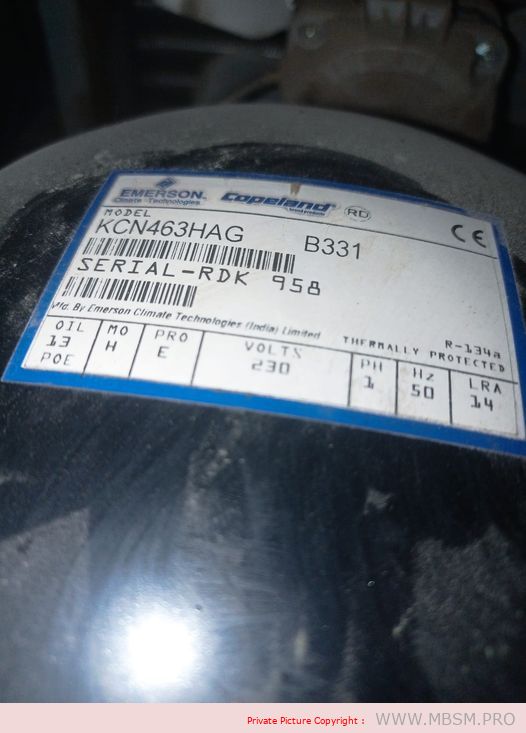

The Copeland Compressor KCN463HAG has a cooling capacity of 5252 Btu/hr or 1538 W. It is a 1/2 horsepower compressor and has a LRA (locked rotor amps) of 14.

Here is a table of the compressor’s technical specifications:

Specification Value
Cooling capacity (Btu/hr) 5252
Cooling capacity (W) 1538
HP 1/2
LRA 14
Refrigerant R-134a
Operating temperature range -20 to 65 degrees C
Sound level 74 dB(A)



The KCN463HAG compressor has a cooling capacity of 5252 Btu/hr or 1538 W. This means that it can cool a space of about 250 square feet. It has a half-horsepower (HP) rating and a running current of 2.2 amps. It is a hermetic reciprocating compressor that is compatible with R-134a refrigerant.

Here are some of the other specifications of the KCN463HAG compressor:

  • Voltage: 230V, 1Ph, 50Hz
  • Ambient temperature range: -6.7 to 12.8 degrees Celsius (20 to 55 degrees Fahrenheit)
  • Liquid subcooling: 8.3 degrees Celsius (15 degrees Fahrenheit)
  • Compressor speed: 3500 RPM
  • Sound level: 73 dB(A)
