Mbsm.pro, Freezer, Electrostar, 210 L, ES210ST, Compressor, Donper, L65CZ1, 1/5 hp, lbp, R134 A, 130 G, 220-244V, 50Hz, 140 w, 1 A, Class T

Category: expertise,Freezer
written by www.mbsm.pro | 22 May 2022

Mbsm.pro, Compressor, Donper, L65CZ1, 220-244V, 50Hz, 1/5 hp, R134a, lbp

Mbsm.pro, Freezer, Electrostar, 210 L, ES210ST, Compressor, Donper, L65CZ1, 1/5 hp, lbp, R134 A, 220-244V, 50Hz



Mbsm.pro, Compressor, QBH73C13GAE, 1/4 hp, RSIR, Reciprocating Compressors, Fixed Speed, Q Series, R134a, LBP

Category: compressor
written by www.mbsm.pro | 22 May 2022

QBH73C13GAE(RSIR) : Reciprocating Compressors (Fixed Speed)

ProductReciprocating Compressors (Fixed Speed)

Series/TypeQ Series (Reciprocating Fixed Speed, R134a, LBP)

Parts noQBH73C13GAE(RSIR)

Item Performance characteristics
Refrigerant R134a
Displacement (cm³) 7.3
Voltage (V) 220
Frequency (Hz) 50/60
Motor Type RSIR
Capacity@ASHRAE 202/265
COP@ASHRAE 1.3/1.42
Capacity@CECOMAF –

Mbsm_dot_pro_private_PDF_QBH73C13GaeTélécharger
Mbsm_dot_pro_private_PDF_file_compressor_matsushita__panasonic_125Télécharger


Mbsm.pro, Compressor, Gree, Rotary Compressors, QXSH-F42E030, 24000 BTU/HR, 2 ton, 3 Hp, 1PH / 220 v, r22

Category: compressor
written by www.mbsm.pro | 22 May 2022

Technical Features

Refrigerant: R22
Displacement: 42.0 Cm3/Rev
Capacity: 24000 BTU
Power Input: 2238 W
Application: Air Conditioning
Cop(W/W): 3.25
BRAND GREE
COMPRESSOR TYPE ROTARY
POWER SUPPLY 220-240V
REFRIGERANT R22
FREQUENCY (HZ) 50
APPLICATION ROOM AIR-CONDITIONER（T3 CONDITION)
REFRIGERANT CHARGE LIMIT 2000G MAX
VOLTAGE (RATED VOLTAGE)/FREQUENCY/PHASE 220-240 V~(230V)/50 HZ/1 PHASE
PUMP TYPE ROTARY
THE NUMBER OF CYLINDERS DOUBLE CYLINDER
CYLINDER NOMINAL VOLUME 42 CM3
BRAND OF REFRIGERANT OIL ATMOS-NM56EP OR EQUIVALENT
REFRIGERANT OIL CHARGE 850 ML
WEIGHT(REFRIGERANT OIL INCLUDED) 23 KG
SUCTION PIPE I.D. Φ15.6±0.05 MM
DISCHARGE PIPE I.D . Φ9.7±0.06 MM



Mbsm.pro, compressor, qp325pba, 2 hp, 1856 w, r22, 20000 btu/h, 1PH, 220-240V, 50Hz , QJ series LG compressor

Category: compressor
written by www.mbsm.pro | 22 May 2022

More QJ series LG compressor model as follow:

Power Source Model Cooling Capacity Motor Input EER COP c
[Btu/hr] [Watts] [Watts] [Btu/W.hr] [W/W] [cc]
1PH, 220-240V, 50Hz QP325P 19200 19300 5626 5656 1778 1856 10.8 10.4 3.16 3.05 700
QP348P 20500 20600 6007 6037 1884 1967 10.9 10.5 3.19 3.07 700
QP376P 22600 22700 6623 6652 2112 2183 10.7 10.4 3.14 3.05 700
QP390P 23000 23200 6740 6799 2130 2188 10.8 10.6 3.16 3.11 700
QP407P 24050 24300 7048 7121 2227 2314 10.8 10.5 3.16 3.08 700
QP425P 25000 25100 7326 7355 2336 2346 10.7 10.7 3.14 3.14 700
QP442P 26000 26100 7619 7648 2430 2534 10.7 10.3 3.14 3.02 700
QP464P 27600 27700 8088 8117 2654 2885 10.4 9.6 3.05 2.81 700
1PH, 200-220V, 50Hz QP325J 19200 5626 1829 10.5 3.08 700
QP376J 22500 6594 2102 10.7 3.14 700
QP407J 24700 7239 2287 10.8 3.17 700
QP425J 25860 7579 2370 10.9 3.19 700
QP442J 26860 7872 2633 10.2 2.99 700
3PH, 380-420V QP325Y 19200 19400 5626 5685 1778 1796 10.8 10.8 3.16 3.17 700
QP425Y 25000 25400 7326 7443 2380 2419 10.5 10.5 3.08 3.08 700
QP442Y 26000 26300 7619 7707 2430 2500 10.7 10.5 3.14 3.08 700
Power Source Model Cooling Capacity Motor Input EER COP c
[Btu/hr] [Watts] [Watts] [Btu/W.hr] [W/W] [cc]
1PH, 220-240V, 50Hz QP325P 19200 19300 5626 5656 1778 1856 10.8 10.4 3.16 3.05 700
QP348P 20500 20600 6007 6037 1884 1967 10.9 10.5 3.19 3.07 700
QP376P 22600 22700 6623 6652 2112 2183 10.7 10.4 3.14 3.05 700
QP390P 23000 23200 6740 6799 2130 2188 10.8 10.6 3.16 3.11 700
QP407P 24050 24300 7048 7121 2227 2314 10.8 10.5 3.16 3.08 700
QP425P 25000 25100 7326 7355 2336 2346 10.7 10.7 3.14 3.14 700
QP442P 26000 26100 7619 7648 2430 2534 10.7 10.3 3.14 3.02 700
QP464P 27600 27700 8088 8117 2654 2885 10.4 9.6 3.05 2.81 700
1PH, 200-220V, 50Hz QP325J 19200 5626 1829 10.5 3.08 700
QP376J 22500 6594 2102 10.7 3.14 700
QP407J 24700 7239 2287 10.8 3.17 700
QP425J 25860 7579 2370 10.9 3.19 700
QP442J 26860 7872 2633 10.2 2.99 700
3PH, 380-420V QP325Y 19200 19400 5626 5685 1778 1796 10.8 10.8 3.16 3.17 700
QP425Y 25000 25400 7326 7443 2380 2419 10.5 10.5 3.08 3.08 700
QP442Y 26000 26300 7619 7707 2430 2500 10.7 10.5 3.14 3.08 700

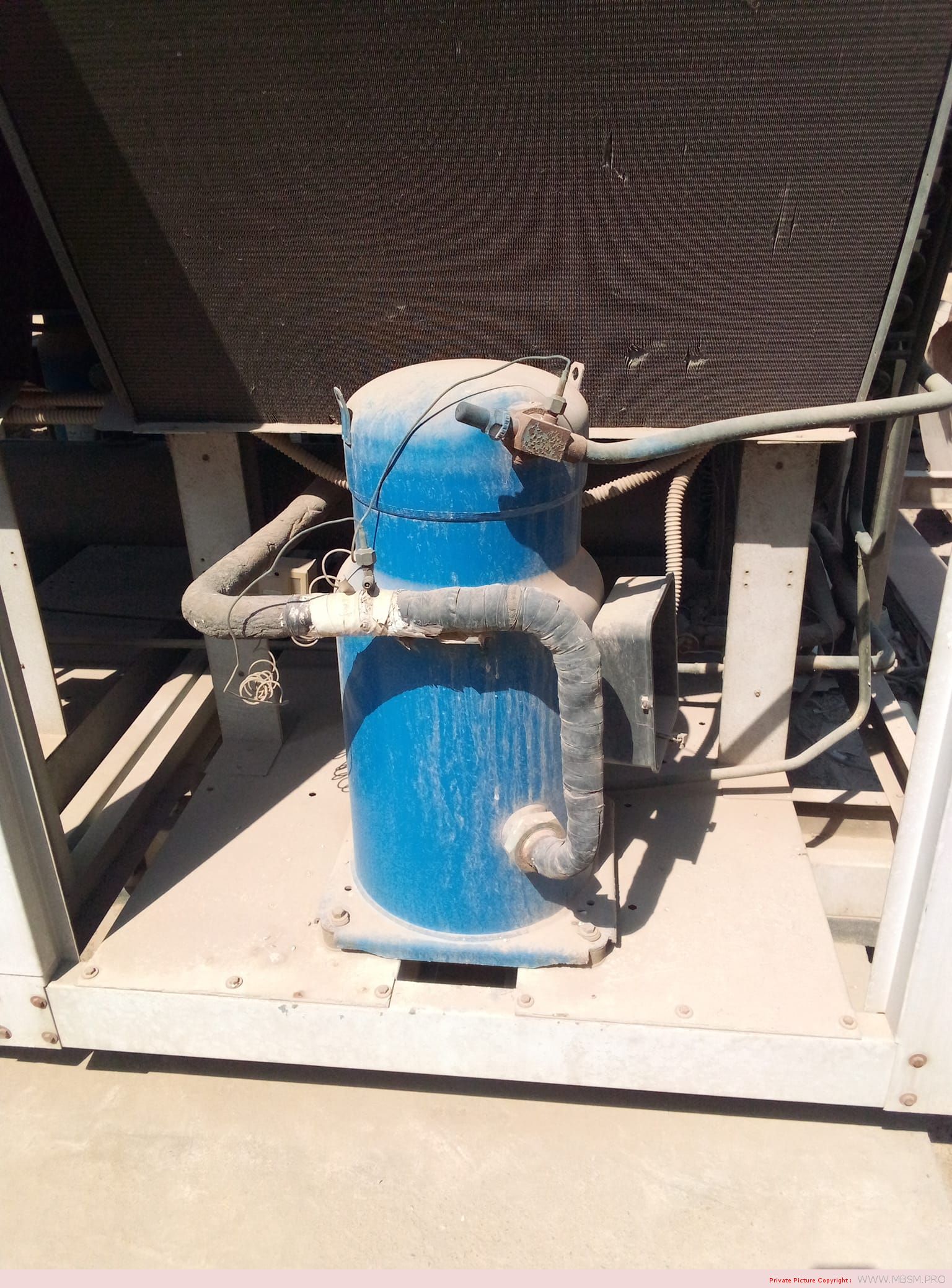

Mbsm.pro, Compressor, SM185, DANFOSS REFRIGERATION, Scroll compressor, SM185S4RC, Danfoss Scroll,188000 btu/h, R22, 15 hp, 3 ph / 400 v

Category: compressor
written by www.mbsm.pro | 22 May 2022

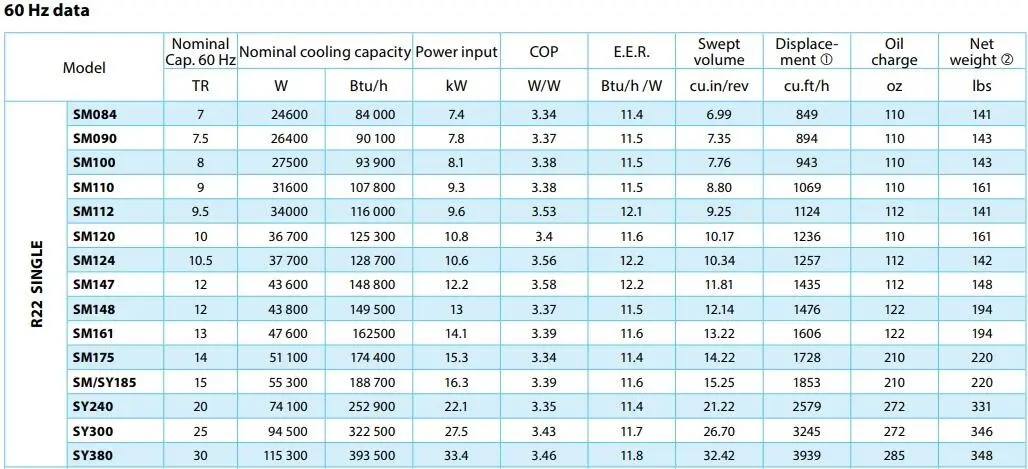

Model Nominal Cooling Nominal cooling capacity input power efficiency sound power level Displancement Displancement lubricant weight
50Hz COP E.E.R charge Kg
HP W Btu/h kW W/W Btu/h/W dBA cm3rev m3/h dm3
SM084 7 20400 69600 6.12 3.33 11.4 70 114.5 19.92 3.25 72
SM090 7.5 21800 74400 6.54 3.33 11.4 70 120.5 20.97 3.25 72
SM100 8 23100 79000 6.96 3.33 11.3 70 127.2 22.13 3.25 72
SM110 9 25900 88600 7.82 3.32 11.3 75 144.2 25.09 3.25 80
SM115 9.5 28000 95600 8.31 3.37 11.5 76 155 26.97 3.8 80
SM120 10 30100 102800 8.96 3.36 11.5 75 166.6 28.99 3.25 80
SM125 10 30100 102800 8.93 3.37 11.5 76 166.6 28.99 3.8 80
SM148 12 36100 123200 10.8 3.34 11.4 79 199 35.82 3.3 86
SM160 13 39100 133500 11.6 3.37 11.5 79.5 216.6 37.69 4 94
SM161 13 39000 133200 11.59 3.37 11.5 79.5 216.6 37.69 3.3 86
SM175 14 42000 143400 12.46 3.37 11.5 80 233 40.54 6.6 103
SM185 15 45500 155300 13.62 3.34 11.4 80 249.9 43.48 6.6 103
SY240 20 61834 211760 18.78 3.29 11.2 81.6 347.8 60.52 8 160
SY300 25 78086 267400 23.6 3.31 11.3 81.6 437.5 76.1 8 185



MORE INFO

Refrigerant: R22, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60

Gross weight 104.2 Kg
Net weight 101 Kg
EAN 5702428046657
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Description SM185-4
Diameter [mm] 317 mm
Discharge connection height [mm] 643 mm
Discharge connection mounting torque [Nm] 110 N-m
Discharge connection pipe size [in] 0.875 in
Discharge connection rotolock size [in] 1.75 in
Discharge connection size [in] 1.75 in
Discharge connection sleeve pipe size [in] 0.875 in
Drawing number 8551119b
Economizer No
Factory HP [bar] 33 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code C
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 440 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP54 (with cable gland)
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 414 V
LRA 175 A
Maximum Operating Current [MOC] 35 A
MMT 35 A
Model number SM185S4RC
Motor protection Internal thermostat, ext. overload protector needed
Mounting torque [Nm] 21 N-m
Nominal cooling capacity 60 kBTU/h 185.32 KBtu/h
Nominal cooling capacity at 50Hz 41.1 kW
Nominal cooling capacity at 60Hz 54.3 kW
Number of starts per hour [Max] 12
Oil charge [L] 6.2 L
Oil drain 1/4” flare
Oil drain torque [Nm] 35 N-m
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 48 N-m
Oil reference 160P
Oil type Mineral
Packaging height [mm] 877 mm
Packaging length [mm] 1140 mm
Packaging weight [Kg] 648 kg
Packaging width [mm] 950 mm
Packing format Industrial pack
Packing quantity 6
Phase 3
Power connections Screw 4.8 mm
Product type SM
Refrigerant R22
Refrigerant charge [kg] [Max] 13.5 kg
Relief valve None
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 180 mm
Suction connection mounting torque [Nm] 130 N-m
Suction connection pipe size [in] 1.375 in
Suction connection rotolock size [in] 2.25 in
Suction connection size [in] 2.25 in
Suction connection sleeve pipe size [in] 1.375 in
Swept volume [cm3] 249.9 cm3
Technology Scroll
Test dif [bar] [Max] 24 bar
Test HP [bar] [Max] 32 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 2 N-m
Torque Ebox cover [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 678 mm
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.77 Ohm

Mbsm_dot_pro_private_PDF_sm1855arcTélécharger


Mbsm.pro, Air conditioner, Sharp, AE-a12fme, 12000 btu, r22, 860 g, 1.5 hp, 1 ton, cooling, heating, T1, PH 1

Category: air conditioner
written by www.mbsm.pro | 22 May 2022

Mbsm.pro, Air conditioner, Sharp, AE-a12fme, 12000 btu, r22, 860 g, 1.5 hp, 1 ton, cooling, heating, T1, PH 1

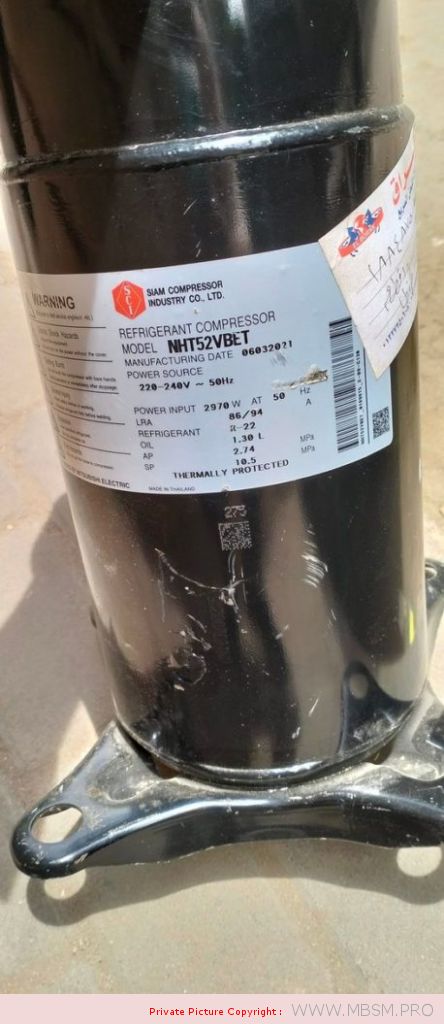

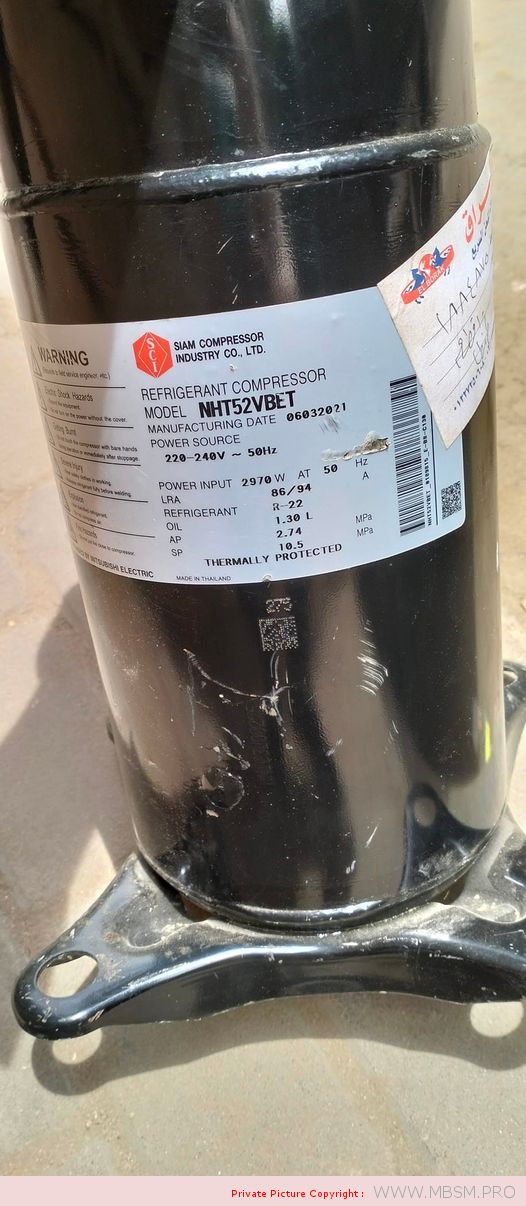

Mbsm.pro, compressor, nht52vbet, 4 hp, SIAM, 2970w, 12000 btu, 1 ton, r22, capillarie 0.064, 220V – 240V 50Hz, SIAM COMPRESSOR, MITSUBISHI

Category: expertise
written by www.mbsm.pro | 22 May 2022

Mbsm.pro, compressor, nht52vbet, 4 hp, SIAM, 2970w, 12000 btu, 1 ton, r22, capillarie 0.064, 220V – 240V 50Hz, SIAM COMPRESSOR, MITSUBISHI

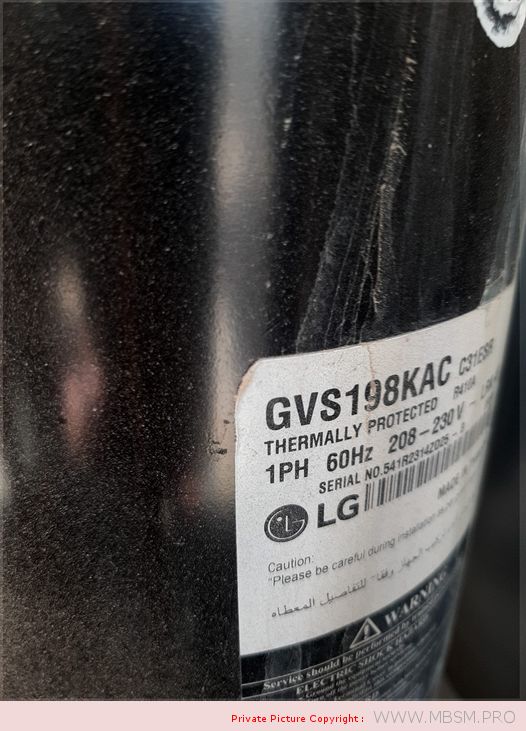

Mbsm.pro, compressor, gvs198kac, 20500 btu, 6008 w, r410, 1 piston, 1 phase, 230v / 60 hz, 1.7 ton, 8 hp

Category: air conditioner,compressor
written by www.mbsm.pro | 22 May 2022

Mbsm.pro, compressor, gvs198kac, 20500 btu, 6008 w, r410, 1 piston, 1 phase, 230v / 60 hz, 8 hp

Mbsm_dot_pro_private_PDF_gvs198kacTélécharger


Mbsm.pro, compressor, Hermetic, Tecumseh, 2 HP, Tecumseh Refrigeration Compressor, Fh4524f, r22, MHBP, ++big

Category: compressor
written by www.mbsm.pro | 22 May 2022

Size and Dimensions

Connection Size (Liquid) 1/2″ Valve
Connection Size (Suction) 5/8″ Valve

Inclusions and Exclusions

Inclusions Anti-Vibration mounts supplied
Crankcase Heater
Oil Sight Glass
Suction and Discharge Rotalock Valves

Features

Anti-Vibration mounts supplied
Charged with mineral oil and dry nitrogen
Crankcase heater on FH/TFH and TAG models
Oil sight glass on FH/TFH and TAG models
Fan cooling required on all models
All models suit capillary tube or expansion valve operation
Rotalock suction and discharge valves on FH/TFH and TAG models

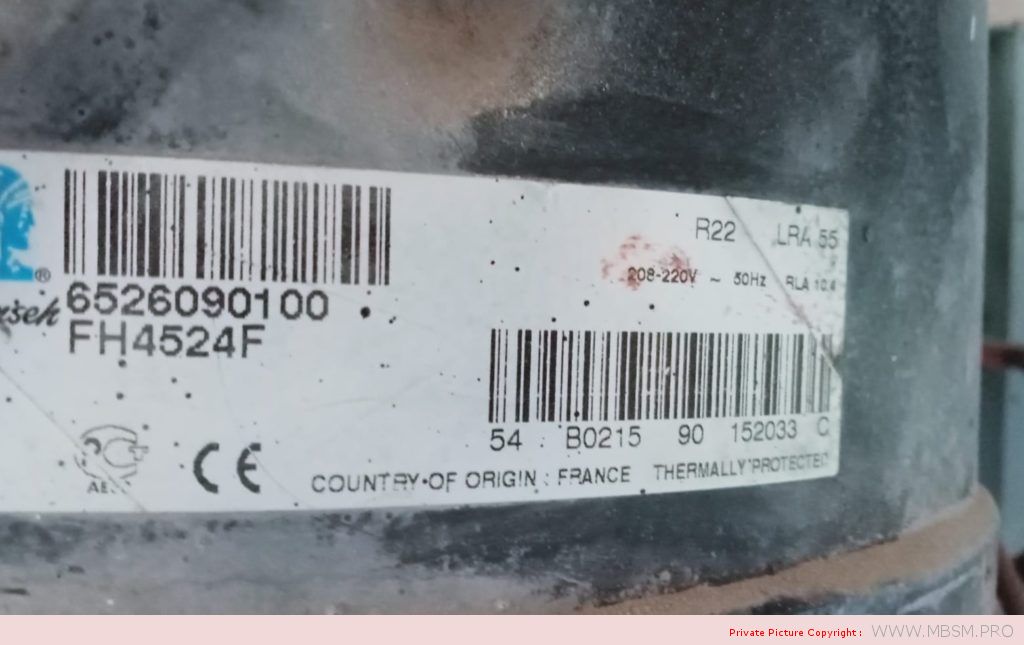

Model Number FH4524F
Compressor Model FH4524F
Product Range FH Series

Technical Information

General Information

Refrigerant Type R417A, R422B
Application MHBP
Motor Type CSR
Compressor Horsepower 2 HP
Compressor Displacement 43.5 cm3/rev
Oil Charge 1330 ml
Specifications Capacity Rating Basis: 35 deg C Ambient, 11K Return Gas Superheat, 54.5 deg C Condensing, 46 deg C Liquid entering Expansion Valve. Current FLA are given at nominal voltage, rated conditions and 7.2 deg C evaporating temperature.
VBIS Tag RE-Co-He

Power Information

Compressor Phase 1
Compressor Electrical Supply 240V
Compressor Hertz 50Hz
Compressor MOC 15.9 A
Power Supply 240V

R22 Capacity Data

-15 Deg C 1841 W
-10 Deg C 2456 W
-5 Deg C 3219 W
0 Deg C 4131 W
15 Deg C 7759 W

Mbsm_dot_pro_private_PDF_fh4524f-1Télécharger

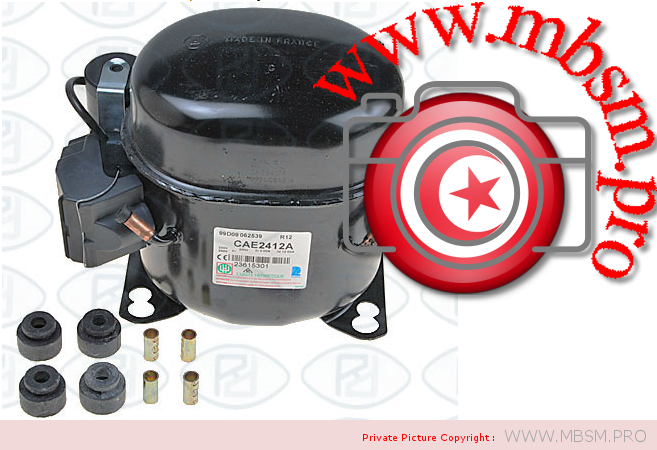

Mbsm.pro, compressor, 3/8 hp, cae2412a, r12, lbp, Freezing, 310 w

Category: compressor
written by www.mbsm.pro | 22 May 2022
L’Unite Hermetique manufacture a complete range of hermetic compressors, for use on the following refrigerants R134a, R404A and R22.

LBP = Low Back Pressure.

Compressor Motor Types
RSIR = Resistive start inductive run
CSIR = Capacitor start inductive run
CSR  = Capacitor start and run

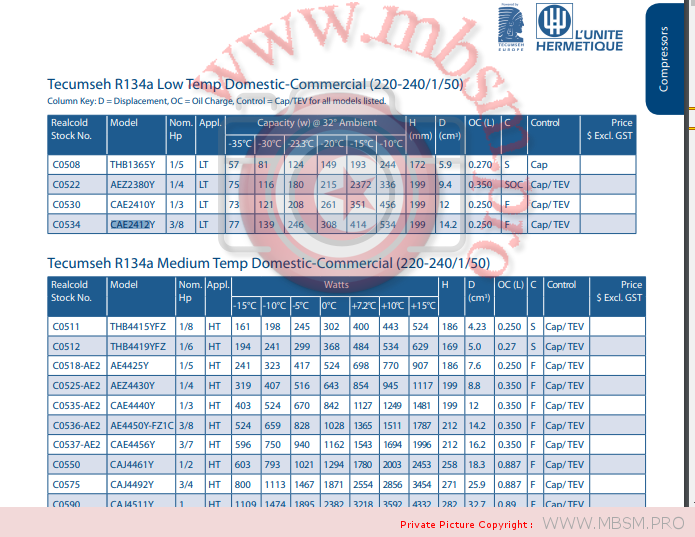

Technical Data

Compressor Model Motor (HP) Displ
C.C.		 Capacity
 (Watts)		 Comp.
Cooling		 Expansion
Device		 Motor      Type
R12 LBP
AZ1320A 1/14 2.25 37 N C RSIR
AZ1328A 1/14 2.95 51 N C RSIR
AZ1335A 1/8 3.6 68 N C RSIR
AZ1340A 1/10 4 78 N C RSIR
AEZ1360A 1/5 7.55 114 F C RSIR
AEZ1380A 1/4 8.85 144 F C RSIR
AEZ1380C 1/4 8.1 154 F C/V CSIR
AE1410A 1/3 12.05 186 F C RSIR
CAE2410A 1/3 12.05 186 F C/V CSIR
AE1412A 3/8 14.15 232 F C RSIR
CAE2412A 3/8 14.15 232 F C/V CSIR
CAJ2T12 1/2 26.15 455 F C/V CSIR

Mbsm_dot_pro_private_PDF__cae2412aTélécharger
Mbsm_dot_pro_private_PDF_cae2412aTélécharger
