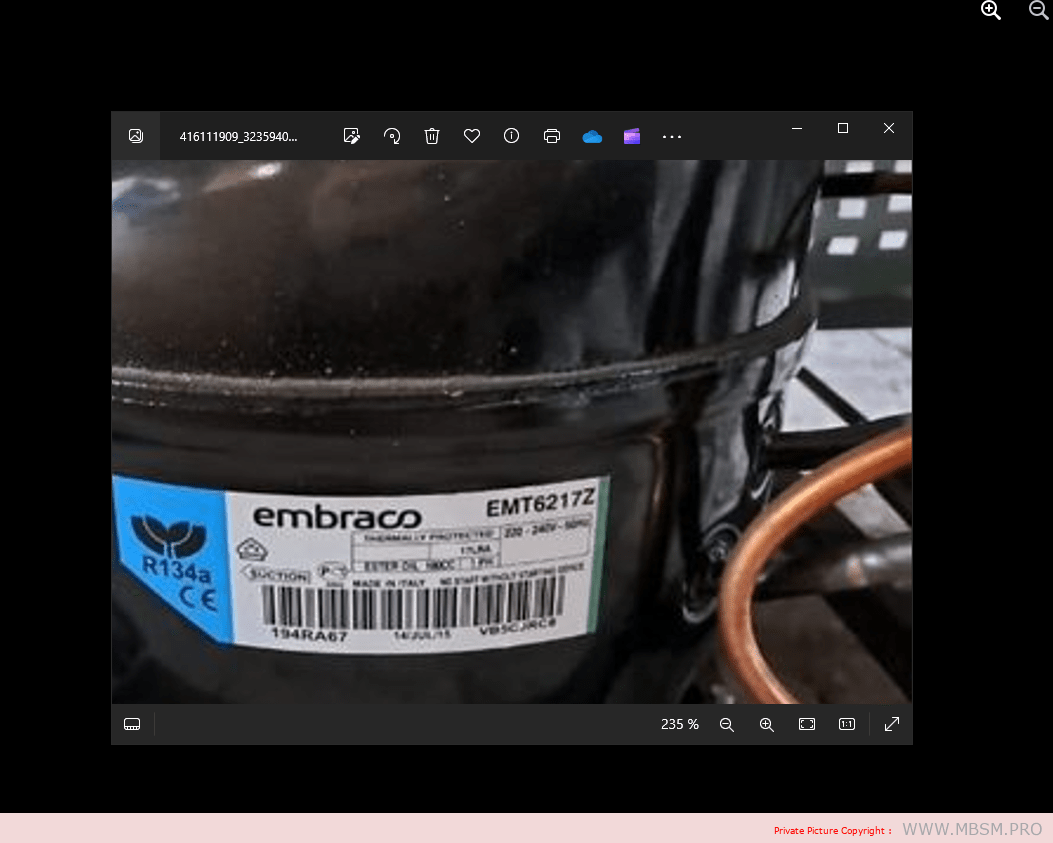

Mbsm.pro, Compressor, Embraco, Emt6217z, NT6217Z, 3/4 hp, hbp, r134a

Download Attachments


Operating voltage: 200-240 V / 50 Hz,,,230 V / 60 Hz

Freon type: R134a

Application type: High suction pressure (commercial) HBP

The temperature range for the degree of evaporation: from -15 to +10 Celsius

Motor type: with rectifying capacitor and current relay

Mechanical data

Horsepower: 3/4 HP

Type and size of oil: Aester 450 cc, ISO 22

Displacement: 20.44 cm3

Electrophysiological data

Calendar: Current relay

Rectifier capacitor: 88: 108 microfarad, 330 volts

Rectifier coil resistance: 10.40 ohms

Operating coil resistance: 2.40 ohms

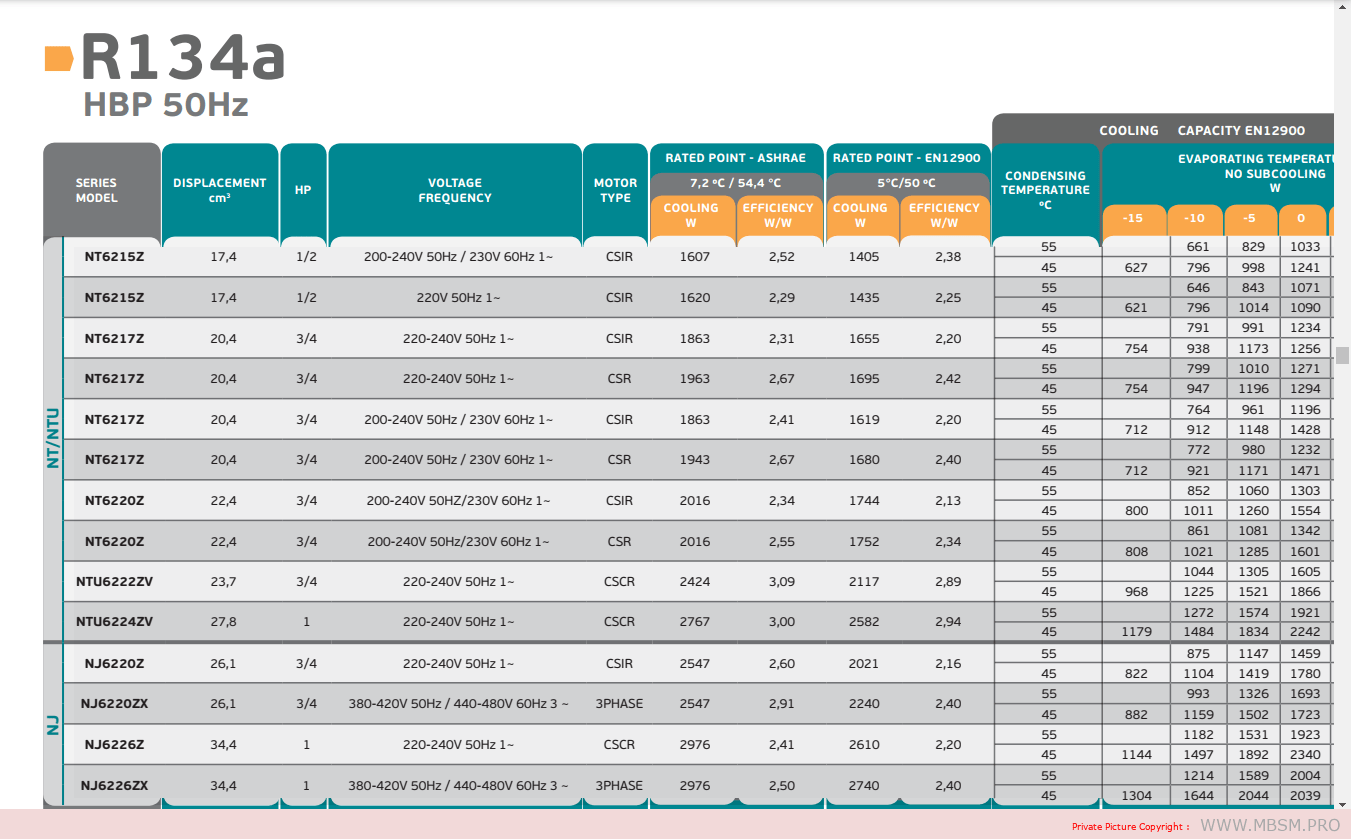

Cooling performance at 55°C condensation point

Evaporation temperatureCooling capacity watts Input electrical power Load current Performance coefficient
