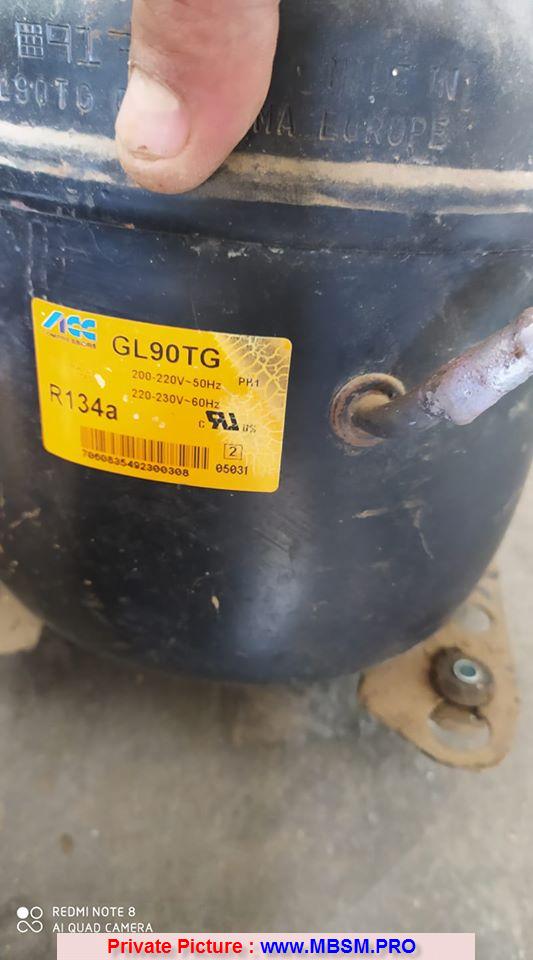

Danfoss Refrigeration, R134a,GL90TG ,220-240V 50-60Hz, R134A ,HBP ,CSIR ,compressor Haute pression avec condensateur

image_pdfimage_print


Type: Hermetic piston compressors
Producer: ACC
Series: HMBP

Model: GL90TG

General data

Refrigerant: R134a
Discharge element: C-V
Cooling: F
Maximum ambient temperature [ºC]: 43

Compressor’s data

Cylinder capacity [cm³]: 8,9
Displacement [m³/h]: 1,5
Weight [kg]: 10,8
Oil charge [cm³]: 300
Oil type: ISO VG 22 ESTER

Engine’s data

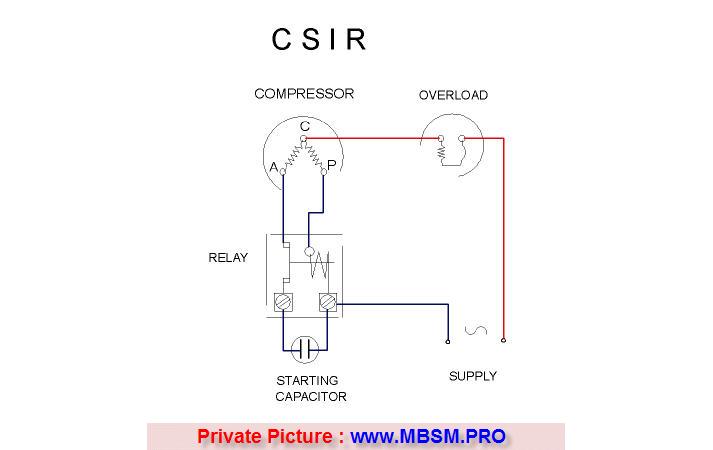

Engine type: CSIR
Power [KM]: 1/4
Starting element: HST
Power supply: 200V 50Hz
Voltage range: 170-242
Locked rotor current [A]: 12
Running winding resistance (25ºC) ]: 5,91
Starting winding resistance (25ºC) ]: 23,35

Electrical data

Relays: 9660 A 145, MTRP 46
Shielding element: MRP36AMK, T0171
Starting capacitor volume [μF]:

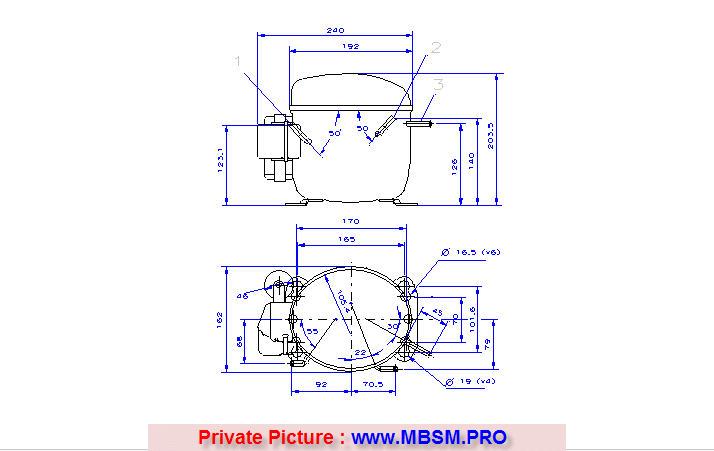

Connections
  milimeters inches
Suction/service tube: 6,5
Service/suction tube: 6,5
Discharge tube: 4,9
