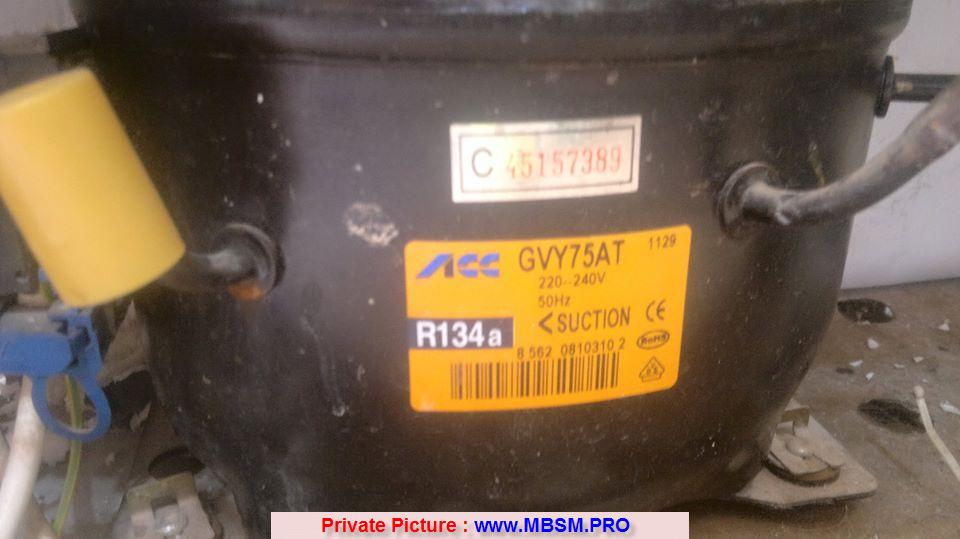

Compressor ,ACC Cubigel ,Huayi Electrolux ,ZEM GL80AA / GVY75AA, LBP – R134a, 220 – 240V/1/50Hz, 1/5 HP, discharge 7.52 cm3, motor type RSIR / RSCR, oil type ester, oil charge 180 cm3, 150 W at -25 / +55 °, input power, current 146 W, 1.16 A, expansion device: capillary, cooling: static, weight 8.6 kg

Refrigerant: R134a
Power range(W): 101 – 200 W
Performance range (C): -35 C to -10 C
Connecting size: 4,9 mm
Suction: 6,5 mm
Working area: LBP
Design type: Hermetic
Model series: GL
Use with: Capillary
Power range(HP): 0-2
Power supply: 230 V
Oil type: ISO VG 19 Ester
Engine type: RSIR RSCR
Article condition: New
Info: Oil filled
Shipping weight: 9,60 Kg
Contents: 1,00 Pieces
Dimensions ( length × width × height ): 23,10 × 16,20 × 18,60 cm
Cooling capacity condition: T0 -25 C, Tk +55 C
Manufacturer: ACC Cubigel Huayi Electrolux ZEM
Model: GL80AA
Modelname: GVY75AA
Stroke volume (cm3): 7,52
Cooling capacity (W): 144
Power (HP): 0,25
Max. Starting current (A): 11,5
Max. Operating current (A): 1,16
Engine type: RSIR / RSCR
COP: 0,88
Note: Static cooling
Conveying and suction volume (m3): 1,4
Oil quantity (l): 0,18
Compressor type: Piston
Power range: -35 C to -10 C
Alternative: NEK1116Z , NB1116Z , GL75AA, NL9F
Pressure line (mm): 4,9
Suction line (mm): 6,5
