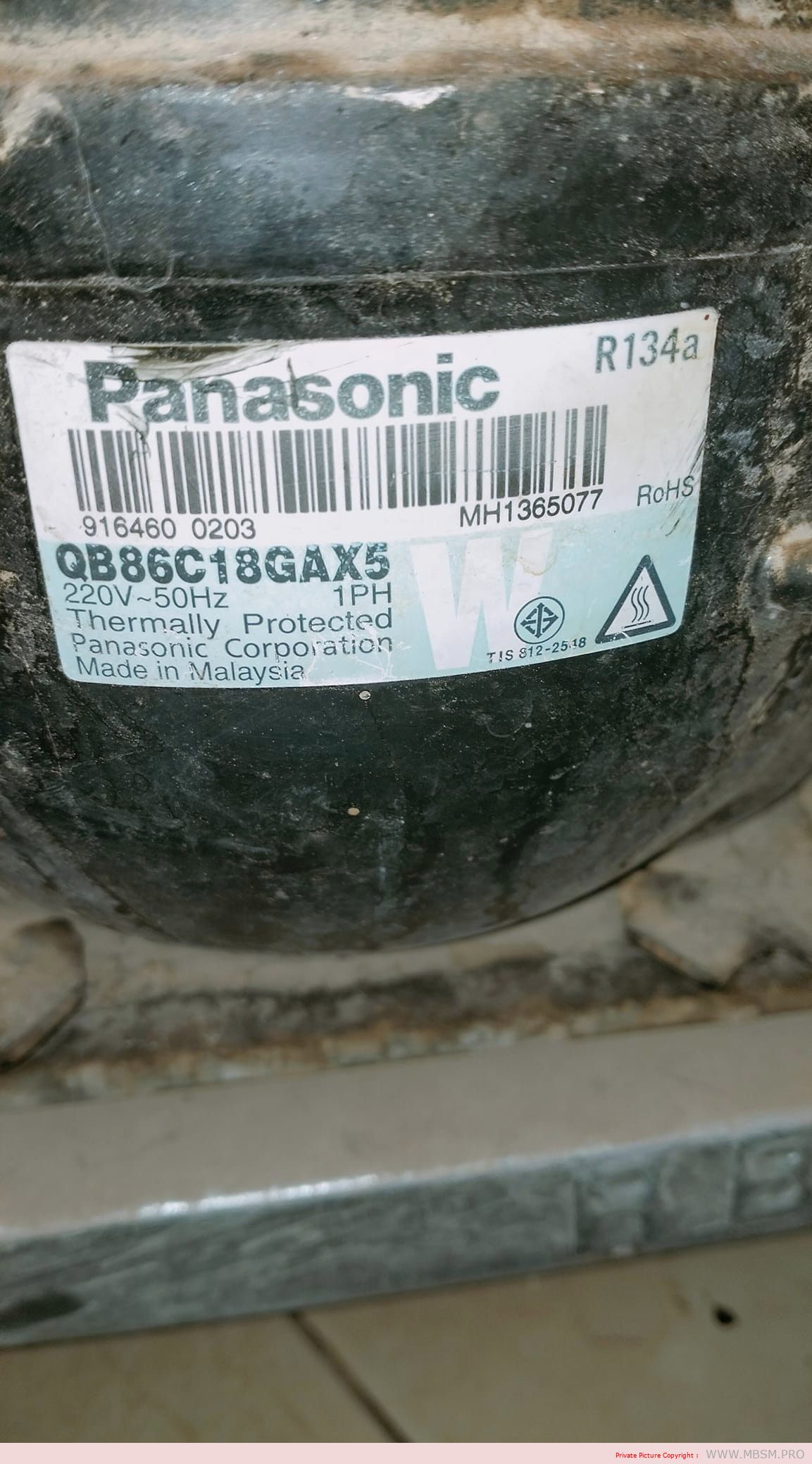

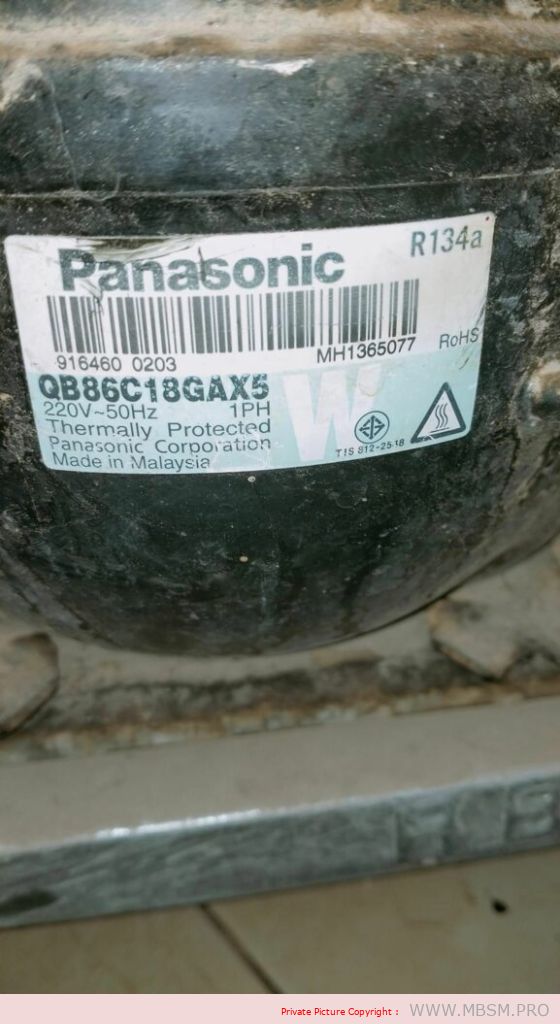

R134a QB Series PANASONIC Air Conditioner Compressor ,ALL Application & Refrigerant LBP R134a

general data

Operating voltage: 220V 50Hz

Freon type: 134a

Application type: LBP (low heat)

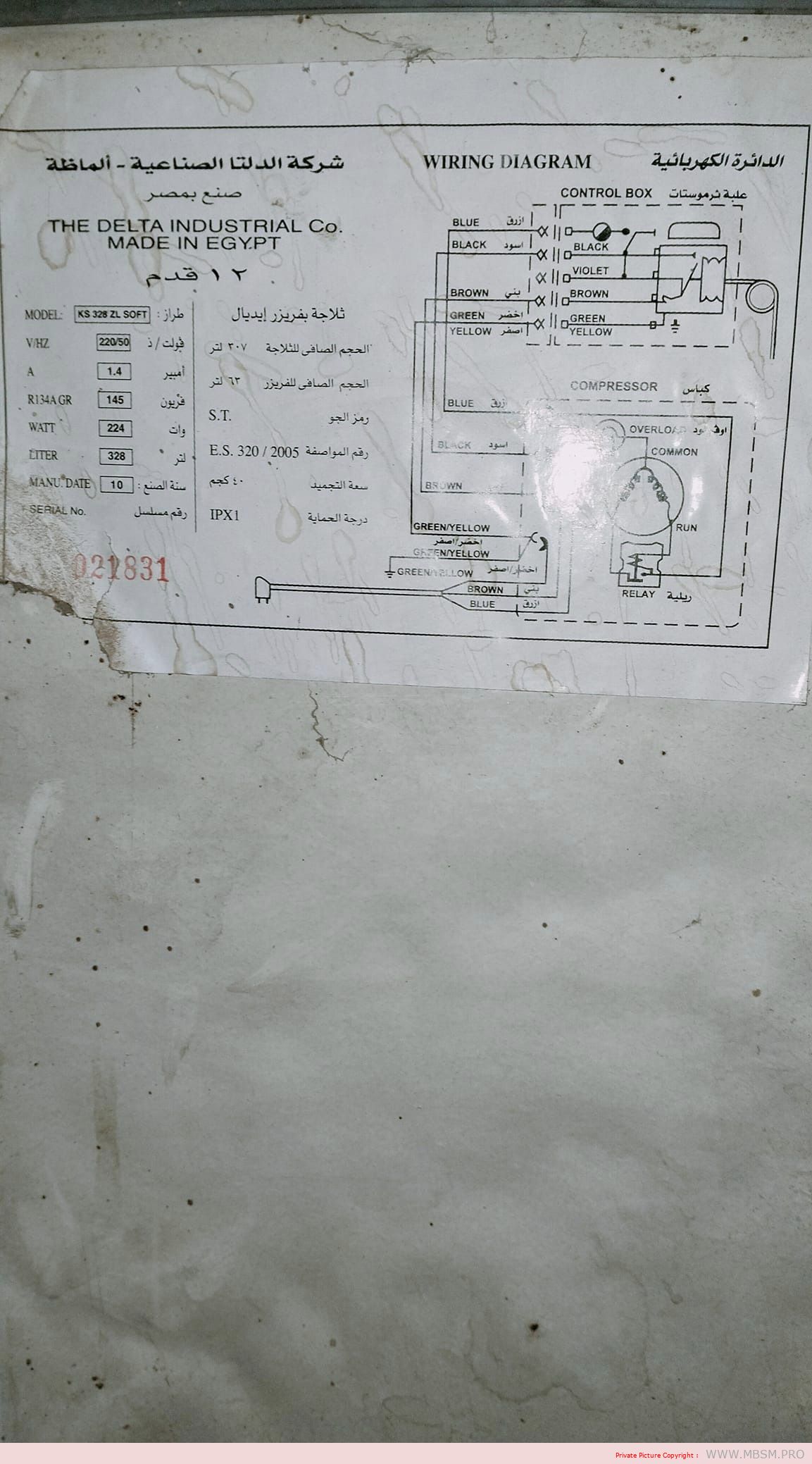

Piston Engine Type: (RSIR) Resistive Start Induction Run

xx in the piston code number indicates piston displacement



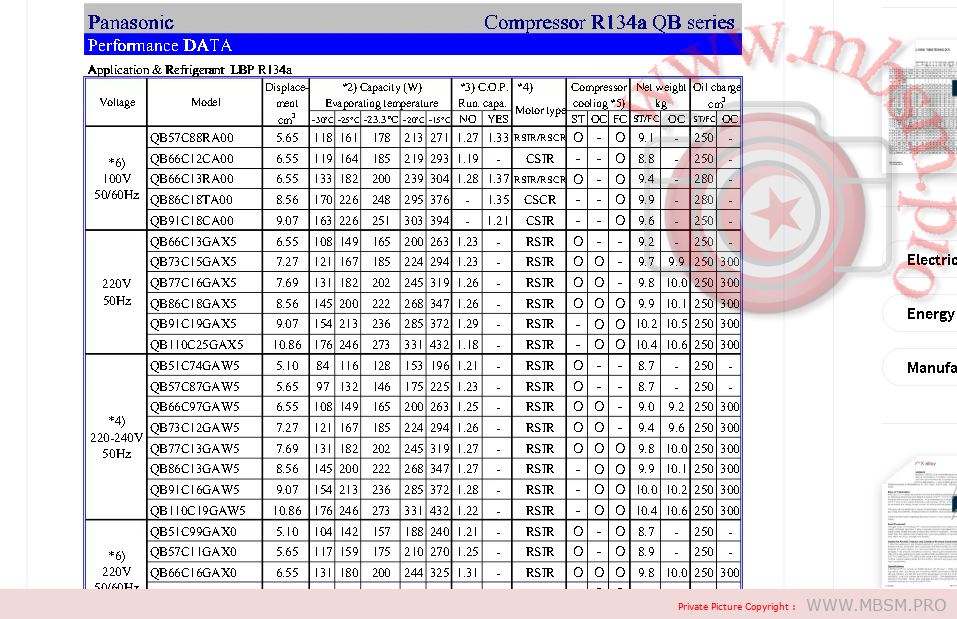

Performance and operation data in a temperature range from -15 to -30 and cooling capacity in watts

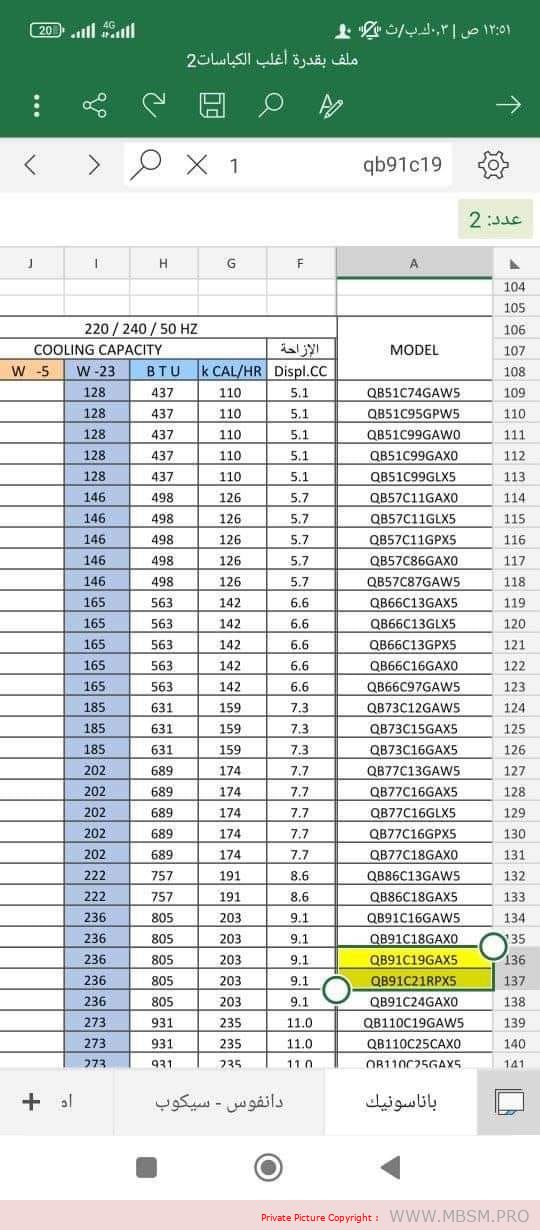

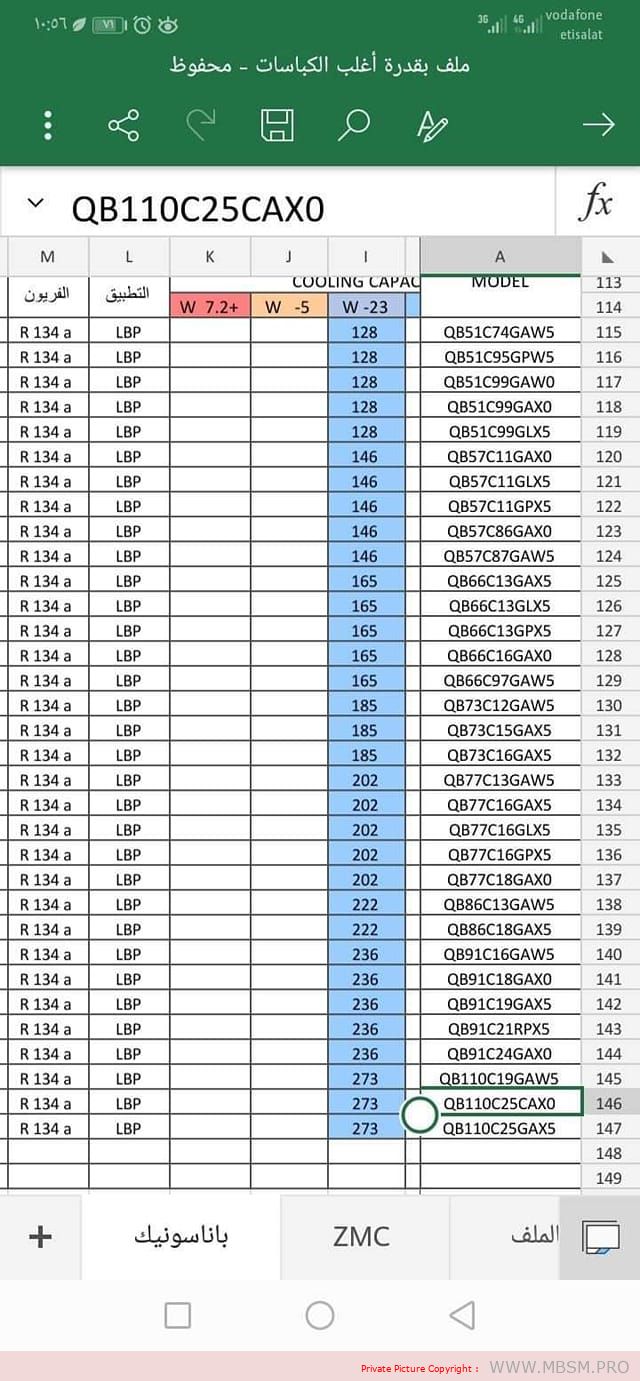

Model	displacement cc	-30	-25	-23.3	-20	-15th	Oil volume cm3
QB66C13GAX5	6.55	108	149	165	200	263	…./250
QB73C15GAX5	7.27	121	167	185	224	294	250/300
QB77C16GAX5	7.69	131	182	202	245	319	250/300
QB86C18GAX5	8.56	145	200	222	268	347	250/300
		154	213	236	285	372	250/300
QB110C25GAX5	10.86	176	246	273	331	432	250/300

NB

1- The volume of oil needed for the piston increases from 250 to 300 in the case of static condenser (cooling air).

2- The cooling capacity in the table under the following conditions:

Condensing temperature = 54.4 Celsius

Outside temperature = 32.2 Celsius

Sub-cooling temperature = 32.2 Celsius
