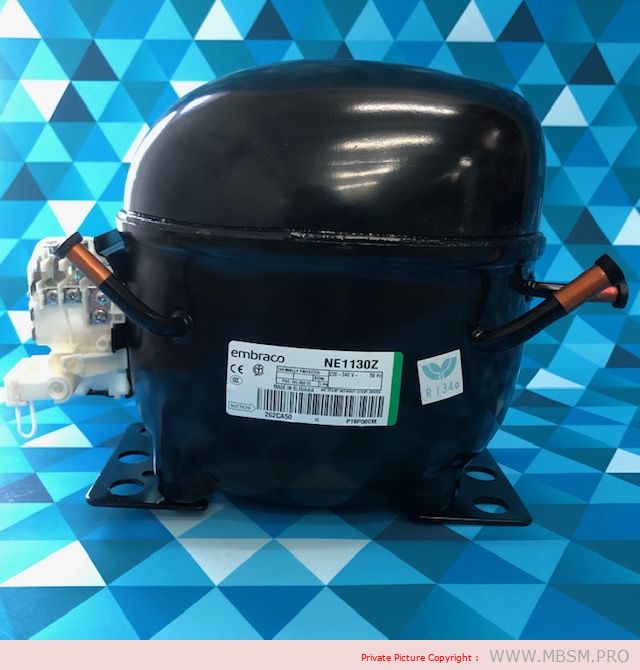

Compressor, hermetic, piston, Embraco, NE1130Z, 1/3 hp, LBP, 12.11 cm3, r134a

19 October 2023
 |  No Comments

Download Attachments

image_pdfimage_print

Data Sheet

Power supply220/240 V-50 Hz-1 Ph
Horsepower1/3 hp
Displacement12,11 cm3
ApplicationLBP
Cooling capacity at EN12900 MT conditions, R134a0,37 kW
Cooling capacity at ASHRAE LT conditions, R134a0,32 kW
Cooling capacity at EN12900 LT conditions, R134a0,16 kW
RefrigerantR134a
Suction pipe3/8″
Discharge pipe1/4″
Weight10,90 kg
Max height200 mm
LRA16,30 A
Recharge oil350 cm3
Type of oilPOE 22 ester
Other remarksElectrical components are included
TechnologyFixed speed
Type of motor coolingFan
Motor typeRSIR
Motor protection typeExternal
