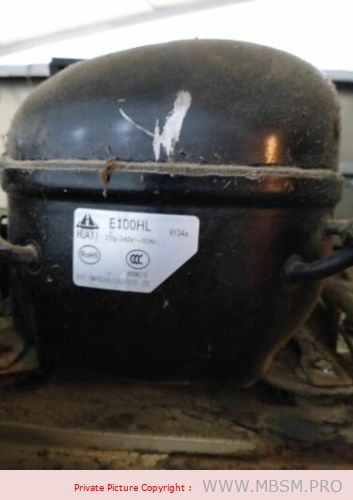

Mbsm.pro, Compressor, Eateron, E100HL, R-134, 23.3C, 280W, HUAYI, LBP

mbsmpro-compressor-eateron-e100hl-r134-233c-280w-huayi-lbp-mbsm-dot-pro
mbsmpro-compressor-eateron-e100hl-r134-233c-280w-huayi-lbp-mbsm-dot-pro

HUAYI R134a COMPRESSOR LBP MODELS

Model Power supply (V/Hz) Displacement (cm3) Cooling Capacity(W) COP (W/W) Motor Type
L22HL 220~240/50 2.2 47 0.80 RSIR
220~240/60 2.2 55 0.95 RSIR
L22H5 110~120/60 2.2 55 0.80 RSIR
L22H5L 110~120/60 2.2 55 0.90 RSIR
L22H7L   127/60 2.2 55 0.90 RSIR
L25H 220~240/50 2.6 55 0.85 RSIR
220~240/60 61 0.90
L25H5 110~120/60 2.6 61 0.90 RSIR
L25H5L 110~120/60 2.6 61 0.90 RSIR
L30H 220~240/50 3.1 67 0.90 RSIR
L30HL 220~240/50 3.1 67 0.90 RSIR
220~240/60 75 1.00 RSIR
L30H5L 110~120/60 3.1 75 1.00 RSIR
L30H5 110~120/60 3.1 75 1.00 RSIR
B22H 220~240/50 2.2 47 0.72 RSIR
220~240/60 54 0.80 RSIR
B22HL 220~240/50 2.2 47 0.85 RSIR
220~240/60 54 1.00 RSIR
B22H5 110~120/60 2.2 54 0.80 RSIR
B22H5L 110~120/60 2.2 54 0.90 RSIR
B25H 220~240/50 2.6 55 0.85 RSIR
220~240/60 63 0.94 RSIR
B25H0 100~50/60 2.6 63 0.90 RSIR
B25H5 110~115/60 2.6 63 0.88 RSIR
63 1.10 RSCR
63 1.25 RSCR
B25H5B 110~115/60 2.6 63 1.00 RSIR
63 1.10 RSCR
63 1.25 RSCR
B25H5L 110~120/60 2.6 63 0.95 RSIR
63 1.10 RSIR
63 1.20 RSCR
B25H7    127/60 2.6 63 0.90 RSIR
B30H 220~240/50 3.1 70 0.88 RSIR
220~240/60 80 0.98 RSIR
B30H0    100~50/60 3.1 80 0.90 RSIR
B30H5 110~115/60 3.1 80 0.98 RSIR
80 1.15 RSCR
80 1.25 RSCR
B30H7   127/60 3.1 80 1.05 RSIR
B35H 220~240/50 3.5 79 0.90 RSIR
220~240/60 90 0.95 RSIR
B38H 220~240/50 3.8 86 0.95 RSIR
220~240/60 97 1.10 RSIR
B38H5 110~115/60 3.8 97 1.10 RSIR
110~115/60 97 1.30 RSCR
B38H7   127/60 3.8 97 1.10 RSIR
B43H 220~240/50 4.3 97 0.95 RSIR
220~240/60 110 1.10 RSIR
B43HB 220~240/50 4.3 97 1.25 RSCR
220~240/60 110 1.40 RSCR
B43H5 110~115/60 4.3 110 1.10 RSIR
B43H5L 110~120/60 4.3 110 1.10 RSIR
B48H 220~240/50 4.8 110 1.05 RSIR
K38HL 220~240/50 3.8 95 1.10 RSIR
K43HL 220~240/50 4.3 110 1.10 RSIR
K48HL 220~240/50 4.8 120 1.15 RSIR
K52HL 220~240/50 5.2 145 1.25 RSIR
F52HL 220~240/50 5.2 145 1.25 RSIR
F60HL 220~240/50 6.0 165 1.25 RSIR
F70HL 220~240/50 6.9 190 1.25 RSIR
F80HL 220~240/50 7.9 220 1.35 RSIR
F85HL 220~240/50 8.4 235 1.20 RSIR
E80HL 220~240/50 8.1 220 1.35 RSIR
E95HL 220~240/50 9.3 265 1.20 RSIR
E100HL 220~240/50 9.8 280 1.20 RSIR
E110HL 220~240/50 11.3 300 1.20 CSIR
E130HL 220~240/50 13.1 360 1.25 CSIR
X130HL 220~240/50 13.1 360 1.25 CSIR
X150H 220~240/50 15.3 410 1.25 CSIR
X150HL 220~240/50 15.3 410 1.25 CSIR
X165HL 220~240/50 16.4 450 1.25 CSIR
Test conditions According to ASHRAE
Evaporating temperature -23.3℃
Condensing temperature 54.4℃
Subcooling temperature 32.2℃
Suction temperature 32.2℃
Ambient temperature 32.2℃

Working condition limit:R134a

Max ambient temperature 43[℃]
Working voltage range 0.85×Ue~1.06×Ue [V]
Max discharge pressure 1.79[Mpa] (gauge pressure)
Max allowable housing temperature 95[℃]
Max discharge temperature 130[℃]
Max pressure housing endured 3.5 [Mpa] (gauge pressure)

R134a-LBP COMPRESSORS – E SERIES



mbsmpro-compressor-eateron-e100hl-r134-233c-280w-huayi-lbp-mbsm-dot-pro

 Model
Power supply
(V/Hz)


 Displacement
cm3
 Cooling

Capacity(W)

 C.O.P

(W/W)

 Motor Type  Certification
E Series
E80HL 220~240/50 8.1 225 1.35 RSIR
E85HL 220~240/50 8.7 240 1.25 RSIR
*E95HL 220~240/50 9.3 265 1.20 RSIR
E100HL 220~240/50 9.8 280 1.20 RSIR

* TOLERANCE: Capacity: ≥95%,  Input Power: ≤115%,  Current: ≤110%,  C.O.P≥93%;  HBP-Evaporator Temperature: -5~15
* COOLING  TYPE:  ST=Static Cooling,  FC=Fan Cooling,  OC=Oil Cooling

Test Conditions LBP MHBP Conversion Table
ASHRAE CECOMAF ASHRAE CECOMAF 1 Kcal/h×1.163=W
Evaporator Temp.℃ -23.3 7.2 2 Kcal/h×3.968=Btu/h
 Ambience Temp.℃ 32.2 35.0 3 W×3.412=Btu/h
Condenser Temp.℃ 54.4 54.4 4 W×0.864= Kcal/h
Suction Temp.℃ 32.2 35.0 5 EER=COP×3.412
Subcooling Temp.℃ 32.2 46.1 6 Capacity(at 50Hz)×1.16=Capacity(at 60Hz)
