mbsm.pro, Refrigereation, Compressor, GFF57AA, SEBERIA, Hermetic, Compressor GFF57AA, LBP, R134a, Disp.5.7cc, 1/5HP, Series, LBP

image_pdfimage_print

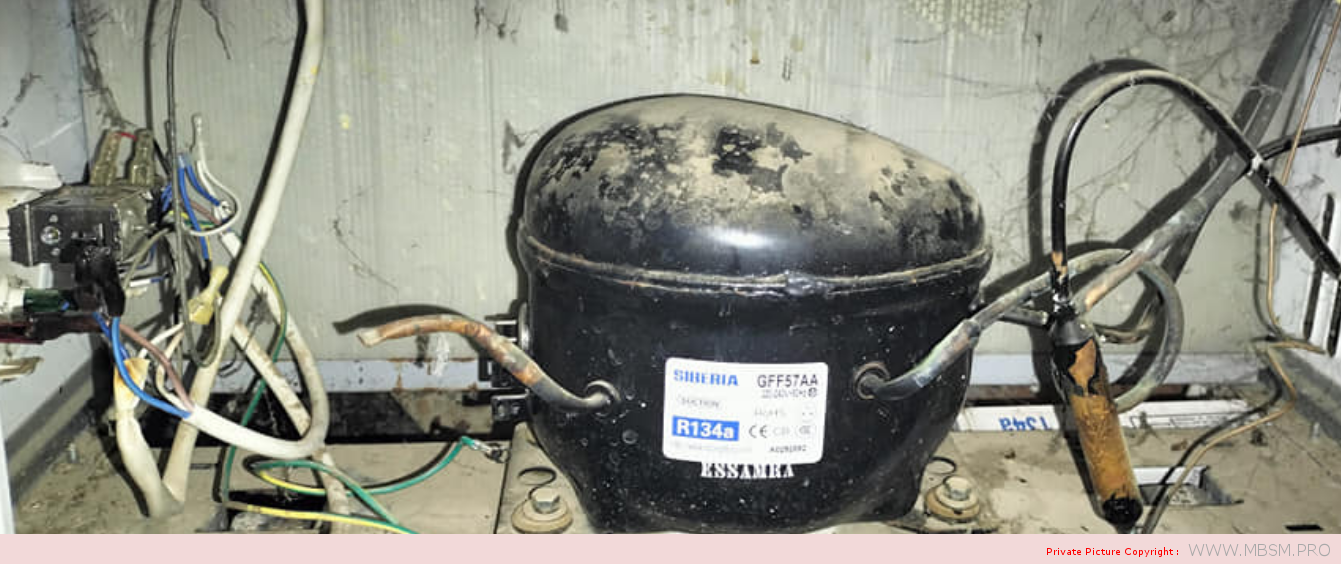

SEBERIA Hermetic Compressor GFF57AA  LBP  R134a  Disp.5.7cc 1/5HP

#mbsmpro

Description

Detailed Product Description

1.low noise,low power consumption
2.reliable security,high efficiency
3.excellent start performance
4.pass 3C,CE,CB,RoHS
Specifications

Refrigeration Compressor main features: light, compact, high efficiency,good reliability, low noise,light vibration.

Certificate

3C,CE,CB,RoHS


Attractive Function

R134a compressor, evaporating temperature -35 ºC to -15 ºC is suitable for LBP, MBP. With strong overloading ability, good performance ,rapid-speed and strong cooling in low temperature.

Widely use in commercial freezer, commercial ice cream machine, commercial kitchen refrigerator.

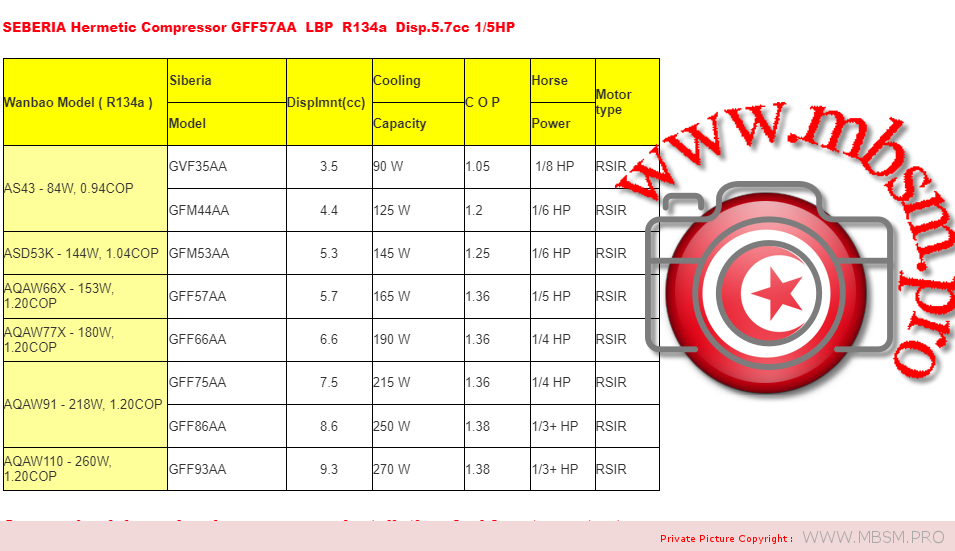

Performance Data for GFF Series Refrigeration Compressor

  ModelDispl.
(cm3)
Power
   HP
Motor TypeVolt.-
Frequency
Cooling
Capacity
   Input
  Power
Rated
Current  (A)
     COPOil Charge
Volume
GFF57AA   5.7  1/5RSIR/RSCR220-240V~50HZ    166122/1120.86/0.621.36/1.48200
GFF66AA   6.6  1/4RSIR/RSCR220-240V~50HZ    195143/1320.92/0.741.36/1.48200
GFF75AA   7.5 + 1/4RSIR/RSCR220-240V~50HZ    215156/1471.15/0.831.38/1.46200
GFF86AA   8.6  1/3RSIR/RSCR220-240V~50HZ    250156/1481.24/0.901.40/1.52200
GFF93AA   9.3  1/3RSIR/RSCR220-240V~50HZ    270156/1491.25/0.951.46/1.54230

ModelPower HpDisplacementCooling CapacityMotor TypeInput PowerRated CurrentCOP
GFM44AA1/64.6120RSIR1000.701.20
GFM53AA1/6+5.3145RSIR1140.881.27
GFM57AA1/55.7165RSIR1320.971.25
GFM75AA1/4+7.5215RSIR1591.201.35
GFM10AA1/3+10.0295RSIR2201.551.34
GFM12AA1/2-12.0330RSIR2351.851.40
GFM12AA_S1/2-12.0330RSIR2351.851.40

F(F) Series 220-240V/50Hz

GFF44AA1/64.6130RSIR/RSCR99/930.65/0.531.31/1.40
GFF57AA1/55.7165RSIR/RSCR115/1100.77/0.571.43/1.50
GFF66AA1/46.6195RSIR/RSCR143/1290.92/0.741.36/1.51
GFF75AA1/4+7.5215RSIR/RSCR156/1471.15/0.831.38/1.46
GFF86AA1/38.6250RSIR/RSCR179/1641.24/0.901.40/1.52
GFF93AA1/3+9.3270RSIR/RSCR185/1751.25/0.951.46/1.54

F(T)Series High Efficiency Compressor 220-240V/50Hz

GFT36AA1/73.6110RSCR680.321.62
GFT44AA1/64.4130RSCR810.431.60
GFT53AA1/5-5.3145RSCR960.531.50
GFT57AA1/55.7165/168RSCR104/980.55/0.491.60/1.70
GFT61AA1/5+6.1182RSCR1070.531.70
GFT66AA1/46.6195RSCR115/1130.58/0.551.68/1.72
GFT75AA1/4+7.5220RSCR1290.691.70
GFT86AA1/38.6250RSCR1480.731.70
GFT93AA1/3+9.3270RSCR1660.841.65

F Series 115V/60Hz

GFM44AD1/6+4.6145RSIR1111.621.30
GFM53AD1/45.3185RSIR1311.751.30
GFM57AD1/45.7195RSIR1381.851.30
GFM61AD1/4+6.1210RSIR168/1502.75/1.901.25/1.40
GFR40AD1/63.6120RSCR84.67/81.42
GFR57AD1/45.7195RSCR1161.2/71.55
GFM93AD1/49.3305RSIR2183.21.40

F Series 200-220V/50Hz

GFF53AT1/6+5.3150RSCR1060.671.42
GFF57AT1/55.7165RSCR1180.861.40
GFF66AT1/46.6196RSCR1381.021.42
GFF75AT1/4+7.5218RSCR1471.071.48
GFF86AT1/38.6250RSCR1681.141.49
GFF93AT1/3+9.3275RSCR1851.231.49

F Series 100V-50/60Hz

GFF66AJ1/46.6195/233RSCR135/1522.15/1.951.44/1.53
GFF93AJ1/39.3270/305RSCR190/2052.95/2.581.42/1.49

F Series Compressor M/HBP R134a

220-240V 50/60Hz

GFL60AG_AL3/45.3550/650CSIR245/2651.88/1.692.24/2.45

220-240V 50Hz

GFL80AA17.5720CSIR3171.962.27
GFL10AA1.29.3880CSIR4302.502.0


F Series Compressor LBP R600a

F(M/F) Series 220-240V/50Hz

BFM86AA1/6+8.6142RSIR1010.821.40
BFF86AA1/68.6142RSIR/RSCR93/900.65/0.511.53/1.58
BFM93AA1/59.3155RSIR1080.851.43
BFF93AA1/59.3160RSIR/RSCR103/980.73/0.581.55/1.63
BFM10AA1/5+10.0168RSIR1221.011.38
BFF11AA1/410.5185RSIR1210.701.45
BFM12AA1/4+12.0202RSIR1441.101.40
BFF12AA1/4+12.0202RSIR/RSCR130/1231.04/0.751.55/1.64

F(T) Series High Efficiency Compressor 220-240V/50Hz

BFT57AA1/7-5.795RSCR53/500.28/0.241.80/1.90
BFT75AA1/67.5130RSCR75/720.351.73/1.80
BFT86AA1/58.6142RSCR82/740.43/0.361.73/1.92
BFT93AA1/59.3155RSCR820.501.90
BFT10AA1/5+10.0175RSCR100/920.60/0.431.72/1.90
BFT11AA1/410.0180RSCR1000.541.80
BFT12AA1/4-11.5200/210RSCR116/1140.54/0.521.72/1.86

F Series 200-220V/50Hz

BFF75AT1/67.5130RSCR800.461.63
BFF86AT1/58.6142RSCR91.50.651.55
BFM93AT1/59.3158RSIR1120.931.41
BFF93AT1/59.3160RSCR1000.661.60
BFF11AT1/411175RSCR1100.761.60
BFT12AT1/411.5200RSCR1301.01.50

F Series 115/60Hz

BFR57AD1/65.7120RSCR750.731.60
BFR75AD1/5-7.5156RSCR920.901.70
BFM10AD2/710.0200RSCR1331.551.50
BFR10AD2/710.0195RSCR1161.321.65
BFM12AD1/311.0230RSCR1531.651.50

F Series Compressor LBP R290a

220-240V/50Hz

PFT61AA3/86.1285RSCR1831.55
PFT66AA3/86.6310RSCR2001.56
PFT66AA©3/86.6310RSCR1901.65
PFT75AA1/2-7.5350RSCR2161.62
PFT75AA©1/2-7.5350RSCR2061.70
PFT86AA1/28.6388RSCR2581.50
PFT86AA©1/28.6421RSCR2631.60
PFT93AA©3/59.3455RSCR2841.60


F Series Compressor L/MBP R290

220-240V/50Hz

PFL57AA1/35.7255/490CSIR170/2351.50/2.09
PFL75AA1/2-7.5350/657CSIR248/3241.41/2.03

R134aOil-less Refrigeration Compressor Series,LBP

ModelDispl.
(cm3)
Power
HP
Motor TypeVoltageCooling
Capacity
Input
Power
Rated
Current(A)
COPOil Charge
Volume
GFF57AA5.71/5RSIR/RSCR220-240V~50HZ166122/1120.86/0.621.36/1.48200
Test Conditions(ASHRAE)
Evaporating temperature -23.3ºC
Condensing temperature 54.4ºC
Subcooling temperature 32.2ºC
Suction temperature 32.2ºC
Ambient temperature 32.2ºC

Attractive Specifications

1.light, compact structure

2.low noise,light vibration

3. adoptable lowtemperature

4. high efficiency,good reliability

Usages

freezing equipment,family ice cream machine,drinking founation etc.

Product Notes

1. Compressor doesn’t be allowed to skew more than 5 degrees while working.

2. The rubber cypriots is allowed be uprooted only when the compressor is in use. Once the rubber cypriots uprooted, compressor must be used immediately not allowing to be stored in the air.

3. The stocking period must be less than half year after the date of production, if longer, you have to recheck and if qualified, it could be shipped.

4. Compressor should install thermal protection, not allowing to change the thermal protection.

5. R134a refrigerant R134a system should be used in line with the dry filter.

6. Compressor should be stored at water proof and aeration warehouse, and it shouldn’t have the rust air.
