Electrical Schematic & Connection Guide
Since this is a single-phase ($1\phi$) unit, the electrical system relies on a Permanent Split Capacitor (PSC) motor. Below is the technical breakdown of the wiring logic for this 2-ton TOSOT unit:
- Compressor Wiring: * Common (C): Connects directly to the Overload Protector (Internal).
- Start (S): Connects to one side of the 50 $\mu$F Capacitor.
- Run (R): Connects to the Neutral line and the other side of the capacitor.
- Outdoor Fan Motor: Usually wired in parallel with the compressor power supply, using its own smaller capacitor (typically 5-7 $\mu$F).
Technical Article: TOSOT TS-H246JAL3 Lord Series Analysis
Focus Keyphrase: TOSOT TS-H246JAL3 2 Ton Compressor Specifications and R22 Engineering Guide
SEO Title: Mbsm.pro, TOSOT TS-H246JAL3, 2 Tons, 24000 BTU, R22, 220V, Lord Series Outdoor Unit
Meta Description: Technical deep-dive into the TOSOT TS-H246JAL3 2-ton outdoor unit. Features 23,500 BTU cooling, T3 tropical climate rating, and professional R22 compressor replacement data for HVAC engineers.
Slug: tosot-ts-h246jal3-2-ton-compressor-specs
Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, TOSOT, TS-H246JAL3, 2 Ton AC, 24000 BTU, R22 Refrigerant, T3 Tropical Compressor, Panasonic 2K28 replacement, Samsung PH41 replacement.
Excerpt: The TOSOT TS-H246JAL3 is a high-performance 2-ton outdoor air conditioning unit from the Lord Series, specifically engineered for T3 tropical environments. Delivering 23,500 BTU/h of cooling power, this R22-based system is a staple for technicians requiring reliability in extreme heat. This article provides full technical specifications and professional cross-reference guides.

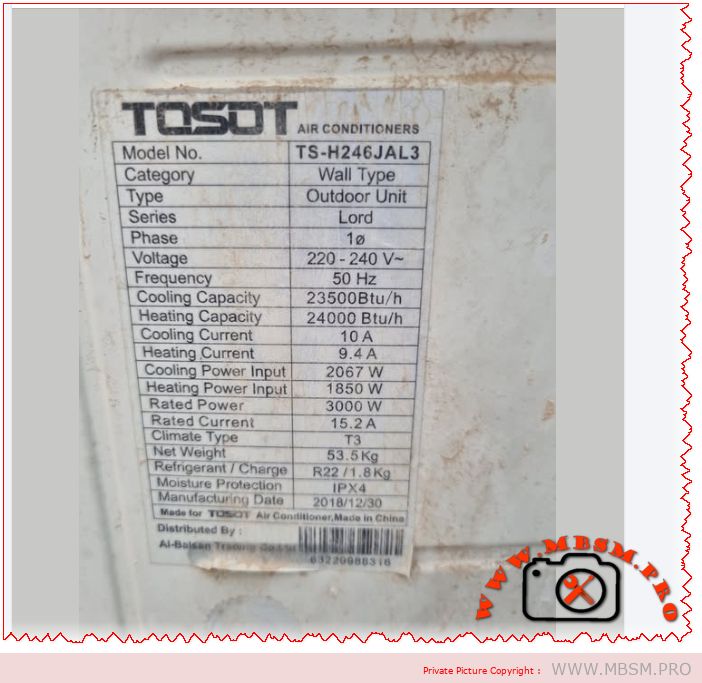

Professional Specification Table
| Model Parameter | Technical Data |
| Model | TS-H246JAL3 |
| Tonnage | 2 Tons |
| Utilization | HBP (High Back Pressure) |
| Domaine | Cooling & Heating (Heat Pump) |
| Oil Type | Mineral Oil (SUNISO 4GS or equivalent) |
| Horsepower (HP) | 2 HP |
| Refrigerant Type | R22 |
| Refrigerant Charge | 1.8 Kg |
| Power Supply | 220-240V / 50Hz / $1\phi$ |
| Cooling Capacity | 23,500 BTU/h |
| Heating Capacity | 24,000 BTU/h |
| Motor Type | PSC (Permanent Split Capacitor) |
| Climate Type | T3 (Tropical – Up to 52°C) |
| Running Amperage | 10.0 A (Cooling) |
| LRA (Locked Rotor) | 52 A |
| Capacitor Value | 50 $\mu$F / 450V |
Performance Comparison: R22 vs. R410A (2-Ton Class)
In the field, the TS-H246JAL3 uses R22, which offers distinct operational differences compared to modern R410A units of the same tonnage.
| Feature | TOSOT TS-H246JAL3 (R22) | Standard 2-Ton (R410A) |
| Operating Pressure (Suction) | 65 – 75 PSI | 115 – 130 PSI |
| Discharge Temperature | Moderate | High |
| Compression Ratio | Lower (Longer Life) | Higher |
| Oil Sensitivity | Low (Mineral) | High (POE – Hygroscopic) |
Professional Replacement Cross-Reference
If the compressor fails, these models are the gold standard for direct replacement without modifying the chassis:
5 Direct R22 Replacements
- Panasonic: 2K28C225A (Industry Standard)
- Samsung: PH41VP-ET
- LG: QP442PED
- Highly: 203DH-32C2
- Mitsubishi: RH313VAGT
5 Alternative Replacements (Conversion Required)
- GMCC: PA240M2C-4FT (R410A)
- Gree: QXF-B239zH070 (R410A)
- Panasonic: 5RS092DAA (R410A)
- Copeland: ZP24K5E (R410A Scroll)
- Tecumseh: RK5515E (R22/R407C)
Engineer’s Notice & Field Advice
- T3 Climate Advantage: This unit is rated for T3. As an expert, I recommend ensuring the outdoor unit has at least 50cm of clearance from any wall. T3 units move a massive amount of heat; restricting airflow will cause the amperage to spike above the rated 10A, leading to premature winding failure.
- Capacitor Maintenance: The 50 $\mu$F capacitor is the most common point of failure. If the compressor hums but doesn’t start (drawing high LRA), check the capacitor before condemning the compressor.
- Charging by Weight: Since the system uses 1.8 Kg of R22, always charge using a digital scale. Overcharging an R22 system in a T3 environment causes liquid slugging and destroys the valve plates.
