R134a 220-2V 50Hz

Model

Cooling Capacity

Efficiency

Motor Type

Cooling Type

NetWeight [kg]

OilQty. [cc]

Kcal/h

Watt

Btu/h

EFF

COP

EER

Kcal/Wh

W/W

Btu/Wh

DM10LHS5

30

35

119

0.65

0.76

2.59

RSIR

ST

3.6

100

DM15LHS5

41

48

164

0.77

0.9

3.07

RSIR

ST

3.6

100

DM20LHS5

48

56

191

0.86

1

3.41

RSIR

ST

3.6

100

DM24LHS5

56

65

222

0.9

1.05

3.58

RSIR

ST

3.7

100

DM30LHS5

64

75

256

0.82

0.95

3.24

RSIR

ST

3.9

100

WX24LHS5W-K

41

48

163

0.53

0.72

2.10

RSIR

ST

6.1

180

WX24LHS5T

41

48

163

0.64

0.73

2.54

RSIR

ST

5.9

180

WX24LHS5T-K

41

48

163

0.53

0.62

2.12

RSIR

ST

5.9

180

WX30LHS5T

60

70

238

0.71

0.77

2.83

RSIR

ST

5.9

180

WX30LHS5W-K

60

70

238

0.68

0.79

2.71

RSIR

ST

6.1

180

JX41LHP5-K

91

106

361

0.96

1.11

3.79

RSCR

ST/FC

7.9

230

JX41LHS5

91

106

361

0.90

1.05

3.58

RSIR

ST/FC

7.6

230

JX46LHS5

109

127

433

1.11

1.41

4.41

RSIR

ST/FC

8

230

JX51LHP5-K

125

145

496

1.01

1.17

4.00

RSCR

ST/FC

8

230

JX51LHS5

125

145

496

0.91

1.14

3.62

RSIR

ST/FC

8.2

230

JX51LHT5

125

145

496

1.03

1.2

4.10

RSIR

ST/FC

8.2

230

JX55LHP5-K

132

154

524

1.01

1.17

4.00

RSIR

ST/FC

8.2

230

JX55LHS5-K

132

154

524

0.96

1.12

3.82

RSIR

ST/FC

7.7

230

JX58LHK5

151

176

599

1.09

1.18

4.31

CSIR

ST/FC

8.2

230

JX58LHP5

151

176

599

1.27

1.37

5.04

RSCR

ST/FC

8.2

230

JX58LHP5-K

151

176

599

1.23

1.22

4.87

RSCR

ST/FC

7.4

230

JX58LHS5

151

176

599

1.03

1.18

4.08

RSIR

ST/FC

8.2

230

JX58LHS5-K

151

176

599

1.04

1.13

4.13

RSIR

ST/FC

7.4

230

JX58LHS5A

151

176

599

1.01

1.09

3.99

RSIR

ST/FC

7.4

230

GD53LHP5

138

160

548

1.50

1.75

5.97

RSCR

ST

8.4

150

GD53LHP5-K

138

160

548

1.44

1.68

5.73

RSCR

ST

8.4

150

GD53LHP5-L

138

160

548

1.42

1.65

5.63

RSCR

ST

8.4

150

GD57LHP5

149

173

591

1.50

1.75

5.97

RSCR

ST

8.9

150

GD57LHP5-K

149

173

591

1.44

1.68

5.73

RSCR

ST

8.4

150

GD57LHP5-L

149

173

591

1.42

1.65

5.63

RSCR

ST

8.4

150

GD63LHP5

167

194

663

1.50

1.75

5.97

RSCR

ST

8.9

150

GD63LHP5-K

167

194

663

1.44

1.68

5.73

RSCR

ST

8.4

150

GD63LHP5-L

167

194

663

1.42

1.65

5.63

RSCR

ST

8.4

150

GD69LHP5

179

208

710

1.50

1.75

5.97

RSCR

ST

8.9

150

GD69LHP5-K

179

208

710

1.44

1.68

5.73

RSCR

ST

8.4

150

GD69LHP5-L

179

208

710

1.42

1.65

5.63

RSCR

ST

8.4

150

HPL21YE-5-K

155

180

615

1.00

1.16

3.97

RSCR

ST/OC/FC

9

290

HPL21YE-5-L

155

180

615

1.04

1.2

4.11

RSCR

ST/OC/FC

8.9

290

HSL21YE-5

155

180

615

1.04

1.21

4.13

RSIR

ST/OC/FC

9

290

HPL23YE-5

171

199

635

1.1

1.27

4.35

RSCR

ST/OC/FC

9.5

290

HPL23YE-5-K

171

199

679

1.14

1.19

4.52

RSCR

ST/OC/FC

9

290

HSL23YE-5

171

199

679

1.06

1.16

4.21

RSIR

ST/OC/FC

9.3

290

HGH23YE-5

581

676

2306

1.94

2.25

7.69

CSIR

OC/FC

9.3

290

HKL25YE-5

180

209

714

0.97

1.19

3.84

CSIR

ST/OC/FC

9.5

290

HPL25YE-5-K

180

209

714

1.22

1.29

4.86

RSCR

ST/OC/FC

9

290

HPL25YE-5-L

180

209

714

1.07

1.31

4.23

RSCR

ST/OC/FC

9

290

HGH25YE-5

631

734

2504

1.88

2.19

7.47

CSIR

OC/FC

9.5

290

HKL27YE-5

210

244

833

1.01

1.17

4.27

CSIR

ST/OC/FC

9.5

290

HPL27YE-5

210

244

833

1.01

1.31

4.63

RSCR

ST/OC/FC

9.5

290

HPL27YE-5-K

210

244

833

1.01

1.2

4.90

RSCR

ST/OC/FC

9

290

HSL27YE-5

210

244

833

1.01

1.2

4.32

RSIR

ST/OC/FC

9.5

290

HSL27YE-5A

210

244

833

1.01

1.22

4.32

RSIR

ST/OC/FC

9.5

290

HKH27YE-5

732

851

2817

1.92

2.23

7.61

CSIR

OC/FC

9.5

290

HSH27YE-5

732

851

2817

1.88

2.19

7.47

RSIR

OC/FC

9.5

290

HKL30YE-5

230

267

913

1.01

1.1

3.61

CSIR

ST/OC/FC

9.5

290

HPL30YE-5-K

230

267

913

1.01

1.28

4.75

RSCR

ST/OC/FC

9

290

HSL30YE-5

230

267

913

1.01

1.05

3.61

RSIR

ST/OC/FC

9.5

290

HSH30YE-5

780

907

3095

1.01

2.13

6.57

RSIR

OC/FC

9.5

290

HKL30YE-5

230

267

913

1.01

1.1

3.61

CSIR

ST/OC/FC

9.5

290

HPL30YE-5-K

230

267

913

1.01

1.28

4.41

RSCR

ST/OC/FC

9

290

HSL30YE-5

230

267

913

1.01

1.05

3.61

RSIR

ST/OC/FC

9.5

290

NW52LHP5-L

139

162

552

1.01

1.6

5.63

RSCR

ST/FC

8.7

230

NW60LHP5-L

147

171

583

1.01

1.54

5.40

RSCR

FC

9.6

230

NW70LHP5-L

171

199

679

1.01

1.6

5.32

RSCR

FC

9.6

230

NW80LHP5

206

240

794

1.39

1.62

5.51

RSCR

FC

9.6

230

NW80LHP5-L

206

240

817

1.01

1.56

5.49

RSCR

FC

9.6

230

NW90LHP5

231

269

889

1.44

1.67

5.7

RSCR

FC

9.6

230

NW90LHP5-L

231

269

917

1.01

1.59

5.56

RSCR

FC

9.6

230

NW99LHP5

254

295

1008

1.01

1.59

5.54

RSCR

FC

9.6

230

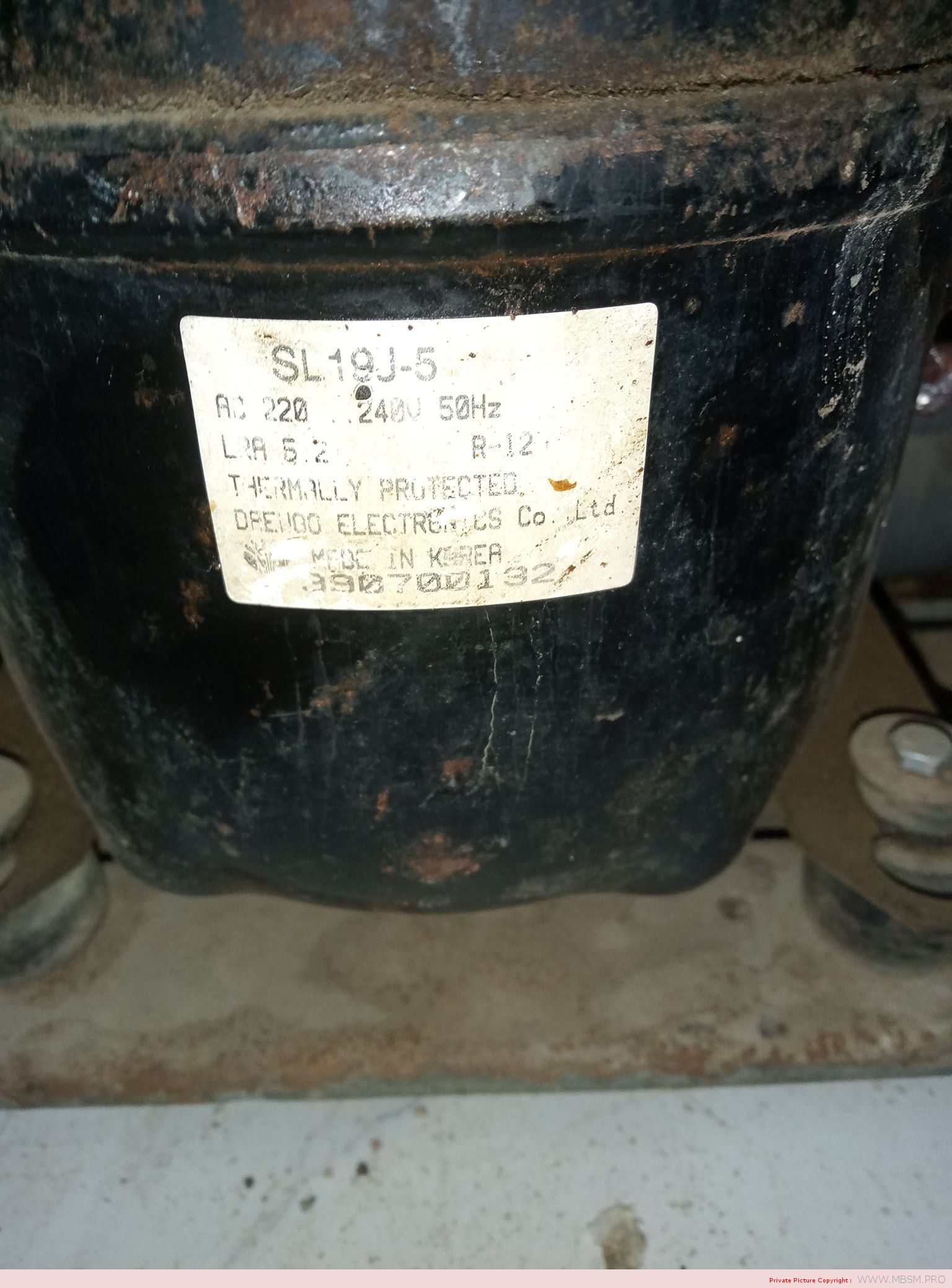

Taken from working Refrigerator Great condition. No spill or tilted. SPECIFICATION OF DAEWOO COMPRESSOR Model, SL19J-4,

Date of Approval, 2003-04-01,

Voltage, 220-240V, Frequency, 50Hz,

APPLICATION Evaporating temp. range, 35℃~-10℃

Refrigerant control,

Capillary tube, 31℉~14℉,

Compressor cooling,

Static cooling,

Refrigerant, R12,

Voltage range, 187~276 V

PERFORMANCE Cooling capacity, kcal/h, 118(137W)

Test condition(ASHRAE L.B.P) Btu/h, 468,

Evaporating temp. ℃, 23.3(10 ℉) Power input, W, 131,

Condensing temp. ℃, 54.4(130 ℉)

Current, A, 0.80,

Liquid subcooled to, ℃, 32.2(90 ℉)

Efficiency: COP, W/W, 1.05,

Gas superheated to, ℃, 32.2(90 ℉) Efficiency: EER, Btu/Wh, 3.57, Ambient temp. ℃, 32.2(90 ℉) Test power source: 220V 50Hz,

Test equipment: DAEWOO Calorimeter,

COMPRESSOR DATA MOTOR DATA Design,

Recipro. ball joint, Motor type, RSIR.

1Φ 2-pole, Displacement, cc/rev, 5.3, Voltage range, V, 187~276, Bore size(Φ) mm, 23.5, High potential test, V/sec, 1800,

Speed, r.p.m. 2920, Rated current, A, 0.80, Oil charge, cc, 280, Starting current(LRA) A, 5.2, Weight(incl. oil) kg, 7.9, Running capacitor, VAC/㎌, NONE,

Residual moisture, mg ↓, 100,

Starting capacitor, VAC/㎌, NONE, Impurities, mg ↓,

30, LRA: IEC Standard method(335-2-34) OVERLOAD PROTECTOR(OLP) STARTER Type, 4TM, 174SHBYY-52, Type: PTC, S220, Opening temp. ℃, 135(275 ℉) RSIR, Closing temp. ℃, 69(156 ℉) Resistance at 25℃, Ω, 22, Trip current at 70℃, A, 1.4, Recovery time, sec ↓, 80, Trip current at 25℃, A, 5.0[5~15sec]
