Mbsm.pro, Panasonic, rotary, compressor, rotary compressor, R22, 220-240V 50HZ, 2jd550D3AA03, 2JD550D, 35.000 BTU, Rla 5.65 A, Lra 21.0 A, 4.375 Hp, 2.91 Ton

mbsmpro-panasonic-rotary-compressor-rotary-compressor-r22-220240v-50hz-2jd550d3aa03-2jd550d-35000-btu-rla--565-a-lra-210-a-4375-hp-291-ton-mbsm-dot-pro
mbsmpro-panasonic-rotary-compressor-rotary-compressor-r22-220240v-50hz-2jd550d3aa03-2jd550d-35000-btu-rla--565-a-lra-210-a-4375-hp-291-ton-mbsm-dot-pro
mbsmpro-panasonic-rotary-compressor-rotary-compressor-r22-220240v-50hz-2jd550d3aa03-2jd550d-35000-btu-rla--565-a-lra-210-a-4375-hp-291-ton-mbsm-dot-pro
mbsmpro-panasonic-rotary-compressor-rotary-compressor-r22-220240v-50hz-2jd550d3aa03-2jd550d-35000-btu-rla--565-a-lra-210-a-4375-hp-291-ton-mbsm-dot-pro

Panasonic rotary compressor R-22, the world’s number one sales. High performance, durable, quiet, compact size Available from 9,000 to 35,000 BTU models.




MODEL

BTU.

VOLTAGE

RUNNING

RLA

LRA

LIST PRICE

2PS164D

9,000

220/1/50

30/370

4.1

18.0

3,370

2PS206D

12,000

220/1/50

30/440

5.65

21.0

3,070

2KS210D

12,500

220/1/50

35/370

5.4

27.0

3,370

2KS282D

16,000

220/1/50

45/370

8.0

37.0

5,340

2JS318D

18,000

220/1/50

45/370

8.3

38.0

5,540

2JS330D

20,000

220/1/50

45/370

8.7

41.0

5,800

2JS386D

24,000

220/1/50

60/370

9.75

45.0

6,940

2JS438D

26,000

220/1/50

50/370

12.9

51.0

7,085

2JS464D

28,900

220/1/50

50/370

13.3

64.0

7,840

2JD514D

33,000

220/1/50

60/440

14.2

76.0

8,270

2JD550D

35,000

220/1/50

60/440

14.7

68.0

8,785



Fast data
place of origin :
Malaysia
brand name :
panasonic
model number :
2JD550D3AA03.
type :
Refrigeration Compressor
application :
Refrigeration Parts
certification :
THIS
Description :

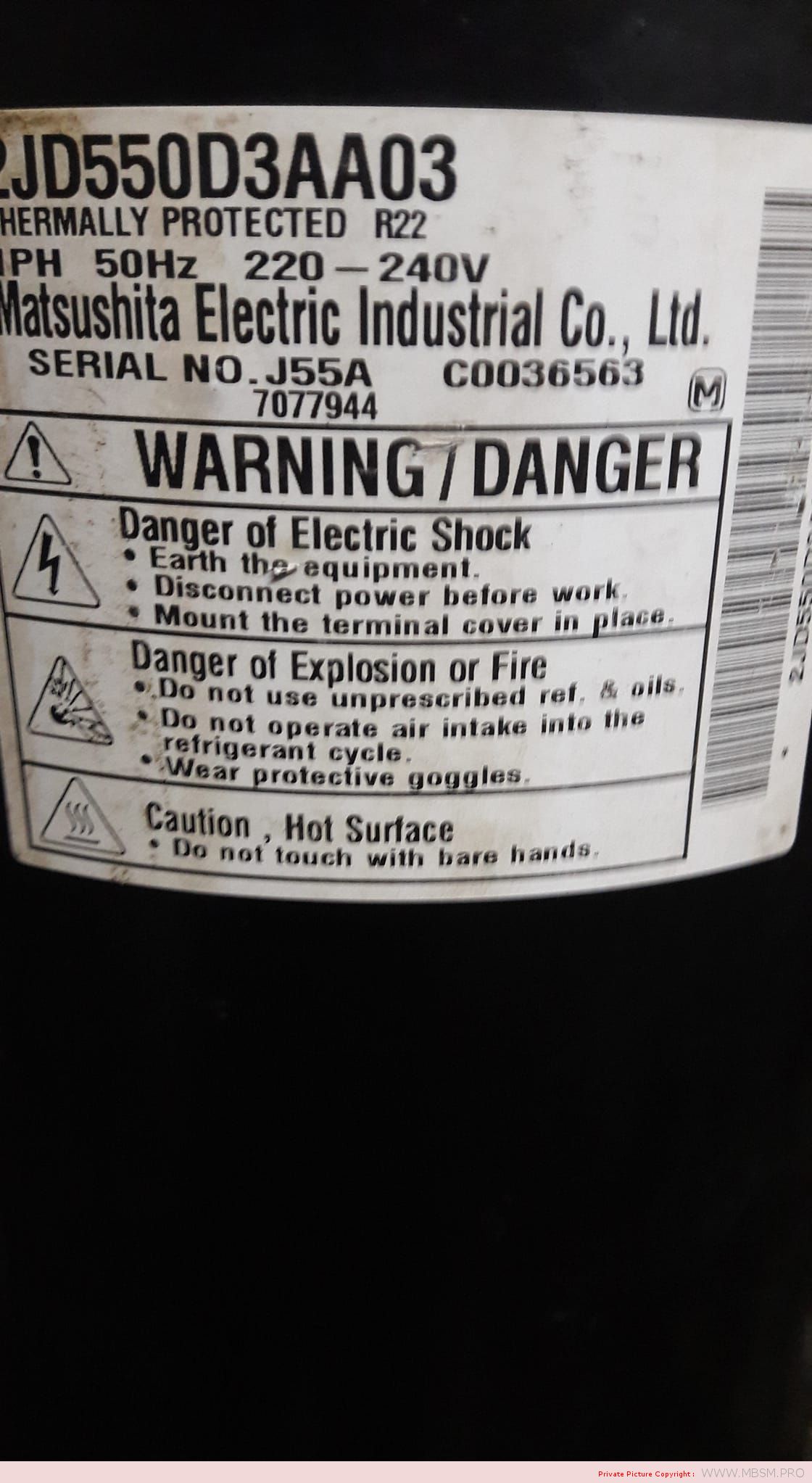

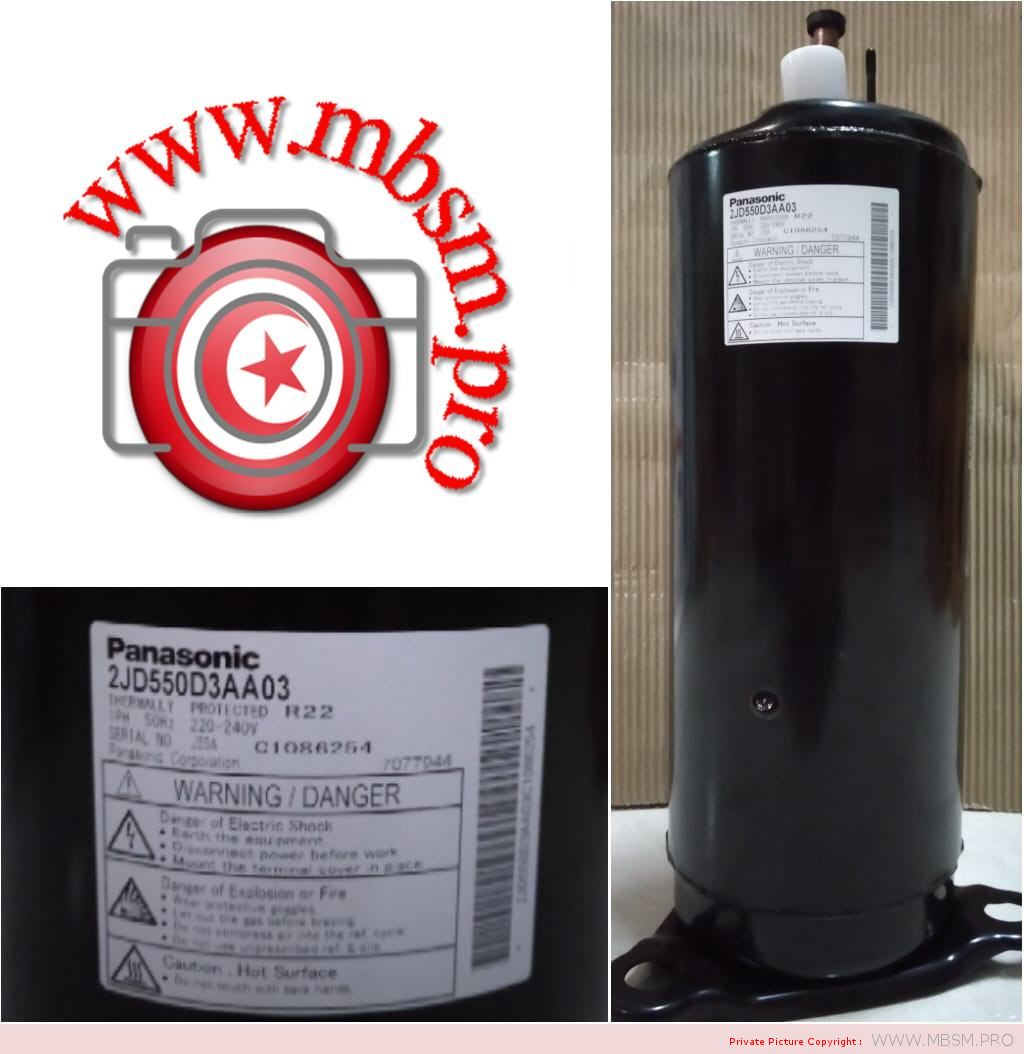

Matsushita compressor 2JD550D3AA03
Model:
2JD550D3AA03.
BTU:
35,000
Voltage:
220v
Phase :
1ph
Frequency:
50Hz
Running:
30/440
RLA :
5.65
LRA:
21.0
Packing:
wooden

Hot koop 220 V 1 Fase 50Hz Matsushita compressor 2JD550D3AA03

brand namepanasonic compressor
place of originMalaysia
Model2JD550D3AA03
BTU35,000
VOLTAGE220
PHASE1ph
frequency50 hz
Running30/440
RLA5.65
LRA21.0
refrigerantr22
descriptionairconditioner compressor

1. High-efficiency, Energy-saving
In order to decrease loss of machine and gas circulation in the process of design and increase high efficiency of the motor and the compressor, optimal matching clearance between dynamic and static parts is adopted. Accordingly, high-efficient compressor can also make room air-conditioner high efficient;

2. Compact, Light
Comparing with traditional compressors, there are comparably less mechanical parts in the compressor and the motor is directly fitted on the shell, so Matsushita compressor is compact and light, which makes room air-conditioner much more compact.

3. High-quality, Reliable performance
Materials for Panasonic rotary compressor are chosen through careful-research, thus made into finished components, finally assembled with computer-aided under strict conditions (temperature \ humidity and dustiness). Therefore, Panasonic rotary compressor has high-quality and reliable performance.

Models for option:

SeriesModelCapacityInput PowerCOPRun CapacitorN.W.(KG)
WBTU/HWW/WμF/V
R2R11B225ASE174559545852.98312.5/4608.2
P2P14S225ANE222075747053.14930/37012.0
2P17S225ANQ277094518853.13030/37012.0
2P20C225BNG32451107110803.00530/37012.6
2P21T225AZB 35101197511303.10630/37012.4
K2K22S225BUA38381309512303.12035/37017.0
2K25S225BUA 42451448313803.07640/37017.1
2K28C225DUA46601589915503.00645/37017.5
2K32S225AUD53101811717253.07850/40018.0
V2V32S225AUA53751833817003.16260/37019.6
2V34S225AUA58201985718803.09650/37019.6
2V36S225BUA61402094819803.10150/40019.5
2V40S225BUA 67802313222553.00760/44021.5
2V42S225AUA72002456523403.07750/37021.
