Mbsm.pro, Danfoss, Compressor, MT100HS4D, 8.3HP, R22, 380V, 3PH

mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-prombsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro

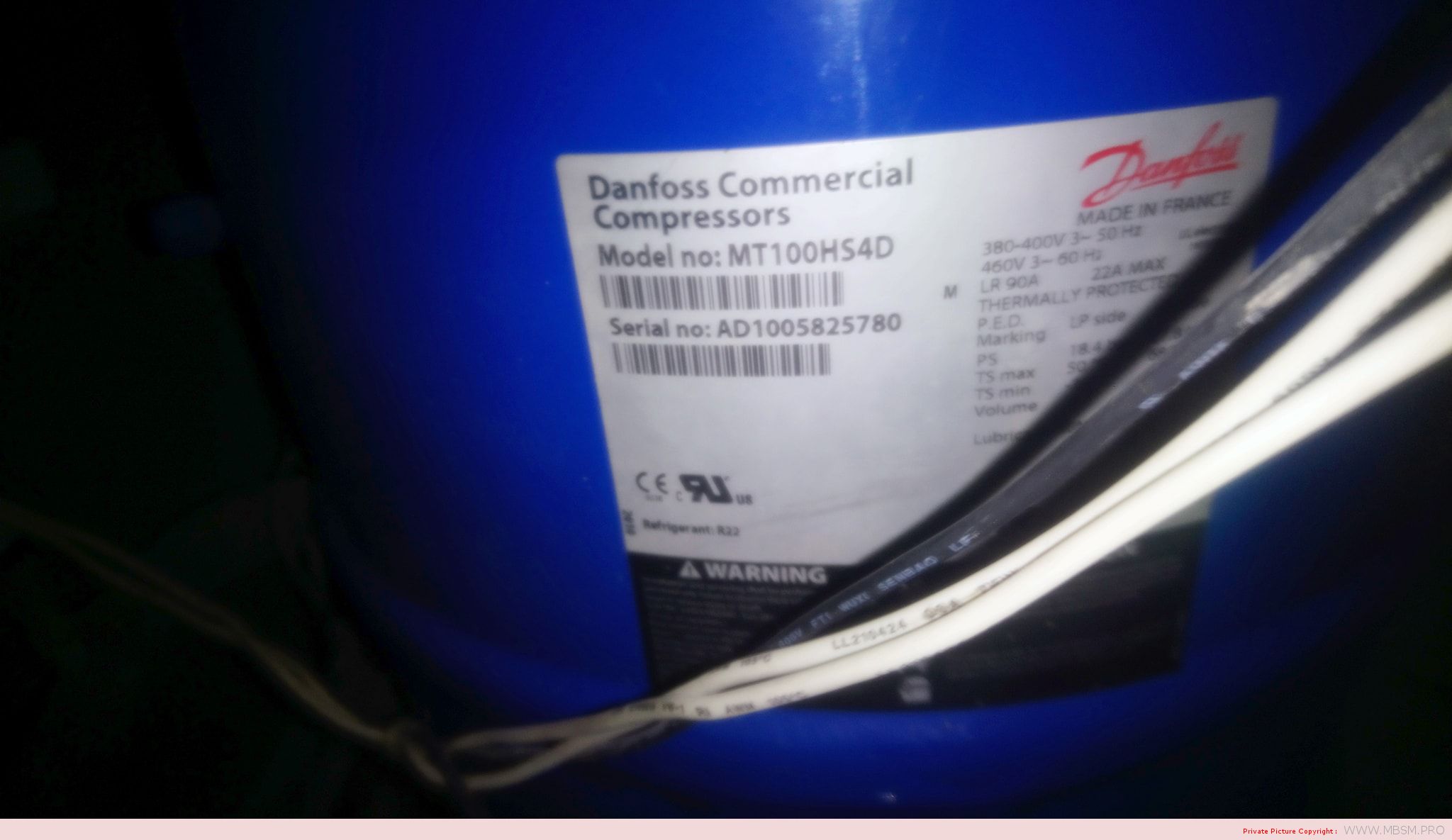

Model: MT100HS4D

Brand technique: Reciprocating compressor

Refrigerant: R22

Swept volume [cm3]: 171.26

Nominal cooling capacity 60 [kBTU/h]: 95.9

Nominal cooling capacity at 50Hz[kw]: 21.3

Nominal cooling capacity at 60Hz[kw]: 28.1

Voltage & frequency : 400V 3P 50Hz 460V 3P 60Hz

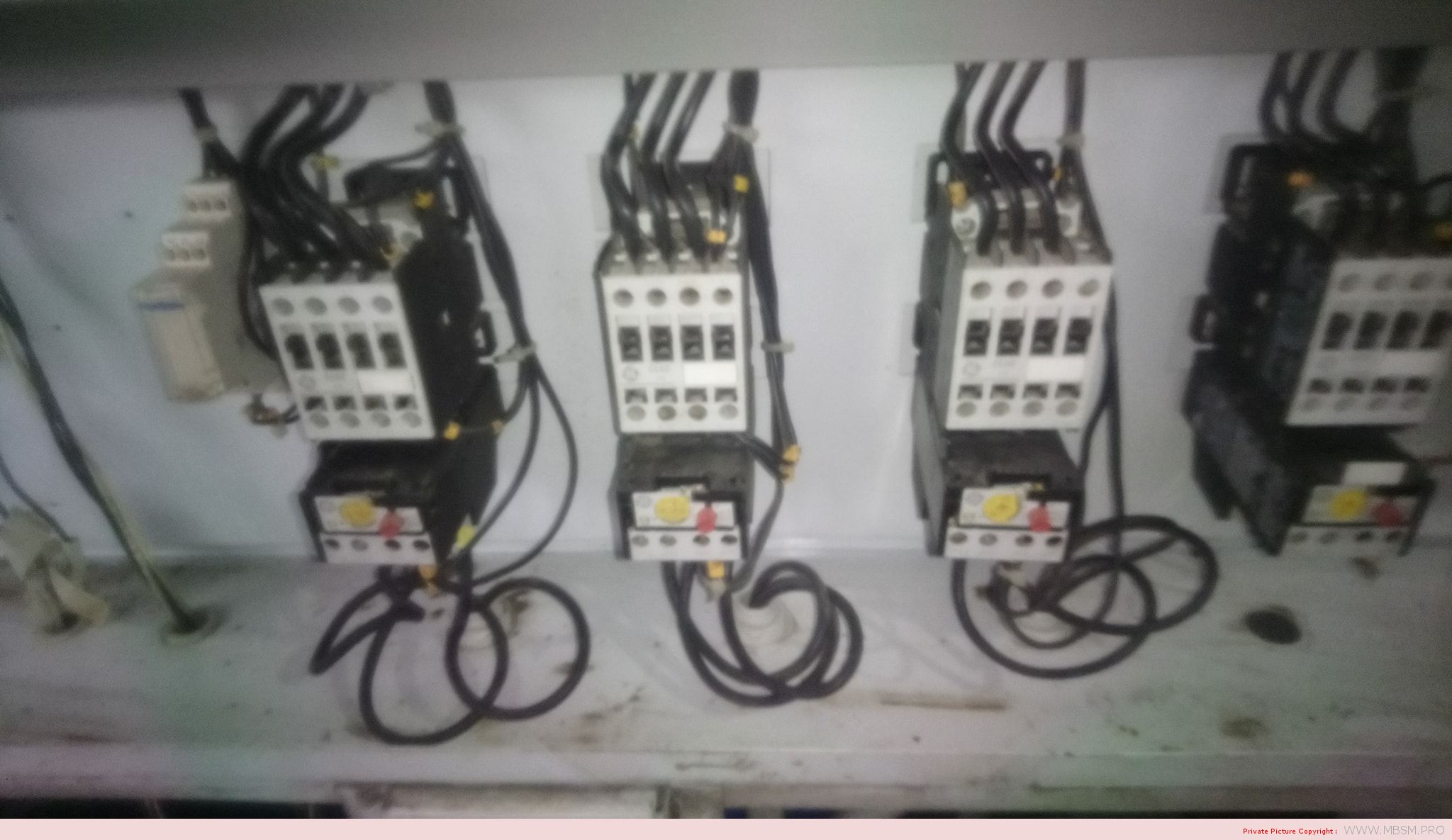

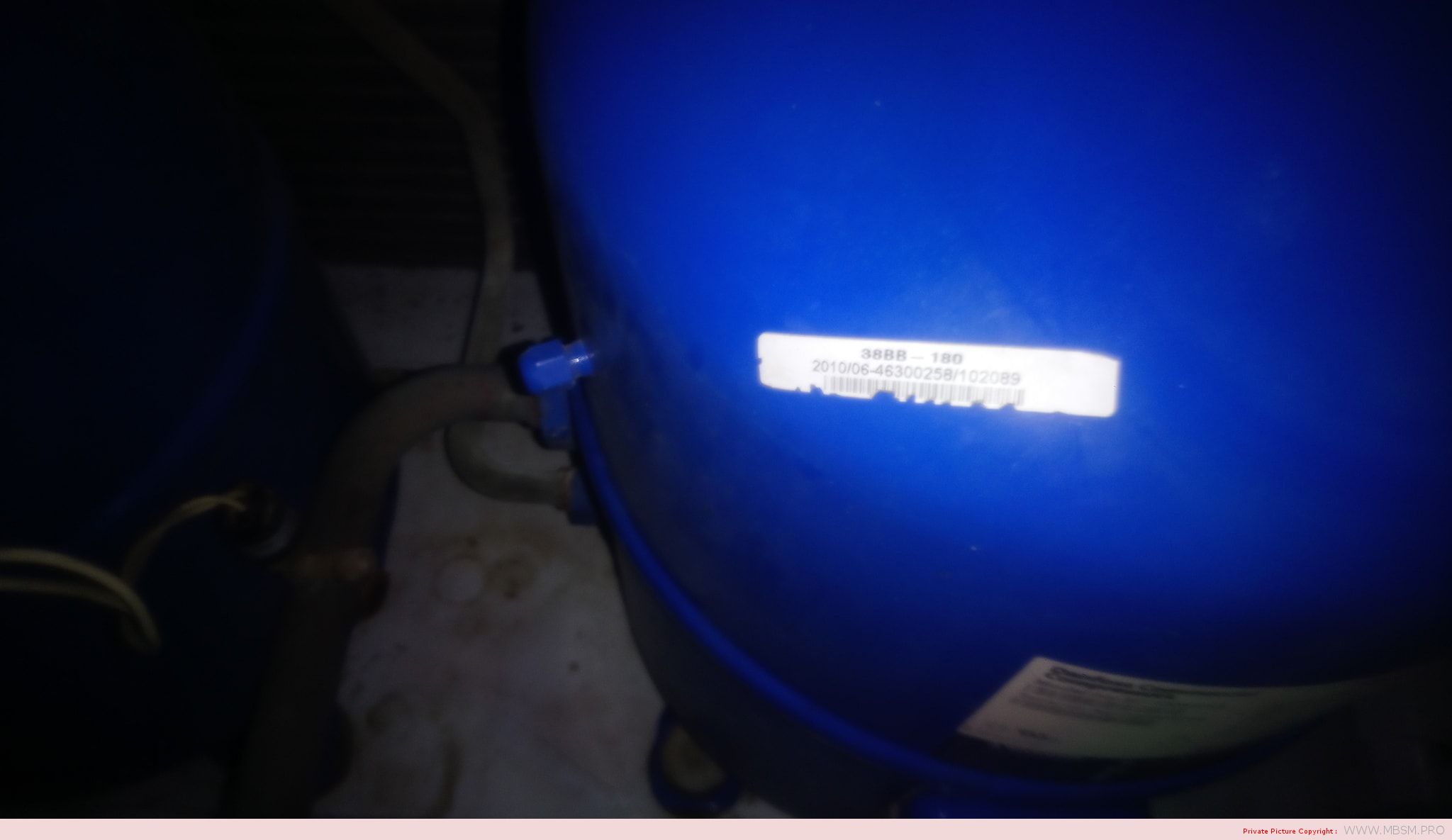

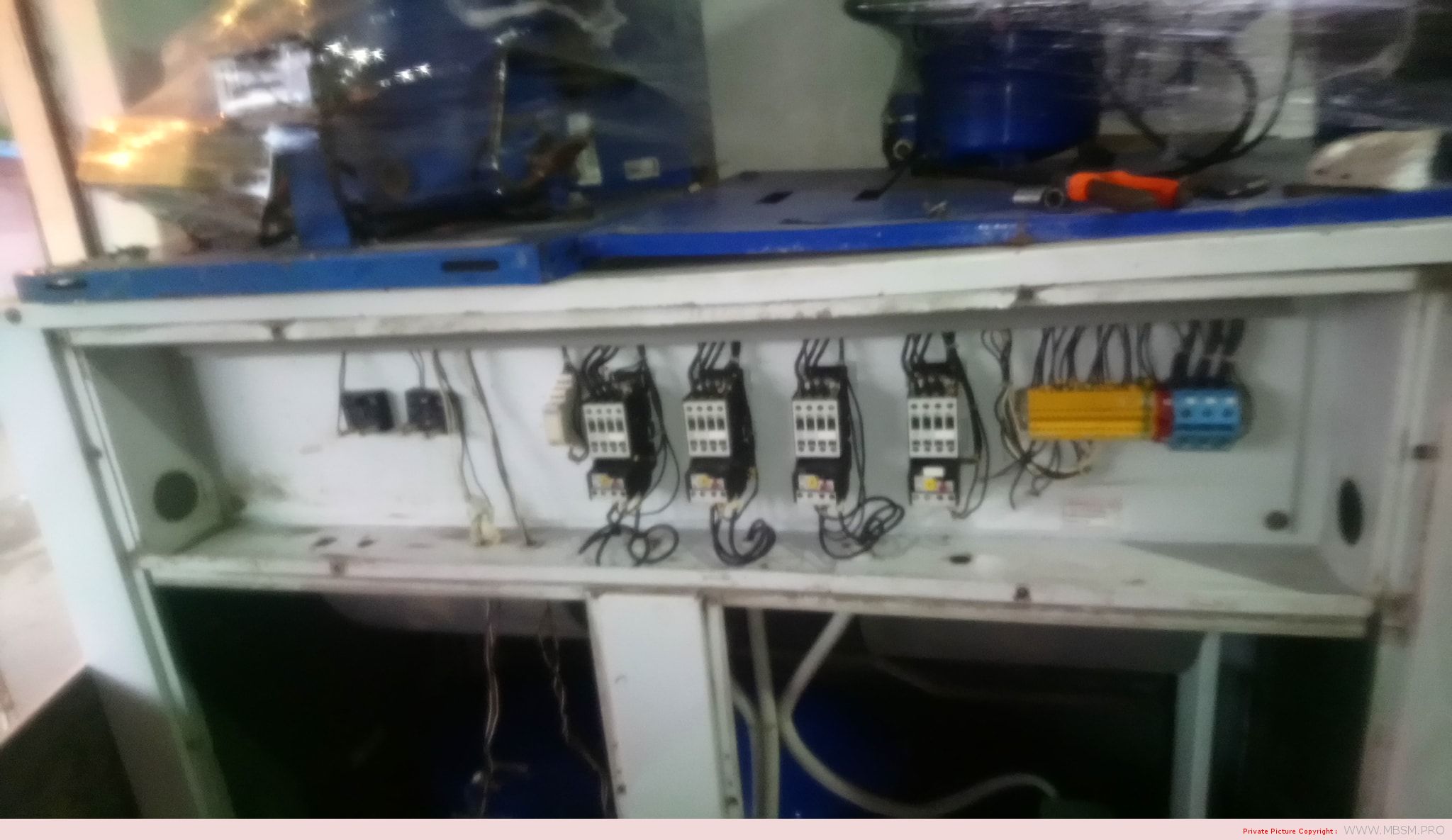

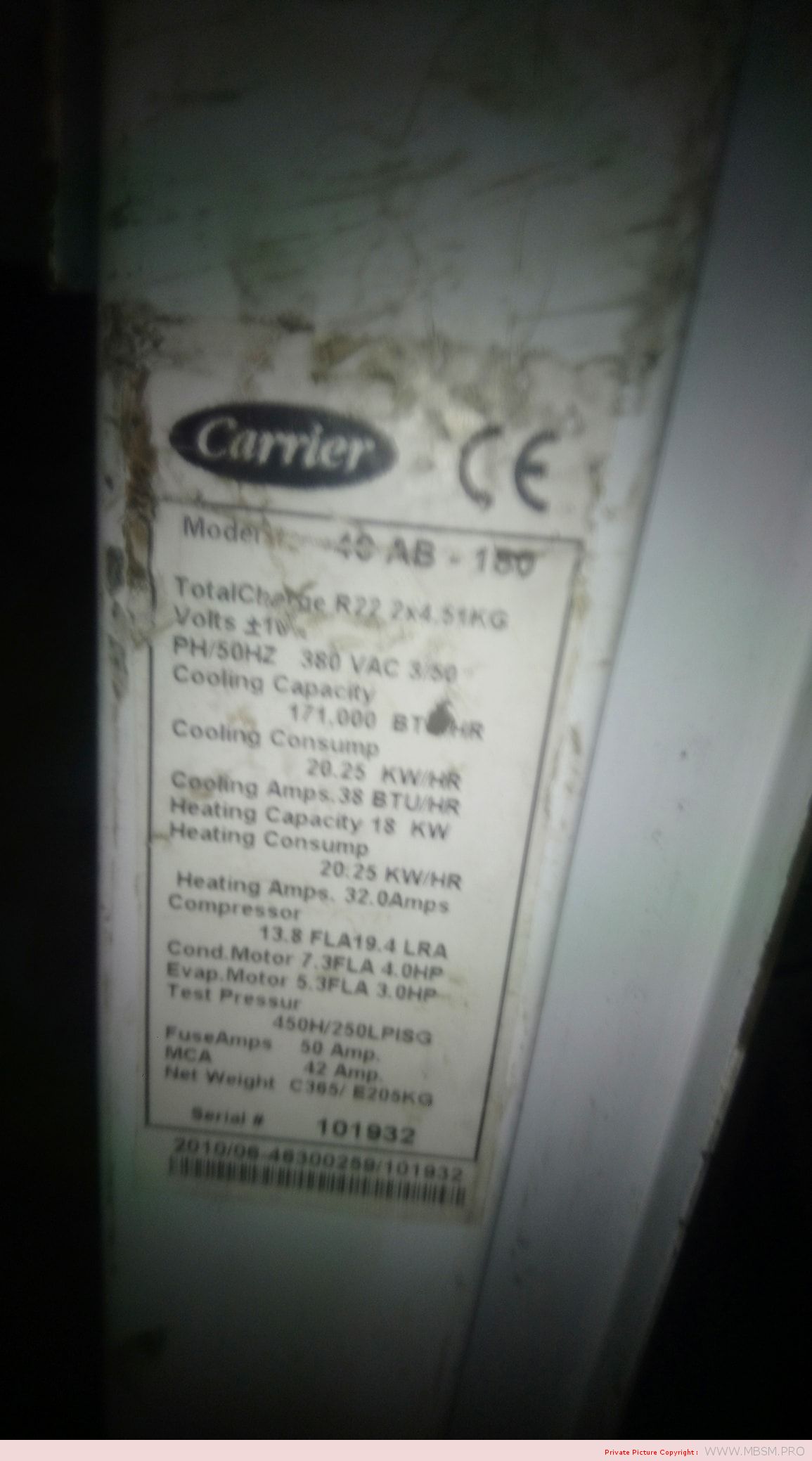

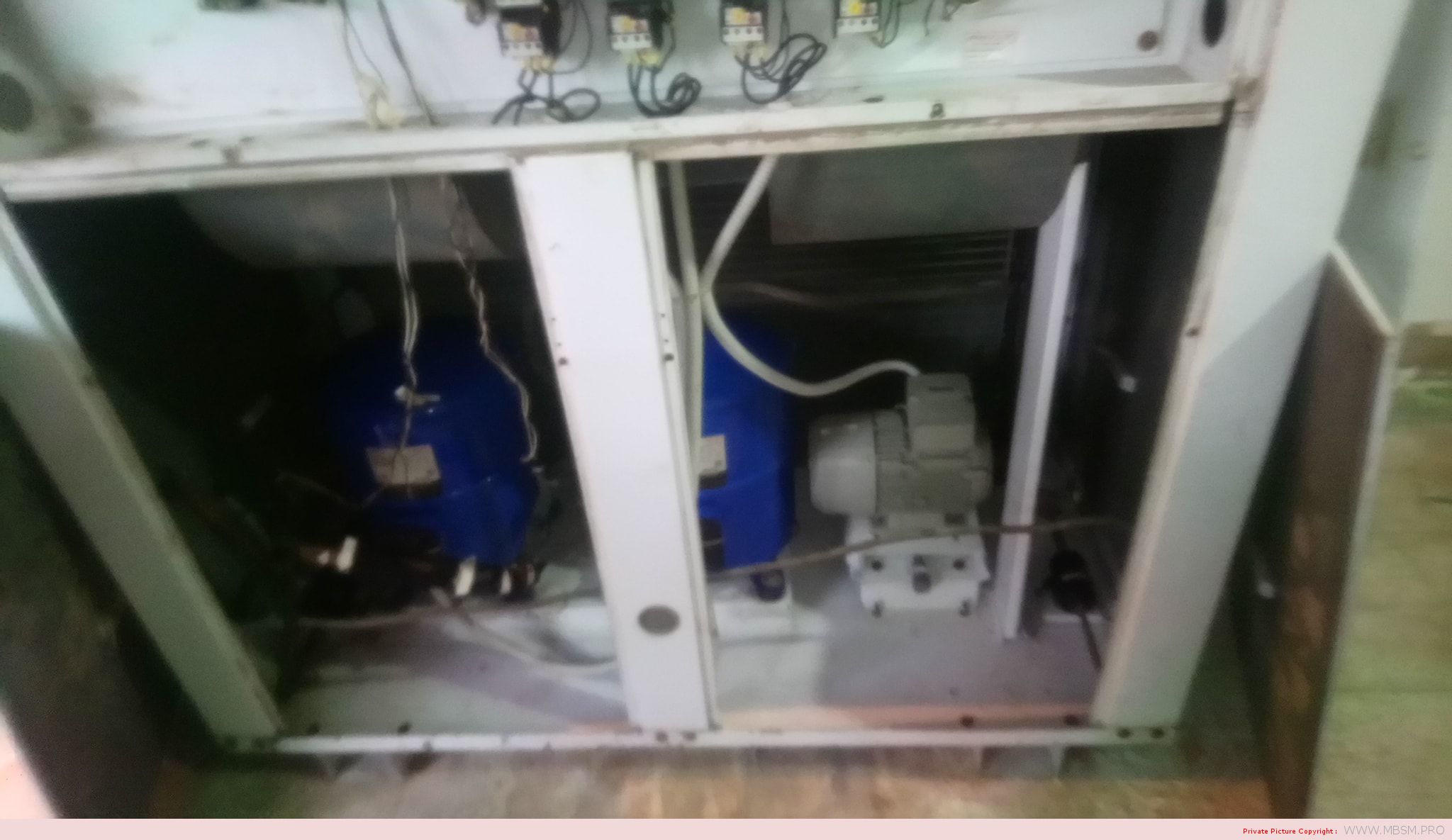

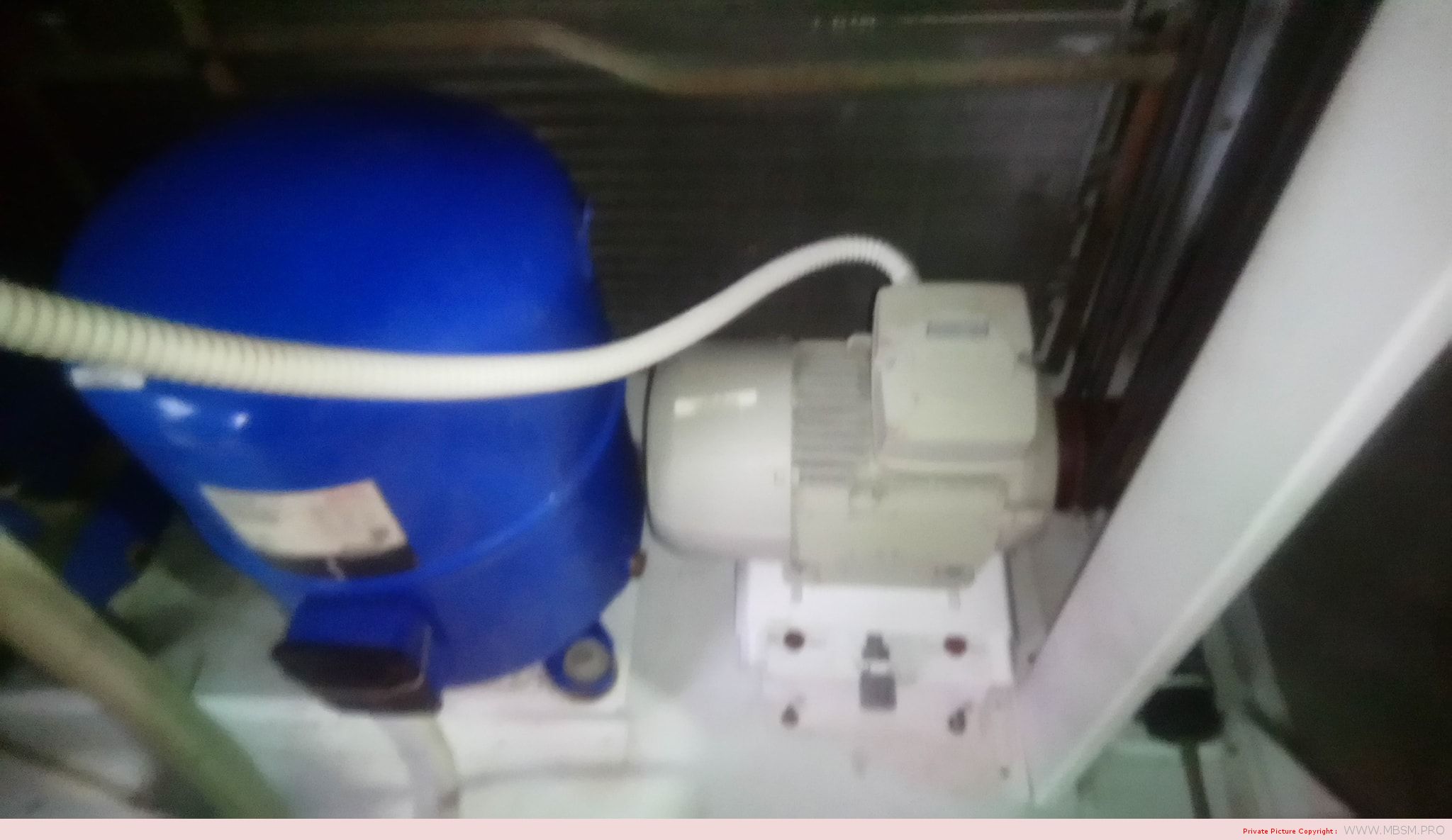

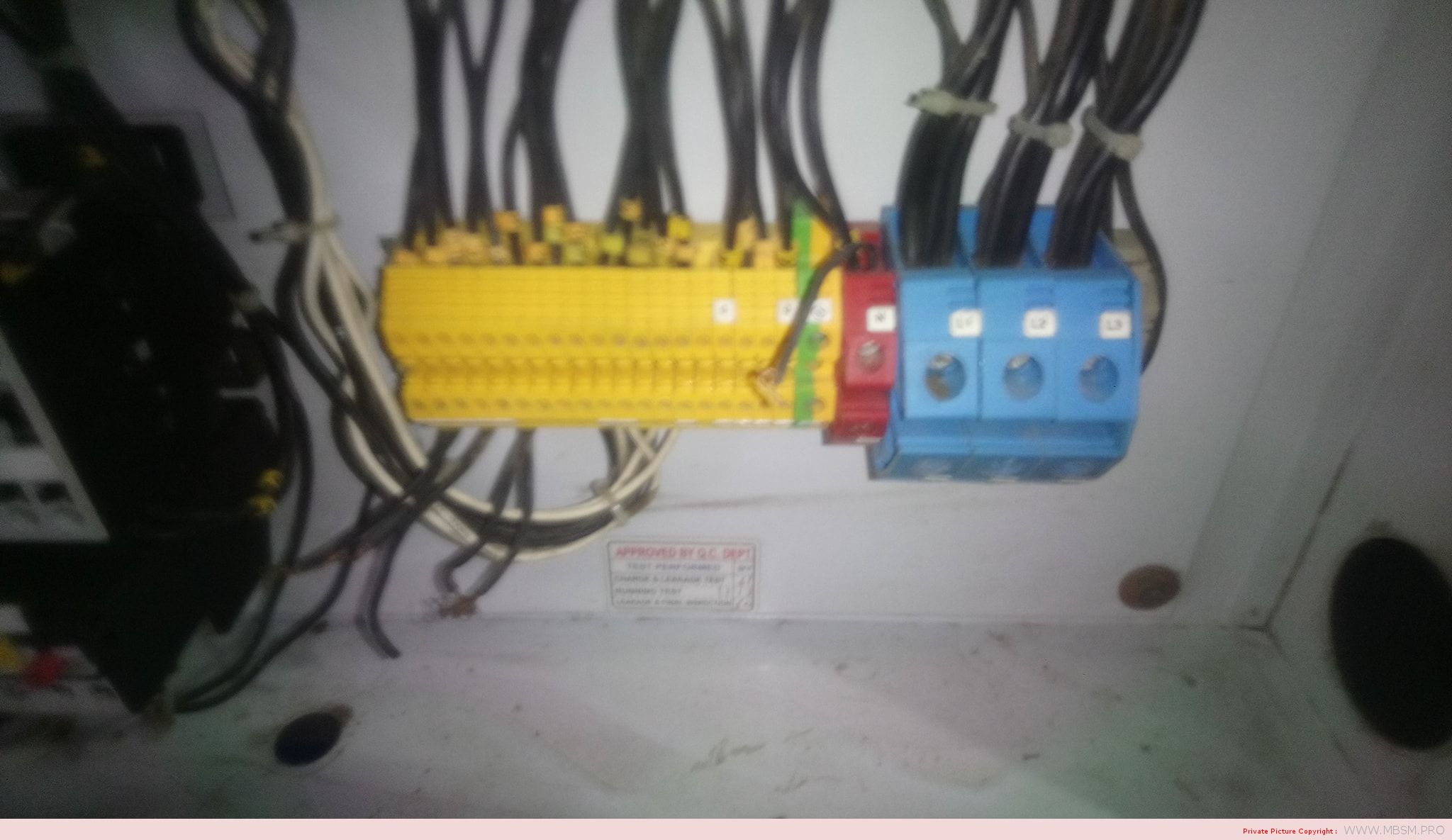

mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro
mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro
mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro
mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro
mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro
mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro
mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro
mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro
mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro
mbsmpro-danfoss-compressor--mt100hs4d-83hp-r22-380v-3ph-mbsm-dot-pro

MT100 > MT100HS4D > 8 HP > Displacement: 171.26cm3/rev > Motor Power: 8.3HP
MT100 > MT100HS4DVE > 8 HP > Displacement: 171.26cm3/rev > Motor Power: 8.3HP
MT125 > MT125HU4D > 10 HP > Displacement: 215.44cm3/rev > Motor power: 10.4HP
Model MODEL: MT18 MT18JA4BVE 1.5 HP Displacement: 30.23cm3/rev Motor Power:
1.5HP MT22 MT22JC4AVE 1.8 HP Displacement: 38.12cm3/ rev Motor Power: 1.8HP
MT28 MT28JE4AVE 2 HP Displacement: 48.06cm3/rev Motor Power: 2.3HP
MT32 MT32JF4DVE 2.5 HP Displacement: 53.86cm3/rev Motor Power: 2.7HP
MT36 MT36JG4EVE 3 HP Displacement: 60.47cm3/rev Motor Power: 3.0HP
MT40 MT40JH4EVE 3 HP Displacement: 67.89cm3/rev Motor Power: 3.3HP MT44
MT44HJ4AVE 3.5 HP Displacement: 76.22cm3/rev Motor Power: 3.7HP
MT45 MT45HJ4AVE 4 HP Displacement: 76.22cm3/rev Motor Power: 3.8HP
MT50 MT50HK4BVE 4 HP Displacement: 85.64cm3/rev Motor Power: 4.2HP
MT51 MT51HK4AVE 4 HP Displacement: 85.64cm3/rev Motor Power: 4.3HP
MT56 MT56HL4AVE 4.5 HP Displacement: 96.13cm3/rev Motor Power: 4.7HP
MT57 MT57HL4AVE 4.5 HP Displacement: 96.13cm3/rev Motor Power: 4.8HP
MT64 MT64HM4CVE 5 HP Displacement: 107.71cm3/rev Motor Power: 5.3HP
MT65 MT65HM4AVE 5.5 HP Displacement: 107.71cm3/rev Motor Power: 5.4HP
MT72 MT72HN4AVE 6 HP Displacement: 120.94cm3/rev Motor Power: 6.0HP
MT73 MT73HN4AVE 6 HP Displacement: 120.94cm3/rev Motor Power: 6.1HP
MT80 MT80HP4AVE 6.5 HP Displacement: 135.78cm3/rev Motor Power: 6.7HP
MT81 MT81HP4AVE 6.5 HP Displacement: 135.78cm3/rev Motor Power: 6.8HP
MT100 MT100HS4D 8
HP Displacement: 171.26cm3/rev Motor power: 8.3HP
MT125 MT125HU4D 10 HP Displacement: 215.44cm3/rev Motor power: 10.4HP
MT125 MT125HU4DVE 10
HP : 241.87cm3/rev Motor power: 12.0HP
MT160 MT160HW4D 13 HP Displacement: 271.55cm3/rev Motor power: 13.3HP MT160
MT160HW4DVE 13 HP

Gross weight66.38 kg
Net weight61.8 kg
EAN5702428839921



Approval standardCE
UL
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V/Ph/Hz]400/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Cylinder4
DescriptionMT100-4
Diameter [mm]352 mm
Discharge connection height [mm]125 mm
Discharge connection mounting torque [Nm]90 Nm
Discharge connection pipe size [in]3/4 in
Discharge connection rotolock size [in]1 1/4 in
Discharge connection size [in]1 1/4 in
Discharge connection sleeve pipe size [in]3/4 in
Drawing number8504010f
EconomizerNo
Factory HP [bar]25 bar
Factory LP [bar]25 bar
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Generation codeD
Glass mountingThreaded
Glass torque [Nm]50 Nm
GP LP torque [Nm]15 Nm
High side max pressure (Ps)27.8 bar
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume1.2 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]460 V
High value of voltage range at 60Hz [V]506 V
IP protection classIP54 (with cable gland)
Low side max pressure (Ps)18.4 bar
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume31 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA90 A
MCC22 A
Model numberMT100HS4EVE
Motor protectionInternal overload protector
Mounting torque [Nm]50 Nm
Nominal cooling capacity 60 kBTU/h95.9 kBtu/h
Nominal cooling capacity at 50Hz21.3 kW
Nominal cooling capacity at 60Hz28.1 kW
Number of starts per hour [Max]12
Oil charge [L]3.9 L
Oil equalization3/8” flare SAE
Oil equalization torque [Nm]30 Nm
Oil reference160P
Packaging height [mm]720 mm
Packaging length [mm]570 mm
Packaging weight [Kg]70 kg
Packaging width [mm]400 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew connectors 10-32 UNF x 9.5
RefrigerantR22
Refrigerant charge [kg] [Max]10 kg
Relief valve30 bar/8 bar
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageAir conditioning
Refrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]233 mm
Suction connection mounting torque [Nm]110 Nm
Suction connection pipe size [in]1 1/8 in
Suction connection rotolock size [in]1 3/4 in
Suction connection size [in]1 3/4 in
Suction connection sleeve pipe size [in]1 1/8 in
Swept volume [cm3]171.26 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 Nm
Torque power [Nm]3 Nm
Total height [mm]519 mm
TypeMT
Type designationCompressor
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]2.12 Ohm
