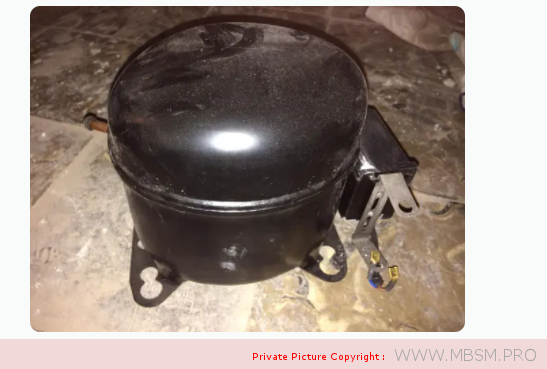

Type: Hermetic piston compressorsProducer: ACCSeries: HMBP

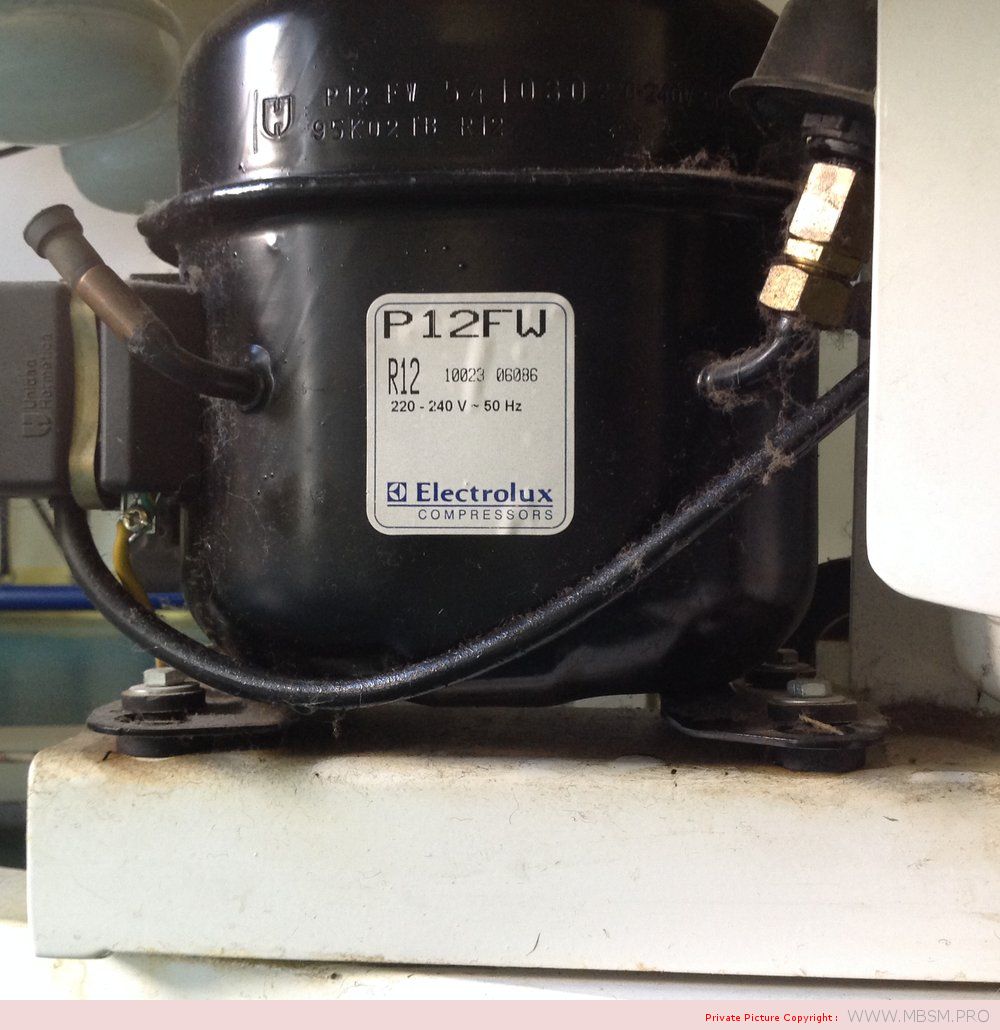

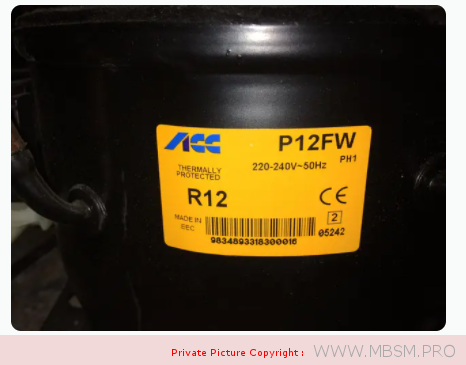

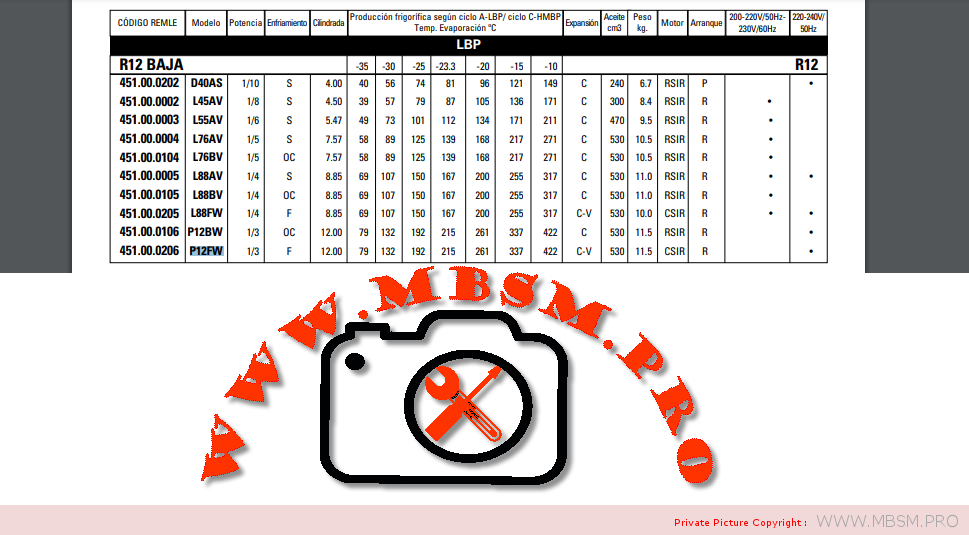

Model: P12FW
General data

Refrigerant:	R12
Discharge element:	C-V
Cooling:	F
Maximum ambient temperature [ºC]:	43

Compressor’s data

Cylinder capacity [cm³]:	12
Displacement [m³/h]:	2,1
Weight [kg]:	11,5
Oil charge [cm³]:	530
Oil type:	ISO VG 46 MINERAL

Engine’s data

Engine type:	CSIR
Power [KM]:	1/3
Starting element:	HST
Power supply:	220V 50Hz
Voltage range:	198-264
Locked rotor current [A]:	13,8
Running winding resistance (25ºC) [Ω]:	6,88
Starting winding resistance (25ºC) [Ω]:	26,97

Electrical data

Relays:	9660 A 145, MTRP 46
Shielding element:	MRT38AMK, T0168
Starting capacitor volume [μF]:

Connections

	milimeters	inches
Suction/service tube:	8,1
Service/suction tube:	8,2
Discharge tube:	6,5
