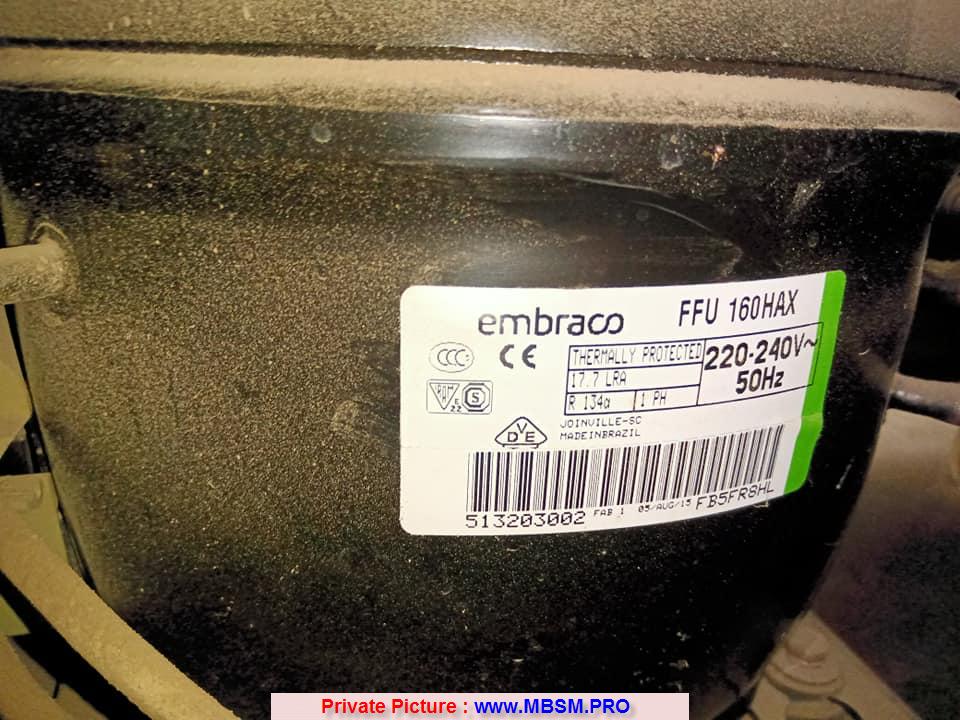

Compresor Embraco, T/M-B FFU160HAX 1/2 HP,1,533 BTU/h,R-134 A ,MBP

GENERAL DATA
Application:
 MBP
Refrigerant:
 R134a
Compressor Cooling:
 Fan
Type:
 Hermetic reciprocating
Technology Type:
 On-Off
Expansion Device:
 Capillary Tube / Expansion Valve
Packing Quantity:
 100
Displacement:
 12.92 cm3
Horse power:
 1/2 hp
Approvals:
MECHANICAL DATA
Bore:
 28 mm
Stroke:
 21 mm
Oil Charge:
 350ml
Maximum Recommended Refrigerant Charge:
 700 g
Oil Type Configuration:
 ESTER
Oil Type Viscosity:
 ISO22
Weight:
 10.94 kg
ELECTRICAL DATA
Motor Type:
 CSIR
Starting Torque:
 LST/HST
Voltage working range at 60 Hz:
 104-140 V
Maximum Motor Temperature:
 130 °C
Start Winding Resistance:
 4.51 Ω (± 10%) at 25°C
Run Winding Resistance:
 1.09 Ω (± 10%) at 25°C
MOUNTING ACCESSORIES
DescriptionCodeAnchorage:
no-
Overload ProtectorBracket:
no-
Capacitor Bracket:
no-
Washer:
no-
Pin:
no-
Cover:
no-
Grommets:
no-
Sleeves:
no-
Clip:
yes13143000
Terminal:
yes219109055
ELECTRICAL COMPONENTS
Component typeDescriptionCodeCSR / CSIR Box:
No
Starting Device:
Relay213516051*
Motor Protection:
MST 18AFK -559013554029
Start Capacitor:
378-454UF – 165V13556535
EXTERNAL CHARACTERISTICS
Base Plate:
 UNI V2
Tray Holder:
 No
Height:
 mm
InternalDiameter (mm)MaterialShapeSuction Connector
8.2CopperStraight
Discharge Connector
8.2CopperStraight
Process Connector
6.5CopperStraigh
