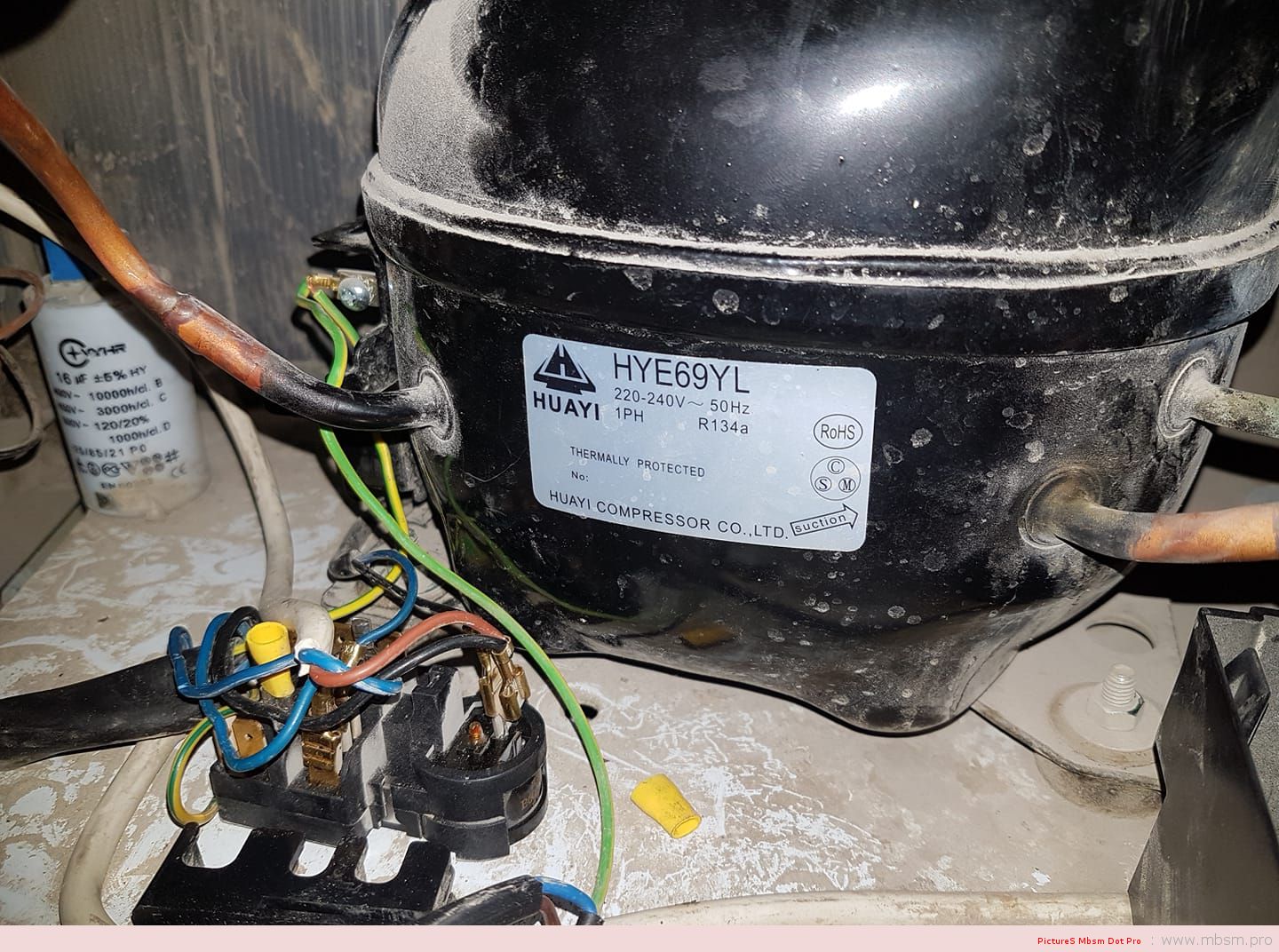

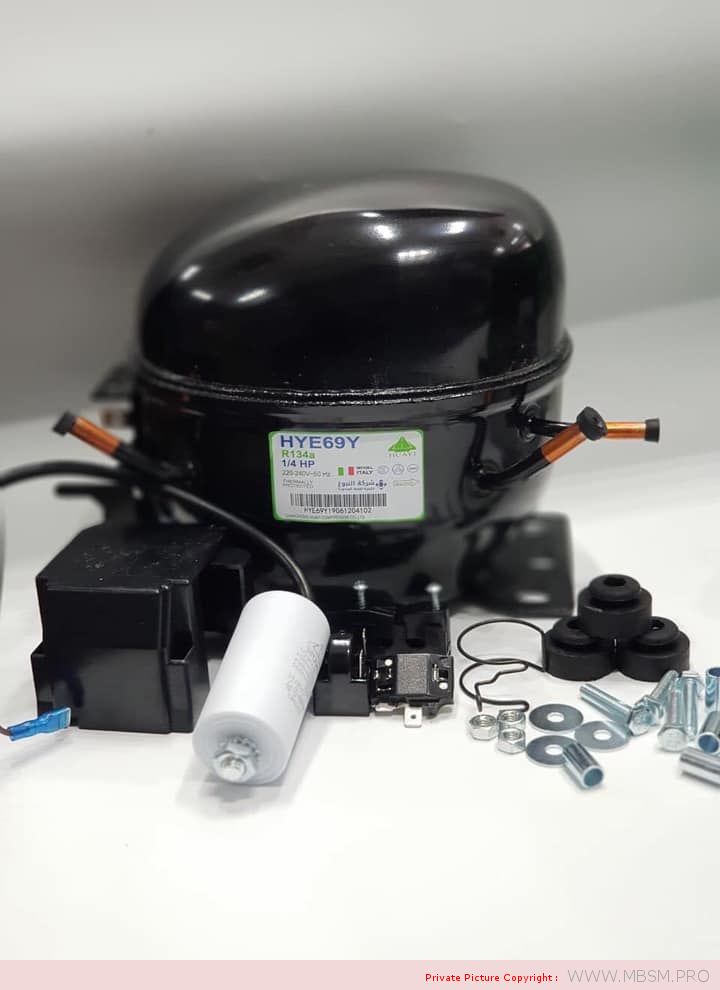

MBSM.PRO , HYE69YL ,Compressor (LBP) , China R134a ,Huayi Compressor Co., Ltd, 69 YL ,1/4 Hp ,168Kcal , 220V
| Test conditions | According to ASHRAE |
| Evaporating temperature | -23.3℃ |
| Condensing temperature | 54.4℃ |
| Subcooling temperature | 32.2℃ |
| Suction temperature | 32.2℃ |
| Ambient temperature | 32.2℃ |
| Working condition limit:R134a | |
| Max ambient temperature | 43[℃] |
| Evaporation temperature range | -35~-15[℃] |
| Working voltage range. | 187~254/98~127[V] |
| Max discharge pressure | 2.0[Mpa](gauge pressure) |
| Max allowable housing temperature | 95[℃] |
| Max discharge temperature | 125[℃] |
| Max pressure housing endured | 2.7[Mpa](gauge pressure) |
| Low voltage start | 0.4/0.4Mpa(gauge pressure)187V/98V |
Product model:HYE69YL
Cooling capacity:195W
COP（W/W）:1.15
Voltage（V）:220-240~
Frequency(Hz):50
