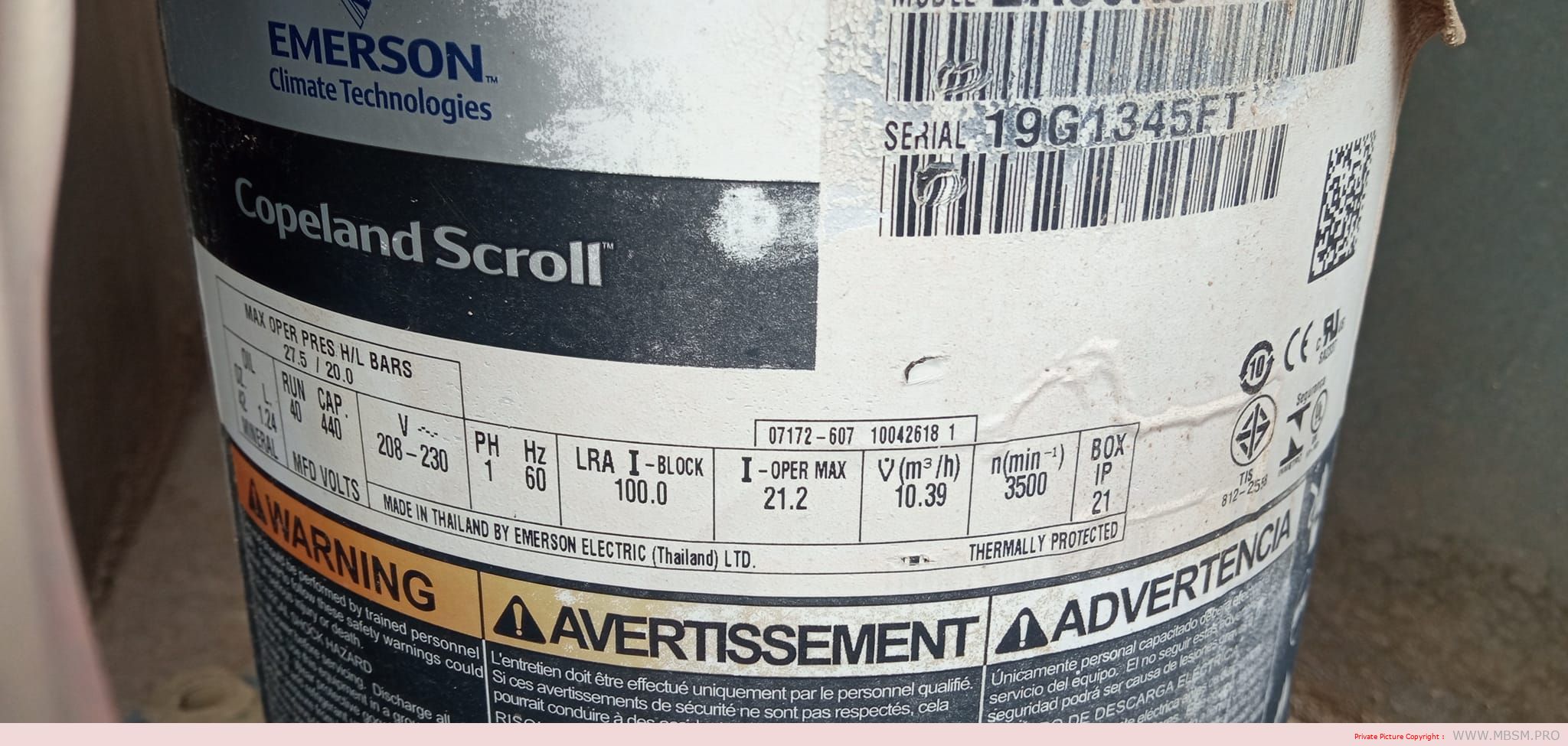

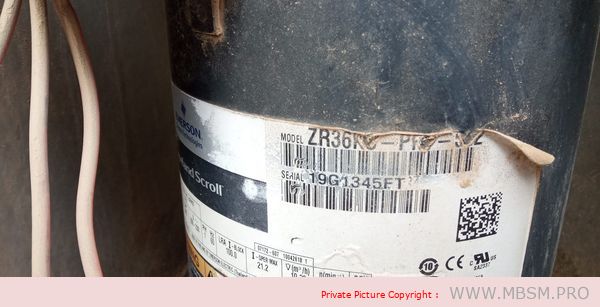

Mbsm.pro, 30000 BTU, Copeland, Scroll, Compressor, ZR36KC-PFJ-522, 3 Ton, r22,

Download Attachments

image_pdfimage_print

Compresor Copeland Scroll ZR36KC-PFV

Mbsm_dot_pro_private_PDF__ZR36KC-PFJ-522 Mbsm_dot_pro_private_PDF_ZR36KC-PFJ-522

Compresor Copeland Scroll ZR36KC-PFV

Datos Técnicos

HCFC, R-22, 60 Hz, 1-phase, 208/230 V

Air Conditioning

Performance

Evaporator Temp. (ºF)  45.00  45.00

Condensing Temp. (ºF)  130.00  100.00

Return Gas Temp. (ºF)  65  65

Liquid Temp. (ºF)  115  85

Capacity (Btu/hr)  36900  43400

Power (W): 3350  2410

EER (Btu/Wh):  11.00  18.00

Mass Flow (Ibs/hr): 540  560

Current (Amps):  15.90  12.10

Sound Data

Sound Power (dBA):  71 Avg  76 Max

Vibration (mils(peak-peak)):  2.000 Avg  3.000  Max

Record Date: 2006-04-18

Compresor Copeland Scroll ZR36KC-PFV

Mechanical

Displ(in^3/Rev):  3.02

Displ(ft^3/hr):  367.01

Overall Length (in): 9.69

Overall Width (in): 9.69

Overall Height (in): 15.73

Mounting Length (in): 7.50

Mounting Width (in): 7.50

Mounting Height (in): 15.97*

Suction Size (in) Type:   3/4 Stub

Discharge Size (In) Type:  1/2  Stub

Initial Oil Charge (oz): 42

Oil Recharge (oz): 38

Net Weight (ibs): 60.00

Internal Free Volume (in^3): 161.00

Horse Power: 3

*Overal compressor height on Copeland Brand Product´s specified mounting grommets.

Compresor Copeland Scroll ZR36KC-PFV

Electrical

LRA-High*(Amp):  100.0

LRA Low*(Amp):  NA

LRA-Half Winding(Amp): NA

MCC (Amps): 25.0

Max Operating Current(Amp):  3500

RLA(=MCC/1.4;use for contactor selection (Amp): 17.

RLA(=MCC/1.56;use for breaker & wire size selection)(Amp):  16

RPM: 21.2

UL File No:  SA-2337

UL File Date:  14-JUN-1994

*Low and High refer to the low and high nominal voltage ranges for which the motor is approved.

Capacitors



Start Capacitor:

Low MFD: 40.0

High MFD: 0.0

Volts: 440

User Description: NA



Compresor Copeland Scroll ZR36KC-PFV

Alternate Applications

Refrigerante: R-22 HCFC

Voltaje: NA

Fase: 1

Freq (Hz): 50

Aplicación: Air Conditioning
