Product Description

Mbsm_dot_pro_private_PDF__AJE2425AXA (CAJ2T12) Mbsm_dot_pro_private_PDF_AJE2425AXA (CAJ2T12)

Tecumseh Hermetic R134A / R404a / R22 piston compressor

R22 Hermetique HBP
For air conditioning applications.
Features:
Supports anti vibration fourni
Charged with mineral oil and dry nitrogen
Crankcase heater on Beacon models
Fan cooling required on all models
Specifications:
Base rating capacity: 35°C ambient temperature, 11K gas return overheat, 54.5°C condensation, 46.2°C liquid entering expansion valve.
Current FLA are given at rated voltage, rated conditions and 7.2°C evaporating temperature.
Engine types:
= PSC permanent split capacitors, 1 phase, 50 Hz. 220-240 Volt
Phase 3Ø : 3, 50 Hz, 400 volts
Expansion device:
C = the capillary tube
C/V = capillary tube or expansion valve
R22 airtight
Model No. HP nominal Displ. cm³/rev Type of engine FLA rated current Exp. Device Oil charge cm³ Connections: inches
Cm³ Discharge Proc.
AE 5465E 1/2 12.05 Cfp 3.2 C 450 Tube 3/8 Tube 1/4 Tube 3/8
AJ 5510F 3/4 18.6 Cfp 5.2 C 887 Tube 3/8 Tube 1/4 Tube 1/4
AJ 5512E 1 21,75 Cfp 5.9 C 887 Tube 3/8 Tube 1/4 Tube 1/4
AJ 5513E 1 24.2 Cfp 6 C 887 Tube 3/8 Tube 1/4 Tube 1/4
AJ 5515E 1 1/4 25.95 Cfp 7.2 C 887 Tube 1/2 5/16 Tube Tube 1/4
AJ 5518E 1 1/2 32,7 Cfp 9.3 C 887 Tube 1/2 5/16 Tube Tube 1/4
AJ 5519E 1 1/2 34.45 Cfp 9.96 C 887 Tube 1/2 5/16 Tube Tube 1/4
FH 5522E 1 3/4 39.95 Cfp 9 C 1330 Tube 5/8 Tube 3/8 5/16 Tube
TFH 5522E 1 3/4 39.95 3Ø 3.8 C/V 1330 Tube 5/8 Tube 3/8 5/16 Tube
FH 5524E 2 43,5 Cfp 10 C 1330 Tube 5/8 Tube 3/8 5/16 Tube
TFH 5524E 2 43,5 3Ø 4 C/V 1330 Tube 5/8 Tube 3/8 5/16 Tube
FH 5527E 2 1/4 49.1 Cfp 12 C 1330 Tube 5/8 Tube 3/8 5/16 Tube
TFH 5527E 2 1/4 49.1 3Ø 4.2 C/V 1330 Tube 5/8 Tube 3/8 5/16 Tube
FH 5531E 2 1/2 56,65 Cfp 14.1 C 1330 Tube 3/4 Tube 3/8 5/16 Tube
TFH 5531E 2 1/2 56,65 3Ø 8 C/V 1330 Tube 3/4 Tube 3/8 5/16 Tube
FH5540E 3 74.25 Cfp 18.6 C 1330 Tube 3/4 Tube 3/8 5/16 Tube
TFH 5540E 3 74.25 3Ø 6 C/V 1330 Tube 3/4 Tube 3/8 5/16 Tube
TFH 5540E 3 74.25 3Ø 6 C/V 1330 78 Distributor 1/2 5/16 Tube
TAG 5546E 3 3/4 90.2 3Ø 6.6 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
TAG 5553E 4 100,7 3Ø 7.4 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
TAG 5561E 5 112,5 3Ø 9 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
TAG 5568E 6 124,4 3Ø 9.6 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
TAG 5573E 6 1/2 134,8 3Ø 11 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
Hermetic R22 M/RAP
For medium/high temperature applications
Features:
Anti-vibration dampers provided
Charged with mineral oil and dry nitrogen
Rotalock suction valve on CAJ/TAJ models
Crankcase heater on FH/ESS and Beacon models
Oil light on FH/ESS and Beacon models
Fan cooling required on all models
All models fit capillary tube or regulator operation
Rotalock suction and discharge valves on FH/ESS and Beacon models
Specifications:
Base rating of capacity: 35°C ambient temperature, 11K Overheat gas return, 54.5°C condensation, 46°C liquid entering expansion valve.
Current FLA are given at rated voltage, rated conditions and 7.2°C evaporating temperature.
Engine types:
CSIR: start capacitor, induction run } 1 phase, 50 Hz, 220-240 Volt
CSR: Capacitor start and run
Phase 3Ø : 3, 50 Hz, 400 volts
Conversion : watts x = 3.412 BTU/hr Btu/hr x = 0.293 Watts
R22 airtight
Model No. HP nominal Displ. cm³/rev Type of engine FLA rated current Oil charge cm³ Connections: inches
L’aspiration Discharge
AEZ 4425E 1/5 4.5 The CSIR 1.75 450 Tube 1/4 3/16 Tube
AEZ 4430E 1/4 5.7 The CSIR 2.2 450 Tube 1/4 3/16 Tube
AEZ 4440E 1/3 7.55 The CSIR 2.6 450 Tube 1/4 3/16 Tube
AEZ 9440T 1/3 7.55 CSR 2.03 450 Tube 3/8 Tube 1/4
CAE 4450E 3/8 9.4 The CSIR 3.3 450 Tube 3/8 Tube 1/4
CAE 9450T 3/8 9.5 CSR 2.6 450 Tube 3/8 Tube 1/4
FIELD 9460T 1/2 11.3 CSR 3.2 450 Tube 3/8 Tube 1/4
Le CAJ 9408T 5/8 15.2 CSR 3.68 887 Distributor 1/2 5/16 Tube
The CAJ 9510T 1 18.3 CSR 4.8 887 Distributor 5/8 5/16 Tube
Le CAJ 9513T 1 1/8 24.2 CSR 5.9 887 Distributor 5/8 5/16 Tube
Le CAJ 4517E 1 1/4 25.95 CSR 6.1 887 Distributor 5/8 Tube 3/8
TAJ 4517T 1 1/2 25.95 3Ø 2.5 887 Distributor 5/8 Tube 3/8
TAJ 4519T 1 1/2 34.45 3Ø 3.5 887 Distributor 5/8 Distributor 1/2
FH 4524F 2 43,5 CSR 9.55 1480 Distributor 5/8 Distributor 1/2
TFH 4524F 2 4.35 3Ø 3.9 1480 Distributor 7/8 Distributor 1/2
FH 4531F 2 1/2 56,65 CSR 12.6 1480 Distributor 7/8 Distributor 1/2
TFH4531F 2 1/2 56,65 3Ø 4.75 1480 Distributor 7/8 Distributor 1/2
TFH 4540F 3 74.25 3Ø 6.08 1480 Distributor 7/8 Distributor 1/2
TAG 4546T 4 90.2 3Ø 6.6 1960 Distributor 7/8 Distributor 5/8
TAG 4553T 4 1/2 100,7 3Ø 7.4 1960 Distributor 7/8 Distributor 5/8
TAG 4561T 5 112,5 3Ø 9 1960 1 7/8 valve Distributor 5/8
TAG 4568T 6 124,4 3Ø 9.6 1960 1 7/8 valve Distributor 5/8
DAY 4573T 6 1/2 134,8 3Ø 11 1960 1 7/8 valve Distributor 5/8
Tecumseh Hermetique R134a
The world famous Unite Hermetique compressors are manufactured by Tecumseh.
Features:
Loaded with polyolester oil and dry nitrogen
Crankcase heater on FH/ESS and Beacon models
Oil light on FH/ESS and Beacon models
Rotalock valves are included for all compressors valve connection
Supports anti-vibration fourni
Single phase – moderately high SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
Le CAJ4476Y 5/8 21,75 The fan 887
The CAJ4492Y 3/9 25.95 The fan 887
Le CAJ4511Y 1 32,7 The fan 887
FH4518Y 1 1/2 53,2 The fan 1480
FH4525Y 2 74.25 The fan 1480
Three Phase – Medium High SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
TAJ4511Y 1 32,7 The fan 887
TFH4518Y 1 1/2 53,2 The fan 1480
TFH4525Y 2 74.25 The fan 1480
TAG4528Y 2 1/2 90.2 The fan 1960
TAG4534Y 2 3/4 100,7 The fan 1960
TAG4537Y 3 112,5 The fan 1960
TAG4543Y 3 1/2 124,4 The fan 1960
Models replaced
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
Zae4425Y 1/5 7.55 The fan 450
AEZ4430/Y 1/4 8.85 The fan 450
CAE4440Y 3/8 12.05 The fan 450
CAE4448Y 1/3 14.15 The fan 450
And CAJ4452Y 1/3 15.2 The fan 887
CAE4456Y 1/2 16 The fan 450
The CAJ4461Y 1/2 18.3 The fan 887
Tecumseh Hermetique R404A
The world famous Unite Hermetique compressors are manufactured by Tecumseh.
Features:
Loaded with polyolester oil and dry nitrogen
Crankcase heater on FH/ESS and Beacon models
Oil light on FH/ESS and Beacon models
Rotalock valves are included for all compressors valve connection
Supports anti-vibration fourni
Specifications:
Base rating of capacity: 35°C ambient temperature, 11K Overheat gas return, 54.5°C condensation, 46°C liquid entering expansion valve.
Current FLA are given at rated voltage, rated conditions and 7.2°C evaporating temperature.
Engine types:
CSIR: Start Capacitor, Induction Run 1 Phase, 50 Hz, 220-240 Volt
CSR: Capacitor start and run
Phase 3Ø : 3, 50 Hz, 400 volts
All models are also suitable for operation with R507
Single phase – moderately high SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
The CAJ9480Z 5/8 15.2 The fan 887
The CAJ9510Z 1 18.3 The fan 887
The CAJ9513Z 1 1/8 24.2 The fan 887
The CAJ4517Z 1 1/4 25.95 The fan 887
And CAJ4519Z 1 1/2 34.45 The fan 887
FH4522Z 1 3/4 39.95 The fan 1480
FH4524Z 2 43,5 The fan 1480
FH4531Z 2 1/2 56,65 The fan 1480
FH4540Z 3 74.25 The fan 1480
Three Phase – Medium High SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
TAJ9480Z 5/8 15.2 The fan 887
TAJ9510Z 1 18.3 The fan 887
TAJ9513Z 1 1/8 24.2 The fan 887
TAJ4517Z 1 1/4 25.95 The fan 887
TAJ4519Z 1 1/2 34.45 The fan 887
TFH4522Z 1 3/4 39.95 The fan 1480
TFH4524Z 2 43,5 The fan 1480
TFH4531Z 2 1/2 56,65 The fan 1480
TFH4540Z 3 74.25 The fan 1480
TAG4546Z 4 90.2 The fan 1960
TAG4553Z 4 1/2 100,7 The fan 1960
TAG4561Z 5 112,5 The fan 1960
TAG4568Z 6 124,4 The fan 1960
TAG4573Z 6 1/2 134,8 The fan 1960
Single Phase – Low SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
CAE2417Z 1/3 11.3 The fan 450
CAE2420Z 1/2 12.54 The fan 450
CAE2424Z 5/8 15 The fan 450
The CAJ2428Z 1/2 15.2 The fan 887
The CAJ2432Z 5/8 18.3 The fan 887
The CAJ2446Z 3/4 26,15 The fan 887
The CAJ2464Z 1 1/2 34.45 The fan 887
FH2480Z 2 53,2 The fan 1625
FH2511Z 2 1/2 74.25 The fan 1625
Three Phase – Low SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
TAJ2464Z 1 1/2 34.45 The fan 887
TFH2480Z 2 53,2 The fan 1625
TFH2511Z 2 1/2 74.25 The fan 1625
TAG2516Z 4 112,5 The fan 1960
TAG2522Z 5 1/2 134,8 The fan 1960
Three Phase – Parallel Applications
Model No. HP nominal Displacement: cm3/rev Application : SST The recooling : Ml charging oil
TAGP4546Z 4 90.2 Averages The fan 1960
TAGP4553Z 4 1/2 100,7 Averages The fan 1960
TAGP4561Z 5 112,5 Averages The fan 1960
TAGP4568Z 6 124,4 Averages The fan 1960
TAGP4573Z 6 1/2 134,8 Averages The fan 1960
TAGP2516Z 4 112,5 Weak The fan 1960
TAGP2522Z 5 1/2 134,8 Weak The fan 1960


Mbsm.pro, Compressor, Tee compressor, ae170ad, ae170ac, ae170ap, 150 w, 1/5 hp, r12, lbp

written by Lilianne | 22 September 2023

https://www.mbsm.pro/wp-content/uploads/2022/04/Mbsm_dot_pro_private_PDF__Te195yt.pdf

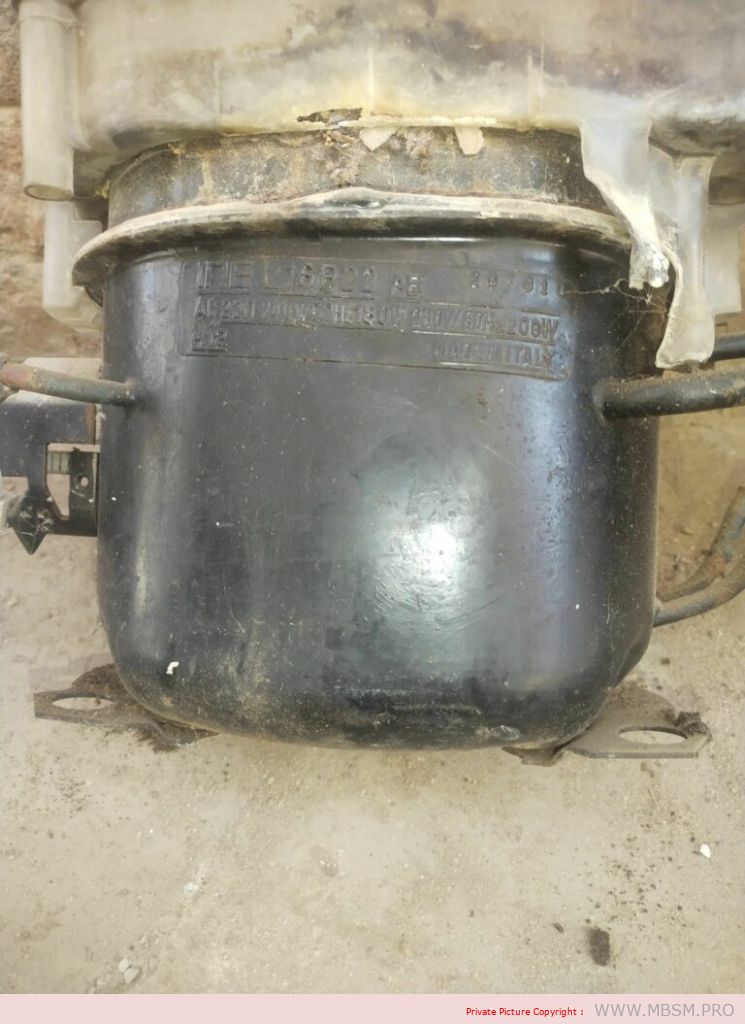

Mbsm.pro, compressor, IRE, L16b22, IREL16b22, 1/5 hp, r12, 180 w, 220v 50hz, Remplacement with 1/4 hp, r134a, Italien compressor

written by Lilianne | 22 September 2023

Mbsm.pro, compressor, IRE, L16b22, IREL16b22, 1/5 hp, r12, 180 w, 220v 50hz, Remplacement with 1/4 hp, r134a, Italien compressor

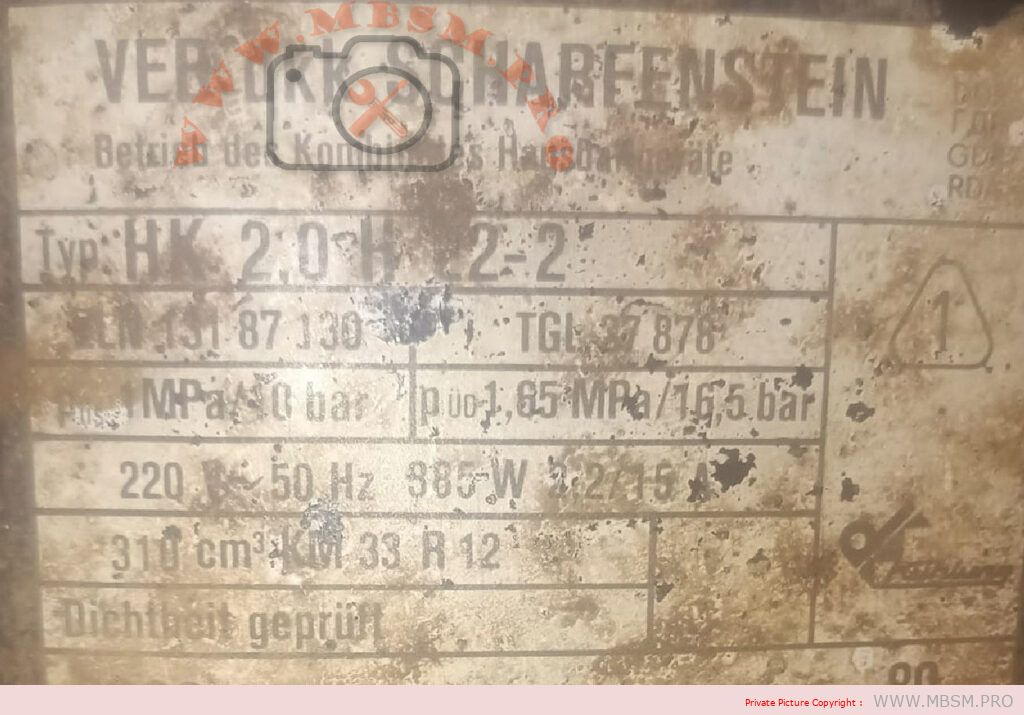

Mbsm.pro, Compressor, tgl27878, tgl27 878, VEB dkk Scharfenstein,1993, R12, 3/8 hp++, 1/2 hp–, 385 w, Cooling Compressor, 0 °C 10 °C, Replaced by GP12TB

written by Lilianne | 22 September 2023

Compressor ELECTROLUX, CUBIGEL ,GP12TB ,Hermetic piston ,ACC ,HMBP , moteur HP , 3/8 HP++, 1/2 hp– , 1PH , R134A , Pression 1.7 Bar , 220V

Mbsm.pro, Compressor, tgl27878, tgl27 878, VEB dkk Scharfenstein,1993, R12, 3/8 hp++, 1/2 hp–, 385 w, Cooling Compressor, 0 °C 10 °C, Replaced by GP12TB

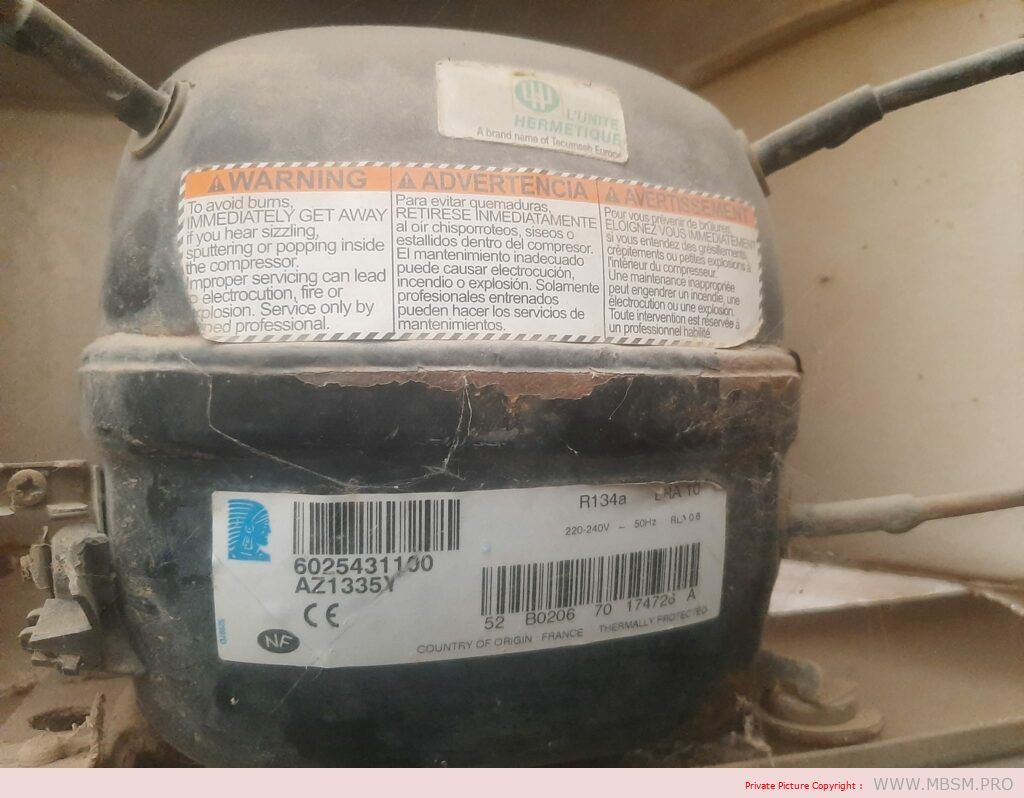

Mbsm.pro, compressor, Az1335y, 1/8 hp, r12, KIRBY KULTHRON
