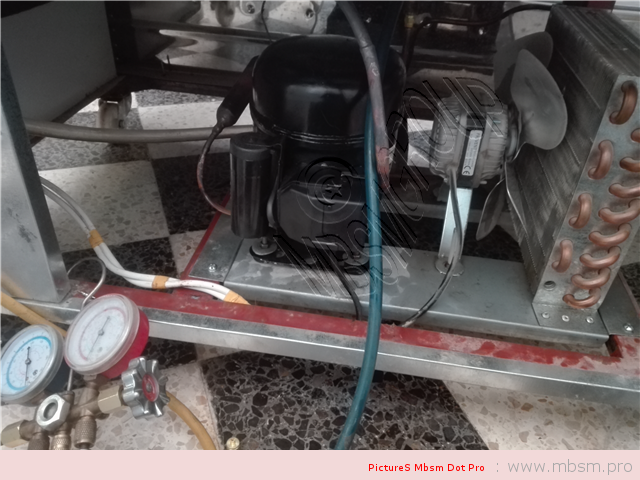

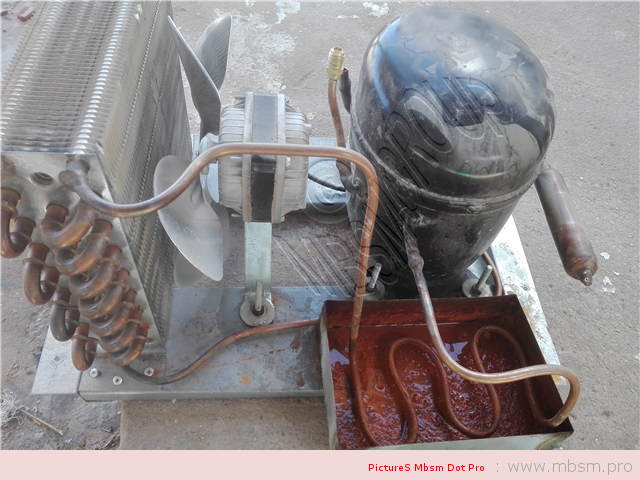

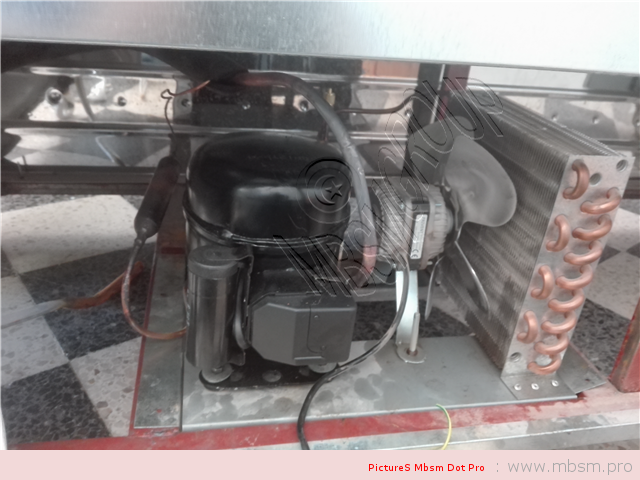

Type: Hermetic piston compressors Producer: ACCSeries: HMBP, cooling

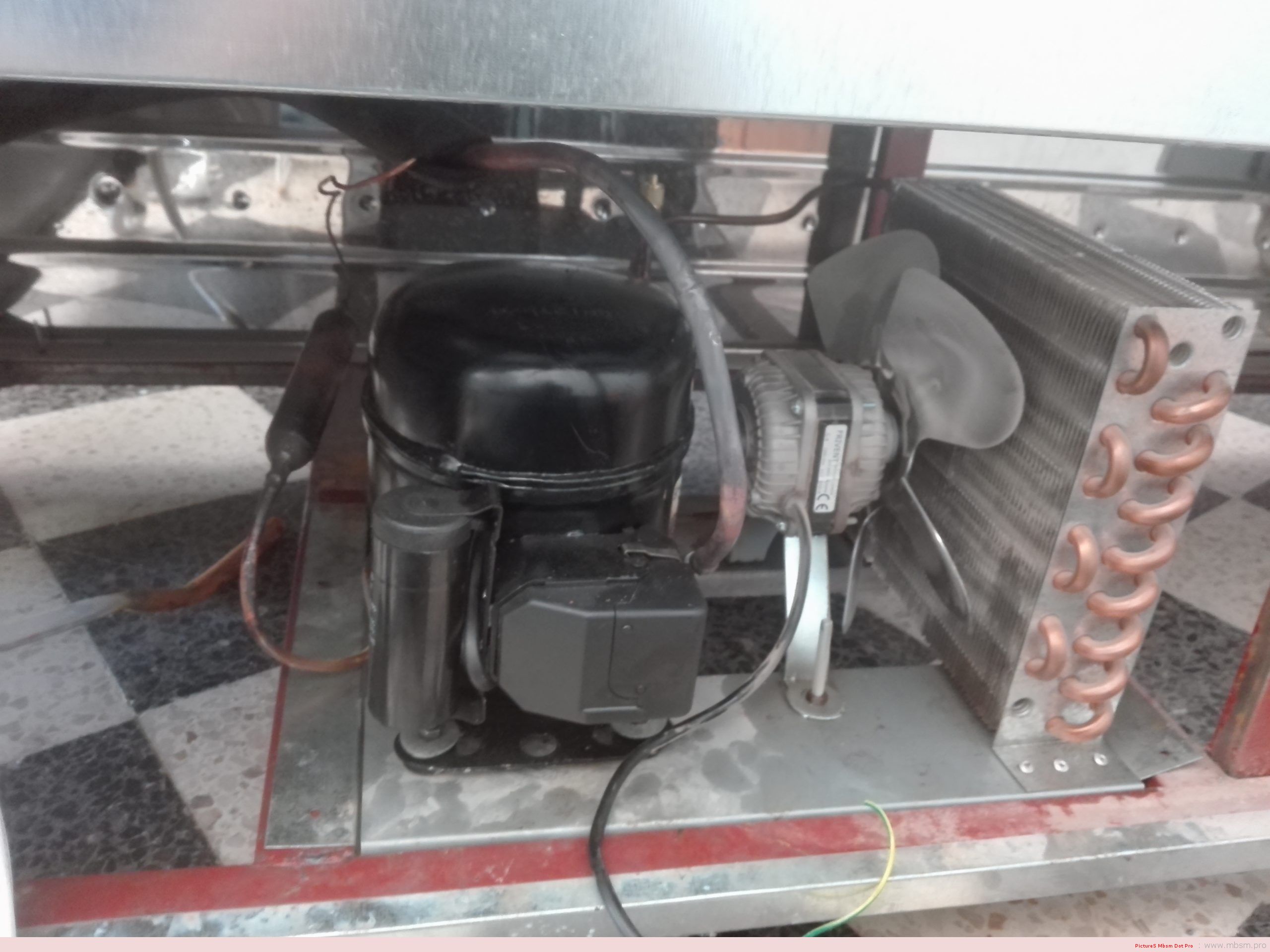

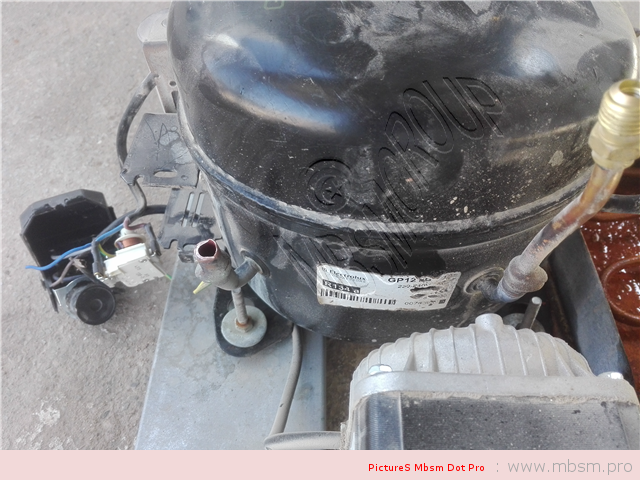

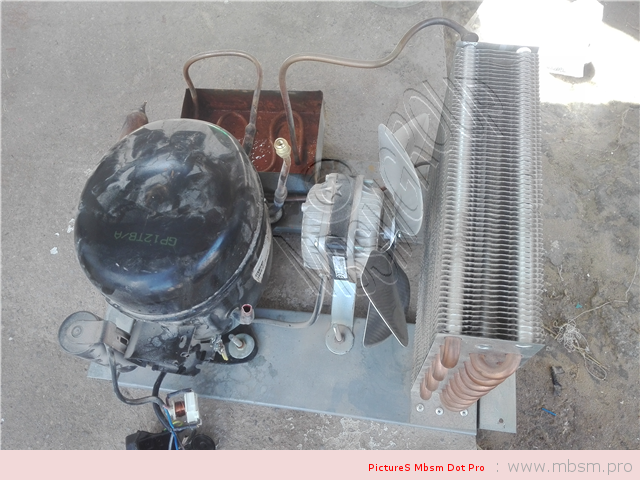

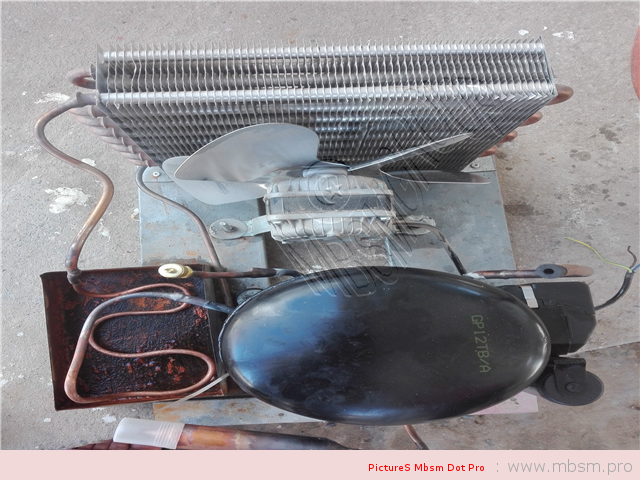

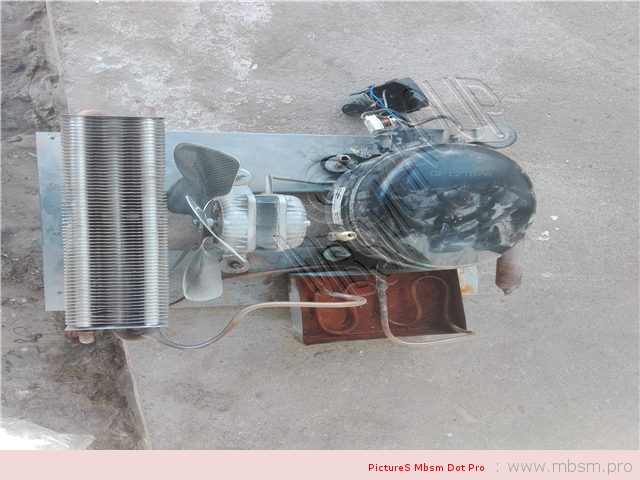

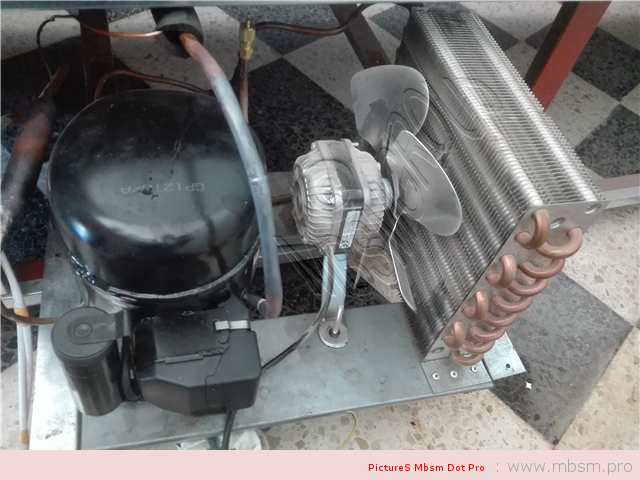

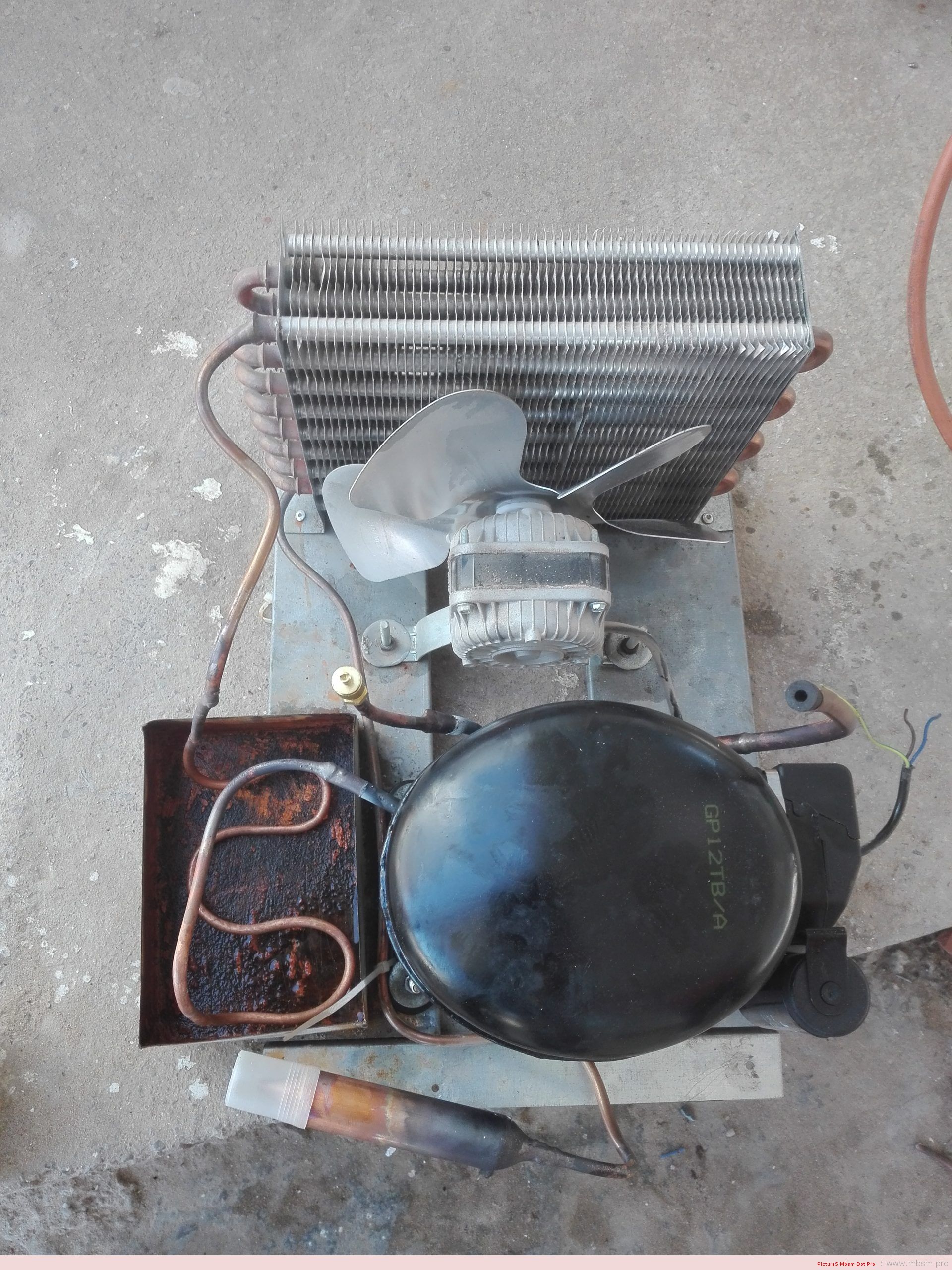

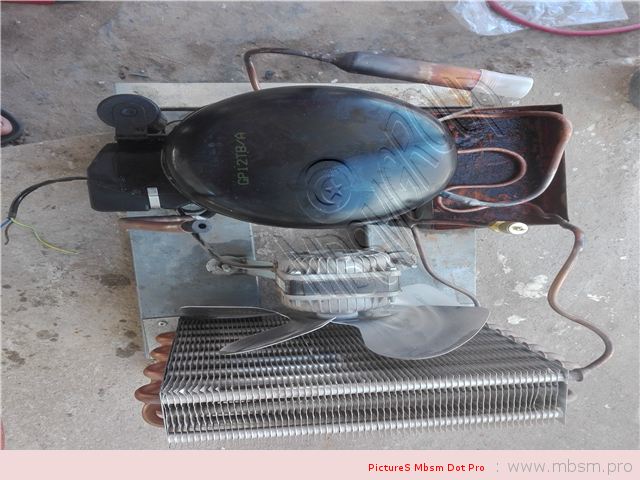

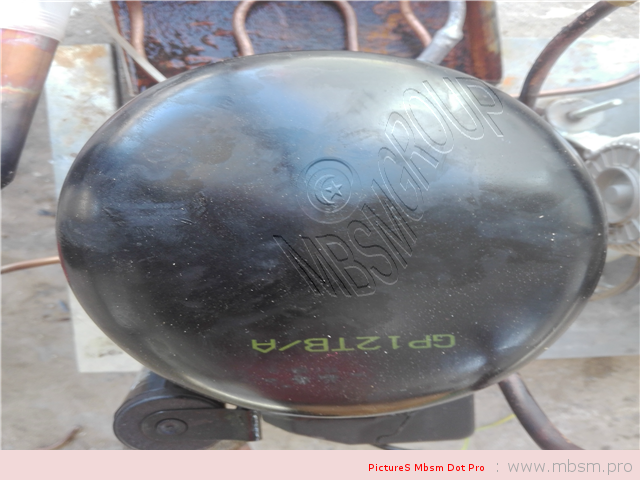

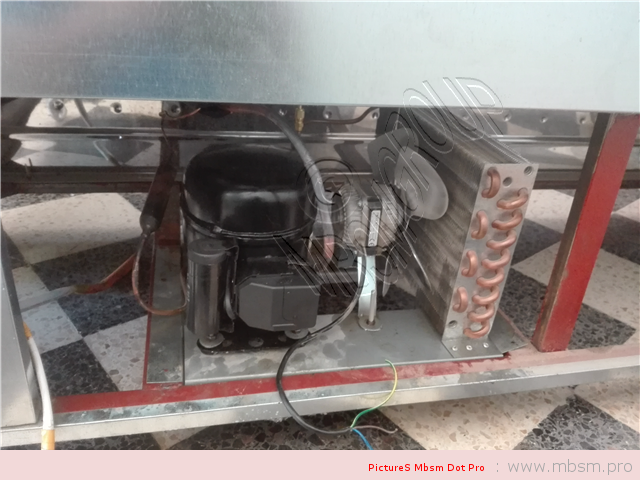

Model: GP12TB
General data

Mbsm_dot_pro_private_PDF_GP12TB



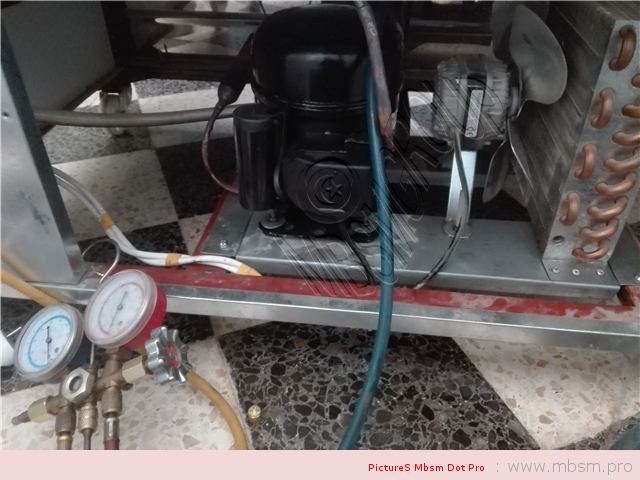

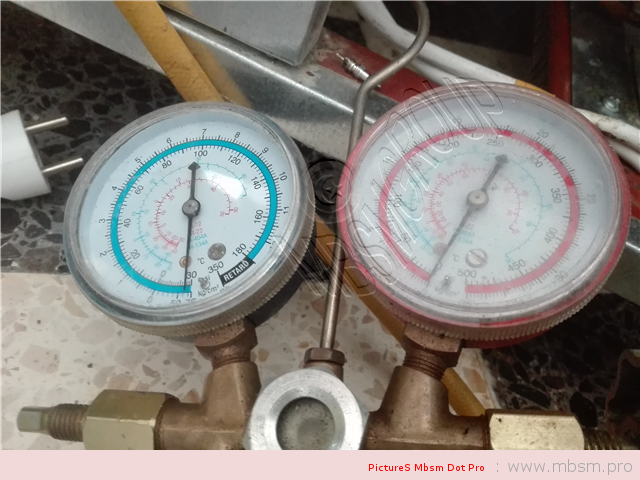

Capillary :	0.42 , 0.32 180 psi	100mm
Refrigerant:	R134a
Discharge element:	C-V
Cooling:	F
Maximum ambient temperature [ºC]:	43

Compressor’s data

Cylinder capacity [cm³]:	12,1
Displacement [m³/h]:	2,1
Weight [kg]:	11,2
Oil charge [cm³]:	350
Oil type:	ISO VG 22 ESTER

Engine’s data

Engine type:	CSIR
Power [KM]:	3/8
Starting element:	HST
Power supply:	220V 50Hz
Voltage range:	187-264
Locked rotor current [A]:	13,5
Running winding resistance (25ºC) [Ω]:	5,75
Starting winding resistance (25ºC) [Ω]:	20,3

Electrical data

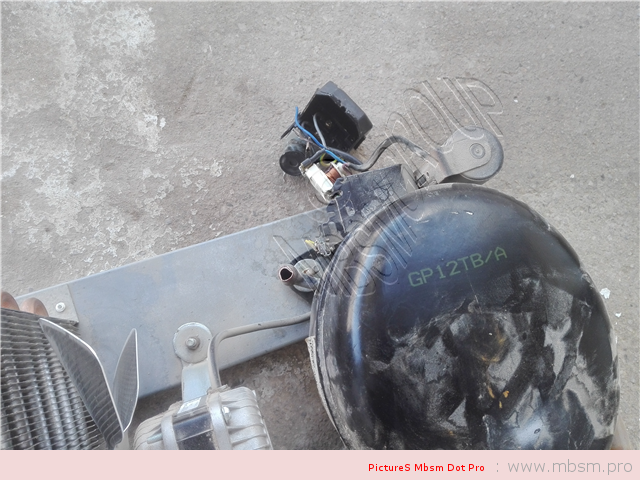

Relays:	9660 A 138, MTRP 43
Shielding element:	MRT26AMK, T0181
Starting capacitor volume [μF]:

Connections

Type: Hermetic piston compressorsProducer: ACCSeries: HMBP
Model: GP12TB
General data

Refrigerant:	R134a
Discharge element:	C-V
Cooling:	F
Maximum ambient temperature [ºC]:	43

Compressor’s data

Cylinder capacity [cm³]:	12,1
Displacement [m³/h]:	2,1
Weight [kg]:	11,2
Oil charge [cm³]:	350
Oil type:	ISO VG 22 ESTER

Engine’s data

Engine type:	CSIR
Power [KM]:	3/8
Starting element:	HST
Power supply:	220V 50Hz
Voltage range:	187-264
Locked rotor current [A]:	13,5
Running winding resistance (25ºC) [Ω]:	5,75
Starting winding resistance (25ºC) [Ω]:	20,3

Electrical data

Relays:	9660 A 138, MTRP 43
Shielding element:	MRT26AMK, T0181
Starting capacitor volume [μF]:

Connections

	milimeters	inches
Suction/service tube:	8,1
Service/suction tube:	8,1
Discharge tube:	6,5
