Mbsm.pro, Refrigerator, No frost, Made in Egypt, Ideal, 340NSL008, 2008, 338 L, compressor , 1/4 hp, HPL27YE – 5-K, r134a, 125 G,198 w, LBP
Category: compressor,Refrigerator
Certificate, ZMC, zanussi, Made in Egypt, Compressor, EGM90AZ, 1/4 hp, Lbp, R134a
Category: compressor
ZMC EGM90AZ compressor, which is a 1/4+ HP, R-134A, low back pressure (LBP) compressor designed for household applications
Here are the details:Manufacturer: ZMC (Zanussi Misr Compressor Manufacturing Co. S.A.E)
Model: EGM90AZ
Refrigerant: R134a
Application: LBP (Low Back Pressure)
Evaporating Temperature Range: -30°C to -10°C
Horsepower: 1/4Hp
Weight: 150g.
Freezer Capacity: 260L Cross, 235L Storage
Voltage: 220V-50Hz
Current: 1.2A

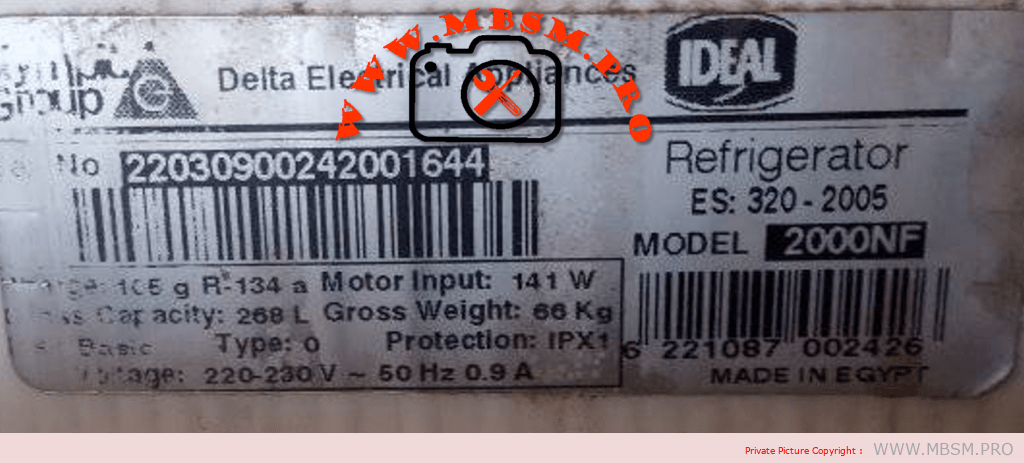

Mbsm.pro, Ideal, Refregerator, 268 L, 141 w, Es:320-2005, 2000nf, made in Egypt, Compressor, 1/5 hp, Gl60tb, egm75af, r134a, 105 g
Category: compressor
Mbsm.pro, Ideal, Refrigerator, 268 L, 141 w, Es:320-2005, 2000nf, made in Egypt, Compressor, 1/5 hp, Gl60tb, egm75af, r134a, 105 g
ZMC, zanussi, Made in Egypt, Compressors
Category: compressor
ZMC, zanussi, Made in Egypt, Compressor, Frost Free Freezer, GM90AZ, EGM90AZ, 155W, 1/5Hp, 134A, 150G, Electrostar Freezer, 260L CRoss, 235L STorage , 220v-50H, 1.2A, Class T
Category: compressor
COMPRESSOR TECHNICAL DATA
General Data
| Refrigerant: | R134a |
| Application: | LBP |
| Evaporating Temperature Range: | -30°C to -10°C |
| Voltage/Frequency: | 220/240V/50 HZ |
| Compressor Cooling: | Static |
| Expansion Device: | Capillary Tube |
| Packaging Quantity: | Multi – 96:120 pcs |
| Approvals: | CE-VDE-GOST |
Mechanical Data
| Oil Charge: | 300 cm3 |
| Oil Type Configuration: | ester |
| Oil Type Viscosity: | 19 cSt |
| Weight: | 10 kg |
Electrical Data
| Motor Type: | RSIR / RSCR* |
| Voltage working range at 50 Hz: | 187-264V |
| Maximum Motor Temperature: | 130°C |
| Locked Rotor Current: | 14.46 / 9.86 A |
| Start Winding Resistance: | 23.40Ω at 25°C |
| Run Winding Resistance: | 8.08 Ω at 25°C |
| Phase: | 1 ph |
External Characteristics
| Internal Diameter | (mm) |
| Suction Connector | 6.5 |
| Discharge Connector | 4.9 |
| Process Connector | 6.5 |
| Material | Copper |
Electrical Components
| Starting Device: | PTC 14Ω |
| Motor Protection: | T0490/xx |
