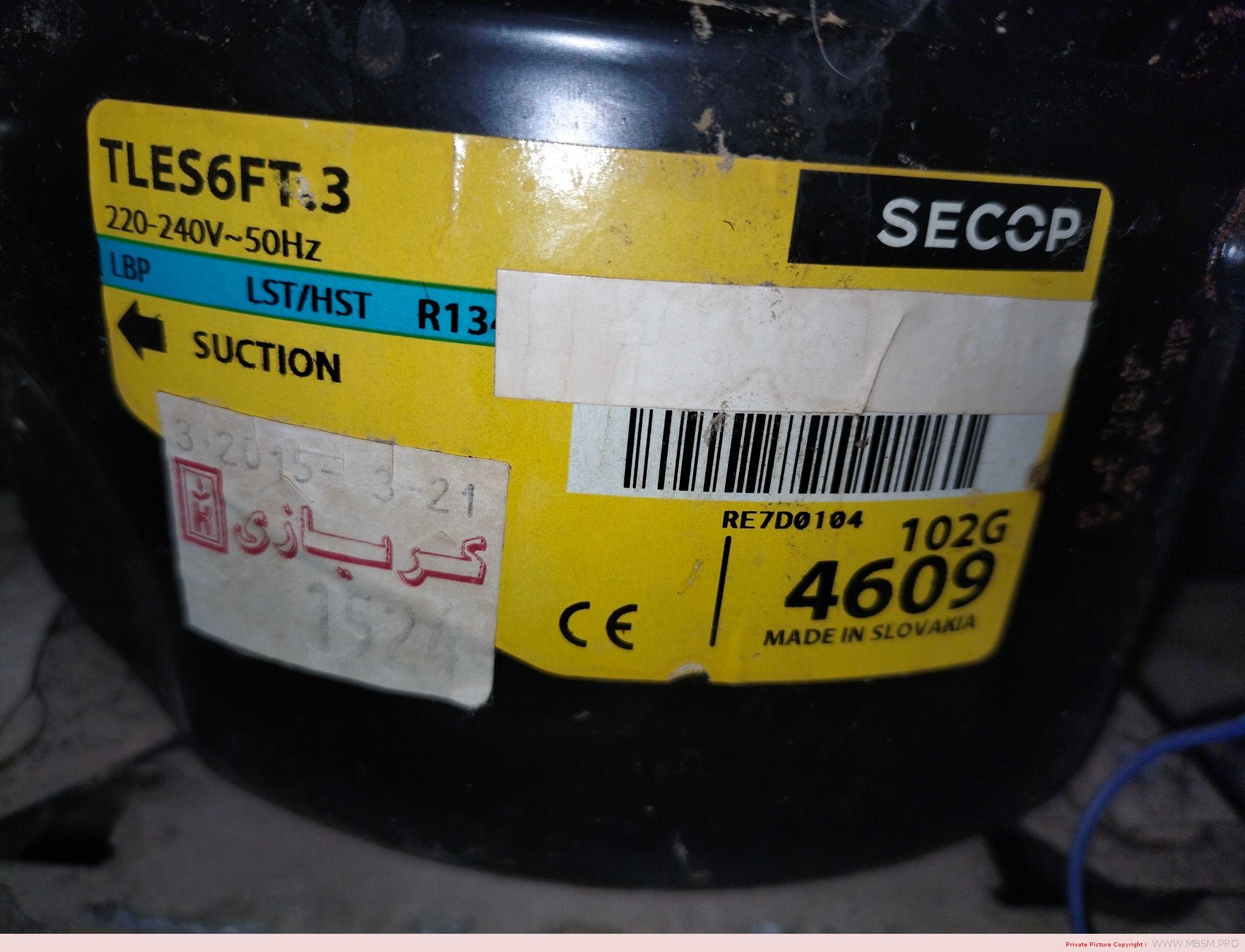

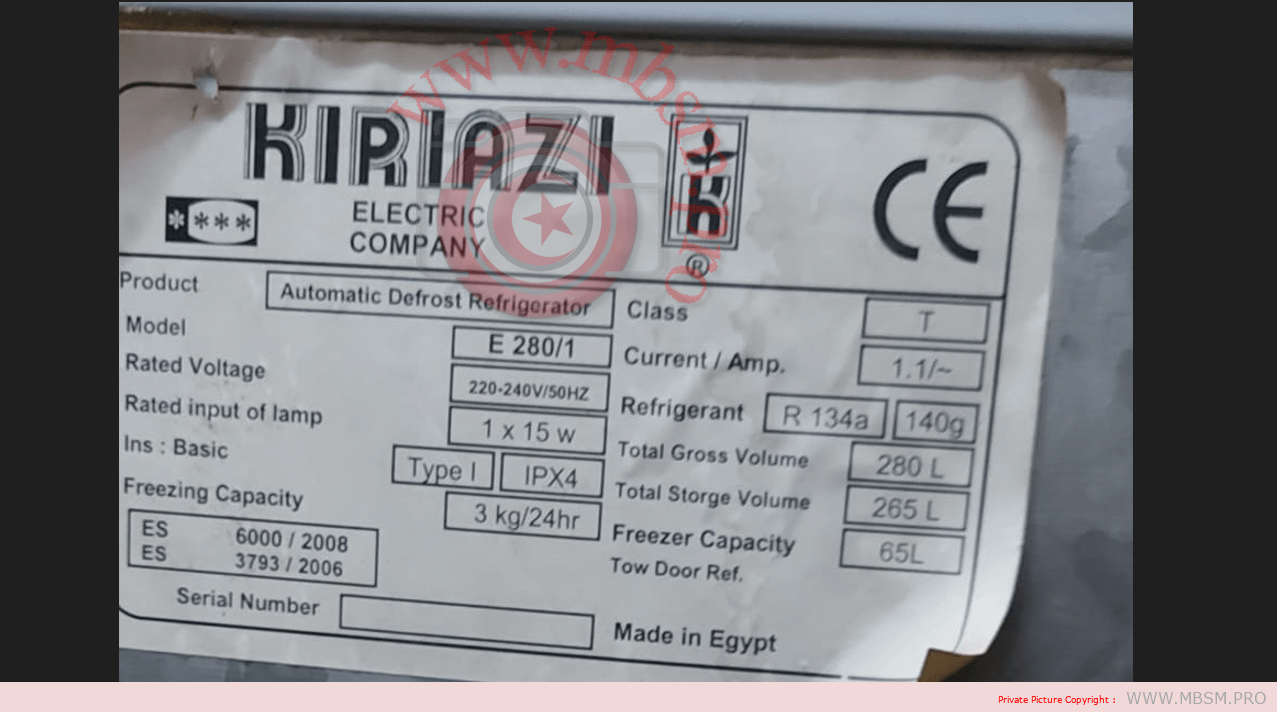

Mbsm.pro, Compressor, Danfoss, secop, R134a, tles6ft. 3, 102G4609, 102G 4609, tles6ft. 3 102G4609, 163 W, 1/5 hp, lbp

Category: compressor
written by www.mbsm.pro | 21 February 2022

Mbsm_dot_pro_private_PDF_102G4609Télécharger



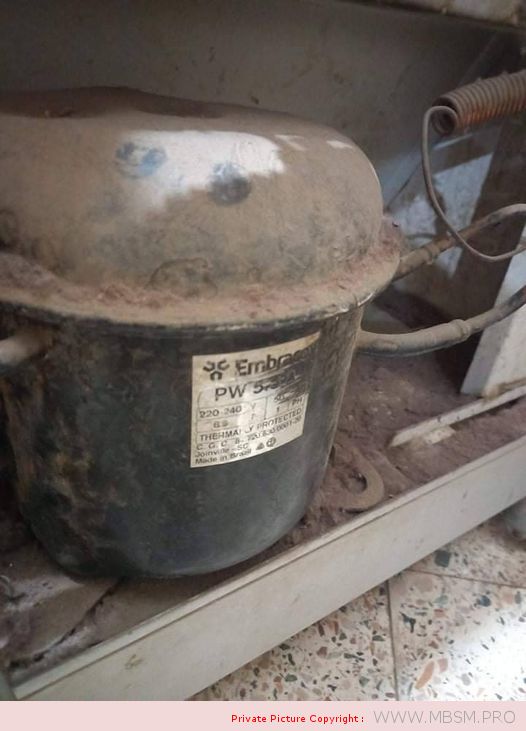

Mbsm.pro, Zem, L55AV, Rough, BP1111A, Embraco, PW5.5K9, PW5.5K11, EM55NP, Danfoss, TL5A, AZ1345A, AZ1340A, AEZ1343A, AE6ZA7, AE66ZD7, Necchi, ESM5, R12, 1/6 HP, lbp, 400 L

Category: compressor
written by www.mbsm.pro | 21 February 2022

Merloni (Indesit Group) Compressor Pot R12 1/6HP Aspera A2111A B2112B Hst Static DISP=5.9 Eqv. To:Danfoss TL5A PW5.5K9 PW5.5K11 TLES4A TLF5A

Compatibility of hermetic compressors for domestic refrigerators

Freon R600a
Table 3
Power, hp Product type and volume, l Compressor brand and model
single door refrigerator single door refrigerator freezer analog of Aspera analog Danfoss Electrolux
Dec 01 160 120 90   TLES4K HV44AH
TLS4K
Oct 01 200 160 120 BPM1058Y / 1072Y TLES5K HV57AH
TLS5K
Aug 01 220 240 200 BPE1084Y TLES7K HL70AH
TLES6K HL60AH
TLS6K HV67AH
TLS7K
01.jun 400 325 270 BPE1111Y TLS9K HL99AH
TLESS8K HL90AH
TLS8K HL80AH
NLE9K
TLS9K
May 1 500 410 350 NBM1116Y NLE13K HP14AH
NLE10K HP12AH
NL10K
NLE11K
NL11K
Apr 01 600 480 400 NBM1118Y NLE15K HP16AH
NL15K
01.Mar 1200 800 600     HP18AH
Analog selection table
Power, hp Product type and volume, l Compressor brand and model
single door refrigerator single door refrigerator Frost-to Electrolux Prescold Hermetic Unit similar to Matsushita LEC Bosch TIME
Dec 01 160 120 90 D36ASDS33AU L33AU AS14   FN24N45  V612 LK31,2
FN25N40
FN29N60
Oct 01 200 160 120 L40W L40AS L40AU AS12     LF14
12L264
Aug 01 220 240 200 L45AU L45AW AS8 D40AS L40AU FN43F67S FNE75WS5A S060LKAA S075LKAA 8L300 V792 LK39 LK45
01.jun 400 325 270 L55AT L55AU AS6    FN5188S FNE100WS5 6L377 V1040 LK55,2 LK55,4
AS66
May 1 500 410 350 L76BW L76AW L76AT AM55ZF AM5ZF L55GR L65AS L76AS L76AT FN66F11S FN73F13S FNE125WS5 D115 5L476 V1350
Apr 01 600 480 400 L88BW L88AV L88FW AM4C L88AS L88AVBV L88BS L88BW D116 5L476 V1450
Apr 01 800 600 500   QM43
01.Mar 1200 800 600 P12BW L88GR L99GV L99CV FN91F17S FN110F22S D119  4L690 3/4L766 3L831
P12FW D122
Freon R12
Table 2 (beginning)
Power, hp Product type and volume, l Compressor brand and model
single door refrigerator single door refrigerator freezer ZEM

Compressor

Rough

 Embraco compressor Danfoss compressor Compressor L’Unite Hermetique Necchi
Dec 01 160 120 90     PW3,5K7 PW3K6 TL2,5A TL2,5B Z1320A
AE127
Oct 01 200 160 120   BP1058A PW3,5K6 PW3,5K7 TL3A  AZ1328A AEZ1332A AE10Z7 ESM3
TL3B
Aug 01 220 240 200 L45AV BP1084A PW4,5K9 EM40NP PW4,5K7 TL4A AZ1335A AEZ1336A AE8ZA7 ESM4
TL4B
01.jun 400 325 270 L55AV BP1111A PW5,5K9 PW5,5K11 EM55NP TL5A AZ1345A AZ1340A AEZ1343A AE6ZA7 AE66ZD7 ESM5
May 1 500 410 350 L76AV L76BV* BP1116B B3117A* PW7,5K14 FF7,5BK FF7,5BKW FF6BK FR7,5A NL6A FR7,5B AZ1355D AEZ1360A AE5ZF9 ESM7
Apr 01 600 480 400 L88AV L88BV * B1118B B3118B* B3119B PW9K18 PW11K22 FF8,5BK FF8, BKW FR8,5A NL7A FR8,5B AEZ1380A AE4ZF11 AEZ1480B ESM8
Apr 01 800 600 500       FR10A  ESM9
FR10B
01.Mar 1200 800 600   E1121A E3121A* FF108K SC12A AEZ1410D AE1410A ESM11

Mbsm_dot_pro_private_PDF_r12_danfossTélécharger
Mbsm_dot_pro_private_PDF_www_tf_refrigeration_com_showproduct_asp_ItemID_72Télécharger


Série R134a LBP

Modèle

Puissance (CV)

Capacité(W)

FLIC

Type de moteur

 220 – 240V 50Hz

 PW2.5VK

 1/12

 63



RSIR

 PW3.0VK

 1/10

 76



 RSIR

 PW3.5VK

 1/10

 95

 1,00

 RSIR

 PW4.0VK

 1/9

 112

 1.10

 RSIR

 PW4.5VK

 1/8

 128

 1.15

 RSIR

 PW5.5VK

 1/6

 148

 1.20

 RSIR

 PW6.5VK

 1/5

 168

 1.23

 RSIR

 PW7.5VK

 1/5+

 190

 1.26

 RSIR

 PW8.5VK

 1/4

 215

 1h30

 RSIR

 DFV95

 1/3

 270

 1,45

 RSIR

 DFV105

 2/5

 310

 1.42

 RSIR

 DFV115

 2/5+

 350

 1.42

 RSIR

 DFV125

 1/2

 385

 1.42

 RSIR

 Économie d’énergie Série 110 – 120 V 60 Hz

 PW3.5VK

1/8

92

 1.15

RSIR

 PW4.0VK

 1/7

 116

 1.18

 RSIR

 PW4.5VK

 1/6

 135

 1.20

 RSIR

 Série à économie d’énergie 220 – 240 V 50 Hz

 PW3.0VK

1/10

76

1.10

RSIR

PW3.5VK

 1/10+

 95

 1.20

 RSIR

 PW4.0VK

 1/9

 112

 1.23

 RSIR

 PW4.5VK

 1/8

 128

 1.26

 RSIR



Conditions d’essai (ASHRAE)

Température d’évaporation -23,3°C Température de condensation 54,4°C

Température de sous-refroidissement 32,2°C Température d’aspiration 32,2°C

Température ambiante 32,2 °C



Mbsm.pro, Compressor, Danfoss, Secop, 5/8 hp++, SC21MFX, MBP, R134a, 220 V-240 V, 50 Hz, 104G8120, 8120

Category: compressor
written by www.mbsm.pro | 21 February 2022

Product information

LRA HST 60Hz [A] 23.6 A
LRA HST[A] 23.6 A
RLA 4.00A
start capacitor capacitance 80µF
Packing option Industrial packaging
Upper voltage range value at 50 Hz [V] 264V
Upper voltage range value at 60 Hz [V] 0V
Upper value of rated voltage at 50 Hz [V] 240V
Upper value of rated voltage at 60 Hz [V] 0V
Liquid injection Not
Suction nozzle, material Copper
Suction nozzle height [mm] 183mm
Discharge pipe height [mm] 100mm
Height from support panel [mm] 203mm
Process connection height [mm] 183mm
Suction pipe diameter [mm] 10.2mm
Discharge pipe diameter [mm] 6.2mm
Process connection diameter [mm] 6.2mm
Length [mm] 255mm
Run Capacitor 10µF
Socket Notes Rubber plug
Suction nozzle notes Rubber plug
Refrigerant charge [kg] [Max] 1.3kg
Segment usage Cooling to medium temperatures
Configuration code Single
Number of packages 80
Discharge connection comments Rubber plug
Voltage, 50 Hz [V] 220V
Voltage, 50 Hz [V] [max] 240V
Lower voltage range value at 50 Hz [V] 198V
Lower value of the voltage range at 60 Hz [V] 0V
Lower value of rated voltage at 50 Hz [V] 220V
Lower value of rated voltage at 60 Hz [V] 0V
Model number SC21MFX
Areas of use MBP
Type designation Compressor
Gross weight 14 kg
Net weight 14 kg
Power failure HST [A] 23.6 A
Overall height, mm 209mm
Oil volume 600 cm3
Description SC21MFX
Described volume [cm3] 20.95 cm3
Performance Adjustment fixed speed
Free volume of gas [cm3] 1460 cm3
Rotation speed at 50 Hz [rpm] 2900 rpm
Rotational speed at 60 Hz [rpm] 0 rpm
Discharge connection, material Copper
Auxiliary winding resistance (starting winding) for single-phase compressors (var.) [Ohm] 13.6ohms
Auxiliary winding resistance (starting winding) for single-phase compressors [Ohm] 13.6ohms
Main winding resistance for single-phase compressors [Ohm] 3.3ohms
Winding temperature, short term [°C] [Max] 135°C
Winding temperature, constant [°C] [Max] 125°C
Process connector, material Copper
Technology Piston
A type SC
engine’s type CSIR
CSR
Oil type polyester oil
Carrier panel type Universal
Tradename Piston compressor
Suction angle [°] 37°
Discharge angle [°] 37°
Process Socket Angle 37°
Phase one
Phases (fan) one
Phases (compressor) one
refrigerant R134a
Color Black
Frequency Hz] fifty
Width [mm] 151mm
Economizer Not
Compressor power supply [V/ph/Hz] 220-240/1/50
Energy level for the application Standard MBP

Mbsm_dot_pro_private_PDF_104G8120Télécharger

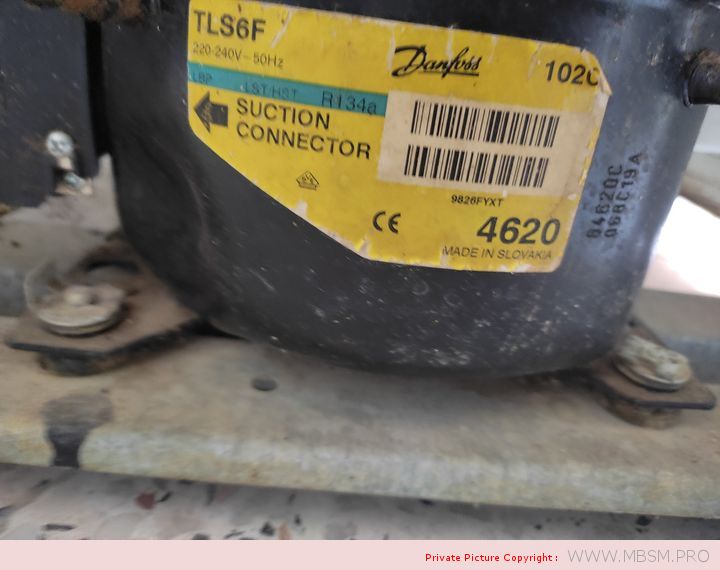

Mbsm.pro, Compressor, TLS6F, Danfoss, 102G4620, Lbp, 125 W, 220 v, 1/6 Hp, 1 phase, R134a

Category: compressor
written by www.mbsm.pro | 21 February 2022

Fluides: R134a

Poids brut 7.6 Kg
Poids Net 7.47 Kg
Applications BP
Capacité du condensateur de démarrage 60 µF
Charge en fluide frigorigène [kg] [Max] 0.4 kg
Charge en huile [L] 180 L
Code de configuration Simple
Couleur Black
Courant d’appel HST [A] 5.8 A
Courant d’appel HST alt [A] 5.8 A
Courant d’appel LST [A] 8.7 A
Courant d’appel LST alt [A] 8.7 A
Description TLS6F
Description TL
Diamètre de raccordement à l’aspiration [mm] 6.2 mm
Diamètre du raccord au refoulement [mm] 5 mm
Diamètre du raccordement du traitement [mm] 6.2 mm
Désignation du modèle Compresseur
Faible valeur de plage de tension à 50 Hz [V] 198 V
Faible valeur de plage de tension à 60 Hz [V] 0 V
Faible valeur de tension nominale à 50 Hz [V] 220 V
Faible valeur de tension nominale à 60 Hz [V] 0 V
Fluides R134a
Format d’emballage Emballage industriel
Fréquence [Hz] 50
Hauteur de la base [mm] 169 mm
Hauteur totale [mm] 173 mm
LRA HST [A] 5.8 A
LRA HST alt [A] 5.8 A
LRA LST [A] 4.8 A
LRA LST alt [A] 4.7 A
Matériel du raccord au process Acier cuivré
Matériel du raccord de refoulement Acier cuivré
Niveau d’énergie de l’application Compresseur standard
Nombre de phases (compresseur) 1
Nombre de phases (ventilateur) 1
Norme d’approbation CE
Notes concernant le raccord de refoulement Capuchon en aluminium
Notes concernant le raccordement au process Capuchon en aluminium
Notes concernant le raccordement à l’aspiration Capuchon en aluminium
N° de modèle TLS6F
N° de schéma 8244
Oil type POE
Phase 1
Quantité d’huile [cm³] 180 cm3
Quantité par emballage 125
raccord de refoulement équerre [°] 28 °
raccord d’aspiration équerre [°] 30 °
Raccordement de process équerre 32 °
RLA 1.0 A
Régulation de la puissance Fixed speed
Résistance de l’enroulement auxiliaire (enroulement de démarrage) pour compresseurs monophasés [ohm] 17 Ohm
Résistance de l’enroulement auxiliaire (enroulement de démarrage) pour compresseurs monophasés à pistons [ohm] 15.1 Ohm
Résistance de l’enroulement principal pour compresseurs monophasés [Ohm] 16 Ohm
Résistance de l’enroulement principal pour compresseurs monophasés à pistons [ohm] 18.2 Ohm
Technique de la marque Compresseur à pistons
Technologie Piston
Température d’enroulement max. continue [°C] [Max] 125 °C
Température de l’enroulement à court terme [°C] [Max] 135 °C
Tension 50 Hz [V] 220 V
Tension 50 Hz [V] [max.] 240 V
Type de moteur CSIR
RSIR
Type de socle Petit UE
Utilisation de tronçon Refrigeration LT
Valeur du condensateur B 60 uF
Valeur élevée de plage de tension à 50 Hz [V] 254 V
Valeur élevée de plage de tension à 60 Hz [V] 0 V
Valeur élevée de tension nominale à 50 Hz [V] 230 V
Valeur élevée de tension nominale à 60 Hz [V] 0 V
Vitesse de rotation à 50 Hz [rpm] 2900 rpm
Vitesse de rotation à 60 Hz [rpm] 0 rpm
Volume balayé [cm³] 5.7 cm3
Volume de gaz libre [cm3] 1790 cm3
Économiseur No

COMMENTAIRES: (0)

Mbsm_dot_pro_private_PDF_TLS6F-Danfoss-102G4620Télécharger

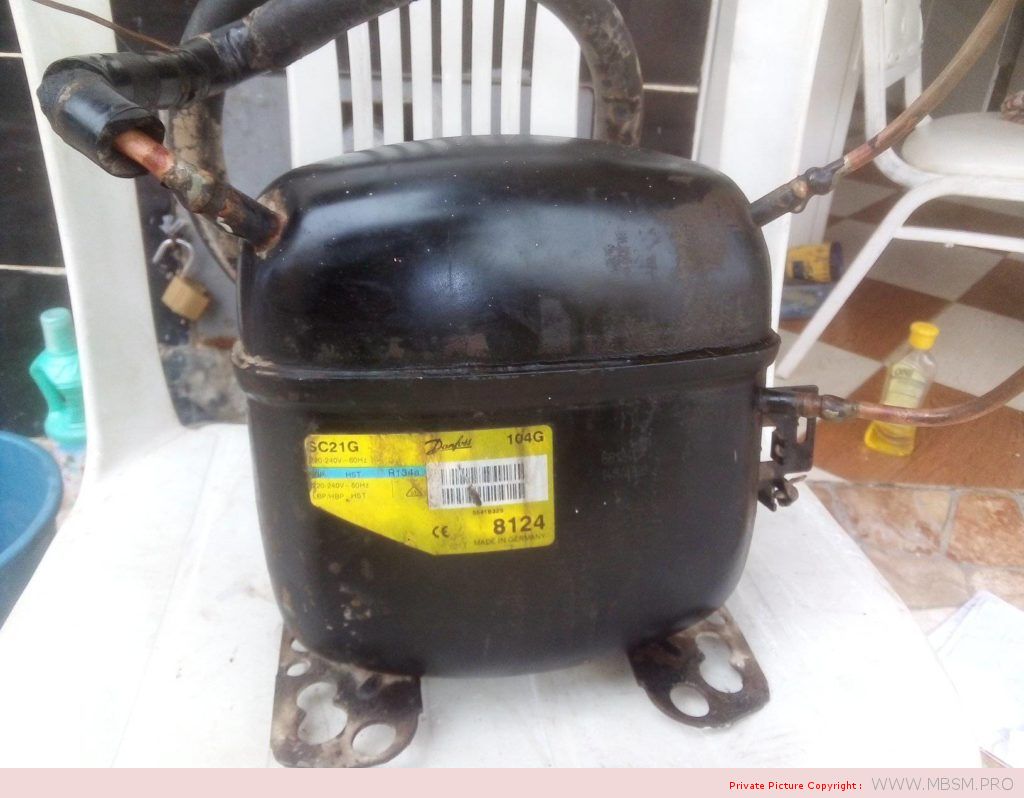

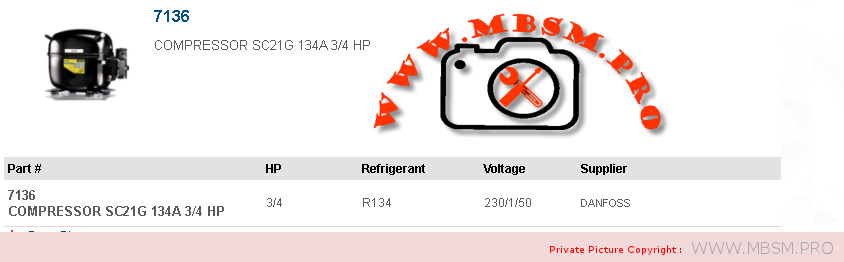

Mbsm.pro, Compressor, Danfoss, 3/4 HP, ++BIG, SECOP, SC21G, HMBP, R134a, SC21G 8124, 8124 , R134A, 550W

Category: compressor
written by www.mbsm.pro | 21 February 2022

Fluides frigorigènes: R134a, l’Utilisation de segment: Réfrigération LT;MT de Réfrigération
Poids brut 13.92 Kg
Poids Net 13.92 Kg
Huile POE
Amplis rotor bloqué TVH [A] 22.1
Applications HBP
LBP
MBP
Norme d’approbation CCC
CE en 60335-2-34 à l’Annexe AA
Auxiliaire de résistance de l’enroulement (enrouler) pour les compresseurs monophasés [Ohm] 12.9 Ohm
Quantité d’huile [cm3] 600 cm3
La capacité du condensateur À la 10 µF
La capacité du condensateur B 80 uF
Contrôle de la capacité Vitesse fixe
La charge de fluide frigorigène [kg] [Max] 1,3 kg
Couleur Noir
La coupure de courant TVH [A] 22.1
Code de Configuration Personne
Description SC21G
Description SC
Désignation Compresseur
Économiseur Pas
Format d’emballage Industrielle paquet
Fréquence [Hz] 50/60
Matériau du raccord de refoulement Acier plaqué Cu
Matériau du raccordement au process Acier plaqué Cu
N. º de phases (compresseur) Un
N. º de phases (ventilateur) Un
Le niveau d’énergie de l’application Compresseur universel
Numéro de modèle SC21G
De la charge d’huile [L] 600 L
Phase Un
Fluides frigorigènes R134a
La résistance de l’enroulement primaire pour compresseurs monophasés [Ohm] 3.5 Ohm
RLA 3.9 À
Exécuter condensateur de capacité 10 µF
Condensateur de démarrage capacité 80 µF
Balayé volume [cm3] Volonté 20,95 $ cm3
La technologie Alternative
La température de l’enroulement, le court terme [°C] [Max] 135 °C
La température de l’enroulement, stable [°C] [Max] 125 °C
Tension 60 Hz [V] [max.] 240 V
Tension, 50 Hz [V] 220 V
Tension, 50 Hz [V] [max.] 240 V
Tension, 60 Hz [V] 220 V
Type de moteur La RSE
Type de carte mère Universel
La Technique de la marque Compresseur de rechange
Unités d’emballage Quatre-vingts
L’utilisation de segment Réfrigération LT
Refroidissement MT
À haute valeur de la tension nominale à 50 Hz [V] 230 V
À haute valeur de la tension nominale à 60 Hz [V] 230 V
La valeur élevée de la gamme de tension à 50 hz [V] 254 V
La valeur élevée de la gamme de tension à 60 Hz [V] 254 V
La faible valeur de la tension nominale à 50 Hz [V] 208 V
La faible valeur de la tension nominale à 60 Hz [V] 220 V
La faible valeur de la plage de tension à 50 hz [V] 187 V
La valeur basse de la plage de tension à 60 Hz [V] 198 V
Vitesse de Rotation à 50 Hz [tr / min] 2900 tr / min
Vitesse de Rotation à 60 Hz [tr / min] 3500 tr / min
Le Volume de gaz libre [cm3] 1460 cm3

COMMENTAIRES: (0)

Mbsm_dot_pro_private_PDF_SC21GTélécharger
Mbsm_dot_pro_private_PDF_SC21G-1Télécharger
Mbsm_dot_pro_private_PDF_SC21G-2Télécharger


Mbsm.pro, Compressor, R290, 0.110Kg, SC15CNX.2, Secop, DANFOSS, SC15CNX, 15,28cm³, LBP, 230V, Hermetic piston compressors, 5/8 Hp, 104h 8568, 104h8568

Category: compressor
written by www.mbsm.pro | 21 February 2022

Additional information

Voltage (V) 230Vac
Frequency (hz) 50
Range LBP
Displacement (cm3) 15,28 cm³
Cooling capacity (W) 400W
Conditions (°C) -30 / +45°C
Refrigerant R290
Suction line 8.2mm
Liquid line 6.2mm
Height (mm) 219
Weight (kg) 13,1kg
Oil POE
Compressor type Hermeettinen mäntäkompressori

Poids brut 13.5 kg
Poids Net 13.5 kg



Alimentation du compresseur [V/Ph/Hz] 220-240/1/50
Applications LBP
Capacitance du condensateur de démarrage 80 µF
Charge en fluide frigorigène [kg] [Max] 0.15 kg
Code de configuration Simple
Couleur Noir
Courant d’appel HST [A] 16.2 A
Courant d’appel LST [A] 20.1 A
Description SC15CNX
Diamètre de raccordement à l’aspiration [mm] 10.2 mm
Diamètre du raccord au refoulement [mm] 6.2 mm
Diamètre du raccordement du traitement [mm] 6.2 mm
Désignation du modèle Compresseur
Emballage (format) Emballage industriel
Faible valeur de plage de tension à 50 Hz [V] 198 V
Faible valeur de plage de tension à 60 Hz [V] 0 V
Faible valeur de tension nominale à 50 Hz [V] 220 V
Faible valeur de tension nominale à 60 Hz [V] 0 V
Fluides R290
Fréquence [Hz] 50
Hauteur de la base [mm] 203 mm
Hauteur du raccordement de refoulement [mm] 100 mm
Hauteur du raccordement du traitement [mm] 183 mm
Hauteur raccordement aspiration [mm] 183 mm
Hauteur totale [mm] 209 mm
Injection de liquide No
Longueur [mm] 255 mm
LRA HST 60 Hz [A] 16.2 A
LRA HST [A] 16.2 A
LRA LST [A] 15.8 A
Matériel du raccord au process Cuivre
Matériel du raccord d’aspiration Cuivre
Matériel du raccord de refoulement Cuivre
Niveau d’énergie de l’application Universel LBP/MBP
Nombre de phases (compresseur) 1
Nombre de phases (ventilateur) 1
Notes concernant le raccord de refoulement Bouchon en caoutchouc
Notes concernant le raccordement au process Bouchon en caoutchouc
Notes concernant le raccordement à l’aspiration Bouchon en caoutchouc
N° de modèle SC15CNX
Oil type POE
Phase 1
Profondeur [mm] 151 mm
Quantité d’huile [cm³] 550 cm³
Quantité par emballage 80
raccord de refoulement équerre [°] 37 °
raccord d’aspiration équerre [°] 37 °
Raccordement de process équerre 37 °
RLA 3.10 A
Régulation de la puissance Vitesse fixe
Résistance de l’enroulement auxiliaire (enroulement de démarrage) pour compresseurs monophasés [ohm] 13.5 Ohm
Résistance de l’enroulement auxiliaire (enroulement de démarrage) pour compresseurs monophasés à pistons [ohm] 13.5 Ohm
Résistance de l’enroulement principal pour compresseurs monophasés [Ohm] 5.1 Ohm
Technique de la marque Compresseur à pistons
Technologie Piston
Température d’enroulement max. continue [°C] [Max] 125 °C
Température de l’enroulement à court terme [°C] [Max] 135 °C
Tension 50 Hz [V] 220 V
Tension 50 Hz [V] [max.] 240 V
Type SC
Type de moteur CSR
Type de socle Universel
Utilisation de tronçon Réfrigération LT
Réfrigération MT
Valeur élevée de plage de tension à 50 Hz [V] 264 V
Valeur élevée de plage de tension à 60 Hz [V] 0 V
Valeur élevée de tension nominale à 50 Hz [V] 240 V
Valeur élevée de tension nominale à 60 Hz [V] 0 V
Vitesse de rotation à 50 Hz [rpm] 2900 rpm
Vitesse de rotation à 60 Hz [rpm] 0 rpm
Volume balayé [cm³] 15.28 cm³
Volume de gaz libre [cm3] 1410 cm³
Économiseur No

Documents

Mbsm_dot_pro_private_PDF_COMPRESSEUR-SECOP-SC15CNX.2Télécharger


Mbsm.pro, Danfoss, Compressor, MT100HS4D, 8.3HP, R22, 380V, 3PH

Category: compressor
written by www.mbsm.pro | 21 February 2022

Model: MT100HS4D

Brand technique: Reciprocating compressor

Refrigerant: R22

Swept volume [cm3]: 171.26

Nominal cooling capacity 60 [kBTU/h]: 95.9

Nominal cooling capacity at 50Hz[kw]: 21.3

Nominal cooling capacity at 60Hz[kw]: 28.1

Voltage & frequency : 400V 3P 50Hz 460V 3P 60Hz

Mbsm_dot_pro_private_PDF_MT100HS4DTélécharger

MT100 > MT100HS4D > 8 HP > Displacement: 171.26cm3/rev > Motor Power: 8.3HP
MT100 > MT100HS4DVE > 8 HP > Displacement: 171.26cm3/rev > Motor Power: 8.3HP
MT125 > MT125HU4D > 10 HP > Displacement: 215.44cm3/rev > Motor power: 10.4HPModel MODEL: MT18 MT18JA4BVE 1.5 HP Displacement: 30.23cm3/rev Motor Power:
1.5HP MT22 MT22JC4AVE 1.8 HP Displacement: 38.12cm3/ rev Motor Power: 1.8HP
MT28 MT28JE4AVE 2 HP Displacement: 48.06cm3/rev Motor Power: 2.3HP
MT32 MT32JF4DVE 2.5 HP Displacement: 53.86cm3/rev Motor Power: 2.7HP
MT36 MT36JG4EVE 3 HP Displacement: 60.47cm3/rev Motor Power: 3.0HP
MT40 MT40JH4EVE 3 HP Displacement: 67.89cm3/rev Motor Power: 3.3HP MT44
MT44HJ4AVE 3.5 HP Displacement: 76.22cm3/rev Motor Power: 3.7HP
MT45 MT45HJ4AVE 4 HP Displacement: 76.22cm3/rev Motor Power: 3.8HP
MT50 MT50HK4BVE 4 HP Displacement: 85.64cm3/rev Motor Power: 4.2HP
MT51 MT51HK4AVE 4 HP Displacement: 85.64cm3/rev Motor Power: 4.3HP
MT56 MT56HL4AVE 4.5 HP Displacement: 96.13cm3/rev Motor Power: 4.7HP
MT57 MT57HL4AVE 4.5 HP Displacement: 96.13cm3/rev Motor Power: 4.8HP
MT64 MT64HM4CVE 5 HP Displacement: 107.71cm3/rev Motor Power: 5.3HP
MT65 MT65HM4AVE 5.5 HP Displacement: 107.71cm3/rev Motor Power: 5.4HP
MT72 MT72HN4AVE 6 HP Displacement: 120.94cm3/rev Motor Power: 6.0HP
MT73 MT73HN4AVE 6 HP Displacement: 120.94cm3/rev Motor Power: 6.1HP
MT80 MT80HP4AVE 6.5 HP Displacement: 135.78cm3/rev Motor Power: 6.7HP
MT81 MT81HP4AVE 6.5 HP Displacement: 135.78cm3/rev Motor Power: 6.8HP
MT100 MT100HS4D 8
HP Displacement: 171.26cm3/rev Motor power: 8.3HP
MT125 MT125HU4D 10 HP Displacement: 215.44cm3/rev Motor power: 10.4HP
MT125 MT125HU4DVE 10
HP : 241.87cm3/rev Motor power: 12.0HP
MT160 MT160HW4D 13 HP Displacement: 271.55cm3/rev Motor power: 13.3HP MT160
MT160HW4DVE 13 HP

Gross weight 66.38 kg
Net weight 61.8 kg
EAN 5702428839921



Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 4
Description MT100-4
Diameter [mm] 352 mm
Discharge connection height [mm] 125 mm
Discharge connection mounting torque [Nm] 90 Nm
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8504010f
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code D
Glass mounting Threaded
Glass torque [Nm] 50 Nm
GP LP torque [Nm] 15 Nm
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 1.2 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 31 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 90 A
MCC 22 A
Model number MT100HS4EVE
Motor protection Internal overload protector
Mounting torque [Nm] 50 Nm
Nominal cooling capacity 60 kBTU/h 95.9 kBtu/h
Nominal cooling capacity at 50Hz 21.3 kW
Nominal cooling capacity at 60Hz 28.1 kW
Number of starts per hour [Max] 12
Oil charge [L] 3.9 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 Nm
Oil reference 160P
Packaging height [mm] 720 mm
Packaging length [mm] 570 mm
Packaging weight [Kg] 70 kg
Packaging width [mm] 400 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R22
Refrigerant charge [kg] [Max] 10 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 233 mm
Suction connection mounting torque [Nm] 110 Nm
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 171.26 cm³
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 Nm
Torque power [Nm] 3 Nm
Total height [mm] 519 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 2.12 Ohm


Mbsm.pro, Compressor Necchi, Esm5, 1/5 Hp, R12, Replaced by , COMPRESSOR, DANFOSS,TL 5G, 1/6++ (1/5 hp) HP, MBP / HBP -R134a, 220-240V/1/50/60Hz, displacement 5.08 cm3, motor type RSCR

Category: compressor
written by www.mbsm.pro | 21 February 2022
COMPRESSOR TL 5G 1/5 HP 1/6++ R134 230/1/50 DANFOSS
CV Watt 1 Porte 2 Portes Conge-lateur ASPERA DANFOSS EMBRACO IRE NECCHI PRESCOLD UH ZEM ELUX
1/ 12 45 160 l 120 l 90 l BP 1058 A TL 2.5 ATL 2.5 B PW 3.5 K7 AS 14AM 55 ZF AZ 1320 AAE 12 Z7 E 30101 D 36 ASL 33 AU
1/ 10 56 200 l 160 l 120 l BP 1072 A TL 3 ATL 3 B PW 4.5 F86 B 5A 42PB 6AF 86 ESM 3 AS 12 AE 10 Z7AZ 1328 AAEZ 1332 A E 36101 L 40 AWL 40 ASL 40 AU
1/ 8 73 220 l 240 l 200 l BP 1084 A TL 4 ATL 4 B PW 4.5 K9 B 8A 43PB 86PB 9AF 88 ESM 4 AS 8 AE 8Z A7AZ 1333 AAZ 1335 AAEZ 1336 A E 44101 A L 45 AUL 45 AW
1/ 6 96 400 l 325 l 270 l BP 1111 ABP 1112 B TL 5 A PW 5.5 K11 B 9A 30L 10A 02L 10A 16L 10A 46PB 12AF 90 ESM 5 AS 6AS 66 AE 6Z A7AE 66 ZD7AZ 1340 AAEZ 1343 AAZ 1345 A  E 59101 L 55 AUL 55 AT
1/ 5 127 500 l 410 l 350 l B 1116 BB 2116 BB 3117 A FR 7.5 AFR 7.5 BNL 6 A FF 7.5 BK L 13A 17L 13A 18L 13A 26L 13B 20L 13A 47 ESM 7 AM 55 ZFAM 5 ZF AE 5Z F9AZ 1355 DAEZ 1355 DAEZ 1360 AAEZ 1367 A E 80101 A L 76 ATL 76 AWL 76 BW
1/ 4 146 600 l 480 l 400 l B 1118 BB 2118 BB 3119 AE 1121 AE 3121 A FR 8.5 AFR 8.5 BNL 7 A FF 8.5 BK L 16A 01L 16A 25L 16B 22L 17A 34 ESM 8 AM 4C AE 4Z F11AEZ 1380 AAEZ 1380 B E 88101 A L 88 AVL 88 BWL 88 FW
1/ 4 158 800 l 600 l 500 l FR 10 AFR 10 B ESM 9 QM 43
1/ 3 230 1200 l 800 l 600 l FR 11 AFR 11 B
1/ 3 230 1200 l 800 l 600 l E 1130 BE 2130 BE 3130 BE 4130 B SC 12 A ESM 11 AE 1410 AAEZ 1410 DCAE 2410 A P 12 BWP 12 FW
DANFOSS
223101 1/ 12 CV TL 2.5 A
223102 1/ 10 CV TL 3 A
223103 1/ 8 CV TL 4 A
223104 1/ 6 CV TL 5 A
223105 1/ 5 CV TL 7.5 A
223106 1/ 4 CV TL 8.5 A
223107 1/ 4 CV FR 10 A
223108 1/ 3 CV FR 11 A
223109 1/ 3 CV SC 12 A

101GL4550, compressor Secop / Danfoss TL5G, MBP / HBP -R134a, 220-240V/1/50/60Hz, discharge 5.08 cm3, motor type RSCR / CSIR, oil type POE, oil charge 280 cm3, 79 W at -25 / 55° C, LRA 5.7 A, maximum refrigerant charge 400 g, height: 173 mm, weight 7.5 kg

Refrigerant: R134a
Power range(W): 0 – 100 W
Working area: HBP MBP
Design type: Hermetic
Model series: TL
Power supply: 230 V
Oil type: POE
Engine type: CSIR RSCR
Article condition: New
Info: Oil filled
Shipping weight: 9,50 Kg
Contents: 1,00 Pieces
Dimensions ( height ): 17,30 cm
customs tariff number: 84143081
Cooling capacity condition: T0 -25 C, Tk +55 C
Manufacturer: Danfoss Secop
Model: TL5G
Modelname: 101G4550
Modellname 3: TL5GX
Stroke volume (cm3): 5,08
Cooling capacity (W): 79
Max. Starting current (A): 5,7
Engine type: RSCR
Note: Maximum refrigerant amount 400 g
Oil quantity (l): 0,28
Compressor type: Piston
Alternative: BP5132Z, B5132Z, PW4.5HK11

Compressor Danfoss FR7.5G 1/5HP

Mbsm_dot_pro_private_PDF_tl5-Danfoss_LC_Compressors_CatalogueTélécharger
Mbsm_dot_pro_private_PDF_tl5-Danfoss_LC_Compressors_Catalogue-1Télécharger
Mbsm_dot_pro_private_PDFMbsm.pro-Compressor-ESC-8.5-R134a-Necchi-530591-15-Hp-159-wTélécharger
Sr Material Material Description Capacity Cons. Watts -25
R134a
1 103G6660 Danfoss Compressor FR 6G 1/6 HP 119 W
2 103G6680 Danfoss compressor FR 7.5G 1/5 HP 138 W
3 103G6780 Danfoss compressor FR 8.5G 1/4 HP 164 W
4 103G6880 Danfoss compressor FR 10G 1/3 HP 194 W
R12a
5 103G2630 Danfoss compressor FR 6S 1/6 HP 119 W
6 103U2730 Danfoss compressor FR 7.5S 1/5 HP 138 W
7 103U2830 Danfoss compressor FR 8.5S 1/4 HP 164 W
8 103U2930 Danfoss compressor FR 10S 1/3 HP 194 W
R134a
9 104G8240 Danfoss compressor SC 12G 3/8 HP 298 W
10 104G8520 Danfoss compressor SC 15G 1/2 HP 356 W
11 104G8820 Danfoss compressor SC 18G 5/8 HP 615 W
12 104G8140 Danfoss compressor SC 21G 7/8 HP 702 W
R404a / R507a
13 104L2523 Danfoss Compressor SC 10CL 1/3 HP 352 W
14 104L2623 Danfoss Compressor SC 12CL 3/8 HP 445 W
15 104L2853 Danfoss Compressor SC 15CL 1/2 HP 560 W
16 104L2123 Danfoss Compressor SC 18CL 5/8 HP 615 W
17 104L2322 Danfoss Compressor SC 21CL 7/8 HP 702 W


Mbsm.pro, Scroll, Danfoss, HRP051T4LP6, compressors, Hermetic, 49.15 kBtu/h, R22, R407C, 4 1/4Hp, 3Ph, POE, Lra 60A

Category: compressor
written by www.mbsm.pro | 21 February 2022

Product details

Gross weight 39.75 kg
Hp 4 1/4
Net weight 37.08 kg
EAN 5702428224598



Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 380-415/3/50 460/3/60
Configuration code Single
Connection type Brazed
Description HRP051T4
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XR6002B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High side max pressure (Ps) 31.1 bar
High value of nominal voltage at 50Hz [V] 415 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 457 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP22
Length [mm] 239 mm
Low side max pressure (Ps) 26.2 bar
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 414 V
LRA 60 A
MCC 13 A
Model number HRP051T4LP6
Motor protection Internal overload protector
Nominal cooling capacity 60 kBTU/h 49.15 kBtu/h
Nominal cooling capacity at 50Hz 10.8 kW
Nominal cooling capacity at 60Hz 14.4 kW
Nominal heating capacity at 50Hz 7 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.57 L
Oil drain None
Oil equalization None
Oil reference 320HV
Oil type PVE
Packing format Industrial pack
Packing quantity 16
Phase 3
Power connections Spade
Refrigerant R407C
Refrigerant charge [kg] [Max] 5.44 kg
Relief valve Yes
RLA 8.3 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 7/8 in
Suction connection size [in] 7/8 in
Swept volume [cm3] 68.83 cm³
Technology Scroll
Total height [mm] 455 mm
Type HRP
Type designation Compressor
Viscosity [cP] 68 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 2.6 Ohm
Winding resistance 1-3 [Ohm] 2.61 Ohm
Winding resistance 2-3 [Ohm] 2.65 Ohm
Mbsm_dot_pro_private_PDF_HRP051T4LP6-OM-Danfoss-H-Series-1Télécharger
Mbsm_dot_pro_private_PDF_HRP051T4LP6-OM-Danfoss-H-SeriesTélécharger


Mbsm.pro, Danfoss, Compressor, SM160T4RC, SM-160, 13hp, 3ph, R22, 133500BTU

Category: compressor
written by www.mbsm.pro | 21 February 2022
SM160T4RC

Basic Info.

Model NO.Sm160N.W.90kgTransport PackagePackage: Wooden Case/Pallet or as Your RequirmentSpecificationSM series SM090TrademarkperfomerOriginFranceHS Code8414301300Production Capacity50000 Sets/Year

Product Description

SM-160 Performer Scroll compressor for R22
13HP Performer Scroll Compressor SM160

 SPECIFICATIONS FOR  SM160

Products Details		 Models: SM160 Type Hermetic
Power Phase 3
Horse Power HP 13

Main performance parameters		 Input Power W 380-420/3/60
REFRIGRANT   R22
SIZE   54.0/35.0

Physcial parameters		 Hight MM 353
Weight KG 90
Q’ty / Pallet PIECE 6

Product Description
5.Techincal sheet as below:

50Hz Data
 Model  Nominal Cap.60HZ Nominal cooling capacity Power input Cop E.E.R. Swept Volume Displacement Oil charge N.W.
TR W Btu/h KW W/W Btu/h/W cm/rew m/h dm kg
SM084 7 20400 69600 6.12 3.33 11.4 114.5 19.92 3.3 64
SM090 7.5 21800 74400 6.54 3.33 11.4 120.5 20.97 3.3 65
SM100 8 23100 79000 6.96 3.33 11.3 127.2 22.13 3.3 65
SM110 9 25900 88600 7.82 3.32 11.3 144.2 25.09 3.3 73
SM112 9.5 27600 94400 7.92 3.49 11.9 151.5 26.36 3.3 64
SM115 9.5 28000 95600 8.31 3.37 11.5 155 26.97 3.8 78
SM120 10 30100 102800 8.96 3.36 11.5 166.6 28.99 3.3 73
SM124 10 31200 106300 8.75 3.56 12.2 169.5 29.5 3.3 64
SM125 10 30100 102800 8.93 3.37 11.5 166.6 28.99 3.8 78
SM147 12 36000 123000 10.08 3.58 12.2 193.5 33.7 3.3 67
SM148 12 36100 123100 10.8 3.34 11.4 199 34.6 3.6 88
SM160 13 39100 133500 11.6 3.37 11.5 216.6 37.69 4 90
SM161 13 39000 133200 11.59 3.37 11.5 216.6 37.69 3.6 88
SM175 14 42000 143400 12.46 3.37 11.5 233 40.54 6.2 100

Product details

Gross weight 102 kg
Net weight 90 kg
EAN 5702428980432



Approval standard CE
UL
Brand technique After sale
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Description SM160-4
Diameter [mm] 266 mm
Discharge connection height [mm] 596 mm
Discharge connection mounting torque [Nm] 110 Nm
Discharge connection pipe size [in] 7/8 in
Discharge connection rotolock size [in] 1 3/4 in
Discharge connection size [in] 1 3/4 in
Discharge connection sleeve pipe size [in] 7/8 in
Drawing number 8551120b
Economizer No
Factory HP [bar] 33 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code C
Glass mounting Threaded
Glass torque [Nm] 50 Nm
GP LP torque [Nm] 15 Nm
High side max pressure (Ps) 30.2 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 1.7 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 440 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 25 bar
Low Side TS Max 63 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 414 V
LRA 150 A
Maximum Operating Current [MOC] 29 A
MMT 29 A
Model number SM160T4RC
Motor protection Internal thermostat, ext. overload protector needed
Mounting torque [Nm] 21 Nm
Nominal cooling capacity 60 kBTU/h 163.14 kBtu/h
Nominal cooling capacity at 50Hz 35.3 kW
Nominal cooling capacity at 60Hz 47.8 kW
Number of starts per hour [Max] 12
Oil charge [L] 4 L
Oil drain 1/4” flare
Oil drain torque [Nm] 35 Nm
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 48 Nm
Oil reference 160P
Oil type Mineral
Packaging height [mm] 671 mm
Packaging length [mm] 470 mm
Packaging weight [Kg] 671 kg
Packaging width [mm] 370 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw 4.8 mm
Refrigerant R22
Refrigerant charge [kg] [Max] 12.5 kg
Relief valve None
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 180 mm
Suction connection mounting torque [Nm] 130 Nm
Suction connection pipe size [in] 1 3/8 in
Suction connection rotolock size [in] 2 1/4 in
Suction connection size [in] 2 1/4 in
Suction connection sleeve pipe size [in] 1 3/8 in
Swept volume [cm3] 216.6 cm³
Technology Scroll
Test dif [bar] [Max] 24 bar
Test HP [bar] [Max] 32 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 2 Nm
Torque Ebox cover [Nm] 2.3 Nm
Torque power [Nm] 3 Nm
Total height [mm] 631 mm
Type SM
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.94 Ohm
Mbsm_dot_pro_private_PDF_Sm160TArc-meituo_en_made_in_china_com_product_ENYJSPnUTrkR_China_Sm_16Télécharger
Mbsm_dot_pro_private_PDF_SM-160-10993_danfossTélécharger
