As an alternative for selecting compressor for tropical condition we could recommend to
select a compressor of R134a with cooling capacity of approximately 240 watt at – 23.3

degree centigrade evaporating temperature. We recommend compressor Danfoss model
SC12G oil cooled compressor with 259 watts cooling capacity at- 23.3 evaporating temp.
ASHREA Standards, or Compressor Matsoshita Model D91C21RAX5 With 227 watts
cooling capacity at – 23.3 evaporating temp. ASHREA Standards, or Aspera Model B3119Z
with 234 watts cooling capacity at – 23.3 evaporating temp. ASHREA Standards, or
Electrolux {Zanussi) Model GL90AA with 224 watts cooling capacity at – 23.3 evaporating
temp. ASHREA Standards. Or Necchi Model ESC 11/11K with 246 watts cooling capacity
at – 23.3 evaporating temp. ASHREA Standards …

Mbsm.pro, Comparative analysis of hermetic compressors

Compressors

Comparative analysis of hermetic compressors

print
version

Compressor	Scope _	refrigerant	Cooling capacity Q ₀ Possible analogues of compressors to be replaced
Compressor	Scope _	refrigerant	T ₀ \u003d +5 ^{T _k \u003d +55}	T ₀ \u003d -15 ^{T _k \u003d +55}
Embraco Aspera					Electrolux	L’unit hermetique	Danfoss	Mraz	Necchi
NE2125E	LBP	R22		458			SC10C		A9EV
NE2134E	LBP	R22		670			SC12C	KH14C1(3)E/K	A11EV
T2140E	LBP	R22		796			SC15CM	KH19C1(3)E/K	A13EV
T2155E	LBP	R22		965			SC18CM	KH23C1(3)E/K	N17EV
T2168E	LBP	R22		1304			SC12/12C	AH26C1(3)E/K	N23EV
J2178E	LBP	R22		1425				KH37C1(3)E/K
J2190E	LBP	R22		1662			SC15/15CM	KH37C1(3)E/K
NB6144E	HBP	R22	511
NB6152E	HBP	R22	584		L57TN	AEZ3430E
NB6165E	HBP	R22	714		L76TN
NE6181E	HBP	R22	873		L88TN	AEZ34/4440E
NE5210E	HBP	R22	1065			AE34CAE4450E
NE6210E	HBP	R22	1026		L88TN
NE6211E	HBP	R22	1179
T6217E	HBP	R22	1728		S15TN	CAJ/TAJ9480T		AB14C1(3)E/K
T6220E	HBP	R22	2065		S18TN		SC12D	KB19C1(3)E/K
NE9213E	M/HBP	R22	1491		P12TN		SC10D	KB14C1(3)E/K
J/NJ9226E/P	M/HBP	R22	2769			CAJ/TAJ9513T		KB26C1(3)E/K
J/NJ9232E/P	M/HBP	R22	3313		S26TN		SC10/10D	AB26C3E/K
J/NJ9238E/P	M/HBP	R22	4131			CAJ/TAJ4519T	SC12/12D	KB37C1(3)E/K
NE7213E	AC	R22	1499			AE5470E
NE7215E	AC	R22	1643			AE5470E
T7220F	AC	R22	2065		S19UN	AJ5510F		KK19C1E/K
T7223F	AC	R22	2439		S22UN	AJ5512E		KK23C1E/K
J/NJ7225F	AC	R22	2588		S24UN	AJ5512E		KK23C1E/K
J/NJ7228F/P	AC	R22	2992		S26UN	AJ/TAJ5515E		AK23C1E/K
J/NJ7231F/P	AC	R22	3315		S30UN/UP			AK26C1E/K
J/NJ7238E/P	AC	R22	4048		S34UN/UP	AJ/TAJ5519E
J/NJ7240F/P	AC	R22	4443
NB2112GK	LBP	R404A		210			TL4CL
NB1117GK	LBP	R404A		279	ML45FB	AEZ2370Z
NB2117GK	LBP	R404A		274
NB1121GK	LBP	R404A		419			FR8.5CL
NE2125GK	LBP	R404A		544	ML80FB	AEZ2415Z	SC10CL
NE2134GK	LBP	R404A		765	MP12FB	AE14/CAE2417Z	SC12CL		TA11EV
NEK2117GK	LBP	R404A		352	ML60FB	AEZ2390Z	FR6CL
NEK2121GK	LBP	R404A		422
NEK2125GK	LBP	R404A		494	ML80FB	AEZ2411Z	FR8.5CL
NEK2134GK	LBP	R404A		679	MP10FB				TA9EV
NEK2150GK	LBP	R404A		888	MP14FB	AE14/CAE2420Z		AH14H1(3)E/K	TA13EV
T2140GK	LBP	R404A		744	MP10FB		SC12CL		TA11EV
T2155GK	LBP	R404A		948	MP14FB	CAE2424Z	SC15CL	AH19H1(3)E/K
T2168GK	LBP	R404A		1169	MK16FB	CAJ2432Z	SC18CL/SC10	KH23H1(3)E/K	TN17EV
T2178GK	LBP	R404A		1368	MK21FB	CAJ2440Z	SC21CL	KH26H1(3)E/K	TN21EV
T2180GK/GJ	LBP	R404A		1460	MR22FB	CAJ2440Z			TN23EV
J/NJ2192GK/GS	LBP	R404A		1725	MS26FB			KH37H1(3)E/K
J/NJ2212GK/GS	LBP	R404A		2273	MS30FB		SC18/18CL	KH45H1(3)E/K
NB6144GK	MBP	R404A	553			AEZ4425Z	TL4DL
NB6152GK	MBP	R404A	646		ML45TB	AEZ34/4430Y	FR6DL
NB6165GK	MBP	R404A	768		ML60TB	AEZ34/4440Z
NE5181GK	MBP	R404A	964		ML80TB
NE6181GK	MBP	R404A	916
NE6210GK	MBP	R404A	1082		ML80TB	AE34/CAE4450Z
NE9213GK	MBP	R404A	1602		MP10TB	CAE9470Z
NEK6165GK	MBP	R404A	895		ML80TB	AEZ34/4440Z
NEK6210GK	MBP	R404A	1205		ML90TB	CAE44/9450Z	SC10DL
NEK6213GK	MBP	R404A	1610			CAE9470Z
T6217GK	MBP	R404A	1833		MP12TB	CAJ/TAJ9480Z	SC15DL
T6220GK	MBP	R404A	2214		MK16TB	CAJ/TAJ9510Z	SC10/10DL
T6222GK	MBP	R404A	2686		MR18TB		SC12/12DL
J/NJ9226GK/GS	MBP	R404A	2998
J/NJ9232GK/GS	MBP	R404A	3706				SC15/15DL
J/NJ9238GK/GS	MBP	R404A	4463
NB1112Z	LBP	R134a		220	GL70AN	THB1360Y	NL6F		ETR5.5
NB2112Z	LBP	R134a		220	GL70AN	THB1360Y	NL6F		ETR5.5
NB1115Z	LBP	R134a		273	GL80BH		NL9FT		ESR8
NB1116Z	LBP	R134a		284	GL90AA/AN	AEZ1370Y	NL9F		ESC8
NB2116Z	LBP	R134a		277	GL90AA	AEZ1370Y	NL9F		ESR8
NB1117Z	LBP	R134a		326	GL99BH/BL	AZ1355Y			ESR9
NB3117Z	LBP	R134a		277	GL90AA	AEZ1370Y	NL9F		ESR8
NB1118Z	LBP	R134a		244	GL80AA/AF	AZ1355Y	NL8F		ESR7
NB2118Z	LBP	R134a		244	GL80AA/AF	AZ1355Y	NL8F		ESR7
NB1119Z	LBP	R134a		318	GL99BH/BL	AEZ1365Y			ESC8.5
NB3119Z	LBP	R134a		318	GL99BH/BL	AEZ1365Y			ESC8.5
NE1121Z	LBP	R134a		393	GP14BB/CB		NL11F		ESC11
NE2121Z	LBP	R134a		391	GP14BB/CB		NL11F	KC14E1(3)E/K	ESC11
NE1130Z	LBP	R134a		495	GP16CB/FB	C/AE1412Y	SC18F
NE2130Z	LBP	R134a		525	GK18FB	C/AE1412Y	SC18F
NE2134Z	LBP	R134a		556			SC18G	KC19E1(3)E/K
T2134Z	LBP	R134a		639	GK21FB		SC21F	AC19E3E/K
T2140Z	LBP	R134a		746			SC12G
J/NJ2152Z	LBP	R134a		1045			SC18G
BP51/6125H	HBP	R134a	270		GD36MB	THB44/3413Y	TL4GH
BP51/6128H	HBP	R134a	320		GL45PB/TB/TG
BP51/6132H	HBP	R134a	354		GL60TB/TG	THB34/4419Y	TL5G		ESC4H
NB5132Z	HBP	R134a	387						ESC4H
NB51/6144Z	HBP	R134a	492		GL80PB/TB/TG		FR6G		ESC5H
NE5160Z	HBP	R134a	623				FR10G		ESC7H
NE6160Z	HBP	R134a	636		GL90PB/TB/TG	AEZ34/4430Y	FR10G		ESC7H
NE5170Z	HBP	R134a	728		GP10PB		SC10G		ESC8H
NE6170Z	HBP	R134a	718		GP10PB		SC10G		ESC8H
NE51/6187Z	HBP	R134a	997		GP14PB/TB/TG	CAE4448Y	SC12G	KB14E1(3)E/K	ESC11H
NE6210Z	HBP	R134a	1134		GK16TB/TG	CAJ/TAJ4452Y	SC15G	AB14E1(3)E/K
NEK6170Z	HBP	R134a	767		GP10PB		SC10G		ESC8H
NEK6187Z	HBP	R134a	884		GP12TB/TG	AE3440Y	SC12G		ESC9H
NEK6210Z	HBP	R134a	1051		GP16TB/TG	CAE4456Y		KB14E1(3)E/K
NEK6212Z	HBP	R134a	1186		GP16TG/TB	CAJ/TAJ4452Y	SC15GH	AB14E1(3)E/K
T6213Z	HBP	R134a	1335		GR/GK18TB/TG	CAJ/TAJ4461Y	SC18G	KB19E1(3)E/K
T6215Z	HBP	R134a	1616		GR22TB/TG		SC21G	KB23E1(3)E/K
T6217Z	HBP	R134a	1737		GR22TG			AB23E1(3)E/K
J/NJ6220Z/ZX	HBP	R134a	2330		GS30TB
J/NJ6226Z/ZX	HBP	R134a	2732		GS34TB	CAJ/TAJ4511Y		KB37E1(3)E/K

Boiling temperature range:

R22:

LBP –
T ₀ = minus 30 ⁰ С …
minus 10 ⁰ С

R404A:

LBP –
T ₀ \u003d minus 40 ⁰ С
… minus 10 ⁰ С

HBP –
T ₀ \u003d minus 20 ⁰ С
… +10 ⁰ С

R134a:

LBP –
T ₀ \u003d minus 30 ⁰ С
… minus 5 ⁰ С

HBP –
T ₀ \u003d minus 15 ⁰ С
… +10 ⁰ С

Information on the
interchangeability of
compressors manufactured by
different manufacturers is
necessary for the selection
of a compressor for the
repair of refrigeration
equipment.

Below is information about
the compatibility of
compressors of various
models and brands, grouped
by type of refrigerant:

the parameters of
compressors operating on R134a

refrigerant , R12 refrigerant
and R600a

refrigerant are given . For
the convenience of selecting
a compressor, the type and
approximate volume of the
refrigerator or freezer in
which the unit of this model
is used are indicated.

Parameters of compressors
operating on R134a
refrigerant.

Freon R134a
Power, hp	Product type and volume, l			Compressor brand and model
Power, hp	single door refrigerator	single door refrigerator	freezer	ZEM	Aspera	Embraco	Danfoss	L’Unite Hermetique	Necchi
1/12	160	120	90	.	.	.	TL2.5F	AZ1320Y	ETR3
1/10	200	160	120	GD36AA	BP1058Z	.	TL3F TLSE3F TL3G	AZ1330Y	ETR3.5
1/8	220	240	200	GL45AA GL45AN*	BP1084Z	EM45HNR EM140	TL4F TLES4F TL4G	AZ1335Y AZ1339Y AZ1345Y	ETR4 HETR4
1/6	400	325	270	GL60AA GL60AN*	BPM1111Z	EMI60HER EM150 EM165	TL5F TLS5F TL5G TLES5F	AEZ1358Y AEZ1348Y	ET5R HETR5 ESC5 ETR5.5 HETR5.5
1/5	500	410	350	GL75AA GL80AN*	NB1116Z B3117Z*	FF17,5HAK FGS70HA FGV70HA	NL6F NLE6F TLS6F TLSE6F FR7,5G	AEZ1365Y	ESR7 ESR7K ESC7 HHESR7

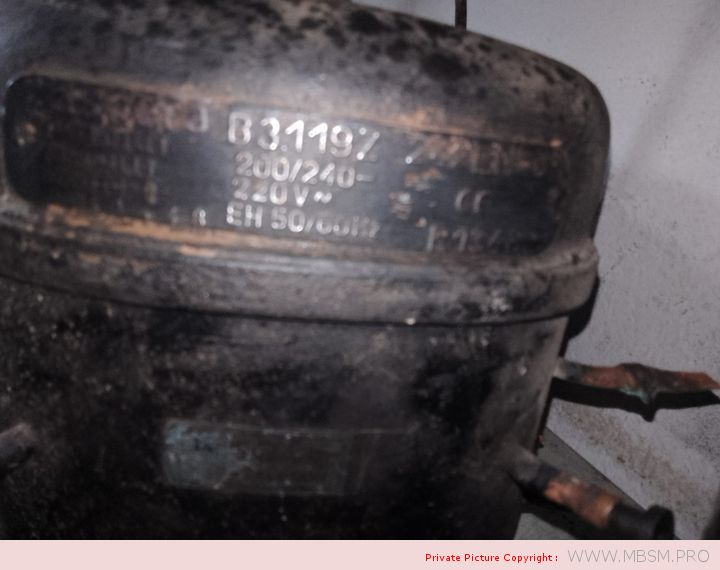

1/4	600	480	400	GL90AA GL90AN* GL99AA(+)	NB1118Z B3119Z*	FFI8,5HAK FGS90HA FGV80HA	NL7F TLS7F TLES7F FR8,5G	AEZ1380Y	ESR8.5 ESR8.5K HHES8.5 ESC9 ESC9K HHEESR9
1/4	800	600	500	.	.	.	NLF9F NLE9F FR10G		.
1/3	1200	800	600	.	E1121Z	.	NL11F FR11G		ESC11K HHESR11 ESC13K

Parameters of compressors
operating on R134a
refrigerant.

Power, hp	Product type and volume, l			Compressor brand and model
Power, hp	single door refrigerator	single door refrigerator	freezer	Electrolux	Samsung	Verdichter	Matsushita	TEE Tecumseh	goldstar
1/12	160	120	90	GD30AB GD30AA GD36AB		OF605H OF700 OF700H		AZ47Y	.
1/10	200	160	120	GL35AA GD40AA GD40AB		.	.	AZ68Y	.
1/8	220	240	200	GL45AA GL45AB GL40AA GL40AB	VD143QLIU2	OF789H OF789	SB43C90 SB48C10 SB51C SB48	AZ82Y	NR45
1/6	400	325	270	GL60AA GL60AB GL50AA GL50AB	VD152QLIU2	OF1033A OF1033H	SB51C10D66C	AZ107Y AZ90Y
1/5	500	410	350	GL80AA GL80AB GL70AA GL70AB	VD162QLIU2	.	D66C13 D77C15 DA66	AE123YAZ121Y	V69
1/4	600	480	400	GL99AA GL99AB GL90AA GL90AB GL90AB GL99AD GL99AL	SK170QLIIU	.	D91C18 D77 DA77	AE148Y	V80 V88
1/4	800	600	500	.	.	.	.	AE176Y	.
1/3	1200	800	600	GP12BB GP12AB		.	DA91C	AE196Y	.

Parameters of compressors
operating on R12 refrigerant.

Freon R12
Power, hp	Product type and volume, l			Compressor brand and model
Power, hp	single door refrigerator	single door refrigerator	freezer	ZEM	Aspera	Embraco	Danfoss	L’Unite Hermetique	Necchi
1/12	160	120	90	.	.	PW3,5K7 PW3K6	TL2.5A TL2.5B	Z1320AAE127 _
1/10	200	160	120	.	BP1058A	PW3,5K6 PW3,5K7	TL3A TL3B	AZ1328A AEZ1332A AE10Z7	ESM3
1/8	220	240	200	L45AV	BP1084A	PW4,5K9 EM40NP PW4,5K7	TL4A TL4B	AZ1335A AEZ1336A AE8ZA7	ESM4
1/6	400	325	270	L55AV	BP1111A	PW5,5K9 PW5,5K11 EM55NP	TL5A	AZ1345A AZ1340A AEZ1343A AE6ZA7 AE66ZD7	ESM5
1/5	500	410	350	L76AV L76BV*	BP1116B B3117A*	PW7,5K14 FF7,5BK FF7,5BKW FF6BK	FR7.5A NL6A FR7.5B	AZ1355D AEZ1360A AE5ZF9	ESM7
1/4	600	480	400	L88AV L88BV*	B1118B B3118B* B3119B	PW9K18 PW11K22 FF8,5BK FF8,BKW	FR8.5A NL7A FR8.5B	AEZ1380A AE4ZF11 AEZ1480B	ESM8
1/4	800	600	500	.	.	.	FR10A FR10B		ESM9
1/3	1200	800	600	.	E1121A E3121A*	FF108K	SC12A	AEZ1410D AE1410A	ESM11

Parameters of compressors
operating on R12 refrigerant.

Power, hp	Product type and volume, l			Compressor brand and model
Power, hp	single door refrigerator	single door refrigerator	freezer	Electrolux	Prescold	Unidad Hermetica	Matsushita	LEC	Bosch	AEG
1/12	160	120	90	D36AS DS33AU L33AU	AS14		FN24N45 FN25N40 FN29N60		V612	LK31.2
1/10	200	160	120	L40W L40AS L40AU	AS12			LF14 12L264
1/8	220	240	200	L45AU L45AW	AS8	D40AS L40AU	FN43F67S FNE75WS5A S060LKAA S075LKAA	8L300	V792	LK39 LK45
1/6	400	325	270	L55AT L55AU	AS6 AS66		FN5188S FNE100WS5	6L377	V1040	LK55.2 LK55.4
1/5	500	410	350	L76BW L76AW L76AT	AM55ZF AM5ZF	L55GR L65AS L76AS L76AT	FN66F11S FN73F13S FNE125WS5 D115	5L476	V1350
1/4	600	480	400	L88BW L88AV L88FW	AM4C	L88AS L88AVBV L88BS L88BW	D116	5L476	V1450
1/4	800	600	500		QM43
1/3	1200	800	600	P12BW P12FW		L88GR L99GV L99CV	FN91F17S FN110F22S D119 D122	4L690 3/4L766 3L831

Parameters of compressors
operating on R600a
refrigerant .

Freon R 600a
Power, hp	Product type and volume, l			Compressor brand and model
Power, hp	single door refrigerator	single door refrigerator	freezer	Aspera	Danfoss	Electrolux
1/12	160	120	90	.	TLES4K TLS4K	HV44AH
1/10	200	160	120	BPM1058Y/1072Y	TLES5K TLS5K	HV57AH
1/8	220	240	200	BPE1084Y	TLES7K TLES6K TLS6K TLS7K	HL70AH HL60AH HV67AH
1/6	400	325	270	BPE1111Y	TLES9K TLESS8K TLS8K NLE9K TLS9K	HL99AH HL90AH HL80AH
1/5	500	410	350	NBM1116Y	NLE13K NLE10K NL10K NLE11K NL11K	HP14AH HP12AH
1/4	600	480	400	NBM1118Y	NLE15K NL15K	HP16AH
1/3	1200	800	600	.	.	HP18AH

* – models with additional
oil cooling

Item	Performance characteristics
Refrigerant	R134a
Displacement (cm³)	7.3
Voltage (V)	220
Frequency (Hz)	50/60
Motor Type	RSIR
Capacity@ASHRAE	202/265
COP@ASHRAE	1.3/1.42
Capacity@CECOMAF	–

Model	Power(HP)	Voltage – Frequency	Capacity(W)	COP
RSIR

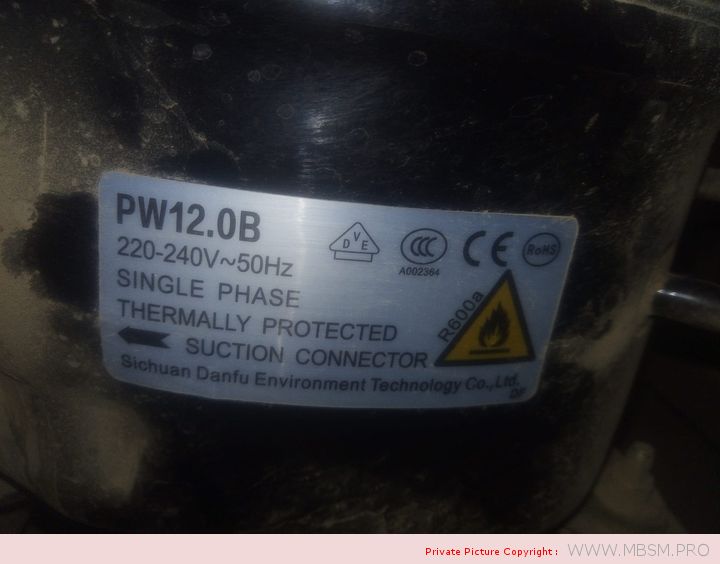

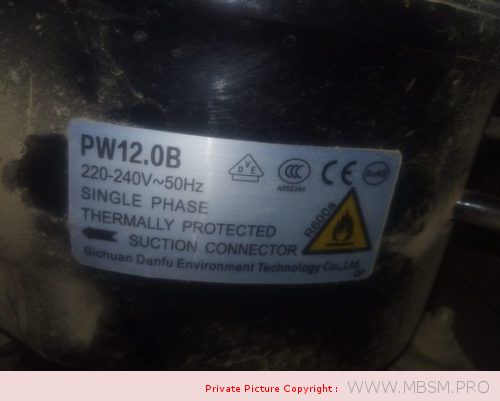

PW3.0B	1/12	220 – 240 V 50Hz	65	1.10
PW4.0B	1/10	220 – 240 V 50Hz	82	1.22
PW5.0B	1/8	220 – 240 V 50Hz	102	1.28
PW7.0B	1/8+	220 – 240 V 50Hz	128	1.35
PW9.0B	1/6	220 – 240 V 50Hz	145	1.40
PW10.0B	1/5	220 – 240 V 50Hz	154	1.40
PW12.0B	1/4	220 – 240 V 50Hz	182	1.45
DFB69S	1/8	220 – 240 V 50Hz	110	1.61
DFB79S	1/7	220 – 240 V 50Hz	130	1.61
DFB90S	1/6	220 – 240 V 50Hz	150	1.63
DFB69L	1/8	220 – 240 V 50Hz	110	1.42
DFB79L	1/7	220 – 240 V 50Hz	130	1.45
DFB90L	1/6	220 – 240 V 50Hz	150	1.45
DFB103L	1/5	220 – 240 V 50Hz	168	1.45
DFB115L	1/4	220 – 240 V 50Hz	185	1.46
DFB125L	1/3	220 – 240 V 50Hz	205	1.46
RSCR
DFB69S	1/8	220 – 240 V 50Hz	110	1.65
DFB79S	1/7	220 – 240 V 50Hz	130	1.65
DFB90S	1/6	220 – 240 V 50Hz	150	1.68
DFB69T	1/8	220 – 240 V 50Hz	110	1.75
DFB79T	1/7	220 – 240 V 50Hz	130	1.75
DFB90T	1/6	220 – 240 V 50Hz	150	1.80

Imballo (Pcs/Pallet)
Compressore	EMBRACO
Modello	EG70HLR
Altezza (mm)
Gas	R134a
Tensione	220-240 V 50-60 Hz
Applicazione	LBP (Low Back Pressure)
Test Condition	ASHRAE LBP 32
Cilindrata	6,76 c.c.
Motore	RSIR-CSIR
Potenza (HP)	1/4
Cap. Frigor. Watt	192/228
Cap. Frigor. Kcal	165/196
Cap. Frigor. Btu/h	655/777
COP (W/W)	1,39/1,45
Watt assorbiti (W)
Dispositivo di Avv.	Relay
Condensatore	72-88 MF
Tipo Raffreddamento

Mbsm.pro, Refrigerator, Fridge-Freezer, RT511JSPN, No Frost, Sumsung, 441 L, 309 L, Compressor, Mk172Q-L2U, 1/4 Hp, 205 W, 699 BTu/H, Samsung Compressor, Mk Serie, R134A, 7.21 cc, 220-240 v, LBP, Static Compressor, RSIR

Mbsm.pro, Compressor, HML190a, 1/4 hp, zel, Lambda, LBP, RSCR, Freezing compressor, R600a, 190 w, 163 kcal/h, run capacitor 3 µF, aluminum wire

Mbsm.pro, Compressor, Aspera, B3119Z, 234 w, 1/4 hp, r134a

Compressors

Comparative analysis of hermetic compressors

Boiling temperature range:

R22:

R404A:

R134a:

Mbsm.pro, Compressor, QBH73C13GAE, 1/4 hp, RSIR, Reciprocating Compressors, Fixed Speed, Q Series, R134a, LBP

QBH73C13GAE(RSIR) : Reciprocating Compressors (Fixed Speed)

ProductReciprocating Compressors (Fixed Speed)

Series/TypeQ Series (Reciprocating Fixed Speed, R134a, LBP)

Parts noQBH73C13GAE(RSIR)

Mbsm.pro, PDF, compressor, C-BZN200L6X, 1/4 hp, LBP, 826 btu

Mbsm.pro, Compressor, LX72LAT, 1/4 hp, LX Capacity, 7.2 cc, R134a, LBP, 220-240V,50Hz 220V,60Hz, CSIR, PTC

Mbsm.pro, compressor, PW12.0B, 1/4 hp, 182 w, R600a LBP Series

R600a LBP Series

Mbsm.pro, Congélateur GN-bd(w)-370, Gean Electronique, Made in Chine, T classe, 370 L, Compressor, 1/4 Hp, R134A, 105 G, 1.3 A, 220 V, Freezer horizontal, Filtre 20 G, Capilaire 0.036, 2 M, Thermostat mecanique

Mbsm.pro, SWZ12, 000DK02D, 2eDM02000, Intercold, Freezer, swz1/170, 222 w, 230v, Compressor, 1/4 hp, R134a, 210 G, 290 L, Intercold horizontal freezers for frozen

Mbsm.pro, Compressor, EG70HLR, Embraco, Refrigerator, 1/4 hp, Lbp, R134, Eg 70 Hlr

Mbsm.pro, Compressor, EG70HLR, Embraco, Refrigerator, 1/4 hp, Lbp, R134, Eg 70 Hlr
