Mbsm.pro, Compressor, LG Compressor, BMG089NHMV, R600a, Inverter, Variable speed, BDC, Lbp, 1/4 hp, 188.147.88.73 W, 641.501.300.250 Btu/h

Category: compressor
written by www.mbsm.pro | 17 March 2022
Brand Name:
LG
Type:
Refrigerator compressor, Inverter
Application:
Refrigeration Parts, LBP
Product name:
BMG089NHMV
Voltage:
240 V, 60-225 Hz
Refrigerant:
R600a


Mbsm_dot_pro_private_PDF_BMg089NHMVTélécharger


Mbsm.pro, FN Series, Commercial, Refrigerator, Compressor, R134A, fn73f17S, 1/5 hp, FN75H, 1/6HP, FN77H, 1/4 hp, R12, LBP, 220V-50/60HZ

Category: compressor
written by www.mbsm.pro | 17 March 2022

R12-LBP COMPRESSOR PERFORMANCE PARAMETER

Widely used for refrigerator systems.

2.Feature:

1)Reasonable structure and compact size

2)High efficiency, energy saving

3)Stable performance, high security

4)Good adaptability of voltage

5)Excellent refrigeration

6)Wild range of refrigerant capacity

3.Specification

Series

Model

Displace ment(cm)

Capacity(w)

Input power(w)

C.O.P

Current(A)

Cooling Type

Motor Type

HP

FN Series 220V-50/60HZ

FN43

4.3

96

103

0.93

0.82

ST

RSIR

1/6-

FN51

5.1

123

115

1.07

0.85

ST

RSIR

1/6

FN57

5.7

139

127

1.09

0.97

ST

RSIR

1/6+

FN66

6.6

157

148

1.06

1.1

ST

RSIR

1/5

FN77

7.7

185

176

1.05

1.2

ST

RSIR

1/4-

FN86

8.6

195

180

1.08

1.3

ST

RSIR

1/4+

FN91

9.1

215

195

1.10

1.4

ST/OC

RSIR

1/3

FN110

11.0

265

240

1.1

1.6

ST/OC

RSIR

1/2

FN Series 240V/50HZ

FN43M

4.3

98

104

0.94

0.83

ST

RSIR

1/6-

FN51M

5.1

120

109

1.1

0.84

ST

RSIR

1/6

FN57M

5.7

140

121

1.11

0.96

ST

RSIR

1/6+

FN66M

6.6

158

149

1.08

1.05

ST

RSIR

1/5

FN77M

7.7

180

163

1.1

1.25

ST

RSIR

1/4-

FN86M

8.6

190

165

1.15

1.3

ST

RSIR

1/4+

FN91M

9.1

210

182

1.15

1.32

ST/OC

RSIR

1/3

FN110M

11.0

260

220

1.18

1.35

ST/OC

RSIR

1/2

FN Series 115V/60HZ

FN43U6

4.3

110

96

1.15

0.8

ST

RSIR

1/6-

FN51U6

5.1

140

122

1.15

0.92

ST

RSIR

1/6

FN57U6

5.7

154

131

1.18

1.02

ST

RSIR

1/6+

FN66U6

6.6

182

152

1.2

1.15

ST

RSIR

1/5

FN77U6

7.7

205

171

1.2

1.15

ST

RSIR

1/4-

FN86U6

8.6

216

183

1.18

1.28

ST

RSIR

1/4+

FN91U6

9.1

237

201

1.18

1.3

ST/OC

RSIR

1/3

FN110U6

11.0

290

242

1.2

1.35

ST/OC

RSIR

1/2

FN Series 110V/60HZ

FN43T6

4.3

122

111

1.1

0.85

ST

RSIR

1/6-

FN51T6

5.1

145

125

1.16

0.93

ST

RSIR

1/6

FN57T6

5.7

155

131

1.18

1.03

ST

RSIR

1/6+

FN66T6

6.6

185

154

1.2

1.25

ST

RSIR

1/5

FN77T6

7.7

210

175

1.2

1.25

ST

RSIR

1/4-

FN86T6

8.6

220

186

1.18

1.3

ST

RSIR

1/4+

FN91T6

9.1

240

196

1.22

1.4

ST/OC

RSIR

1/3

FN110T6

11.0

193

240

1.22

1.35

ST/OC

RSIR

1/2



Product Description

FN Series Refrigerator Compressor 1/6HP R134A 130W
AC Compressor: R134A Hermetic LBP Piston Reciprocationg Compressor
Model: FN75H
Power Supply: 220~240V/50Hz
Displacement: 5.7CC
Cooling Capacity: 133W
Rated Power: 125W
Nominal Power: 1/6HP
COP: 1.04 W/W
Motor Type: RSIR
Starting relay: PTC
Cooling Type: S
Application: LBP
Certification: CE
1X20’FCL: 1920PCS

Application:
LBP: Low back pressure; Refrigerator, Freezer, Wine cooler
MBP: Medium Back Pressure; Air-conditioner, vending machine
HBP: High Back Pressure: Air-conditioner, ice maker

LBP ASHRAE Test Condition:
Evapration Temperature: -23.3 º C
Condensing Temperature: 54.4 º C
Subcooling Temperature: 32.2 º C
Ambient Temperature: 32.2 º C

MBP ASHRAE Test condition:
Evapration Temperature: -5 º C
Condensing Temperature: 54.4 º C
Ambient Temperature: 35 º C
Subcooling Temperature: 46.1
Suction Temperature: 35 º C

HBP ASHRAETest condition:
Evapration Temperature: 7.2º C
Condensing Temperature: 54.4º C
Ambient Temperature: 35º C
Subcooling Temperature: 46.1º C
Suction Temperature: 35º C

Parameter Variation Range:
Cooling Capacity: ≥ 95%
Inpurt Power: ≤ 115%
Current: ≤ 110%
COP: ≥ 95%

Cooling Type:
S: Natural cooling
F1: Fan cooling, 200mm fan diameter, 1.5m/s air speed
F2: Fan cooling, 200mm fan diameter, 3m/s air speed



Mbsm.pro, Compressor, Tecumseh, TP1390YS, TP101-KS-015, 1/4 hp, lbp, R-134a, TPA1390YKS, TPA1390YXA, TP Series Compressors

Category: compressor
written by www.mbsm.pro | 17 March 2022

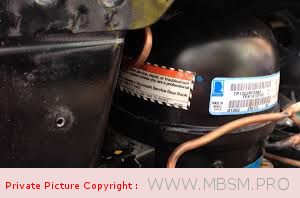

 Compressor, Tecumseh/Taikang Piston Compressor Model: TPA1390YKS/TP1390YS, Type: Low Back Pressure, Refrigerant: R-134a, Supply Voltage: 220-240V ~ 50Hz, Tecumseh/Taikang TPA1390YKS/TP1390YS a

Product Family

Model Number Decription Manufacturer
TPA1380YXA TP104AR-003-J7 1/4 HP R-134 Tecumseh Product Co.
TPA1390YXA TP101AR-003-J7 1/4HP R134A Tecumseh Product Co.
TPA1410YXA TP Series Compressors Tecumseh Product Co.

Tecumseh/Taikang piston compression TPA1390YKS/TP1390YS detailed parameters:

product description

Product number product type application Refrigerant Supply Voltage/Frequency Version
TPA1390YKS (TP1390YS) Piston LBP – Low Back Pressure R-134a 220-240V ~ 50Hz N/A

Performance/Performance/Performance

condition Test voltage cooling capacity input power effectiveness Evaporation temperature Condensing temperature ambient temperature return air temperature liquid temperature
Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 220V ~ 50HZ 750 189 220 159 4.72 1.19 1.38 -23°C (-10°F) 54°C (130°F) 32°C (90°F) 32°C (90°F) 32°C (90°F)
CECOMAF 220V ~ 50HZ 560 141 164 154 3.64 .92 1.07 -25°C (-13°F) 55°C (131°F) 32°C (90°F) 32°C (90°F) 55°C (131°F)

General / General / General

Evaporation temperature range: -34.4°C to -12.2°C (-30°F to 10°F)
Motor torque: Low Start Torque (LST)
Compressor cooling: Static

Mechanical/Mechanical Properties/Mechanical Properties

weight: 11
Weight unit: KG
Displacement (cc): 7.28
Oil Type: N/A
Viscosity (cSt): N/A
Oil quantity (cc): 0

Electrical/Electricity/Electricity

Voltage range (50 Hz): 198-253
Voltage range (60 Hz): N/A
Locked Rotor Amps (LRA): 9.5
Rated load current (RLA 50 Hz): 1.17
Rated load current (RLA 60 Hz): 0
Maximum Continuous Current (MCC in Amps): 0
Motor Resistance (Ohms) – Main: 9.23
Motor Resistance (Ohms) – Start: 11.31
Motor Type: RSIR
Overload Type: N/A
Relay Type: N/A

Mbsm_dot_pro_private_PDF_TP1390YSTélécharger


Mbsm.pro, COMPRESOR, TECUMSEH, BRASIL, 1/4 HP, AE1380AS, R12, LBP, ae150-fs-708, 220 v, 680 BTU/h, 199 W, RSIR

Category: compressor
written by www.mbsm.pro | 17 March 2022

Mbsm_dot_pro_private_PDF_ae1380asTélécharger
Mbsm_dot_pro_private_PDF_ae1380as-1Télécharger


Mbsm.pro, Compressor, D77C18RAX5, RSIR , 1/4 Hp, D Series, r134a, LBP, 186 W, Toshiba, Refrigerator, 14 Feet, GR-EF40, 2 Doors, New Compressor, PE75H1C, 250 w, 1/4 hp

Category: compressor
written by www.mbsm.pro | 17 March 2022
Item Performance characteristics
Refrigerant R134a
Displacement (cm³) 7.7
Voltage (V) 220
Frequency (Hz) 50
Motor Type RSIR
Capacity@ASHRAE 186
COP@ASHRAE 1.24
Capacity hp 1/4 hp

Mbsm_dot_pro_private_PDF_PE75H1CTélécharger
Mbsm_dot_pro_private_PDF_d77c18rax5Télécharger


Mbsm.pro, Compressor, TW1374ys, Tw145-ks-482, 1/4 hp, lbp, 195 w, 220 v, 1 ph, TECUMSEH, INDESIT, R134

Category: compressor
written by www.mbsm.pro | 17 March 2022

TECUMSEH TW 1374 Y 1/4 hp R134a motor compressor. TECUMSEH model TW 1374 with R134a refrigerant and 1/4 Hp with a performance of 165 frigories for two cold and No Frost refrigerators.

Medidas: 27 x 17 x 20 cm.

Weight: 15kg.

compressor capacity TW1374YS

Mbsm_dot_pro_private_PDF_TW1374ysTélécharger

From 1/8 to 1/5 of HP 3 meters of capillary 0.031 in inches or 0.80 millimeters
From 1/4 3 meters of capillary 0.036 in inches or 0.914 millimeters
From 1/3 3 meters of capillary 0.042 in inches or 1.067 millimeters



Mbsm.pro, LG, Compressor, cma075laem, 1/4 Hp, rscr, 220-240 v, 50 hz, 185 kcal/h, 734 btu/h, 215 w, r134a, Fixed Speed

Category: compressor
written by www.mbsm.pro | 17 March 2022
Power Source:
Electric, 220-240V 50Hz
Brand Name:
LG
Model Number:
CMA075LAEM
Condition:
New
Compressor Condition:
LG Original
Refrigerant Gas:
R134A
Cooling Capacity:
219W/746BTU
Cooling Capacity HP:
1/4HP
Product Name:
LG Brand Refrigerator Compressor
Wire Type:
Cu-Wire


Mbsm_dot_pro_private_PDF_cma075laemTélécharger


Mbsm.pro, Compressor, cGMCC, refrigerator, SZ90E1H-SCL, 1/4 Hp, R600 A , 220 v 60 Hz, lbp

Category: compressor
written by www.mbsm.pro | 17 March 2022




Product Description

PRODUCT DISCRIPTIONS
Original GMCC compressor for refrigerator

Gas Voltage/Frequency Model Cooling Capacity Pcs/Pallet
R134A 220V 50HZ PE90H1F-9 280W  1/3HP+ 96
PE80H1E-9 235W,1/3HP 96
PE65HIH-9 195W, 1/4HP 96
SE50H1F-9 150W, 1/5HP 96
SE45E1J-9 120W  1/6HP 112
SE40E1K-9 108W, 1/8HP 112
SE30E1M-9 75W, 1/10HP 112
110V 60HZ EE75H1F-U 255W, 1/3HP 96
FE65H1H-U 220W, 1/4HP 96
FE59E1M-U 192W, 1/5HP 112
FE45E1M-U 145W, 1/6HP 112
R600A 220V 60HZ SZ90E1H-N 182W 1/4HP 140
SZ75E1E-N 150W, 1/5HP 141
SZ59E1F-N 110W, 1/6HP 140


Mbsm.pro, Compressor, Mk172Q-L2U, 1/4 Hp, 205 W, 699 BTu/H, Samsung Compressor, Mk Serie, R134A, 7.21 cc, 220-240 v, LBP, Static Compressor, RSIR

Category: compressor
written by www.mbsm.pro | 17 March 2022

Mbsm_dot_pro_private_PDF_Mk172Q-L2UTélécharger


Mbsm.pro, Compressor, inverter, LG Refrigerator, BMG110NHMV, BMG/BMA LG, Lbp, 1/4 Hp , R600A

Category: compressor
written by www.mbsm.pro | 17 March 2022



Type Series Model Rating Speed range Speed Operating conditions
Eva/Cond’=-23.3℃/54.4℃
Cooling Capacity Power COP EER
(rpm) (rpm) (kcal/hr) (w/hr) (Btu/hr) (w) (w/w) (Btu/w.hr)
BLDC
R600a		 BMA BMA121NAMV 220~240V  50/60HZ 1200~4500 4500 271 316 1077 180 1.75 5.97
3900 235 273 934 148 1.85 6.32
2520 159 185 632 97 1.90 6.49
1500 105 122 417 63 1.95 6.66
1200 84 98 333 51 1.93 6.59
BMG BMG110NAMV 220~240V  50/60HZ 1200~4500 4500 225 262 894 144 1.82 6.22
3000 172 200 683 103 1.93 6.60
1800 108 125 427 66 1.90 6.48
1500 88 102 349 53 1.94 6.64
1200 70 82 279 43 1.92 6.55
BMG110NHMV 220~240V  50/60HZ 1200~4500 4500 225 262 894 146 1.79 6.11
3000 172 200 683 108 1.85 6.32
1800 108 125 427 72 1.75 5.97
1500 88 102 349 59 1.74 5.95
1200 70 82 279 48 1.72 5.87
BMG089NAMV 220~240V  50/60HZ 1200~4500 4500 187 217 741 119 1.83 6.24
3000 136 158 540 85 1.85 6.32
1800 84 98 335 51 1.92 6.55
1500 68 80 271 42 1.89 6.47
1200 55 64 217 34 1.87 6.38
BMG089NHMV 220~240V  50/60HZ 1200~4500 4500 187 217 741 126 1.72 5.88
3000 136 158 540 90 1.76 6.01
1800 84 98 335 57 1.72 5.86
1500 68 80 271 46 1.72 5.87
1200 55 64 217 37 1.70 5.80
BSA **BSA075NAMV 220~240V  50/60HZ 1380~4500 4500 129 150 512 90.9 1.65 5.63
3000 87 101 345 57.7 1.75 5.97
1800 52 61 208 33.0 1.85 6.32
1500 43 50 171 27.8 1.80 6.15
1380 39 45 154 25.7 1.75 5.97
**BSA075NHMV 220~240V  50/60HZ 1380~4500 4500 129 150 512 93.8 1.60 5.46
3000 87 101 345 59.4 1.70 5.80
1800 52 61 208 34.9 1.75 5.97
1500 43 50 171 29.4 1.70 6.32
1380 39 45 154 27.3 1.65 6.15
**BSA057NAMV 220~240V  50/60HZ 1380~4500 4500 123 143 488 86.7 1.65 5.97
3000 87 101 345 57.7 1.75 5.46
1800 51 59 201 31.9 1.85 5.80
1500 41 48 164 26.7 1.80 5.63
1380 39 45 154 25.7 1.75 5.97
**BSA057NHMV 220~240V  50/60HZ 1380~4500 4500 123 143 488 89.4 1.60 5.46
3000 87 101 345 59.4 1.70 5.80
1800 51 59 201 33.7 1.75 5.97
1500 41 48 164 28.2 1.70 5.80
1380 39 45 154 27.3 1.65 5.63

Mbsm_dot_pro_private_PDF_Inverter-Compressor-Technology-for-Refrigerator.-ReciprocatingTélécharger
Mbsm_dot_pro_private_PDF_bmg110nhmvTélécharger
