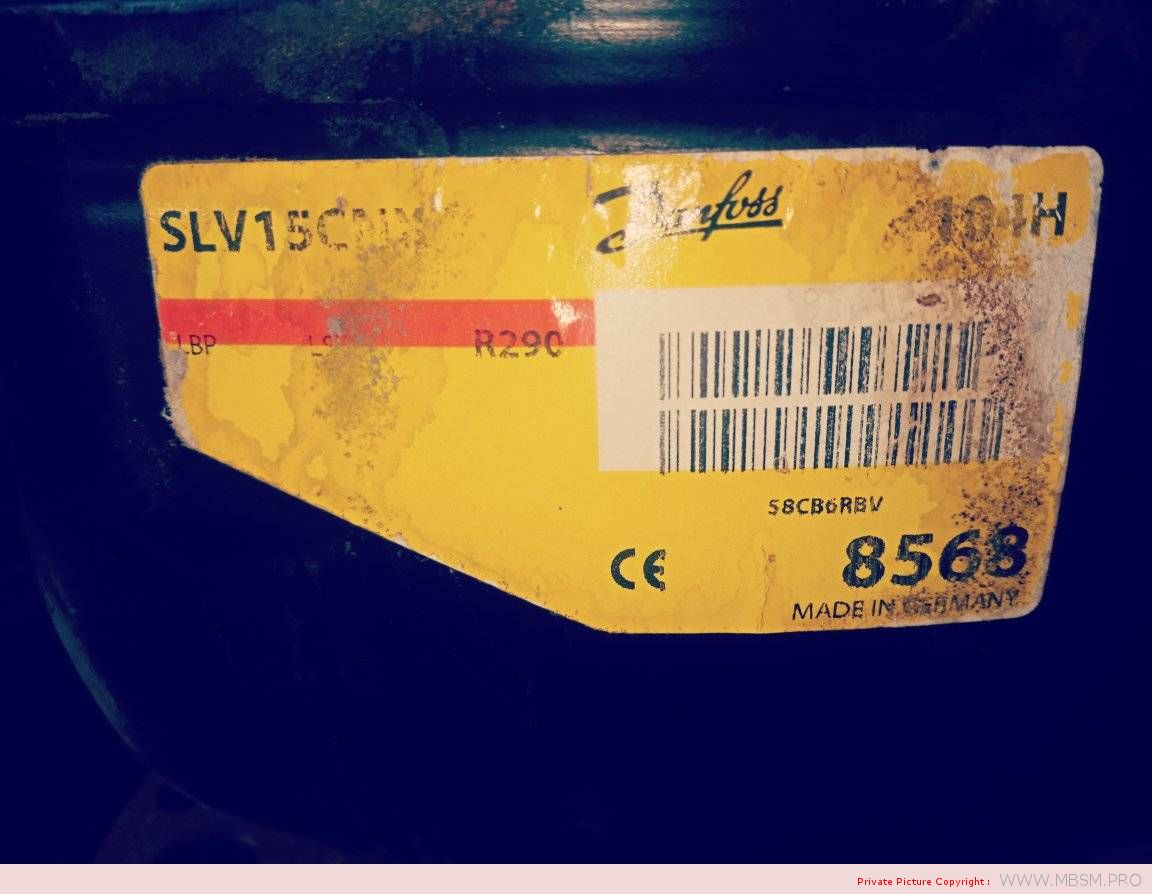

Danfoss SLV15CNK compressor. 2
- R290 refrigerant
- LBP working range: -40 to -10 degrees C
- voltage 220-240V, 50-60Hz
- capacity 15.28cc
- weight 13.00 kg
Model: SLV15CNK. 2 | Evaporation temperature |
Factor: R290 | -40 o C | -35 o C | -30 o C | -25 o C | -23.3 o C | -20 o C | -15 o C | -10 o C | -5 o C |
Capacity [W] at a condensing temperature of 45 ° C | 325 | 460 | 615 | 792 | 858 | 996 | 1228 | 1494 | – |
Détails du produit
Alimentation du compresseur [V/Ph/Hz] | 220/1/50 220/1/60 |
Applications | LBP |
Charge en fluide frigorigène [kg] [Max] | 0.15 kg |
Code de configuration | Simple |
Couleur | Noir |
Description | Kit d’entretien du compresseur SLV15CNK |
Diamètre de raccordement à l’aspiration [mm] | 10.2 mm |
Diamètre du raccord au refoulement [mm] | 6.2 mm |
Diamètre du raccordement du traitement [mm] | 6.2 mm |
Désignation du modèle | Compressor |
| |
Faible valeur de plage de tension à 50 Hz [V] | 187 V |
Faible valeur de plage de tension à 60 Hz [V] | 187 V |
Faible valeur de tension nominale à 50 Hz [V] | 220 V |
Faible valeur de tension nominale à 60 Hz [V] | 220 V |
Fluides | R290 |
Fréquence [Hz] | 50/60 |
Hauteur de la base [mm] | 203 mm |
Hauteur du raccordement de refoulement [mm] | 100 mm |
Hauteur du raccordement du traitement [mm] | 183 mm |
Hauteur raccordement aspiration [mm] | 183 mm |
Hauteur totale [mm] | 209 mm |
Injection de liquide | No |
Longueur [mm] | 255 mm |
Matériel du raccord au process | Cuivre |
Matériel du raccord d’aspiration | Cuivre |
Matériel du raccord de refoulement | Cuivre |
Niveau d’énergie de l’application | LBP vitesse variable |
Notes concernant le raccord de refoulement | Bouchon en caoutchouc |
Notes concernant le raccordement au process | Bouchon en caoutchouc |
Notes concernant le raccordement à l’aspiration | Bouchon en caoutchouc |
Product details
Application energy level | Variable speed LBP |
Applications | LBP |
Base plate type | Universal |
Brand technique | Reciprocating compressor |
Capacity control | INVERTER |
Colour | Black |
Compressor power supply [V/Ph/Hz] | 220/1/50 220/1/60 |
Configuration code | Single |
Description | SLV15CNK.2 |
Discharge connection angle [°] | 37 ° |
Discharge connection comments | Rubber plug |
Discharge connection diameter [mm] | 6.2 mm |
Discharge connection height [mm] | 100 mm |
Discharge connection material | Copper |
Economizer | No |
Free gas volume [cm3] | 1410 cm³ |
Frequency [Hz] | 50/60 |
Height from baseplate [mm] | 203 mm |
High value of nominal voltage at 50Hz [V] | 230 V |
High value of nominal voltage at 60Hz [V] | 230 V |
High value of voltage range at 50Hz [V] | 254 V |
High value of voltage range at 60Hz [V] | 254 V |
Length [mm] | 255 mm |
Liquid injection | No |
Low value of nominal voltage at 50Hz [V] | 208 V |
Low value of nominal voltage at 60Hz [V] | 220 V |
Low value of voltage range at 50Hz [V] | 187 V |
Low value of voltage range at 60Hz [V] | 198 V |
Model Number | SLV15CNK.2 |
Motor type | DC/PM |
No. of phases (compressor) | 0 |
Oil quantity [cm3] | 600 cm³ |
Oil type | POE |
Packing format | Industrial pack |
Packing quantity | 80 |
Phase | 1 |
Process connection angle [°] | 37 ° |
Process connection comments | Rubber plug |
Process connection diameter [mm] | 6.2 mm |
Process connection height [mm] | 183 mm |
Process connection material | Copper |
Refrigerant | R290 |
Refrigerant charge [kg] [Max] | 0.15 kg |
Rotational speed at 50Hz [rpm] | 2900 rpm |
Rotational speed at 60Hz [rpm] | 3500 rpm |
Segment usage | Refrigeration LT |
Suction connection angle [°] | 37 ° |
Suction connection comments | Rubber plug |
Suction connection diameter [mm] | 10.2 mm |
Suction connection height [mm] | 183 mm |
Suction connection material | Copper |
Swept volume [cm3] | 15.28 cm³ |
Technology | Reciprocating |
Total height [mm] | 209 mm |
Type | SC |
Type designation | Compressor |
Voltage 50Hz [V] | 220 V |
Voltage 50Hz [V] [Max] | 240 V |
Voltage 60Hz [V] | 208 V |
Voltage 60Hz [V] [Max] | 230 V |
Width [mm] | 151 mm |
Winding temperature short term [°C] [Max] | 135 °C |
Winding temperature stat [°C] [Max] | 125 °C |
