  R134a Refrigeration Compressor 1 hp (QD43H)

#QD30H

QD30H 3.0 1/10 RSIR S 35 49 63 70 90 112 152 170 188 210 0.85 1.9 82 89
QD35H 3.5 1/8 RSIR S 40 56 72 80 105 128 176 220 242 275 0.9 1.98 89 111
QD43H 4.3 1/7 RSIR S 47 65 83 110 121 149 216 270 297 338 0.95 2.01 116 134
QD52H 5.5 1/7 RSIR S 70 95 123 136 177 218 280 350 385 438 1.15 2.01 118 174
QD59H 6.2 1/6 RSIR S 85 115 149 165 215 265 312 390 430 488 1.2 2 138 195
QD65H 6.6 1/5 RSIR S 95 129 167 185 241 297 350 430 473 538 1.25 2.02 148 193
QD75H 7.6 1/5+ RSIR S/F 105 147 190 210 273 337 387 495 545 618 1.25 2.1 168 236
QD91H 8.8 1/5+ RSIR S/F 115 160 207 230 300 368 425 530 583 655 1.37 2.12 168 250
QD110H 10.6 1/4+ RSIR F 135 189 243 285 370 456 520 650 715 813 1.41 2.12 202 307
QD120H 11.6 1/3 RSIR F 165 231 297 330 430 528 576 720 792 900 1.41 2.12 234 340
QD128H 12.3 3/8 RSIR F 180 252 324 360 468 576 740 925 1018 1156 1.31 2 275 463
QD142H 13.5 3/8+ CSIR F 195 273 351 390 507 624 800 1000 1100 1250 1.3 2 300 500
QD158H 15.3 3/8+ CSIR F 215 300 387 430 560 690 890 1120 1230 1400 1.3 2 331 560
QD168H 16.3 1/2 CSIR F 230 322 415 460 598 736 976 1220 1340 1530 1.3 2 354 610
GQR60AA 6.0 1/6 RSIR 140 116 1.21 220V/50Hz
GQR70AA 6.6 1/5 RSIR 165 136 1.21 220V/50Hz
GQR80AA 8.1 1/4 RSIR 198 166 1.19 220V/50Hz
GQR90AA 9.1 1/4 RSIR 220 184 1.19 220V/50Hz
GQY99AA 9.9 1/4 RSIR/RSCR 270 203 1.33 220V/50Hz
GPY12AF 11.8 1/3 CSIR 325 244 1.33 220V/50Hz
GPY16AF 16.2 3/8 CSIR 380 292 1.30 220V/50Hz
GQR60TG 6.0 1/5 CSIR
520 260 2.00 220V/50Hz
600 290 2.10 220V/60Hz
GQR80TG 8.1 1/4 CSIR
730 340 2.15 220V/50Hz
800 380 2.10 220V/60Hz
GQR90TG 9.1 1/4 CSIR
830 370 2.24 220V/50Hz
920 436 2.24 220V/60Hz
GP12TG 11.8 3/8 CSIR 1140 520 2.19 220V/50Hz

                                    Product Description

ProductR134a Refrigeration Compressor 1 hp (QD43H)
ModelQD43H
BrandSANHENG

                                  Standard Specifications

Technical Data Of R134a Series Refrigeration Compressor (LBP)

ModelDispl.(cm3)MotorTypeCoolingCapacity(W)Input Power(W)Rated Current(A)COP(W/W)VOL/FREV/Hz
QD30H3.0RSIRS76760.631.00220/50
QD-36H3.6RSIRS89830.641.07220/50
QD43H4.3RSIRS1121020.811.10220/50
QD52H5.2RSIRS1271150.871.10220/50
FN57H5.70RSIRS1381140.901.22220/50
FN66H6.60RSIRS1651351.151.23220/50
FN77H7.70RSIRS1901541.301.24220/50
FN91H9.10RSIRS/F2121801.401.26220/50
FN110H11.00RSIRF2842301.601.23220/50
FN128H12.80RSIRF3202562.001.25220/50
FN142H14.20CSIRF3482762.201.26220/50
 Test Conditions:(1)Evaporating Temp.= -23.3℃ (-10F)(2)Ambient     Temp.=32.2℃(90F)(3)Condensing Temp.=54.4℃(130F)(4)Suction     Temp.=32.2℃(90F)(5)Sub-cooling   Temp.=32.2℃(90F) Conversion Table:1. 1watt=3.41BTU/h2. 1watt=0.86Kcal/h3.1Kcal/h=3.97BTU/h
Tolerance of performance data:(1)Capacity≥95%(2)Input Power≤115%(3)Current≤110%(4)COP≥93%Cooling Type:S——Static CoolingF——Fan CoolingH:R134a RefrigerantL:LBP
The compressor is the same with refrigeration implement which usually include refrigerator, refrigeration deepfreeze, kitchen refrigeration, display case, revelation tank, dehumidify appliance etc. The main feature: light compact, high efficiency, good reliability, low noise vibration.

Test Conditions
Evap.Temp.:-23.3ºC
Cond.Temp.:54.4ºC
Amb.Temp.:32.2ºC
Suction.Temp.:32.2ºC
Subcooling Temp.:32.2ºC
LBP ASHRAE

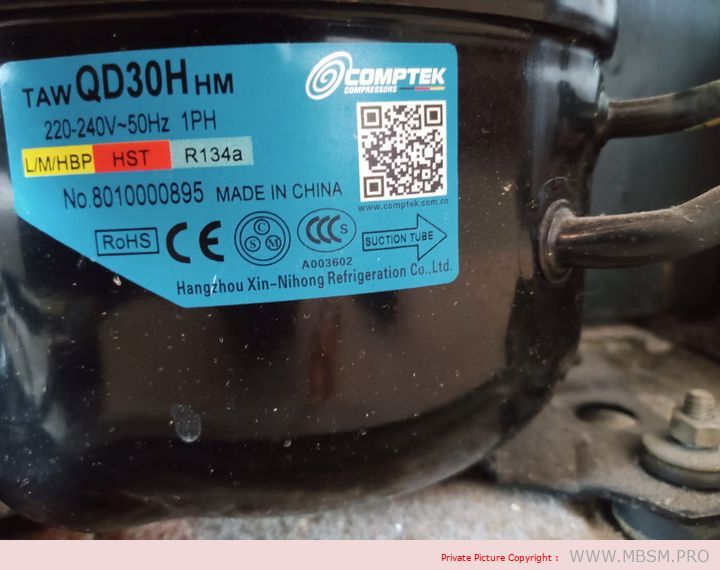

Model:QD30H
Power Supply:220-240V/50Hz
Displacement (cm³):3.0
Cooling Capacity (W):75
Rated Power (W):75
Nominal power (HP):1/10
COP (W/W):1.0
Rated Current (A):0.62
Motor Type:RSIR
Capacitor (μF):
Starting Relay:PTC
Cooling Type:S
Packing (PCS/pallet):120
1×20’FCL (PCS):2400

Characteristics
1.Small size
2.High efficiency & reliability
3.Reliable starting performance
4.Low sound & vibration

Application
LBP, used for drinking fountain, refrigerator, freezer, liquor cabinet, ice-making machine and other medium and small sized refrigeration machines.
