test Conditions
Evap. Temp.: -23.3º C
Cond. Temp.: 54.4º C
Amb. Temp.: 32.2º C
Suction. Temp.: 32.2º C
Subcooling Temp.: 32.2º C
LBP ASHRAE

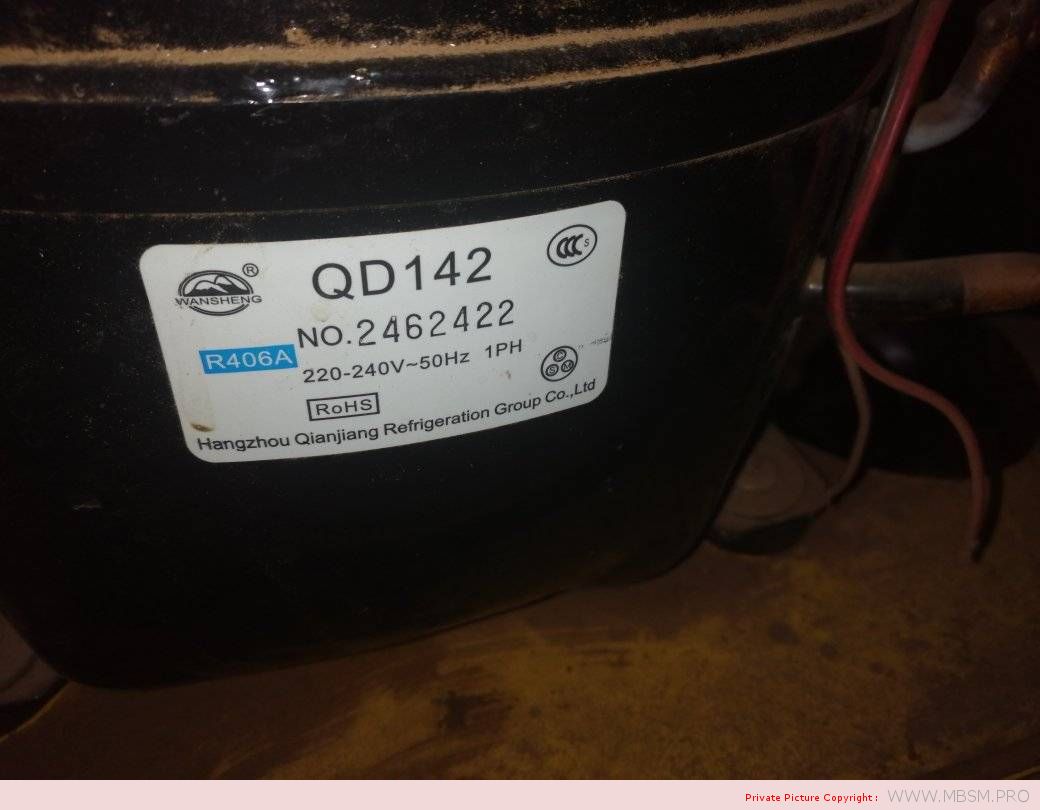

Model: QD142
Power Supply: 220-240V/50Hz
Displacement (cm³ ): 14.2
Cooling Capacity (W): 333
Rated Power (W): 280
Nominal power (HP): 1/3+
COP (W/W): 1.19
Rated Current (A): 2.1
Motor Type: CSIR
Capacitor (μ F): 80(start)
Starting Relay: QD142
Cooling Type: F
Packing (PCS/pallet): 80
1× 20’FCL(PCS): 1600
Characteristics
1. Strong load capacity
2. High efficiency & reliability
3. Reliable starting performance
4. Low sound
Application
LBP, cabinet, freezer, display cabinet and other medium and large sized refrigeration machines.

R600a technical parameter

Model

Power Supply

Displacement Cooling capacity Rated Power COP Rated Current Motor Type Cooling Type
  V/Hz cm3 w w w/w A
QD128Y 220-240V/50Hz 12.8 210 150 1.4 1.0 RSIR F1
QD142Y 220-240V/50Hz 14.2 232 166 1.4 1.1 RSIR F1
QD153Y 220-240V/50Hz 15.3 250 172 1.45 1.2 RSIR F1



R134a technical parameter

Model

Power Supply

Displacement Cooling capacity Rated Power COP Rated Current Motor Type Cooling Type
  V/Hz cm3 w w w/w A
QD110H 220-240V/50Hz 11.0 258 240 1.07 2.0 RSIR F1
QD128H 220-240V/50Hz 12.8 280 265 1.05 2.35 RSIR F1
QD142H 220-240V/50Hz 14.2 305 285 1.07 2.6 CSIR F1



R406a technical parameter

Model

Power Supply

Displacement Cooling capacity Rated Power COP Rated Current Motor Type Cooling Type
  V/Hz cm3 w w w/w A
QD110 220-240V/50Hz 11.0 271 232 1.17 1.6 RSIR F
QD128 220-240V/50Hz 12.8 306 260 1.18 2.0 RSIR F
QD142 220-240V/50Hz 14.2 333 280 1.19 2.1 CSIR F
QD series Compressor For Refrigerator R134a



QD series LBP refrigerator compressor
The refrigeration is R134a, suitable for water dispenser or water cooler,small refrigerator and other small refrigeration appliances.The structure form is crank connection-rod reciprocating piston type,and employing indirect & semi-direct inlet.

The QD series compressor belongs to the hermetical piston rod type of electromotor driver. It adopts PTC starter or starting relay, and matches overload protection inside. Widely used for refrigerating show box and fin, for family and business refrigerator,freezing refrigeration,dehumidifier etc.



Test Conditions:

Evaoprating Temp:-23.3°c

Ambient Temp:32.2°c

Suction Temp:32.2°c

Subcooling Temp:32.2°c

Condensing Temp:54.4°c



R12/R134A/R406-LBP compressor performance parameter



Series Model HP Displacement (cm) Cooling Capacity (W) Input Power     (W) C.O.P Current    (A) Cooling Type Motor Type
QD Series 220V 50/60Hz QD43 1/6- 4.3 120 112 1.07 1.05 ST RSIR
QD53  1/6 5.3 136 127 1.07 1.25 ST RSIR
QD59 1/6+ 5.9 145 142 1.02 1.35 ST RSIR
QD70  1/5 7.0 160 152 1.05 1.4 ST RSIR
QD90  1/4 9.0 180 161 1.12 1.5 ST/OC RSIR
QD98 1/4+ 9.8 207 185 1.12 1.7 ST/OC RSIR
QD120  1/3 12.0 265 237 1.12 1.85 ST/OC RSIR
QD142  3/8 14.2 324 279 1.16 1.95 ST/OC RSIR
QD167  1/2 16.7 375 329 1.04 2.05 ST/OC RSIR
QD Series240V /50Hz QD43M 1/6- 4.3 117 111 1.05 1.02 ST RSIR
QD53M  1/6 5.3 134 125 1.07 1.23 ST RSIR
QD59M 1/6+ 5.9 142 135 1.05 1.28 ST RSIR
QD70M  1/5 7.0 158 151 1.05 1.32 ST RSIR
QD90M  1/4 9.0 178 159 1.12 1.38 ST/OC RSIR
QD98M 1/4+ 9.8 205 183 1.12 1.65 ST/OC RSIR
QD120M  1/3 12.0 263 235 1.12 1.83 ST/OC RSIR
QD142M  3/8 14.2 322 278 1.16 1.96 ST/OC RSIR
QD167M  1/2 16.7 373 327 1.14 2.02 ST/OC RSIR
QD Series 115v/60Hz QD43U6 1/6- 4.3 126 115 1.10 1.05 ST RSIR
QD53U6  1/6 5.3 143 128 1.12 1.26 ST RSIR
QD59U6 1/6+ 5.9 153 137 1.12 1.3 ST RSIR
QD70U6  1/5 7.0 168 146 1.15 1.35 ST RSIR
QD90U6  1/4 9.0 189 164 1.15 1.52 ST/OC RSIR
QD98U6 1/4+ 9.8 218 195 1.12 1.86 ST/OC RSIR
QD120U6  1/3 12.0 278 242 1.15 1.96 ST/OC RSIR
QD142U6  3/8 14.2 340 296 1.15 2.01 ST/OC RSIR
QD167U6  1/2 16.7 394 343 1.15 2.2 ST/OC RSIR
QD Series 110V/60Hz QD43T6 1/6- 4.3 124 113 1.1 1.03 ST RSIR
QD53T6  1/6 5.3 145 129 1.12 1.25 ST RSIR
QD59T6 1/6+ 5.9 155 138 1.12 1.32 ST RSIR
QD70T6  1/5 7.0 170 148 1.15 1.36 ST RSIR
QD90T6  1/4 9.0 191 166 1.15 1.55 ST/OC RSIR
QD98T6 1/4+ 9.8 220 196 1.12 1.87 ST/OC RSIR
QD120T6  1/3 12.0 280 243 1.15 1.98 ST/OC RSIR
QD142T6  3/8 14.2 343 298 1.15 2.02 ST/OC RSIR
QD167T6  1/2 16.7 398 346 1.15 2.23 ST/OC RSIR
QD Series 110V/60Hz QD43J6 1/6- 4.3 122 109 1.12 1.02 ST RSIR
QD53J6  1/6 5.3 142 127 1.12 1.25 ST RSIR
QD59J6 1/6+ 5.9 152 132 1.15 1.29 ST RSIR
QD70J6  1/5 7.0 165 143 1.15 1.34 ST RSIR
QD90J6  1/4 9.0 186 162 1.15 1.52 ST/OC RSIR
QD98J6 1/4+ 9.8 216 193 1.12 1.82 ST/OC RSIR
QD120J6  1/3 12.0 275 239 1.15 1.95 ST/OC RSIR
QD142J6  3/8 14.2 337 293 1.15 2.02 ST/OC RSIR
QD167J6  1/2 16.7 390 339 1.15 2.15 ST/OC RSIR

Features

1. Environmentally friendly refrigerant
2. High efficiency, Low consumption
3. High quality, Low price.
4. Good reliability, Low noise



Model Refrigerant BTU Horse Power
QD55 R600A 125 2/7HP
QD65 R600A 158 1/5HP
QD75 R600A 176 1/5HP
QD91 R600A 216 1/4HP
QD110 R600A 271 1/3HP
QD128 R600A 306 3/8HP
QD142 R600A 333 2/5HP
QD168 R600A 380 1/2HP
QD180 R600A 440 1/2HP
QD210 R600A 510 3/5HP
QD65H R134A 167 1/5HP
QD75H R134A 189 1/5HP
QD91H R134A 228 1/4HP
QD110H R134A 283 1/3HP
QD128H R134A 321 3/8HP
QD142H R134A 347 2/5HP
