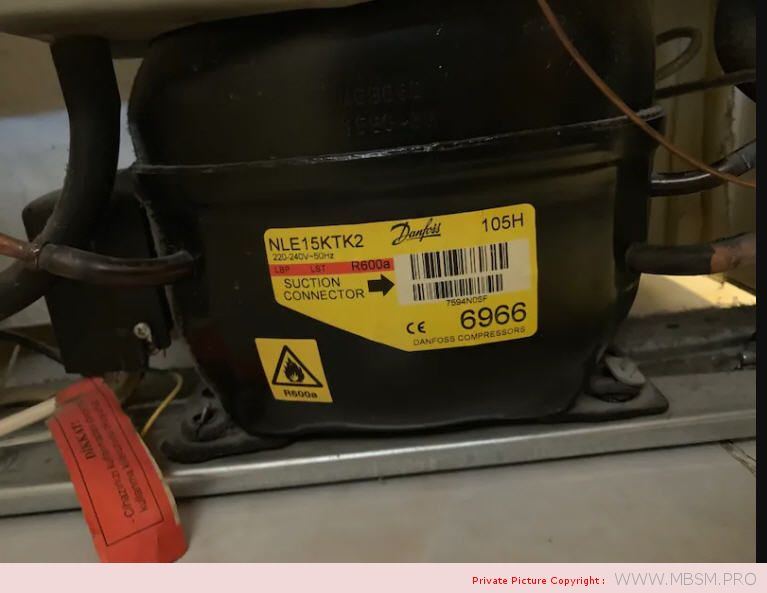

COMPROSSOR, DANFOSS, NLE15KTK2, NLE15KTK2 105H6966, 105H6966, 105H, 6966, 253W, 1/3Hp, LBP, R600, 220V/50, Indesit, Ariston

image_pdfimage_print

Product details

Gross weight 11.97 kg
Net weight 11.97 kg
Application energy level High Energy-optimized
Applications LBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 21.3 Ohm
Base plate type EU small
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Cut in current LST [A] 9.3 A
Description NLX15KK.2
Discharge connection angle [°] 21 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 5 mm
Discharge connection material Cu-plated steel
Economizer No
Free gas volume [cm3] 2360 cm³
Frequency [Hz] 50
Height from baseplate [mm] 197 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
Length [mm] 252 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
LRA LST [A] 5.6 A
Main winding resistance for single-phase compressors [Ohm] 11.3 Ohm
Model number NLX15KK.2
Motor type RSCR
No. of phases (compressor) 1
Nominal cooling capacity 60 kBTU/h 5.18 kBtu/h
Nominal cooling capacity at 60Hz 1.5 kW
Oil quantity [cm3] 270 cm³
Oil type POE
Packing format Single pack
Packing quantity 1
Process connection angle [°] 25 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Refrigerant R600a
Refrigerant charge [kg] [Max] 0.15 kg
RLA 1.10 A
Rotational speed at 50Hz [rpm] 3000 rpm
Run capacitor capacitance 4 µF
Segment usage Refrigeration LT
Speed Platform Fixed-speed
Suction connection angle [°] 2 °
Suction connection comments Al-cap
Suction connection diameter [mm] 6.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 14.65 cm³
Technology Reciprocating
Total height [mm] 203 mm
Type NL
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Width [mm] 166 mm
Winding temperature short term [°C] [Max] 110 °C
Winding temperature stat [°C] [Max] 95 °C
