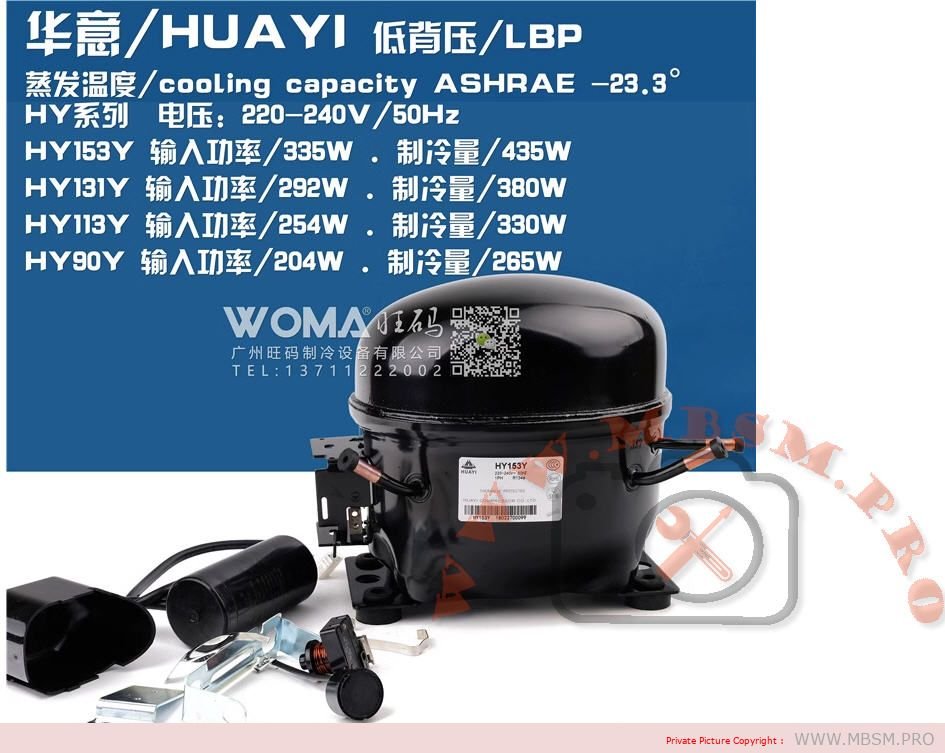

Mbsm.pro, Compressor, hy131y, 1/2 hp, 5/8 hp , LBP, 380 w, R134A, Freezer Compressor, 13.1 cm3, 1297 Btu/hr, 327 Kcal/hr, HUAYI, Refrigeration Compressor

8 October 2023
 |  No Comments

Download Attachments

image_pdfimage_print

Huayi R134a Refrigerator Compressor

Product parameters

Model Voltage(V) Frequency
(Hz)		 Cooling
Type		 Displacement.(cm3) Cooling Capacity(W) COP
(W/W)		 Motor Type
HY69Y63 220-240~ 50-60 FC 6.9 195 1.12 RSIR
HY69YH 220-240~ 50 ST 6.9 195 1.35 RSIR
HY81Y 220-240~ 50 FC 8.1 235 1.25 RSIR
HY90Y 220-240~ 50 FC 9.0 265 1.30 RSIR
HY69YG 220-240~ 50 ST 6.9 195 1.45 RSCR
HY81YG 220-240~ 50 ST 8.1 235 1.45 RSCR
HY90YG 220-240~ 50 FC 9.0 270 1.45 RSCR
HY69Y42 115~ 60 FC 6.9 225 1.25 RSIR

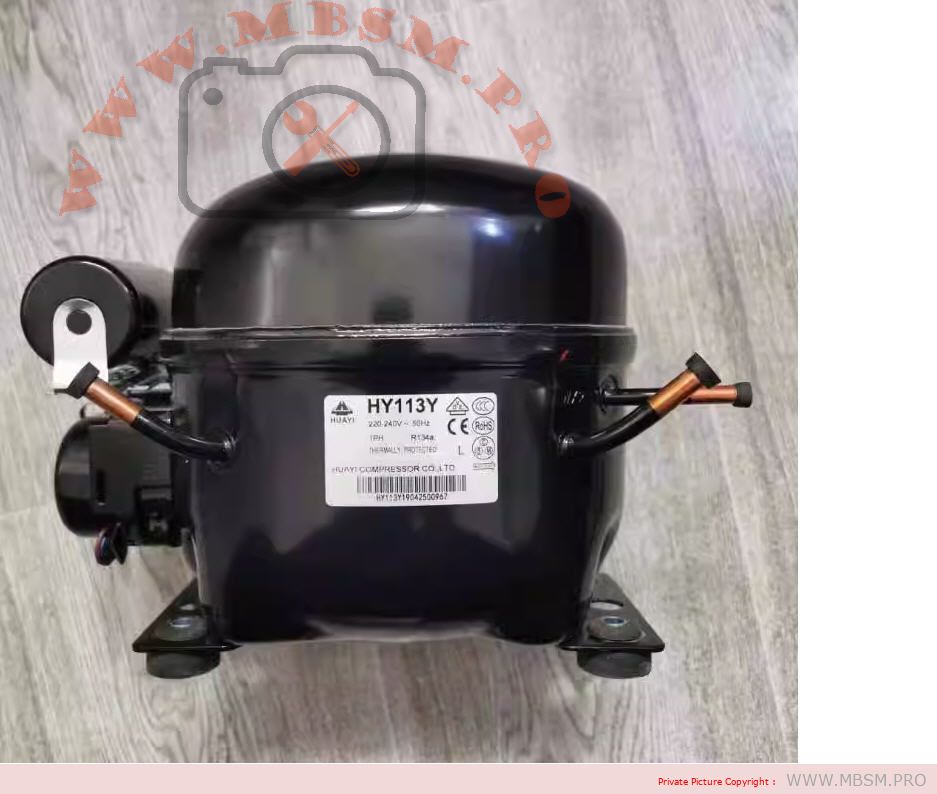

HY113Y 220-240~ 50 FC 11.3 315 1.30 CSR

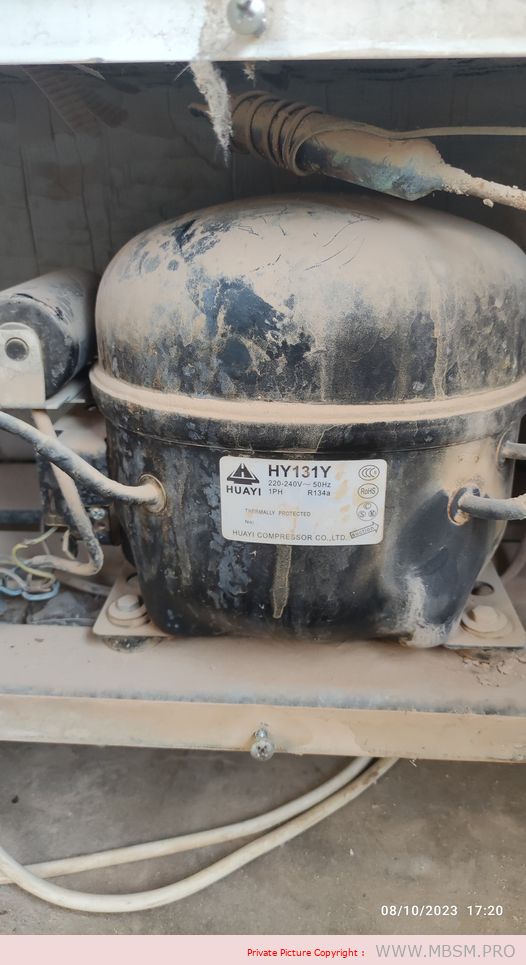

HY131Y 220-240~ 50 FC 13.1 370 1.30 CSR
HYE55Y63 220-240~ 50-60 ST 5.5 150 1.28 RSIR
HYE60Y63 220-240~ 50-60 ST 6.0 170 1.28 RSIR
HYE60YG 220-240~ 50 ST 6.0 170 1.43 RSCR
HYE60YK 220-240~ 50 ST 6.0 175 1.52 RSCR
HYE69YK 220-240~ 50 ST 6.6 195 1.52 RSCR
HYE55Y42 115~ 60 ST 5.5 175 1.28 RSIR
HYE60Y42 115~ 60 ST 6.0 200 1.28 RSIR
HYE51YG42 115~ 60 ST 5.1 165 1.43 RSCR
