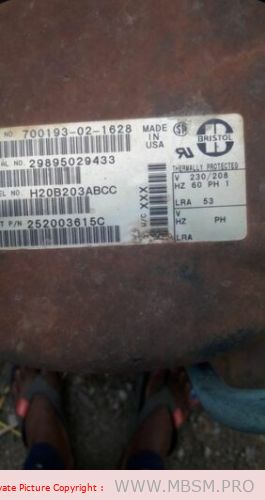

Mbsm.pro, Compressor, Bristol, H20B203ABC,H22J203ABCA, 2 ton, 1.5 hp, 20000 btu, 220 v, R22

Download Attachments

mbsmpro-compressor-bristol-h20b203abch22j203abca-2-ton-15-hp-20000-btu-220-v-r22-mbsm-dot-pro
mbsmpro-compressor-bristol-h20b203abch22j203abca-2-ton-15-hp-20000-btu-220-v-r22-mbsm-dot-pro
AC Compressor 2 Ton 208-230v Fits Bristol H20B203ABC H22J203ABCA

This is a 2 Ton 208/220 Volts 1-Phase Direct Factory Replacement Copeland Scroll Compressor. The Copeland Model # is CR20K6-PFV-875. It is rated at 20,000 BTU. It is designed to replace the obsolete part numbers listed in the title. In some instances, small piping changes may be required. Thanks for looking and good luck!

TECHNICAL SPECIFICATIONS.

Tonnage: 1.5-2
Volts 60 Hz 208/230-1.
Phase 1.
Refrigerant Type R-22.
Line Connection Suction ID (In) 3/4
Line Connection Discharge ID (In) 3/8
Base Mounting Centers (In) 7 1/2 x 7 1/2.
Application OEM A/C Equipments.
Includes Crankcase Heater.

The Required Run Capacitor is 30 uf 370 volt. Most condensing unit capacitors are dual capacitors, meaning they operate the compressor and the fan. To purchase the correct capacitor you will need to know the uf rating on the fan.

Start Capacitor rating, if needed, is 145-174 250 Volt
