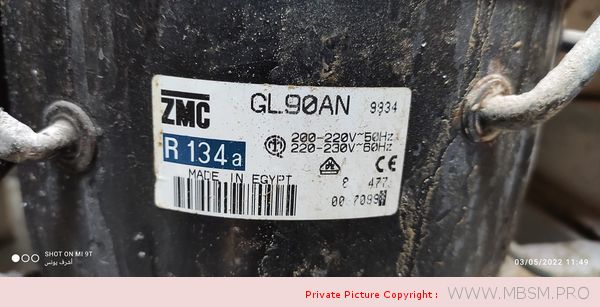

Mbsm.pro, Compressor, Danfoss, 1/4hp++, mhbp, Gl90an, R134a, 220-230v, 1ph, 50hz , Csir

image_pdfimage_print

Technical data

  • Model: GL90TB
  • Refrigerant Gas: R-134a
  • Pression/temperature: MHBP
  • Power: 1/4 HP
  • Voltage: 230 V
  • Current Type: Single-Phase
  • Frequency: 50 Hz
  • Compressor Type: Hermetic
  • Displacement: 8.85 cm³
  • Power Cons. -25°C: 165 W
  • Power Cons. -10°C: 230 W
  • Power Cons. -5°C: 252 W
  • Efficiency 0°C: 276 W
  • Power Cons. +5°C: 299 W
  • Power Cons. +10°C: 324 W
  • T° Condensation: 40 °C
  • Cooling Cap. -25°C: 175 Kcal/h
  • Cooling Cap. -20°C: 242 Kcal/h
  • Cooling Cap. -15°C: 322 Kcal/h
  • Cooling Cap. -10°C: 416 Kcal/h
  • Cooling Cap. -5°C: 523 Kcal/h
  • Cooling Cap. 0°C: 643 Kcal/h
  • Cooling Cap. 5°C: 777 Kcal/h
  • Cooling Cap. 7.2°C: 840 Kcal/h
  • Cooling Cap. 10°C: 924 Kcal/h
  • Test Type: Ashare 46

Extra data

Length (L): 240mm
Length (L1): 192mm
Width (W): 162mm
Height (h): 191mm
