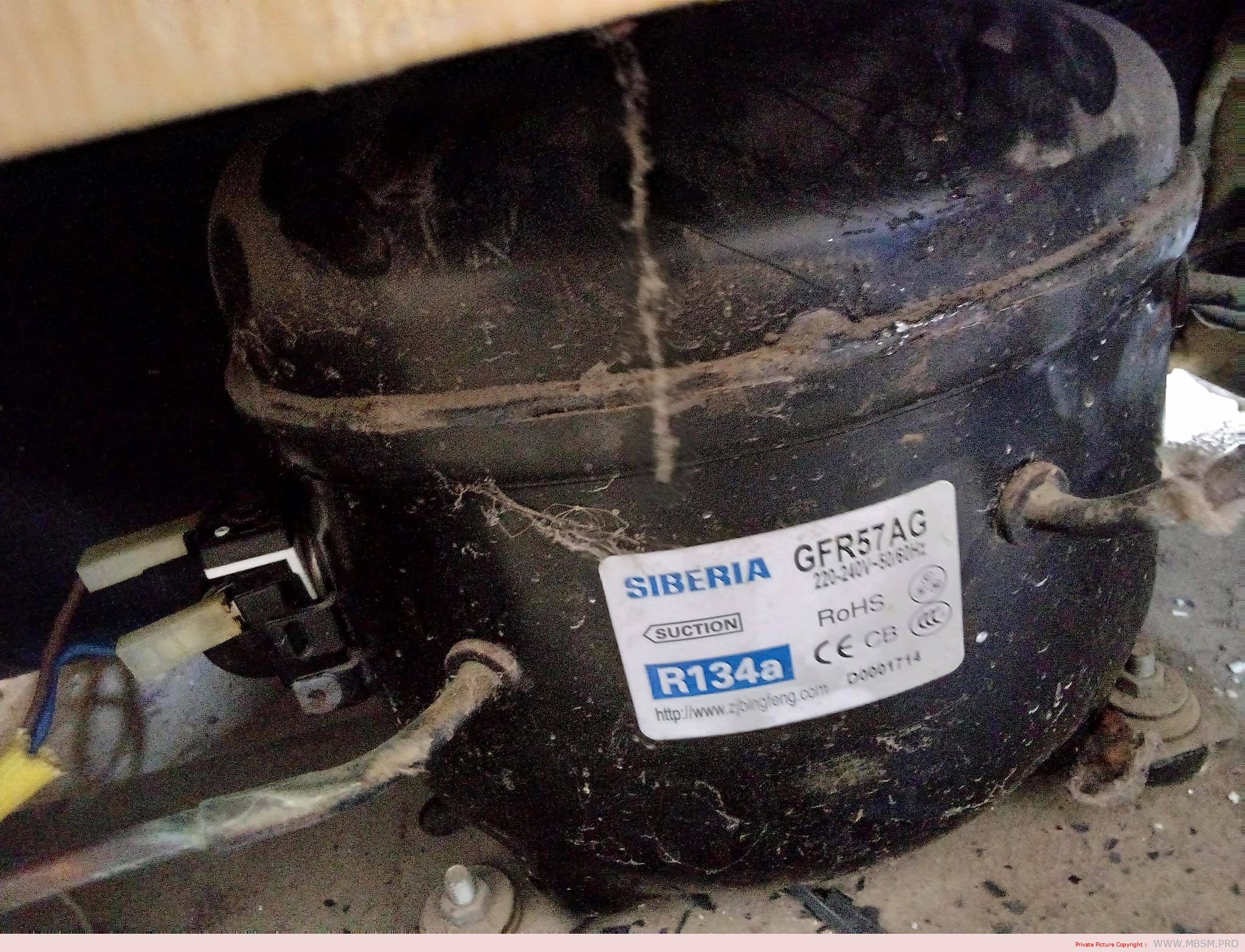

Mbsm.pro, Compressor, GFR57AG, 1/5 hp, Lbp, 5.7 cm3, 166 w

Download Attachments

1 Mbsm_dot_pro_private_PDF__GFR57AG
Added by: Lilianne File size: 5 MB
2 Mbsm_dot_pro_private_picture_GFR57AG
Added by: Lilianne File size: 621 KB
3 Mbsm_dot_pro_private_picture__GFR57AG
Added by: Lilianne File size: 40 KB

Model	Power Hp	Displacement	Cooling Capacity	Motor Type	Input Power	Rated Current	COP
GFM44AA	1/6	4.6	120	RSIR	100	0.70	1.20
GFM53AA	1/6+	5.3	145	RSIR	114	0.88	1.27
GFM57AA	1/5	5.7	165	RSIR	132	0.97	1.25
GFM75AA	1/4+	7.5	215	RSIR	159	1.20	1.35
GFM10AA	1/3+	10.0	295	RSIR	220	1.55	1.34
GFM12AA	1/2-	12.0	330	RSIR	235	1.85	1.40
GFM12AA_S	1/2-	12.0	330	RSIR	235	1.85	1.40

F(F) Series 220-240V/50Hz

GFF44AA	1/6	4.6	130	RSIR/RSCR	99/93	0.65/0.53	1.31/1.40
GFF57AA	1/5	5.7	165	RSIR/RSCR	115/110	0.77/0.57	1.43/1.50
GFF66AA	1/4	6.6	195	RSIR/RSCR	143/129	0.92/0.74	1.36/1.51
GFF75AA	1/4+	7.5	215	RSIR/RSCR	156/147	1.15/0.83	1.38/1.46
GFF86AA	1/3	8.6	250	RSIR/RSCR	179/164	1.24/0.90	1.40/1.52
GFF93AA	1/3+	9.3	270	RSIR/RSCR	185/175	1.25/0.95	1.46/1.54

F(T)Series High Efficiency Compressor 220-240V/50Hz

GFT36AA	1/7	3.6	110	RSCR	68	0.32	1.62
GFT44AA	1/6	4.4	130	RSCR	81	0.43	1.60
GFT53AA	1/5-	5.3	145	RSCR	96	0.53	1.50
GFT57AA	1/5	5.7	165/168	RSCR	104/98	0.55/0.49	1.60/1.70
GFT61AA	1/5+	6.1	182	RSCR	107	0.53	1.70
GFT66AA	1/4	6.6	195	RSCR	115/113	0.58/0.55	1.68/1.72
GFT75AA	1/4+	7.5	220	RSCR	129	0.69	1.70
GFT86AA	1/3	8.6	250	RSCR	148	0.73	1.70
GFT93AA	1/3+	9.3	270	RSCR	166	0.84	1.65

F Series 115V/60Hz

GFM44AD	1/6+	4.6	145	RSIR	111	1.62	1.30
GFM53AD	1/4	5.3	185	RSIR	131	1.75	1.30
GFM57AD	1/4	5.7	195	RSIR	138	1.85	1.30
GFM61AD	1/4+	6.1	210	RSIR	168/150	2.75/1.90	1.25/1.40
GFR40AD	1/6	3.6	120	RSCR	84.6	7/8	1.42
GFR57AD	1/4	5.7	195	RSCR	116	1.2/7	1.55
GFM93AD	1/4	9.3	305	RSIR	218	3.2	1.40

F Series 200-220V/50Hz

GFF53AT	1/6+	5.3	150	RSCR	106	0.67	1.42
GFF57AT	1/5	5.7	165	RSCR	118	0.86	1.40
GFF66AT	1/4	6.6	196	RSCR	138	1.02	1.42
GFF75AT	1/4+	7.5	218	RSCR	147	1.07	1.48
GFF86AT	1/3	8.6	250	RSCR	168	1.14	1.49
GFF93AT	1/3+	9.3	275	RSCR	185	1.23	1.49

F Series 100V-50/60Hz

GFF66AJ	1/4	6.6	195/233	RSCR	135/152	2.15/1.95	1.44/1.53
GFF93AJ	1/3	9.3	270/305	RSCR	190/205	2.95/2.58	1.42/1.49

F Series Compressor M/HBP R134a

220-240V 50/60Hz

GFL60AG_AL

3/4

5.3

550/650

CSIR

245/265

1.88/1.69

2.24/2.45

220-240V 50Hz

GFL80AA	1	7.5	720	CSIR	317	1.96	2.27
GFL10AA	1.2	9.3	880	CSIR	430	2.50	2.0

F Series Compressor LBP R600a

F(M/F) Series 220-240V/50Hz

BFM86AA	1/6+	8.6	142	RSIR	101	0.82	1.40
BFF86AA	1/6	8.6	142	RSIR/RSCR	93/90	0.65/0.51	1.53/1.58
BFM93AA	1/5	9.3	155	RSIR	108	0.85	1.43
BFF93AA	1/5	9.3	160	RSIR/RSCR	103/98	0.73/0.58	1.55/1.63
BFM10AA	1/5+	10.0	168	RSIR	122	1.01	1.38
BFF11AA	1/4	10.5	185	RSIR	121	0.70	1.45
BFM12AA	1/4+	12.0	202	RSIR	144	1.10	1.40
BFF12AA	1/4+	12.0	202	RSIR/RSCR	130/123	1.04/0.75	1.55/1.64

F(T) Series High Efficiency Compressor 220-240V/50Hz

BFT57AA	1/7-	5.7	95	RSCR	53/50	0.28/0.24	1.80/1.90
BFT75AA	1/6	7.5	130	RSCR	75/72	0.35	1.73/1.80
BFT86AA	1/5	8.6	142	RSCR	82/74	0.43/0.36	1.73/1.92
BFT93AA	1/5	9.3	155	RSCR	82	0.50	1.90
BFT10AA	1/5+	10.0	175	RSCR	100/92	0.60/0.43	1.72/1.90
BFT11AA	1/4	10.0	180	RSCR	100	0.54	1.80
BFT12AA	1/4-	11.5	200/210	RSCR	116/114	0.54/0.52	1.72/1.86

F Series 200-220V/50Hz

BFF75AT	1/6	7.5	130	RSCR	80	0.46	1.63
BFF86AT	1/5	8.6	142	RSCR	91.5	0.65	1.55
BFM93AT	1/5	9.3	158	RSIR	112	0.93	1.41
BFF93AT	1/5	9.3	160	RSCR	100	0.66	1.60
BFF11AT	1/4	11	175	RSCR	110	0.76	1.60
BFT12AT	1/4	11.5	200	RSCR	130	1.0	1.50

F Series 115/60Hz

BFR57AD	1/6	5.7	120	RSCR	75	0.73	1.60
BFR75AD	1/5-	7.5	156	RSCR	92	0.90	1.70
BFM10AD	2/7	10.0	200	RSCR	133	1.55	1.50
BFR10AD	2/7	10.0	195	RSCR	116	1.32	1.65
BFM12AD	1/3	11.0	230	RSCR	153	1.65	1.50

F Series Compressor LBP R290a

220-240V/50Hz

PFT61AA	3/8	6.1	285	RSCR	183	1.55
PFT66AA	3/8	6.6	310	RSCR	200	1.56
PFT66AA©	3/8	6.6	310	RSCR	190	1.65
PFT75AA	1/2-	7.5	350	RSCR	216	1.62
PFT75AA©	1/2-	7.5	350	RSCR	206	1.70
PFT86AA	1/2	8.6	388	RSCR	258	1.50
PFT86AA©	1/2	8.6	421	RSCR	263	1.60
PFT93AA©	3/5	9.3	455	RSCR	284	1.60

F Series Compressor L/MBP R290

220-240V/50Hz

PFL57AA	1/3	5.7	255/490	CSIR	170/235	1.50/2.09
PFL75AA	1/2-	7.5	350/657	CSIR	248/324	1.41/2.03

S1 Series Compressor LBP R600a

220-240V~50Hz
Model	Power Hp	Displacement	Cooling Type	Cooling Capacity	Motor Type	Input Power	COP
BSE60AA	1/8	6	ST	100	RSIR	83	1.2
BSM60AA	1/8	6	ST	100	RSIR	74	1.35
BSE67AA	1/7+	6.7	ST	115	RSIR	96	1.2
BSE72AA	1/6	7.2	ST	123	RSIR	103	1.2
BSM67AA	1/7+	6.7	ST	115	RSIR	85	1.35
BSM72AA	1/6	7.2	ST	123	RSIR	91	1.35
BSM80AA	1/5-	8.1	ST	140	RSIR	104	1.35
BSF60AA	1/7-	6	ST	102	RSIR	70	1.45
BSR60AA	1/7-	6	ST	102	RSCR	66	1.55
BSR67AA	1/7+	6.7	ST	115	RSCR	74	1.55
BSR72AA	1/6	7.2	ST	123	RSCR	82	1.5
BSR80AA	1/5-	8	ST	140	RSCR	93	1.5

200-220V~50Hz
BSE80AT	1/5-	8.1	ST	140	RSIR	117	1.2
BSR60AT	1/7	6	ST	102	RSCR	68	1.5

115V~60Hz
BSM50AD	1/8	5	ST	96	RSIR	74	1.3
BSM60AD	1/6-	6	ST	120	RSIR	92	1.3
BSF50AD	1/8	5	ST	96	RSIR	68	1.42
BSS60AD	1/6-	6	ST	120	RSCR	75	1.6

S1 Series Compressor LBP R134a

220-240V~50Hz
Model	Power Hp	Displacement	Cooling Type	Cooling Capacity	Motor Type	Input Power	COP
GSD25AA	1/12-	2.5	ST	58	RSIR	61	0.95
GSD30AA	1/10	3	ST	75	RSIR	75	1
GSC35AA	1/8	3.5	ST	93	RSIR	103	0.9
GSE30AA	1/10	3	ST	75	RSIR	63	1.2

220-240V~50/60Hz
GSC25AG	1/12-	2.5	ST	58	RSIR	71	0.82
			ST	68		68	1
GSC30AG	1/10	3	ST	75	RSIR	83	0.9
			ST	87		79	1.1

115V~60Hz
GSC25AD	1/11	2.5	ST	67	RSIR	61	1.1
GSC30AD	1/9	3	ST	88	RSIR	80	1.1
GSE32AD	1/8	3.2	ST	95	RSIR	79	1.2

100V~50/60Hz
GSC25AJ	1/12-	2.5	ST	58	RSIR	64	0.9
				67		61	1.1
GSC30AJ	1/10	3.0	ST	75	RSIR	79	0.95
				88		73	1.2

S2 Series Compressor LBP R600a

220-240V~50Hz
Model	Power Hp	Displacement	Cooling Type	Cooling Capacity	Motor Type	Input Power	COP
BSM88AA	1/5	8.8	ST	155	RSIR	119	1.3
BSF88AA	1/5	8.8	ST	155	RSIR	111	1.4
BSF92AA	1/5	9.2	ST	162	RSIR	116	1.4
BSR67AA	1/7+	6.7	ST	115	RSCR	74	1.55
BSR80AA	1/5-	8	ST	140	RSCR	93	1.5
BSS60AA	1/7-	6	ST	102	RSCR	61	1.66

200-220V~50Hz
BSE80AT	1/5-	8.1	ST	140	RSIR	117	1.2
BSR88AT	1/5	8.8	ST	155	RSCR	103	1.5
BSR60AT	1/7-	6	ST	102	RSCR	66	1.55
BSS60AT	1/7-	6	ST	102	RSCR	63	1.62

115V~60Hz
BSS55AD	1/7+	5.5	ST	110	RSIR	69	1.6
BSS60AD	1/6-	6	ST	120	RSCR	76	1.57

S2 Series Compressor LBP R134a

220-240V~50Hz
Model	Power Hp	Displacement	Cooling Type	Cooling Capacity	Motor Type	Input Power	COP
GSM57AA	1/5	5.7	ST	165	RSIR	122	1.35
GSF57AA	1/5	5.7	ST	165	RSIR	114	1.45

200-220V~50Hz
GSF45AT	1/6	4.5	ST	125	RSIR	93	1.35
GSF57AT	1/5	5.7	ST	165	RSCR	116	1.42

AT Series Compressor LBP R600a

220-240V~50Hz
Model	Power Hp	Displacement	Cooling Type	Cooling Capacity	Motor Type	Input Power	COP
BATS80AA	1/5-	8	ST	142	RSCR	84	1.70
BATS96AA	1/5	9.6	ST	166	RSCR	98	1.70
BATU60AA	1/7-	6	ST	102	RSCR+EPTC	57	1.78
BATU67AA	1/7+	6.7	ST	115	RSCR+EPTC	65	1.78
BATF96AA	1/5	9.6	ST	166	RSIR	119	1.4
BATR96AG	1/5	9.6	ST	166	RSIR	107	1.55
BATK60AA	1/7-	6	ST	102	RSCR+EPTC	57	1.8
BATK67AA	1/7+	6.7	ST	115	RSCR+EPTC	64	1.8
BATK105AA	1/4	10.5	ST	184	RSCR+EPTC	102	1.8
BATS115AA	1/4	11.5	ST	198	RSCR	118	1.68
BATF115AA	1/4	11.5	ST	198	RSIR	141	1.4
BATK96AA	1/5	9.6	ST	166	RSCR+EPTC	91	1.83
BATR88AY	1/5	8.8	ST	155	RSIR	100	1.55
BATR88AY	1/5	8.8	ST	155	RSCR	94	1.65
BATF96AY	1/5	9.6	ST	166	RSIR	109	1.52
BATF96AY	1/5	9.6	ST	166	RSCR	104	1.6

AT Series Compressor LBP R134a

220-240V~50Hz
Model	Power Hp	Displacement	Cooling Type	Cooling Capacity	Motor Type	Input Power	COP
GATF57AA	1/5	5.7	ST	165	RSCR	118	1.40
GATF66AA	1/4	6.6	ST	196	RSCR	138	1.42
GATF75AA	1/4+	7.5	ST	218	RSCR	147	1.48
GATF86AA	1/3	8.6	ST	250	RSCR	168	1.49

V Series Compressor LBP R134a

220-240V~50Hz
Model	Power Hp	Displacement	CoolingType	Cooling Capacity	Motor Type	Input Power	COP
GVC20AA	1/11	2.0	ST	65	RSIR	68	0.95
GVC25AA	1/10	2.5	ST	75	RSIR	79	0.95
GVC30AA	1/8-	3.0	ST	90	RSIR	95	0.95
GVC35AA	1/8	3.5	ST	98	RSIR	103	0.95

220-240V~50/60Hz
GVC20AG	1/11	2	ST	65	RSIR	68	0.95
				78		65	1.2
GVC20AG	1/10	2.5	ST	75	RSIR	79	0.95
				90		75	1.2
GVC20AG	1/8-	3	ST	90	RSIR	95	0.95
				106		88	1.2

V Series DC Compressor

12/24V Inverter
Model	Power Hp	Displacement	CoolingType	RPM	Cooling Capacity	Motor Type	Input Power	COP
GVM25DC	1/11	2.5	ST	2000	45	BLDC	34	1.32
				2500	56		42	1.32
				3000	69		51	1.35
				3500	75		57	1.31
GVM30DC	1/9	3	ST	2000	69	BLDC	51	1.35
				2500	75		57	1.31
				3000	81		62	1.31
				3500	96		73	1.32
GVM35DC	1/8	3.5	ST	2000	65	BLDC	50	1.31
				2500	81		62	1.31
				3000	96		73	1.32
				3500	110		85	1.29
BVM43DC	1/11	4.3	ST	2000	43	BLDC	32	1.35
				2500	54		40	1.36
				3000	68		50	1.36
				3500	72		55	1.32

L Series Compressor LBP R600a

220-240V~50Hz
Model	Power Hp	Displacement	Cooling Type	Cooling Capacity	Motor Type	Input Power	COP
BLC30AA	1/15	3.0	ST	48	RSIR	48	1.00
BLC35AA	1/14	3.5	ST	52	RSIR	52	1.00
BLC43AA	1/11+	4.3	ST	64	RSIR	61	1.05
BLC52AA	1/10+	5.2	ST	78	RSIR	74	1.05
BLC60AA	1/8	6.0	ST	95	RSIR	95	1.00

115V~60Hz
BLC32AD	1/13	3.2	ST	57	RSIR	52	1.10
BLC35AD	1/11+	3.5	ST	64	RSIR	58	1.10
BLC43AD	1/10+	4.3	ST	78	RSIR	71	1.10
BLC48AD	1/9+	4.8	ST	86	RSIR	78	1.10

L Series Compressor LBP R134a


220-240V~50Hz
Model	Power Hp	Displacement	Cooling Type	Cooling Capacity	Motor Type	Input Power	COP
GLC20AA	1/13-	2.2	55	ST	RSIR	55	1.00
GLC25AA	1/11-	2.5	65	ST	RSIR	65	1.00

Freon	Model	The volume of the cylinder	-23 C W	Email The question
R-134a	GVM 25 AA	2.5	59	220~240V-50Hz
R-134a	GVM 28 AA	2.8	68	220~240V-50Hz
R-134a	GVM 30 AA	3.0	75	220~240V-50Hz
R-134a	GVM 35 AA	3.5	92	220~240V-50Hz
R-134a	GTM 45 AA	4.5	120	220~240V-50Hz
R-134a	GTF 52 AA	5.2	150	220~240V-50Hz
R-134a	GFM 44 AA	4.6	120	220~240V-50Hz
R-134a	GFF 44 AA	4.6	130	220~240V-50Hz
R-134a	GFM 53 AA	5.3	145	220~240V-50Hz
R-134a	GFF 57 AA	5.7	166	220~240V-50Hz
R-134a	GFF 66 AA	6.6	195	220~240V-50Hz
R-134a	GFR 66 AA	6.6	195	220~240V-50Hz
R-134a	GFF 75 AA	7.5	215	220~240V-50Hz
R-134a	GFF 86 AA	8.6	250	220~240V-50Hz
R-134a	GFF 93 AA	9.3	270	220~240V-50Hz
R-134a	GFM 10 AA	10.0	290	220~240V-50Hz
R-134a	GFM 12 AA	12.0	330	220~240V-50Hz
R-134a	GFR 57 AG	5.7	166/195	220~240V-50Hz
R-134a	GFR 66 AG	6.6	195/220	220~240V-50Hz
R-134a	GFR 57 AT	5.7	166	200~220V-50Hz
R-134a	GVM 25 AD	2.5	68	115V -60Hz
R-134a	GVM 30 AD	3.0	84	115V -60Hz
R-134a	GFM 44 AD	4.6	145	115V -60Hz
R-134a	GFM 53 AD	5.3	180	115V -60Hz
R-134a	GFM 57 AD	5.7	195	115V -60Hz
R-134a	GFM 61 AD	6.1	210	115V -60Hz
R-134a	GFR 40 AD	3.6	125	115V -60Hz
R-134a	GFR 44 AD	4.0	145	115V -60Hz
R-134a	GFR 53 AD	5.3	180	115V -60Hz
R-134a	GFR 57 AD	5.7	195	115V -60Hz
R-134a	GFR 66 AD	6.6	225	115V -60Hz

Performance table of SIBERIA R-600 compressors

Freon	Model	The volume of the cylinder	-23 C W	Email The question
R-600	BVM 35 AA	3.5	55	220~240V-50Hz
R-600	BVM 43 AA	4.3	68	220~240V-50Hz
R-600	BTF 60 AA	6.0	100	220~240V-50Hz
R-600	BTF 65 AA	6.5	110	220~240V-50Hz
R-600	BTF 70 AA	7.0	120	220~240V-50Hz
R-600	BFM 67 AA	6.7	120	220~240V-50Hz
R-600	BFM 80 AA	7.5	130	220~240V-50Hz
R-600	BFM 86 AA	8.6	142	220~240V-50Hz
R-600	BFM 93 AA	9.3	155	220~240V-50Hz
R-600	BFM 10 AA	10.0	168	220~240V-50Hz
R-600	BFF 75 AA	7.5	130	220~240V-50Hz
R-600	BFF 86 AA	8.6	142	220~240V-50Hz
R-600	BFF 93 AA	9.3	155	220~240V-50Hz
R-600	BFF 10 AA	10.0	168	220~240V-50Hz
R-600	BFF 12 AA	12.0	202	220~240V-50Hz
R-600	BFR 67 AA	6.7	120	220~240V-50Hz
R-600	BFR 75 AA	7.5	130	220~240V-50Hz
R-600	BFR 86 AA	8.6	142	220~240V-50Hz
R-600	BFR 93 AA	9.3	155	220~240V-50Hz
R-600	BFR 10 AA	10.0	168	220~240V-50Hz

Tags: 1/5 Hp, 5.7 cm3, Compressor, GFR57AG, LBP, mbsm.pro

MBSM DOT PRO

Mbsm.pro, Compressor, GFR57AG, 1/5 hp, Lbp, 5.7 cm3, 166 w

Download Attachments

Leave a Reply Cancel reply
