Mbsm.pro, compressor, Embraco, Aspera, 1/3 hp++, 1/2 hp–, emt2130GK

25 March 2023
 |  No Comments

Download Attachments

image_pdfimage_print

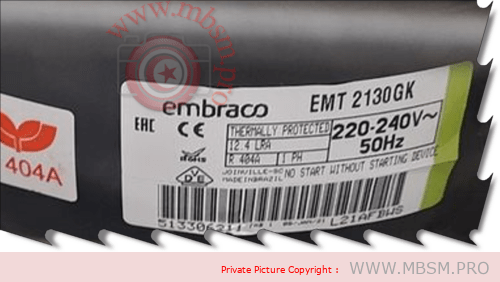

  • Compresseur Embraco Aspera EMT2130GK, LBP – R404A, R507, 220 – 240V/1/50Hz, 1/2- HP, refoulement 6,76 cm3, moteur type CSIR, lubrifiant type POE 22, charge lubrifiant 180 ml , LRA 12,4 A, 380 W à -23,3 / +54,4 °C, refroidissement : refroidissement par ventilateur, débit d’air 520 m3/h, dispositif d’expansion : capillaire a ventilem, poids 8 kg
  • Alimentation 220-240 V
  • Frequency 50/60 Hz
  • Displacement 6.74 cm³
  • Power 1/3 HP
  • Height 190 mm
  • Weight 7.8kg
  • Area of ​​use LBP
  • Gas R290
  • CSIR engine system
  • Complete with starter, capacitor, box without fixing system

  • Technical characteristics

    Mbsm_dot_pro_private_PDF_emt2130GK

    BRAND EMBRACO
    COMPRESSOR TYPE ALTERNATIVE HERMETIC
    APPLICATION PSL (-23.3°C / +54.4°C)
    H.POWER 1/2-
    POWER SOURCE 220-240V
    REFRIGERANT R404A
    FREQUENCY (HZ) 50
    SHIFT: 6.76CM3
    COMPRESSOR COOLING: FAN
    TYPE OF TECHNOLOGY: ON OFf
    EXPANSION DEVICE: CAPILLARY TUBE OR REGULATOR
    PACKING QUANTITY: 100
    MARRY: 22,5 MM
    STROKE: 17 MILLIMETERS
    OIL CHARGE: 180 ML
    OIL TYPE SETUP: ESTER
    VISCOSITY OF OIL TYPE: ISO22
    READING: 8 KG

    FOR ADVICE
