Mbsm.pro, compressor, Cubigel, Huayi, LBP, R290, 220 – 240V/1/50Hz, 1/3 hp, CSIR

COMPRESSORS

Compressor type hermetic – piston
Refrigerant R290
Application LBP
Compressor power supply 220 – 240V
Frequency 50 Hz
Engine type CSIR
Producer Cubigel / Huayi / ZEM

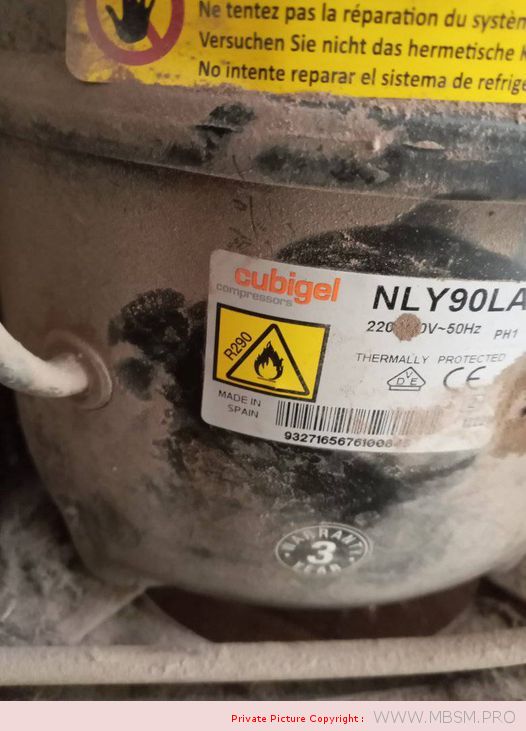

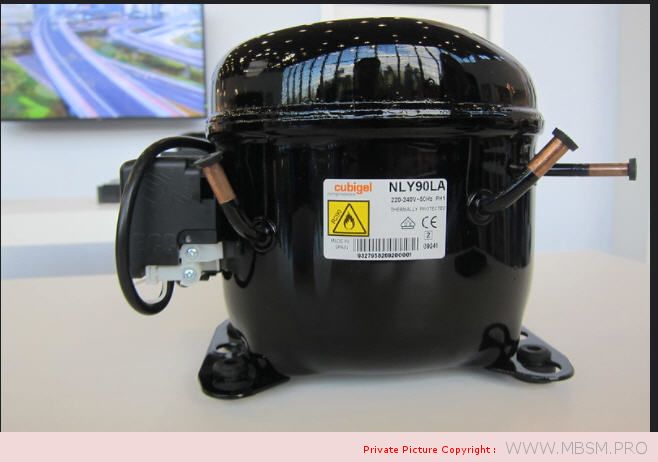

NLY90LAa; compressor Cubigel / Huayi NLY90LAa, LBP – R290, 220 – 240V/1/50Hz, 1/3 [HP], displacement 9.09 [cm3], engine type CSIR, oil type ISO VG 46 mineral, oil volume 395 [cm3], 307 [W] at -25 / +55 [°], power consumption 291 [W], 2.07 [A], use with capillary or valve, fan cooling, weight: 10.32 [kg]

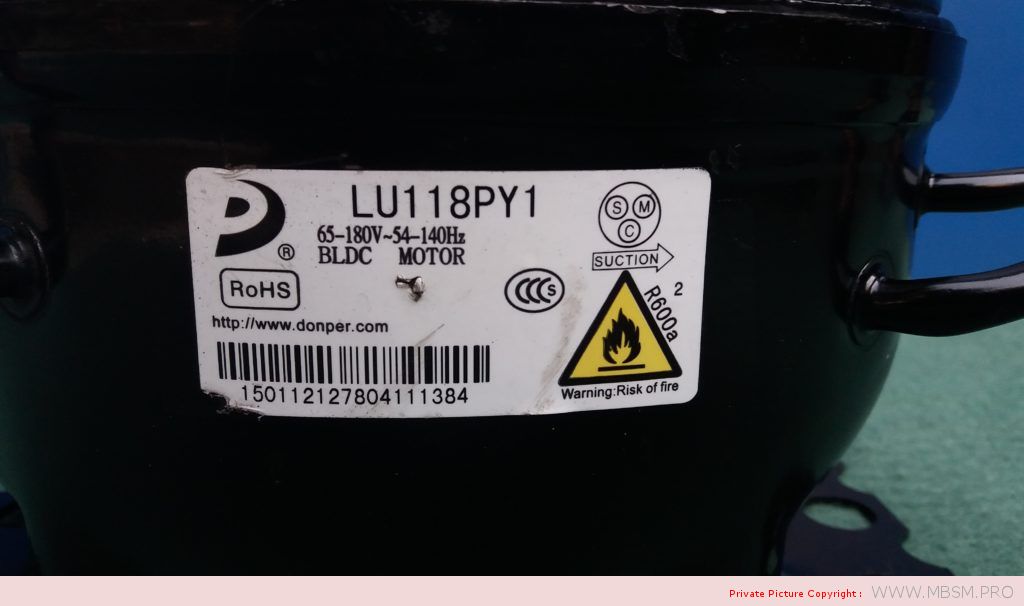

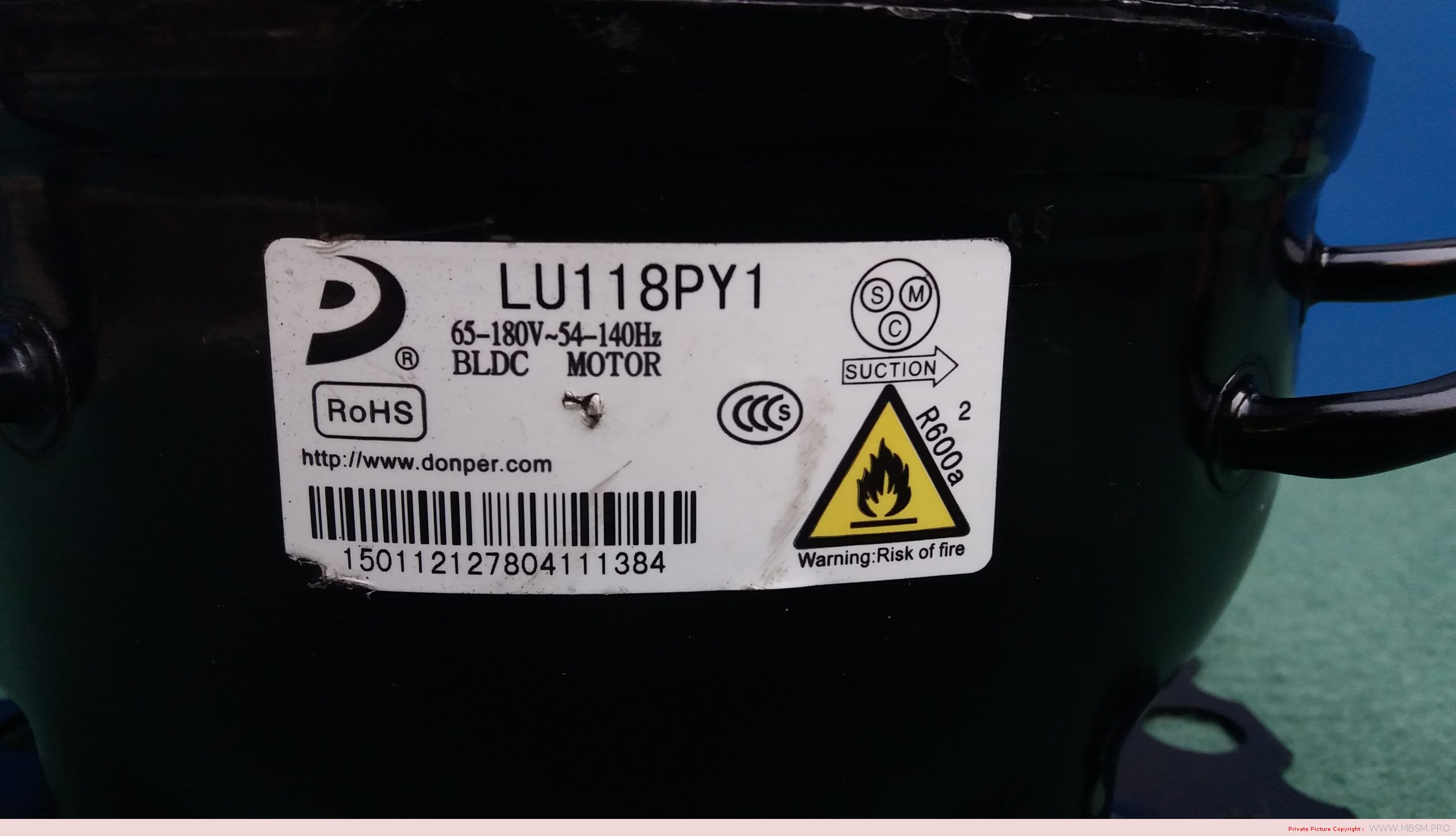

Mbsm.pro, Compressor, Donper, inverter, LU118PY1, 1/3 Hp, HISENSE, 700 L, 108/to/250 W, variable speed, blcd, 5.8 cm3, R 600a, 75G, 65-180v, 54-140Hz




Mbsm.pro, Compressor, DONPER, Refrigeration, S30CZ, R134a, 1/12 HP, LBP, 220V-240V 50HZ, Disp. 3.0cc

Specifications

  • Mark: Area
  • Model: S30CZ
  • Technologies: Constant velocity
  • Tension: 220/240-1 50
  • Applications: Short
  • Heat pump: No
  • Soft drinks: R134a
  • Displacement cm3: 3.00
  • MOBILE PHONE: 1/12
  • Initial oil charge: 280ml
  • Suction pipe connection: 1/4”
  • Discharge pipe connection: 1/4”
  • Service intensity: 0,65 A
  • Starting current (locked rotor): 9,8 A
  • Maximum intensity of service: 9,8 A
  • Maximum casing temperature: 95°C
  • discharge temperature: 120°C
  • Maximum winding temperature: 130°C
  • Sound level: 40 dB
  • Weight: 6kg
  • Type of oil: POE-ester
  • Engine cooling type:   Static
  • Engine type: RSIR (PTC)
  • Motor protection type: External
  • Speed: 2920 rpm
  • Vibration: 0.65m/s2
Refrigerant Application Serris Model Power Displacement Cooling Motor Type Power Supply


R134A LBP S S30CZ 1/12 3.0 S RSIR 220V/50HZ
S36CZ 1/8 3.6 S RSIR 220V/50HZ
S43CZ 1/7 4.3 S RSIR 220V/50HZ
S53CZ 1/6- 5.3 S RSIR 220V/50HZ
S30BZ 1/10 3.0 S RSIR 115V/60HZ
S36BZ 1/7 3.6 S RSIR 115V/60HZ
S43BZ 1/6- 4.3 S RSIR 115V/60HZ
S53BZ 1/6+ 5.3 S RSIR 115V/60HZ
 High Efficiency Range
SK30CZ 1/10 3.0 S RSCR 220V/50HZ
SK36CZ 1/8 3.6 S RSCR 220V/50HZ
SK43CZ 1/6- 4.3 S RSCR 220V/50HZ
SK53CZ 1/6 5.3 S RSCR 220V/50HZ
SK30BZ 1/8 3.0 S RSCR 115V/60HZ
SK36BZ 1/6- 3.6 S RSCR 115V/60HZ
SK43BZ 1/6 4.3 S RSCR 115V/60HZ
SK53BZ 1/5 5.3 S RSCR 115V/60HZ




Mbsm.pro, Compressor, Dongbei, freezer, LG63DZ1, R134a , 195 W, 220v, lbp, 1/4 HP




Mbsm.pro, Compressor, Embraco, Refrigeration, NT6215Z, 1/2 Hp, MHBP, Big ++, R134A, CSIR, 115 V

This is an EMBRACO Refrigeration Compressor NT6215Z1 1/2 HP that can be used as as replacement for a True Part# 842405.  This compressor comes with a start capacitor, relay, and overloard and comes pre-charged with oil.
H.P.  1/2
Volts  115
Phase  1
Hertz  60
Refrigeration  R-134

Data Sheet

Power supply 220/240 V-50 Hz-1 ph (230 V-60 Hz-1 ph)
Horsepower 1/2 hp
Displacement 17,39 cm3
Application MHBP
Cooling capacity at ASHRAE conditions, R134a 1,62 kW
Cooling capacity at EN12900 HT conditions, R134a 1,25 kW
Cooling capacity at EN12900 MT conditions, R134a 0,80 kW
Refrigerant R134a
Suction pipe 3/8″
Discharge pipe 1/4″
Weight 17,00 kg
Max height 207 mm
LRA 21,00 A
Recharge oil 450 cm3
Type of oil POE 22 ester
Other remarks Electrical components are included
Technology Fixed speed
Type of motor cooling Fan
Motor type CSIR
Motor protection type External

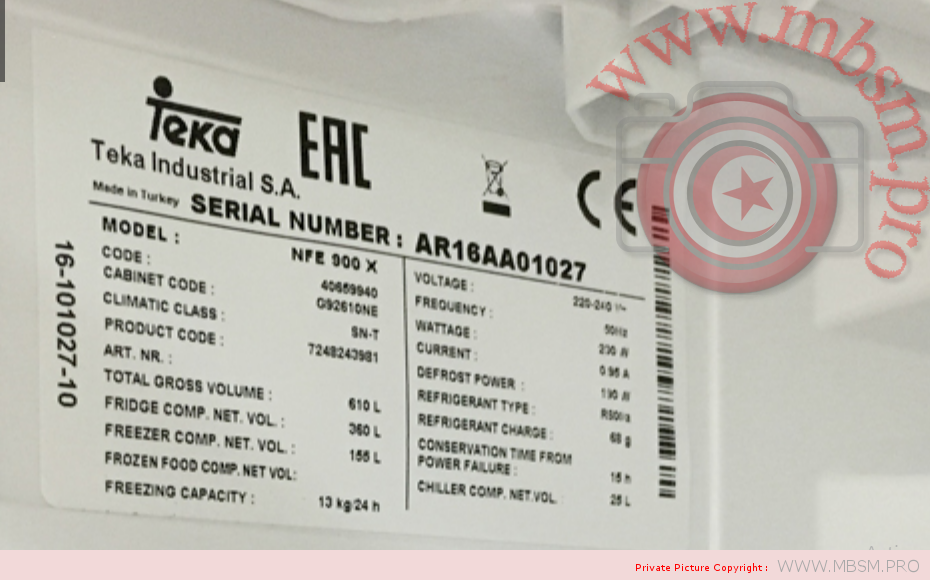

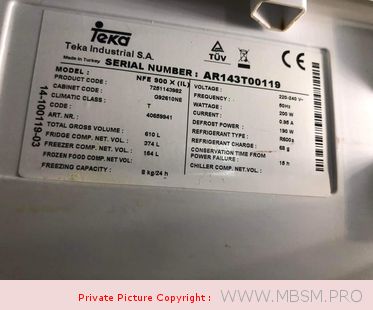

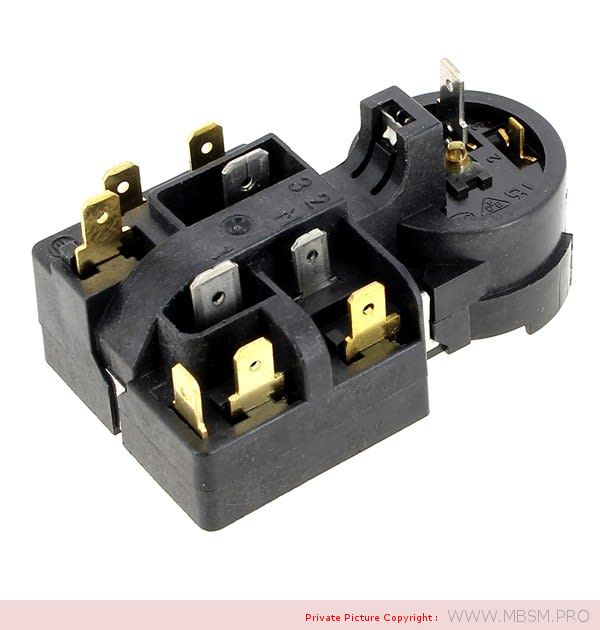

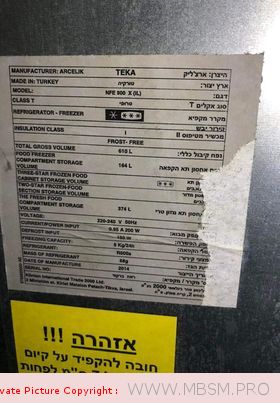

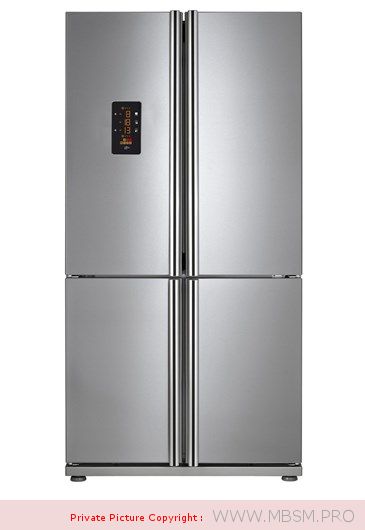

Mbsm.pro, Fridge, TEKA NFE-900 X, 610 L, Compressor, Inverter, Variable speed, 1/3 Hp, R600A, 68 G, 220 – 240 V, PTC Starter, QP3-12AJ1 JX

SPECIFICATIONS

PROPERTIES PARAMETER
Product code Teka NFE 900X
Total capacity 610 liters
Number of users more than 7 people
Usable capacity 540 Liters
Freezer capacity 155 liters
Refrigerator capacity 385 liters
Inverter Technology Inverter Refrigerator
Noise level  45dB
Electric used 1,246 kW/24h
Refrigeration technology Intelligent multi-dimensional cooling system
Antibacterial and deodorizing technology Disinfect with Nano – silver
Freezing capacity 13kg/24 hours.
Energy level  A +
Environmental adaptation level  SN-T
Gas type Gas type R600A fast cooling
Automatic defrosting system  In the freezer and fridge
External display panel Yes
Built-in ice maker in the door Yes
Fuzzy Logic temperature control system Yes
Cabinet style Large cabinet – Side by side
Number of doors 4 doors
Material of compartment tray Tempered glass, anti-spill
Door material Stainless steel, no fingerprints
Lights Led light
Dimensions – Weight 1825 x 920 x 600 mm.
Electricity supply 220 – 240V/50Hz

Spécifications du NFE 900 X de la marque Teka

Généralités
Marque Teka
Modèle NFE 900 X
Produit réfrigérateur
Langue Anglais
Type de fichier PDF
Design
Placement de l’appareil Autoportante
Nombre de compresseurs 1
Couleur du produit Acier inoxydable
Écran integré LCD
Type de commande Tactile
Position de l’écran Sur la porte
Type de lampe LED
Conception du produit Américain
représentation / réalisation
Capacité brute totale 610 L
Capacité nette totale 540 L
Classe climatique SN-T
Filtre à air Oui
Machine à glaçons Oui
Distributeur d’eau Non
Niveau sonore 43 dB
Fonction vacances Oui
Classe d’émission sonore
Autres caractéristiques
Système anti-gel Oui
Fonction de décongélation Oui
Système de débit d’air multiple
Lumière intérieure Oui
Fonction anti-bactérienne
Thermostat réglable Oui
Congélateur
Bac à glaçons Non
Nombre d’étoiles (indique les possibilités de conservation) 4*
Capacité brute du congélateur – L
Capacité net du congélateur 155 L
Capacité de congélation 13 kg/24h
Autonomie en cas de panne de courant 15 h
Fonction congélation rapide Oui
Nombre de clayettes/bacs du congélateur 6
Pas de givre (freezer) Oui
Lumière intérieure du freezer Oui
Emplacement du compartiment à glace Bas-placé
Réfrigérateur
Capacité brute du réfrigérateur – L
Capacité nette du réfrigérateur 385 L
Compartiment à œufs Oui
Nombre de clayettes/bacs du réfrigérateur 3
Nombre de tiroirs à légumes 4
Pas de givre (réfrigérateur) Oui
Option de fonctionnement très froid Oui
Lumière intérieure du réfrigérateur Oui
Compartiments de la porte du réfrigérateur 8
Système à plusieurs flux d’air (réfrigérateur)
Zone fraîche
Nouvelle zone compartiment
Puissance
Classe d’efficacité énergétique (ancienne) A+
Charge connectée 200 W
Consommation annuelle d’énergie 455 kWh
Tension d’entrée AC 220 – 240 V
Fréquence d’entrée AC 50 Hz
Classe d’efficacité énergétique
Ergonomie
Sécurité alarme porte ouverte Oui
Alarme de température Oui
Pieds réglables Oui
Poids et dimensions
Largeur 920 mm
Profondeur 765 mm
Hauteur 1825 mm
Poids 124800 g
https://www.mbsm.info/qp3-12aj1-jx



Mbsm.pro, Compressor, R600a, GMCC, Refrigerant, PZ90H1Y, SXF-562JA, 1/5hp, 167 W

Description

Compressor Refrigerant R600a GMCC PZ90H1Y SXF-562JA 1/5hp
Launcher(PTC) TY-QZ-003/QPE2-A15MD3
Protector DRB17T61A1/3TM158TF2/BT45-140A61D3
Condenser 3.0μF( CBB65 )
Diameter of tube (interior) 4.9±0.1
Voltage 220- 240V 50Hz
43 degree Voltage range 187-253
Refrigerant R600a
Capacity (cm³) 9
Weight (kg) 8.1±0.4
Cooling Capacity(W) 167
Input (W) 92.3
Current(A)0.47
Cop 1.81
Noise dB( A)40




Mbsm.pro, Compressor, GMCC, PZ80E1F, cooling, capacity, 147W, 1/5 Hp, R600A, lbp




Mbsm.pro, Compressor, cGMCC, refrigerator, SZ90E1H-SCL, 1/4 Hp, R600 A , 220 v 60 Hz, lbp




Product Description

PRODUCT DISCRIPTIONS
Original GMCC compressor for refrigerator

Gas Voltage/Frequency Model Cooling Capacity Pcs/Pallet
R134A 220V 50HZ PE90H1F-9 280W  1/3HP+ 96
PE80H1E-9 235W,1/3HP 96
PE65HIH-9 195W, 1/4HP 96
SE50H1F-9 150W, 1/5HP 96
SE45E1J-9 120W  1/6HP 112
SE40E1K-9 108W, 1/8HP 112
SE30E1M-9 75W, 1/10HP 112
110V 60HZ EE75H1F-U 255W, 1/3HP 96
FE65H1H-U 220W, 1/4HP 96
FE59E1M-U 192W, 1/5HP 112
FE45E1M-U 145W, 1/6HP 112
R600A 220V 60HZ SZ90E1H-N 182W 1/4HP 140
SZ75E1E-N 150W, 1/5HP 141
SZ59E1F-N 110W, 1/6HP 140



Mbsm.pro, Compressor, MGA51C84rLX, MGA51C68RPU, Panasonic compressor, M Series, Reciprocating Fixed Speed, 180 W, 1/5 Hp, RSCR, 220 V , r134a
