Mbsm.pro, Compressor, Danfoss, Secop, 5/8 hp++, SC21MFX, MBP, R134a, 220 V-240 V, 50 Hz, 104G8120, 8120

Category: compressor

written by www.mbsm.pro | 17 February 2022

Product information

LRA HST 60Hz [A]	23.6 A
LRA HST[A]	23.6 A
RLA	4.00A
start capacitor capacitance	80µF
Packing option	Industrial packaging
Upper voltage range value at 50 Hz [V]	264V
Upper voltage range value at 60 Hz [V]	0V
Upper value of rated voltage at 50 Hz [V]	240V
Upper value of rated voltage at 60 Hz [V]	0V
Liquid injection	Not
Suction nozzle, material	Copper
Suction nozzle height [mm]	183mm
Discharge pipe height [mm]	100mm
Height from support panel [mm]	203mm
Process connection height [mm]	183mm
Suction pipe diameter [mm]	10.2mm
Discharge pipe diameter [mm]	6.2mm
Process connection diameter [mm]	6.2mm
Length [mm]	255mm
Run Capacitor	10µF
Socket Notes	Rubber plug
Suction nozzle notes	Rubber plug
Refrigerant charge [kg] [Max]	1.3kg
Segment usage	Cooling to medium temperatures
Configuration code	Single
Number of packages	80
Discharge connection comments	Rubber plug
Voltage, 50 Hz [V]	220V
Voltage, 50 Hz [V] [max]	240V
Lower voltage range value at 50 Hz [V]	198V
Lower value of the voltage range at 60 Hz [V]	0V
Lower value of rated voltage at 50 Hz [V]	220V
Lower value of rated voltage at 60 Hz [V]	0V
Model number	SC21MFX
Areas of use	MBP
Type designation	Compressor
Gross weight	14 kg
Net weight	14 kg

Power failure HST [A]	23.6 A
Overall height, mm	209mm
Oil volume	600 cm3
Description	SC21MFX
Described volume [cm3]	20.95 cm3
Performance Adjustment	fixed speed
Free volume of gas [cm3]	1460 cm3
Rotation speed at 50 Hz [rpm]	2900 rpm
Rotational speed at 60 Hz [rpm]	0 rpm
Discharge connection, material	Copper
Auxiliary winding resistance (starting winding) for single-phase compressors (var.) [Ohm]	13.6ohms
Auxiliary winding resistance (starting winding) for single-phase compressors [Ohm]	13.6ohms
Main winding resistance for single-phase compressors [Ohm]	3.3ohms
Winding temperature, short term [°C] [Max]	135°C
Winding temperature, constant [°C] [Max]	125°C
Process connector, material	Copper
Technology	Piston
A type	SC
engine’s type	CSIR CSR
Oil type	polyester oil
Carrier panel type	Universal
Tradename	Piston compressor
Suction angle [°]	37°
Discharge angle [°]	37°
Process Socket Angle	37°
Phase	one
Phases (fan)	one
Phases (compressor)	one
refrigerant	R134a
Color	Black
Frequency Hz]	fifty
Width [mm]	151mm
Economizer	Not
Compressor power supply [V/ph/Hz]	220-240/1/50
Energy level for the application	Standard MBP

Mbsm_dot_pro_private_PDF_104G8120 Télécharger

Mbsm.pro, COMPRESSOR, TECUMSEH, AE4470E, AE-8155-br, 3/4 hp++, 1/2 Hp–, 220V, 1 PH, R22, M-HBP, ++(big)

Category: compressor

written by www.mbsm.pro | 17 February 2022

Tecumseh Compressor AE4470E-FZ3C

Product Description:

Type: Reciprocating Compressors

Application: HBP/CBP – High/Commercial Back

Product Description: R-22

Voltage/Frequency: 220-240V ~ 50Hz

Version: N/A

Product Specifications

Performance:

Mbsm_dot_pro_private_PDF_AE4470E Télécharger

General

Evaporating Temp. Range: -15°C to 15°C (5°Fto 59°F)

Motor Torque: High Start Torque (HST)

Compressor Cooling: Fan

Mechanical

Weight: 11

Weight Unit of Measure: KG

Displacement (cc): 13.24

Oil Type: Synthetic Alkylate

Viscosity(cSt): 32

Oil Charge (cc): 380

Electrical

Voltage Range (50 Hz): 198-253

Voltage Range (60 Hz):

Locked Rotor Amps (LRA): 18.5

Rated Load Amps (RLA 50 Hz): 3.76

Rated Load Amps (RLA 60 Hz): 0

Max. Continuous Current (MCCin Amps): 0

Motor Resistance (Ohm) – Main: 5.69

Motor Resistance (Ohm) – Start: 10.93

MotorType: CSR

Overload Type:

Relay Type:

Tecumseh Reciprocating Model Compressors :

MODEL	DIPLACEMENT (Cm³)	CURRENT AMPS		DIAMETER CONNECTION (INCH)		BERAT (KG)
MODEL	DIPLACEMENT (Cm³)	I NOM	I MAX	SUCTION	DISCHARGE	BERAT (KG)
AE1390Y-FZ	8.02	1.4	1.7	1/4	3/16	9.5
AE2390Y-FZ	8.02	1.3	1.7	1/4	3/16	9.5
AE2410Y-FZ	9.39	1.4	1.7	5/16	1/4	9.5
AE2413Y-FZ	12.01	1.8	2.8	5/16	1/4	11.2
AE2415Y-GH	12.48	1.8	3	5/16	1/4	12.1
AE4425Z-FZ	4.24	1.8	2.8	1/4	3/16	9.9
AE4430Z-FZ	5.16	2.1	2.9	1/4	3/16	10.2
AE4440Z-FZ	6.69	2.7	3.7	3/8	1/4	10.5
AE4450Z-FZ	8.85	3.4	5.1	3/8	1/4	10.8
AE4460Z-FZ	10.33	4.3	5.9	3/8	1/4	11.6
AE4470Z-FZ	12.01	3.7	5.3	3/8	1/4	12.4
AE4425Y-FZ	6.69	1.6	2.4	1/4	3/16	9.2
AE4430Y-FZ	8.02	2.1	3.1	1/4	3/16	9.7
AE4440Y-FZ	10.33	2.5	3.7	5/16	1/4	9.8
AE4450Y-FZ	13.24	3.1	4.6	3/8	1/4	11.5
AE4456Y-FZ	14.51	3.6	8	3/8	1/4	11.5
AE4460Y-FZ	15.09	3	4.7	3/8	1/4	12.2
AE4425E-FZ	4.24	1.7	2.7	1/4	3/16	9.6
AE4430E-FZ	5.16	2	2.8	1/4	3/16	10
AE4440E-FZ	6.69	2.4	3.4	3/8	1/4	10.2
AE4450E-FZ	8.02	3	4.7	3/8	1/4	11.2
AE4460E-FZ	10.33	3.7	5.3	3/8	1/4	11.2
AE4470E-FZ	12.01	3.8	5.4	3/8	1/4	11.1

Mbsm.pro, Compressor, TLS6F, Danfoss, 102G4620, Lbp, 125 W, 220 v, 1/6 Hp, 1 phase, R134a

Category: compressor

written by www.mbsm.pro | 17 February 2022

Fluides: R134a

Poids brut	7.6 Kg
Poids Net	7.47 Kg
Applications	BP
Capacité du condensateur de démarrage	60 µF
Charge en fluide frigorigène [kg] [Max]	0.4 kg
Charge en huile [L]	180 L
Code de configuration	Simple
Couleur	Black
Courant d’appel HST [A]	5.8 A
Courant d’appel HST alt [A]	5.8 A
Courant d’appel LST [A]	8.7 A
Courant d’appel LST alt [A]	8.7 A
Description	TLS6F
Description	TL
Diamètre de raccordement à l’aspiration [mm]	6.2 mm
Diamètre du raccord au refoulement [mm]	5 mm
Diamètre du raccordement du traitement [mm]	6.2 mm
Désignation du modèle	Compresseur
Faible valeur de plage de tension à 50 Hz [V]	198 V
Faible valeur de plage de tension à 60 Hz [V]	0 V
Faible valeur de tension nominale à 50 Hz [V]	220 V
Faible valeur de tension nominale à 60 Hz [V]	0 V
Fluides	R134a
Format d’emballage	Emballage industriel
Fréquence [Hz]	50
Hauteur de la base [mm]	169 mm
Hauteur totale [mm]	173 mm
LRA HST [A]	5.8 A
LRA HST alt [A]	5.8 A
LRA LST [A]	4.8 A
LRA LST alt [A]	4.7 A
Matériel du raccord au process	Acier cuivré
Matériel du raccord de refoulement	Acier cuivré
Niveau d’énergie de l’application	Compresseur standard
Nombre de phases (compresseur)	1
Nombre de phases (ventilateur)	1
Norme d’approbation	CE
Notes concernant le raccord de refoulement	Capuchon en aluminium
Notes concernant le raccordement au process	Capuchon en aluminium
Notes concernant le raccordement à l’aspiration	Capuchon en aluminium
N° de modèle	TLS6F
N° de schéma	8244
Oil type	POE
Phase	1
Quantité d’huile [cm³]	180 cm3
Quantité par emballage	125
raccord de refoulement équerre [°]	28 °
raccord d’aspiration équerre [°]	30 °
Raccordement de process équerre	32 °
RLA	1.0 A
Régulation de la puissance	Fixed speed
Résistance de l’enroulement auxiliaire (enroulement de démarrage) pour compresseurs monophasés [ohm]	17 Ohm
Résistance de l’enroulement auxiliaire (enroulement de démarrage) pour compresseurs monophasés à pistons [ohm]	15.1 Ohm
Résistance de l’enroulement principal pour compresseurs monophasés [Ohm]	16 Ohm
Résistance de l’enroulement principal pour compresseurs monophasés à pistons [ohm]	18.2 Ohm
Technique de la marque	Compresseur à pistons
Technologie	Piston
Température d’enroulement max. continue [°C] [Max]	125 °C
Température de l’enroulement à court terme [°C] [Max]	135 °C
Tension 50 Hz [V]	220 V
Tension 50 Hz [V] [max.]	240 V
Type de moteur	CSIR RSIR
Type de socle	Petit UE
Utilisation de tronçon	Refrigeration LT
Valeur du condensateur B	60 uF
Valeur élevée de plage de tension à 50 Hz [V]	254 V
Valeur élevée de plage de tension à 60 Hz [V]	0 V
Valeur élevée de tension nominale à 50 Hz [V]	230 V
Valeur élevée de tension nominale à 60 Hz [V]	0 V
Vitesse de rotation à 50 Hz [rpm]	2900 rpm
Vitesse de rotation à 60 Hz [rpm]	0 rpm
Volume balayé [cm³]	5.7 cm3
Volume de gaz libre [cm3]	1790 cm3
Économiseur	No

COMMENTAIRES: (0)

Mbsm_dot_pro_private_PDF_TLS6F-Danfoss-102G4620 Télécharger

Mbsm.pro, Compressor, 1/3 hp, tecumseh, r12, Se309-12, AEA1410AXA (1/4 Hp ++), lbp, 1.47 A fla, Whirlpool ET8WTKXK (18 FEET), Top Freezer Refrigerator, 220 v

Category: compressor

written by www.mbsm.pro | 17 February 2022

Mbsm_dot_pro_private_PDF_Se309 Télécharger

Mbsm.pro, Compressor, tw1390ys, tw160-ms-472, Tecumseh,TW160KS , r134a, Ariston, Indesit, lbp, 1/3 hp, 220 v

Category: compressor

written by www.mbsm.pro | 17 February 2022

general description

Refrigerating compressor TW 1390 YS manufactured by Tecumseh running on R134 refrigerant. Application type: low temperature. Supply voltage: single-phase 220-240 V at 50 Hz. Cooling capacity: 271 W at To = -23.3°C.

Mbsm.pro, Compressor, tw1390ys, tw160-ms-472, Tecumseh,TW160KS , r134a, Ariston, Indesit, lbp, 1/3 hp,

Mbsm_dot_pro_private_PDF_TW1390ys Télécharger

Mbsm_dot_pro_private_PDF_Tecumseh-do-Brazil Télécharger

Mbsm.pro, compressor, refrigerator, NTH115MT, Turk Elektrik, 115 Kcal/h, 1/5 hp, TEE compressor, r600a, lbp, BEKO Fridge Freezer Compressor, 220 v

Category: compressor

written by www.mbsm.pro | 17 February 2022

الطريقة الصحيحة والوحيدة لحساب قدرة ضواغط تي .. The Only Correct And Reliable Way To Calculate The Capacity Of TEE Compressors.

Mbsm.pro, Compressor, Turk Elektrik, AZ 90 YT, TEE compressor, R134a, 90 Kcal/h, refrigerator with 240 liter, lbp , 220 v

Category: compressor

written by www.mbsm.pro | 17 February 2022

الطريقة الصحيحة والوحيدة لحساب قدرة ضواغط تي .. The Only Correct And Reliable Way To Calculate The Capacity Of TEE Compressors.

Mbsm_dot_pro_private_PDF_compresors Télécharger

Mbsm.pro, Compressor, TW1374ys, Tw145-ks-482, 1/4 hp, lbp, 195 w, 220 v, 1 ph, TECUMSEH, INDESIT, R134

Category: compressor

written by www.mbsm.pro | 17 February 2022

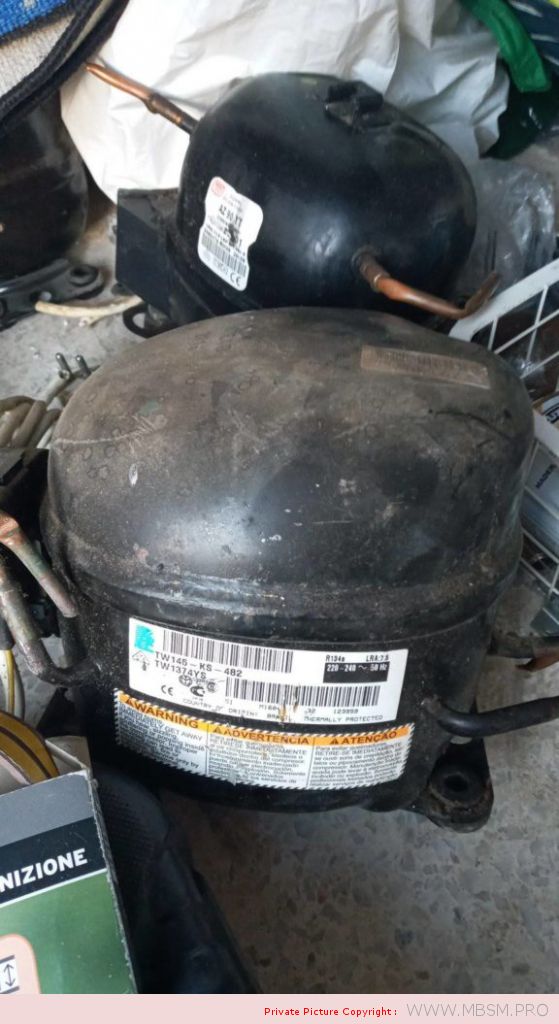

TECUMSEH TW 1374 Y 1/4 hp R134a motor compressor. TECUMSEH model TW 1374 with R134a refrigerant and 1/4 Hp with a performance of 165 frigories for two cold and No Frost refrigerators.

Medidas: 27 x 17 x 20 cm.

Weight: 15kg.

compressor capacity TW1374YS

Mbsm_dot_pro_private_PDF_TW1374ys Télécharger

From 1/8 to 1/5 of HP 3 meters of capillary 0.031 in inches or 0.80 millimeters
From 1/4 3 meters of capillary 0.036 in inches or 0.914 millimeters
From 1/3 3 meters of capillary 0.042 in inches or 1.067 millimeters

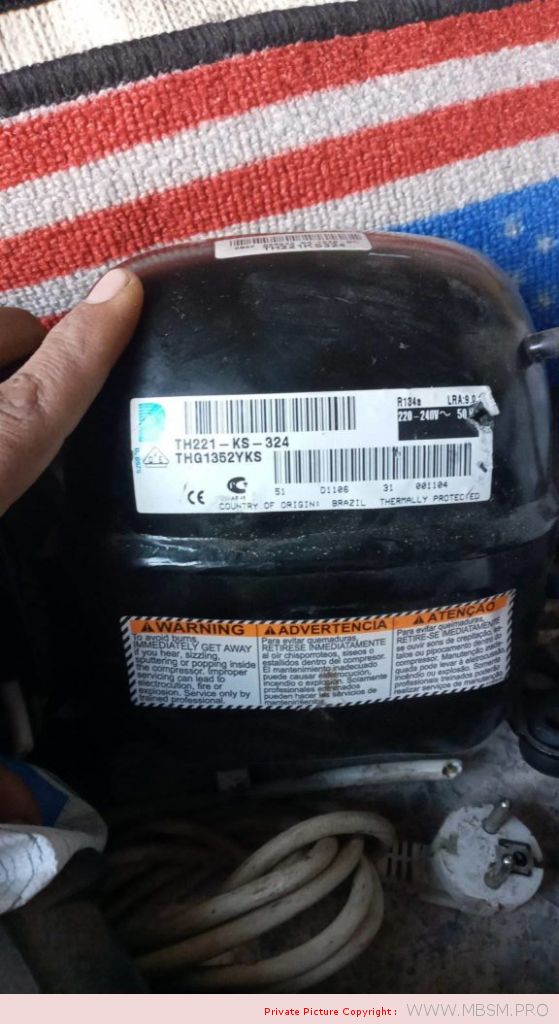

Mbsm.pro, Compressor, 1/7 HP , THG1352YKS, th221-ks-324, Tecumseh, LBP, R134a, 220-240V ~ 50Hz, 1 PH

Category: compressor

written by www.mbsm.pro | 17 February 2022

Informations complémentaires

Gaz frigorifique	R134a
Puissance électrique du moto-compresseur (CV)	1/7 220v-50Hz-0.71A-3/16″-1/4″
Hauteur-Longueur-Largeur	220-251-161mm
Huile	0.280Litre Polyolester-poe
Puissance frigorifique (W)	140
Régime des mesures	Température d’évaporation : -23.3 °C – Pression d’évaporation :1.15bar / Température de condensation :54.4°C – Pression de condensation: 14.7bar
Utilisation	Refrigérateur de capacité entre 200 et 250 litre

Product Specifications
