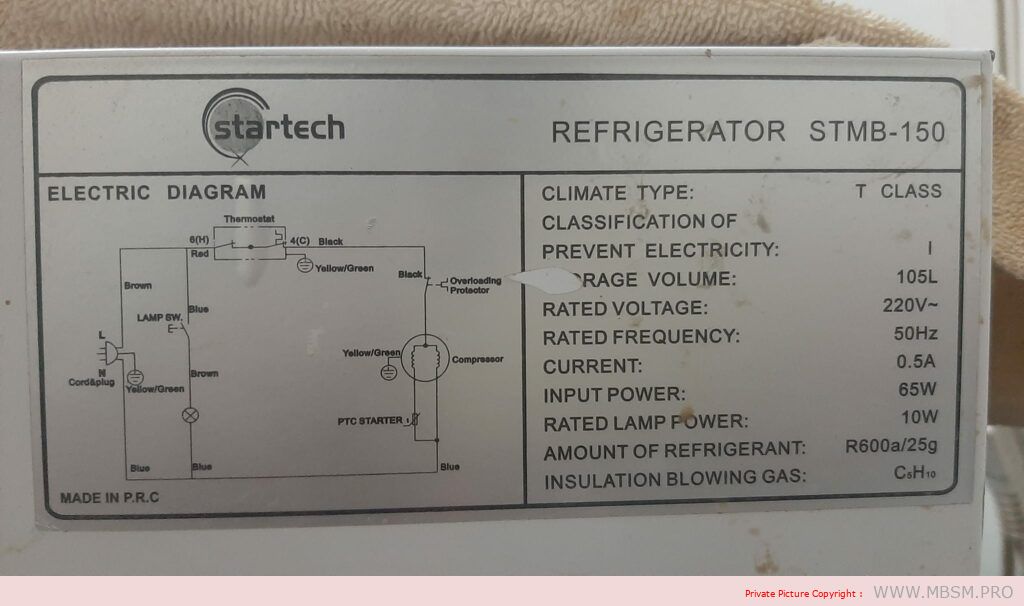

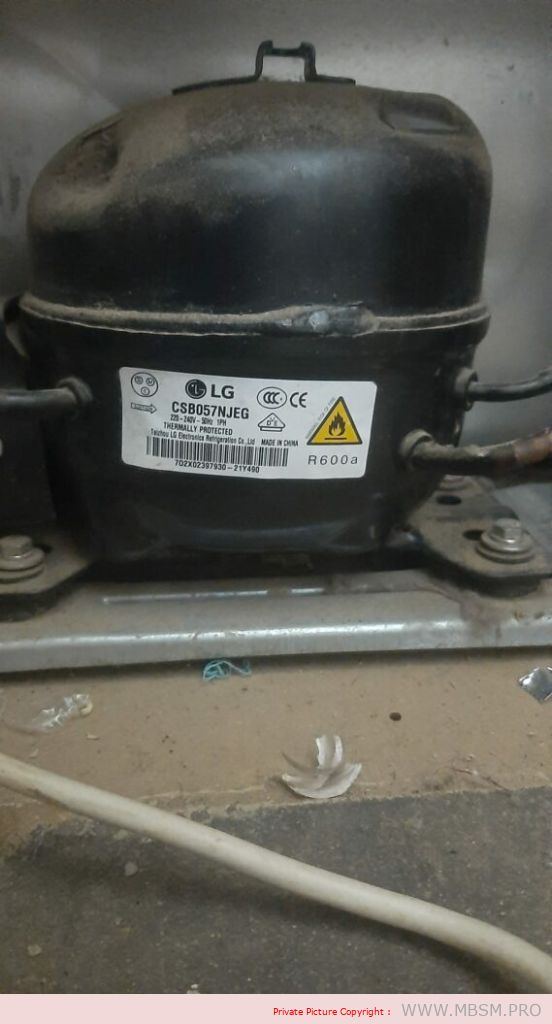

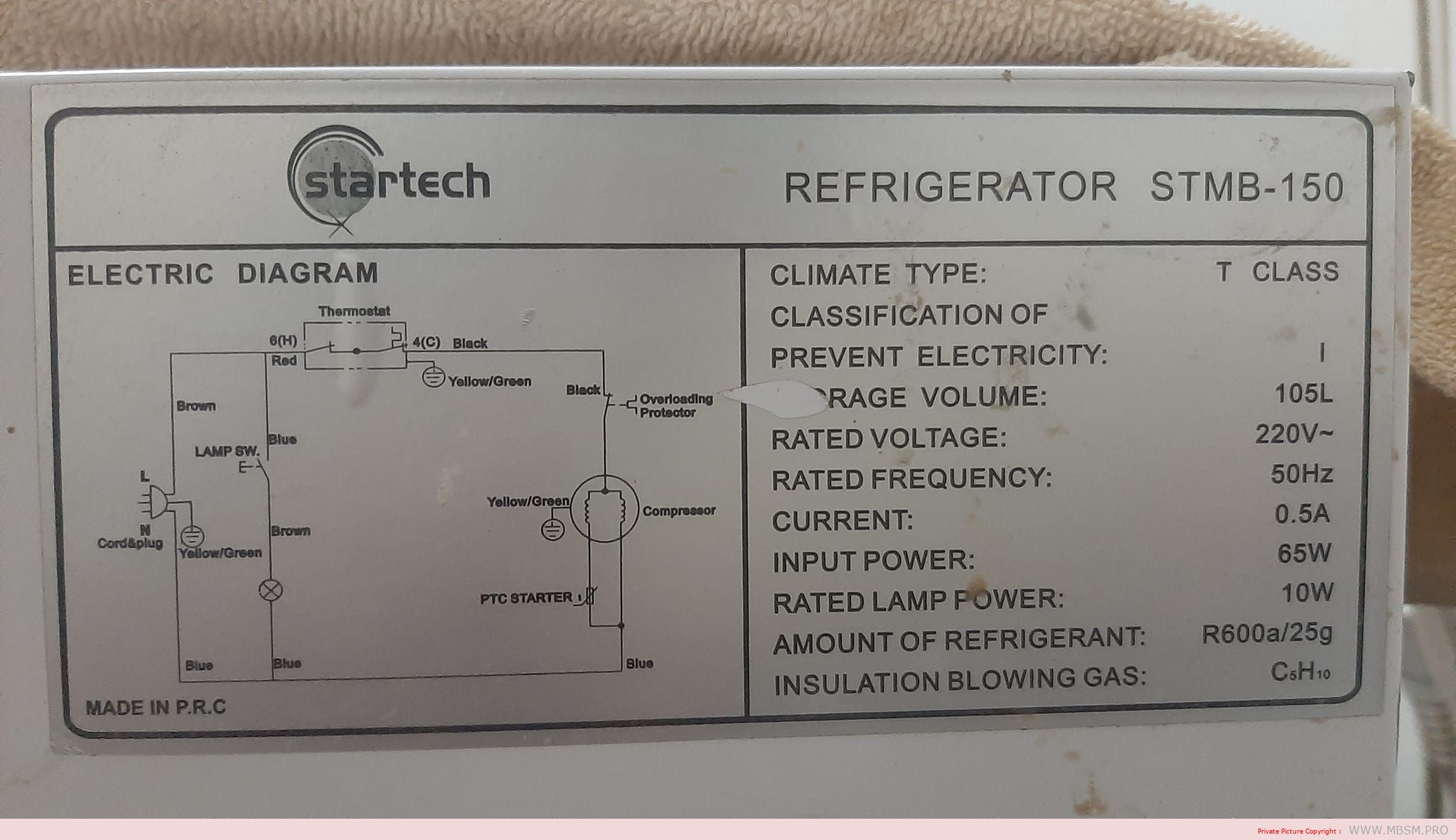

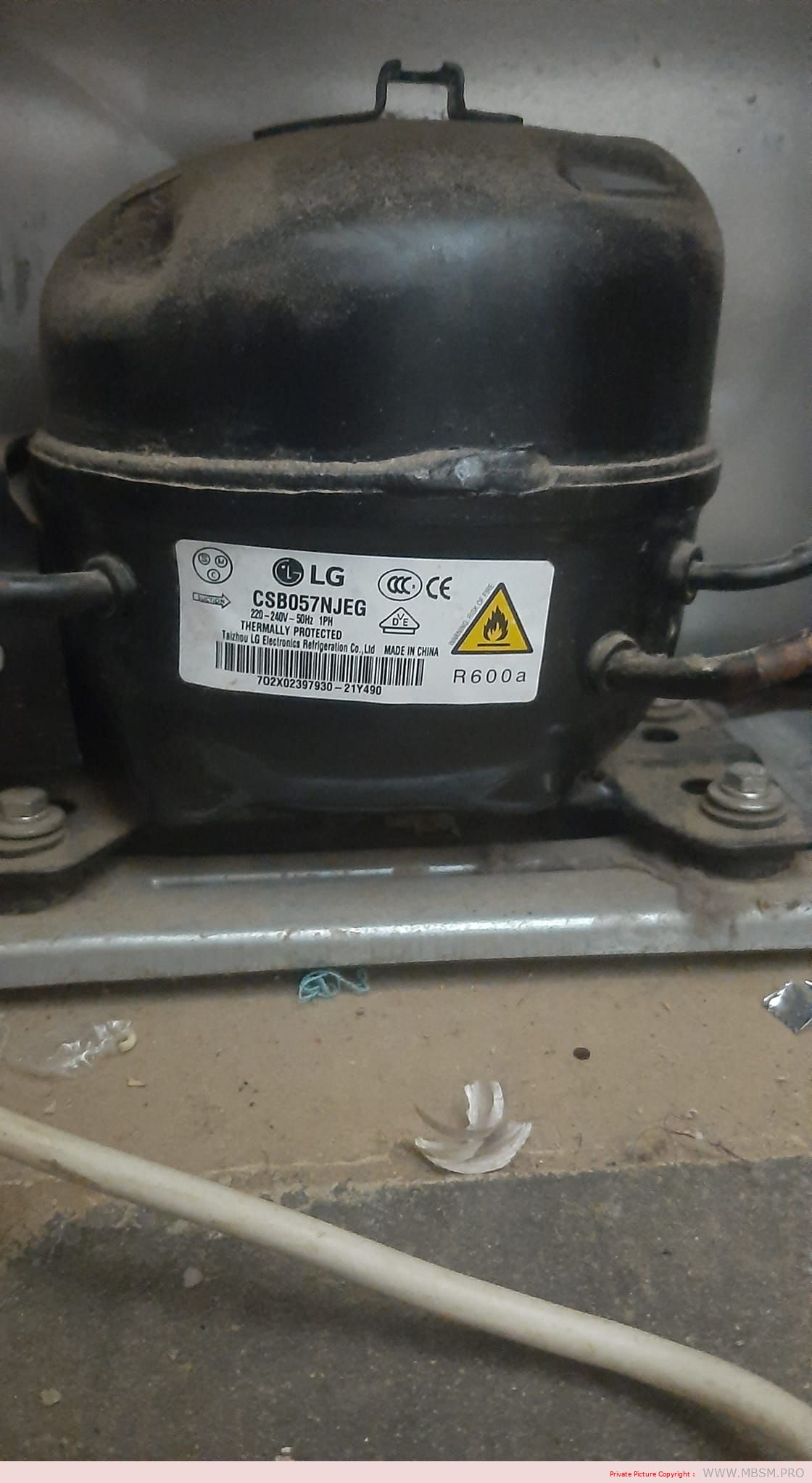

Mbsm.pro, Refrigeration, compressor, CSB Series, freezer, 100W, R600a, 5.7cm3, 1PH, Beko, Candy, LG, CSB057NJEG (1/10HP), CSB069NJEG (1/8HP), Lbp, small compressor, Water Purifier Commercial Refrigeration, SMTB-150, 105 L, r600a/25 g, T class, 0.5 A

Download Attachments

image_pdfimage_print

Parameter

Product typeReciprocating Compressor
SeriesCSB Series
Speed typeFixed speed
SizeSmall
Displacement5.7 cc/rev
RefrigerantsR600a
Improvement orderAl Wire
Rated voltage220-240 V
Frequency50 Hz
Operating typeRSIR
Cooling Capacity100 W
ApplicationLBP, Water Purifier Commercial Refrigeration
Test conditionASHRAE
Evaporating temperature-23.3°C
Condensing temperature54.4°C
Ambient temperature32.2°C

Shipping cost is not included
