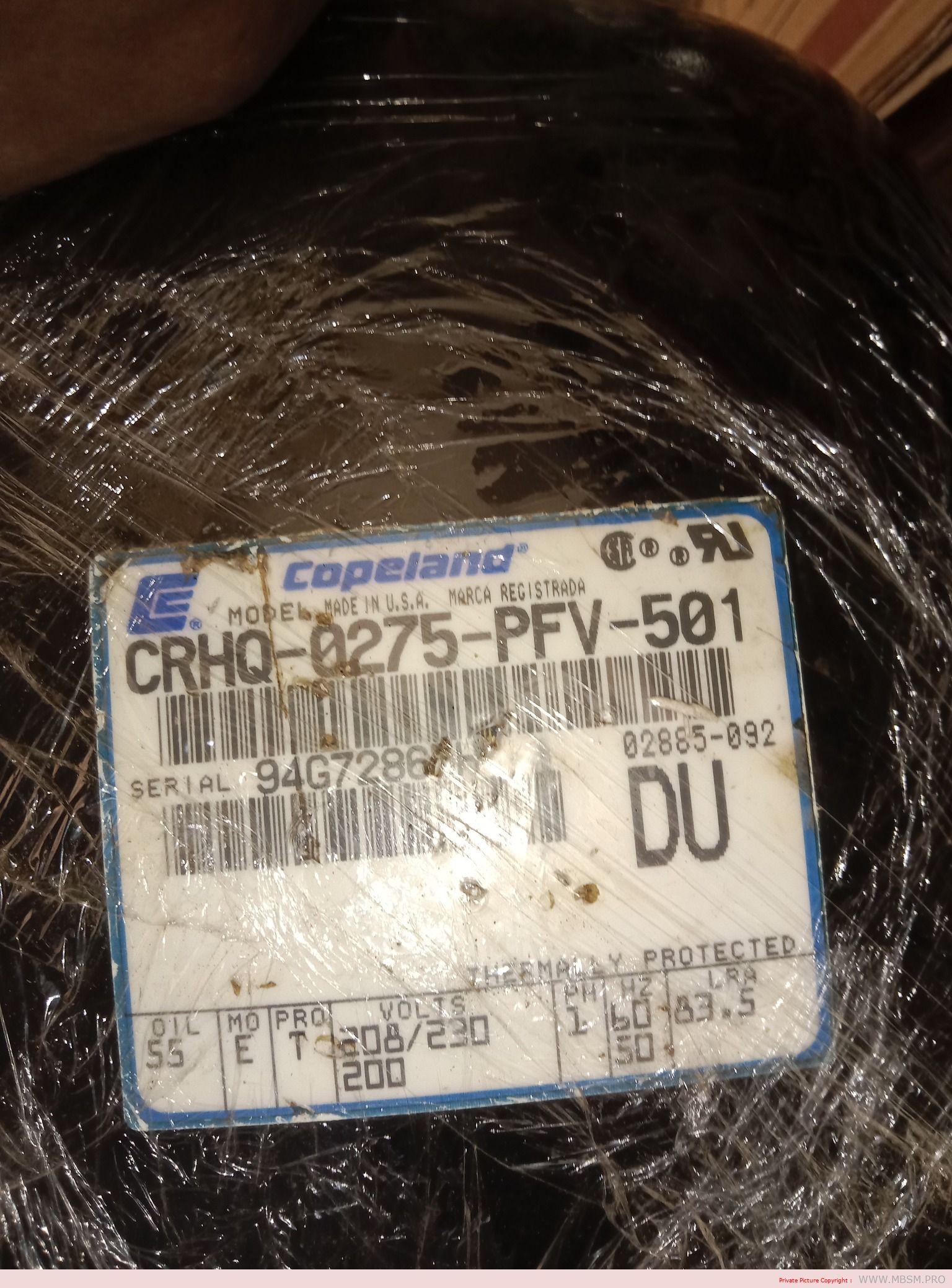

Mbsm.pro, Hermetic, Copeland, Compressors, CRHQ-0275-PFV, crhq0275pfv, crhq-0275-pfv-501, crhq0275-pfv-501, crhq0275-pfv, 4 Hp, r22, 33800 btu

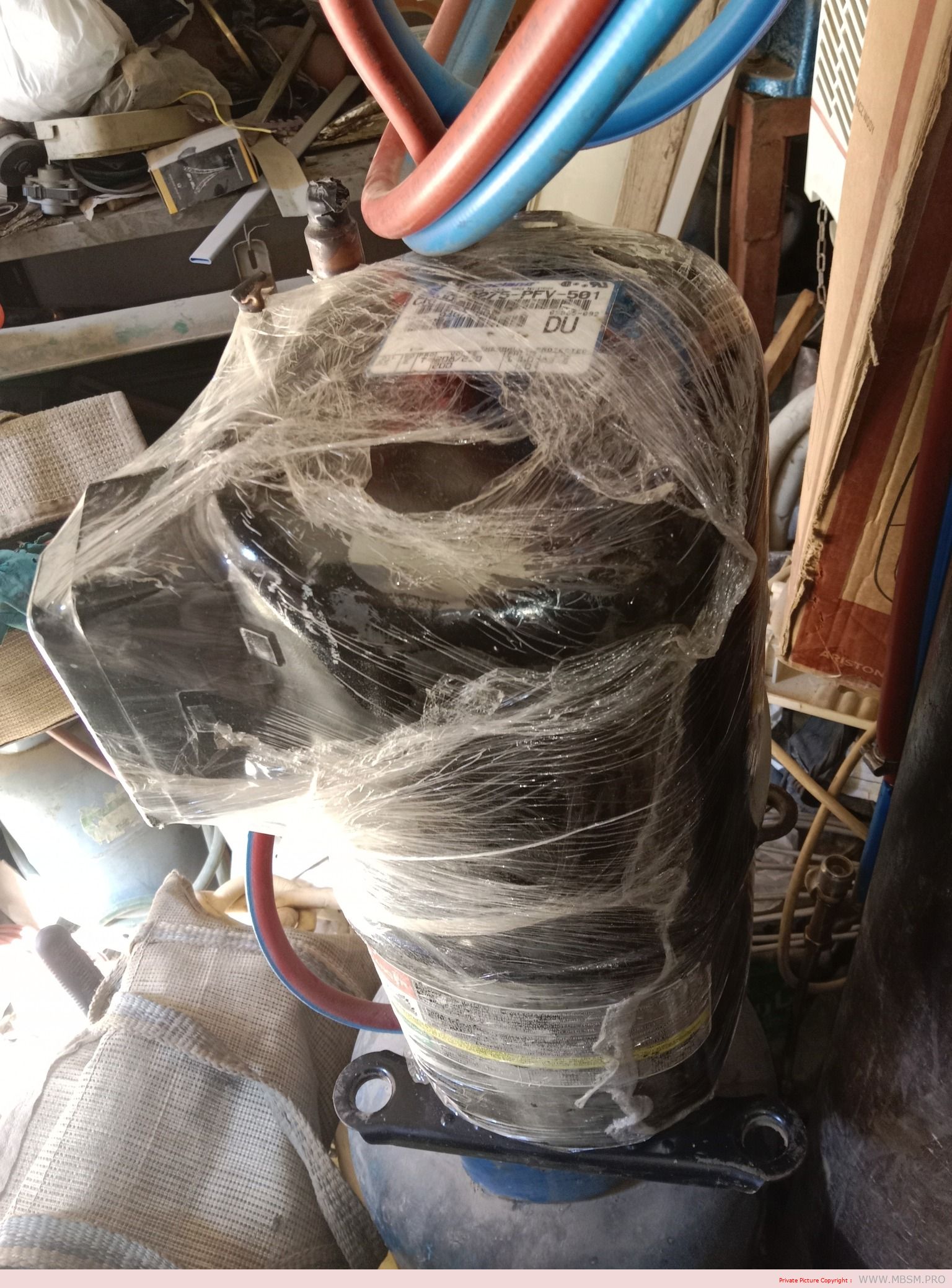

Note: Product image may vary and is for your reference only.

Get to know our wide range of Copeland Hermetic Compressors, Copeland Semi-Hermetic Compressors, Copeland Discus Compressors, Copeland Scroll Compressors (Tandem and trio), and Copeland Screw Compressors. We have for sale all its components, accessories and parts for their repair and replacement.

We have Repair and Remanufacturing in Semi-hermetic and Screw-type models.


Technical Data

HCFC, R-22, 60 Hz, 1 -phase, 208/230 V



Evaporator Temp(ºF) 45  45

Condensing Temp(ºF)  130   100

Return Gas (ºF) 65    65

Liquid Temp (ºF)  115   85

Capacity (Btu/hr)  33800   46100

Power (W): 3410   2820

Current (Amps): 15.5   13.0

EER (Btu/Wh): 9.9  16.3

Mass Flow (Ibs/hr): 495   595

Sound Data

Sound Power (dBA): 75 Avg  80 Max

Vibration (mils(peak-peak)): 1.1 Avg    2.1 Max

Record Date: 2004-08-19


Displ(in^3/Rev): 3.89

Displ(ft^3/hr): 472.26

Overall Length (in): 9.44

Overall Width (in): 9.13

Overall Height (in): 14.56

Mounting Length (in): 7.50

Mounting Width (in): 7.50

Mounting Height (in): 14.94*

Suction Size (in): 3/4 trozo

Discharge Size (In): 3/8 trozo

Initial Oil Charge (oz): 55

Oil Recharge (oz): 51

Net Weight (ibs): 68.0

Internal Free Volume (in^3): 385.0

Horse Power: NA

*Overall compressor height on Copeland Brand Product´s specified mounting grommets.


LRA-High*: 83.5

LRA Low*: NA

LRA-Half Winding: NA

MCC (Amps): 27.9

Max Operating Current: NA

RLA(=MCC/1.4;use for contactor selection):   19.9

RLA(=MCC/1.56;use for breaker & wire size selection): 17.9

RPM: 3500

UL File No: SA-2337

UL File Date: 1984-12-28

*Low and High refer to the low and high nominal voltage ranges for which the motor is approved.


Type: NA

Part No: NA


High MFD: NA

Volts: NA

User Description: NA

Alternate Applications

Refrigerant: R-22 HCFC

Voltage: 200

Phase 1

Freq (Hz): 50

Application: Air Conditioning
