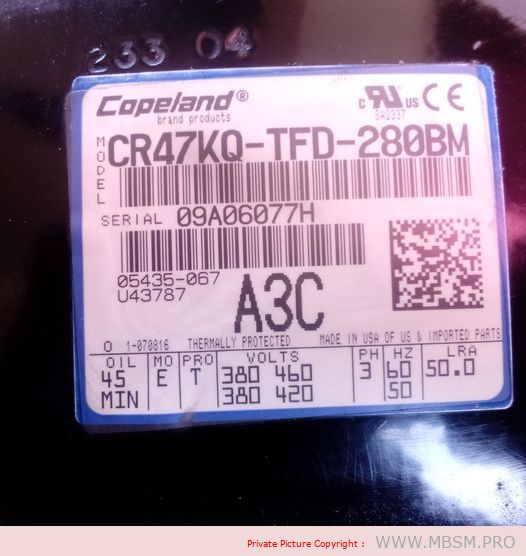

CR47KQ, CR47KQ-TFD-970-COPW, CR47KQ-TFD, 3.5 hp, 3 ph, r22, 400v, 47000 btu

17 April 2023
 |  No Comments

Download Attachments

image_pdfimage_print

Mbsm.pro, Copeland, Hermetic, CR47KQ, Compressor, Series: CR, 47000 BTU/hr, 10.034 cfm, 460 VAC, 6.9 amp, 4 ton Tonnage, 60 Hz, 3 PH, 3500 rpm, 3.5 hp, 4540 watt, R-22, R-404A, R-407C

Hermetic Piston Copeland Compressor  CR &QR Series



Technical Datas:



Mbsm_dot_pro_private_PDF_CR47KQ-TFD

                                                               CR-Series
Model power  (HP) condensing temp. (°C) Refrigeration Ability(W) Input Power        (W) cylinder NO. Displacement (CC) Height  (mm) Weight  (kg)
R22
10 7.2 4.4 -1.1 -6.7 -12.1 -17.8 -23.3 -25 7.2 -12.1
CR18KQ 1.5 32.2 6790 6110 5470 4350 3360 2530 1780 1160 990 1060 910 2 33 358 29
43.3 5800 5190 4620 3610 2710 1970 1310 770 1300 980
54.4 4870 4330 3820 2930 2140 1490 930 480 1500 1030
CR24KQ 2 32.2 8370 7550 6780 5410 4210 3210 2300 1550 1390 1360 1140 2 42 350 30
43.3 7170 6430 5740 4520 3450 2560 1750 1140 1680 1240
54.4 6030 5380 4780 3720 2780 2010 1360 810 1960 1330
CR33KQ 2.5 32.2 12510 11240 10040 7930 6050 4490 3070 1910 1590 1870 1520
43.3 10600 9450 8360 6450 4750 3340 2080 1080 2270 1570
54.4 8740 7710 6750 5040 3550 2320 1250 470 2570 1550
CR37KQ 3 32.2 14250 12840 11520 9180 7110 5390 3830 2165 2200 2160 1770 2 70 376 33
43.3 12150 10870 9670 7560 5690 4130 2750 1620 2640 1860
54.4 10060 8920 7860 5980 4320 2960 1770 850, 3030 1870
CR47KQ 3.5 32.2 17040 15410 13880 11180 8800 6820 5030 3550 3140 2610 2160
43.3 14660 13180 11810 9370 7220 5440 3830 2510 3210 2330
54.4 12280 10960 9740 7580 5680 4110 2700 1590 3700 2420
CR53KQ 4 32.2 19310 17400 15630 12480 9700 7370 5260 3520 3240 3080 2380 2 92 388 37
43.3 16680 14940 13330 10470 7940 5830 3920 2370 3670 2570
54.4 14110 12570 11120 8570 6310 4440 2770 1450 4140 2690
CRNQ-0500 5 32.2 22070 19950 17970 14470 11830 8810 6470 4550 4020 3540 2840 2 105 409 43
43.3 19190 17270 15480 12300 9500 7170 5060 3330 4250 3080
54.4 16370 14660 13050 10220 7730 5660 3810 2300 4840 3240
QR85K1 7 32.2 32500 29300 21600 20300 15200 11000 7850 5770 5390 5360 3940
43.3 27500 24500 21700 16500 12100 8640 6210 6190 4150
54.4 22600 20000 17500 13000 9380 6650 6880 4180
QR90K1 7.5 32.2 35500 31900 28400 22000 16500 12000 8530 6300 5950 5890 4340 4 182 468 73
43.3 29900 26600 23500 17900 13200 9430 6770 6810 4570
54.4 24600 21700 19000 14200 10200 7240 7580 4610
QR12M1 10 32.2 46000 41300 36900 28700 21500 15600 11100 8170 7620 7900 5810 4 228 468 75
43.3 38700 34600 30500 23300 17100 12200 8790 9130 6120
54.4 31900 28200 24700 18400 13200 9410 10100 6160
QR15M1 12.5 32.2 52700 48100 43400 34600 26900 20200 14600 10400 9380 10200 7390 4 274 468 78
43.3 46000 41300 37200 29300 22300 16500 12000 11500 7940
54.4 39000 34900 31100 24000 18100 13300 12900 8240
BRK2-1200 13 32.2 64500 58400 52600 42200 33080 25100 18450 12700 11030 12300 9870
43.3 57200 51600 46300 36700 28400 21100 14900 13700 10500
54.4 48600 43500 38800 30300 22900 16500 15200 11300
COMP 3 1/2HP 460/3 HERM A/C R22
Copeland Hermetic Compressor, Series: CR, 47000 BTU/hr, 10.034 cfm, 460 VAC, 6.9 amp, 4 ton Tonnage, 60 Hz, 3 PH, 3500 rpm, 4 hp, 4540 watt, R-22, R-404A, R-407C, HCFC Refrigerant, 10.4 – 16.1, 76 – 81 dBA, 7/8 Inch Stub Suction, 1/2 Inch Stub Discharge, 45 deg F Evaporator, 100 – 130 deg F Condensing, 65 deg F Return Gas, 85 – 115 deg F Liquid, 10.38 Inch Length x 9.09 Inch Width x 14.81 Inch Height, 690 – 770 lbs/hr Mass Flow



  • Internal inherent protection – 1-protector (line break) use with contactor
  • Compressor family series
  • Model variation
  • 45 oz initial oil charge, 43 oz oil recharge
  • 495 cu-Inch internal free volume
  • 7-1/2 Inch length x 7-1/2 Inch width x 15.19 Inch height mounting
  • 8.2 amp rated load, 50 amp locked rotor, 11.5 amp minimum circuit, 11.1 amp maximum operating
  • 2-cylinders
  • 1.96 Inch bore, 0.82 Inch stroke
  • 4.95 cu-Inch/Rev displacement
  • Bill of material – crankcase heater, mounting parts, screw terminals (CRM-P), sweat connections, terminal cover, terminal flag kit (CRA-L), 4-13/16 × 8 Inch footprint





Item Specifications

  • 6.9 amp
  • Copeland
  • 47000 BTU/hr
  • 10.034 cfm
  • 7/8 Inch Stub Suction, 1/2 Inch Stub Discharge
  • 76 – 81 dBA
  • 10.38 Inch Length x 9.09 Inch Width x 14.81 Inch Height
  • 10.4 – 16.1
  • 60 Hz
  • 3.5 hp
  • Hermetic Compressor
  • 690 – 770 lb/hr
  • 3 PH
  • R-22, R-404A, R-407C, HCFC
  • 3500 rpm
  • CR
  • 45 deg F Evaporator, 100 – 130 deg F Condensing, 65 deg F Return Gas, 85 – 115 deg F Liquid
  • 4 ton
  • 460 VAC
  • 4540 watt
