Mbsm.pro, LG Refrigerator, Compressor, R600a, CSB057, CSB069, CSB075, CMA089 ,CMA098, CMA110, CMA121, lbp

Download Attachments

image_pdfimage_print

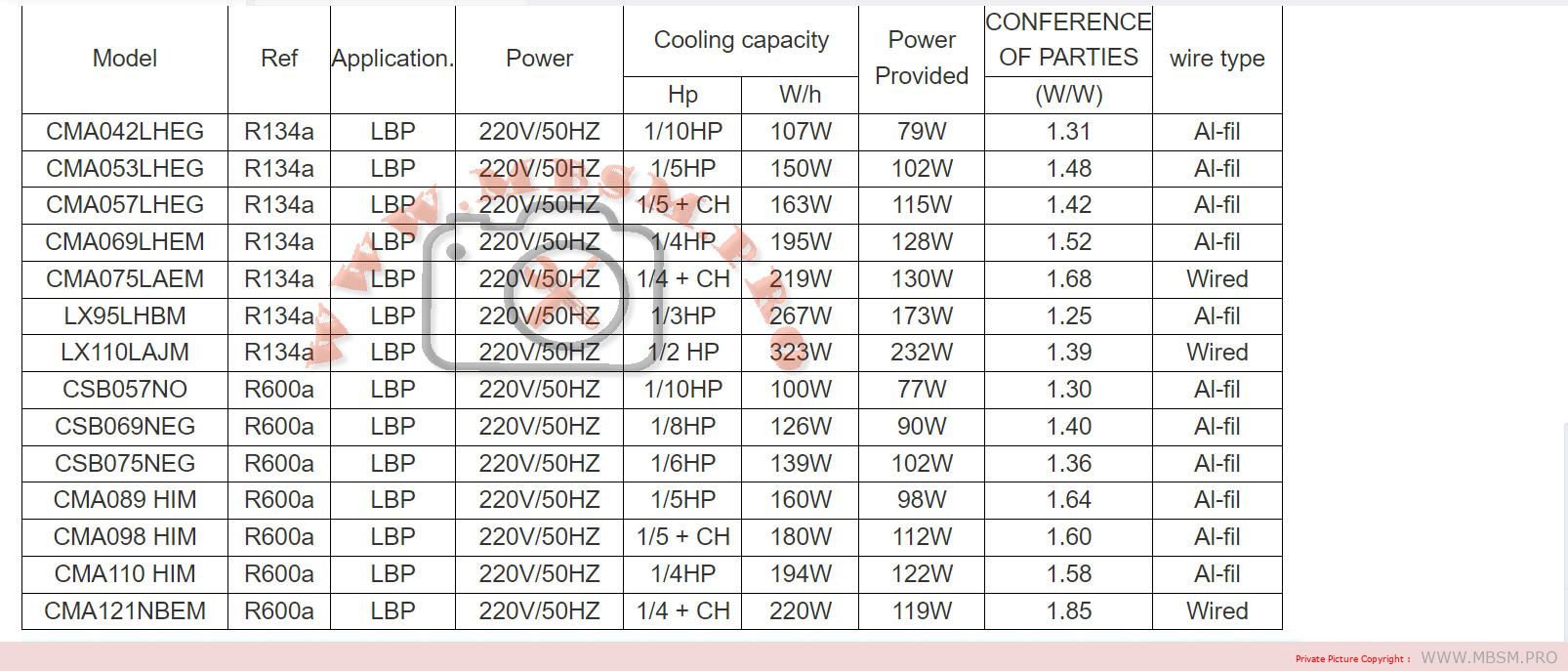

Model Ref App. Power Cooling Capacity Power Input COP Wire Type
Hp W/hr (W/W)
CMA042LHEG R134a LBP 220V/50HZ 1/10HP 107W 79W 1.31 Al-wire
CMA053LHEG R134a LBP 220V/50HZ 1/5HP 150W 102W 1.48 Al-wire
CMA057LHEG R134a LBP 220V/50HZ 1/5+HP 163W 115W 1.42 Al-wire
CMA069LHEM R134a LBP 220V/50HZ 1/4HP 195W 128W 1.52 Al-wire
CMA075LAEM R134a LBP 220V/50HZ 1/4+HP 219W 130W 1.68 Cu-wire
LX95LHBM R134a LBP 220V/50HZ 1/3HP 267W 173W 1.25 Al-wire
LX110LAJM R134a LBP 220V/50HZ 1/2HP 323W 232W 1.39 Cu-wire
CSB057NJEG R600a LBP 220V/50HZ 1/10HP 100W 77W 1.30 Al-wire
CSB069NJEG R600a LBP 220V/50HZ 1/8HP 126W 90W 1.40 Al-wire
CSB075NJEG R600a LBP 220V/50HZ 1/6HP 139W 102W 1.36 Al-wire
CMA089NJEG R600a LBP 220V/50HZ 1/5HP 160W 98W 1.64 Al-wire
CMA098NJEG R600a LBP 220V/50HZ 1/5+HP 180W 112W 1.60 Al-wire
CMA110NJEM R600a LBP 220V/50HZ 1/4HP 194W 122W 1.58 Al-wire
CMA121NBEM R600a LBP 220V/50HZ 1/4+HP 220W 119W 1.85 Cu-wire
