Mbsm.pro, Freezer Ch200, 145w, compressor 1/6 hp, r134a, 140g, replacement, Egl60

Category: Freezer
written by www.mbsm.pro | 11 March 2025
Feature Value
CH200
134a (140 grams)
50 Hz
208 Liters
145 Watt
N/A
208 Liters (7.4 ft³)
145 Watt
~220 volt
1.2 Ampere
Max 15 Watt
9.5 kg/24h @ 37°C
IPX2
IEC62552/2007, SS 3793/2006, C52553/2007
Basic insulation type I
T
2015
Egypt


Mbsm.pro, Kiriazi, E230, N5/3, No-Frost, Freezer, 5 Drawers, 230 Liters, compressor, GS66AF, 1/6 hp, lbp, r134a, 120g

Category: compressor,Freezer
written by www.mbsm.pro | 11 March 2025

Excellent, Compressor, GS66AF, 1/6 hp, LBP, r134a, disp 6.6 cm3, 165 w, 1Ph, 220 v/50hz , GS77AF, 1/5 Hp, GS-90TB, 1/3 hp



Mbsm.pro, Freezer, 200 L, SL-G200, compressor, Gml200a, 150w, r134a, 100g, LBP, 1.1 a

Category: Freezer
written by www.mbsm.pro | 11 March 2025

ZEL , Refrigeration ,Compressor ,Gml200a ,152w , 1/5 Hp ,220/240V/50Hz ,R134a



Mbsm.pro, UPRIGHT, FREEZET, g185, 185 L, r134a, 120g, Compressor, 1/6 hp, Lbp, 118 w

Category: Freezer
written by www.mbsm.pro | 11 March 2025

Mbsm.pro, Compressor, Qdh51g, 1/6 Hp, 118 w, 0.85A , Lbp, R134a, 220v, 1 phase 50 hz, Baixue, QDH51G Refrigerator



Mbsm.pro, Freezer, Ch650, 650 L, Mondial For. Home Appliances, Compressor, r134a, 240 g, Lbp, 1/3 hp, 230 w, 1.9 A

Category: Freezer
written by www.mbsm.pro | 11 March 2025



Mbsm.pro, Freezer, GR-EF40, TOSHIBA REFRIGERATOR-FREEZER, 335 L, Qb73c15gax5 ,R134a , Refrigeration Compressor ,1/4 Hp, Panasonic, QB series , 1Ph , 220V 50Hz

Category: compressor,Freezer
written by www.mbsm.pro | 11 March 2025

Mbsm.pro , Qb73c15gax5 ,R134a , Refrigeration Compressor ,1/4 Hp, Panasonic compressor catalogue, QB series , 1Ph , 220V 50Hz



Mbsm.pro, DAEWOO, Refrigerator-Freezer, 350 l, FR-3501, AC 220-240V, 0.8 a, 165 w, compressor, 1/5 hp, R-134a, 85g, HSL25YE-5, lbp, R-134a, 85g

Category: compressor,Freezer,Refrigerator
written by www.mbsm.pro | 11 March 2025

Daewoo FR-3501 refrigerator

DAEWOO Compressor , HSL25YE-5, 1/4HP, 1PH, R134a ,220-240V 50Hz, Puissance frigorifique, 204 W ,690 BTU

Specifications:

  • Capacity: 350 liters (total), with 73 liters (freezer) and 204 liters (refrigerator)
  • Cooling system: Fan-forced convection
  • Defrost system: Automatic forced fin evaporator
  • Cold control: Adjustable dial
  • Dimensions: Width 667mm, Depth 625mm, Height 1677mm
  • Net weight: 60 kg

Additional details:

  • This model appears to be discontinued, but you might still find it used or refurbished.
  • Some online sellers offer spare parts for the FR-3501, such as the impeller for the compressor/condenser arc engine.
  • You can find a service manual for the FR-3501 online, which includes diagrams, specifications, and troubleshooting tips.



Mbsm.pro, Freezer, 203L, Compressor, ES241-BK, refrigerante, R600a, A140CY1, Donper, 140W, 1/6HP, RSIR, 8,4cm³, 7,5kg, lbp

Category: Freezer
written by www.mbsm.pro | 11 March 2025

Mbsm.pro, Compressor, refrigerante, R600a, A140CY1, Donper, 140W, 1/6HP, RSIR, 8,4cm³, 7,5kg, lbp

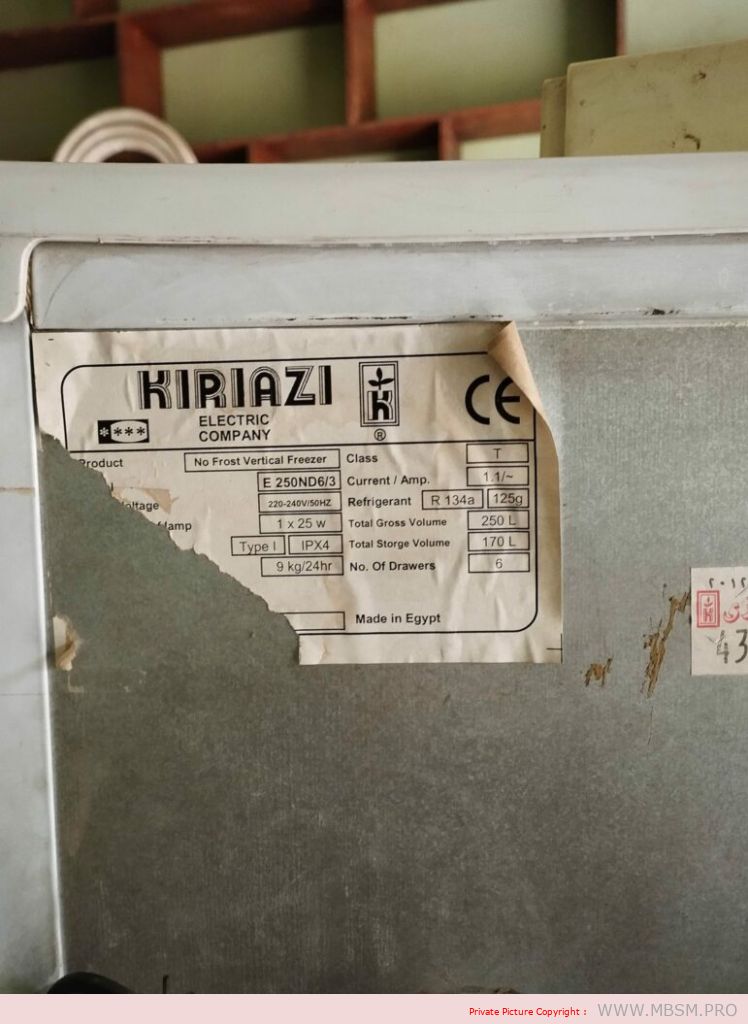

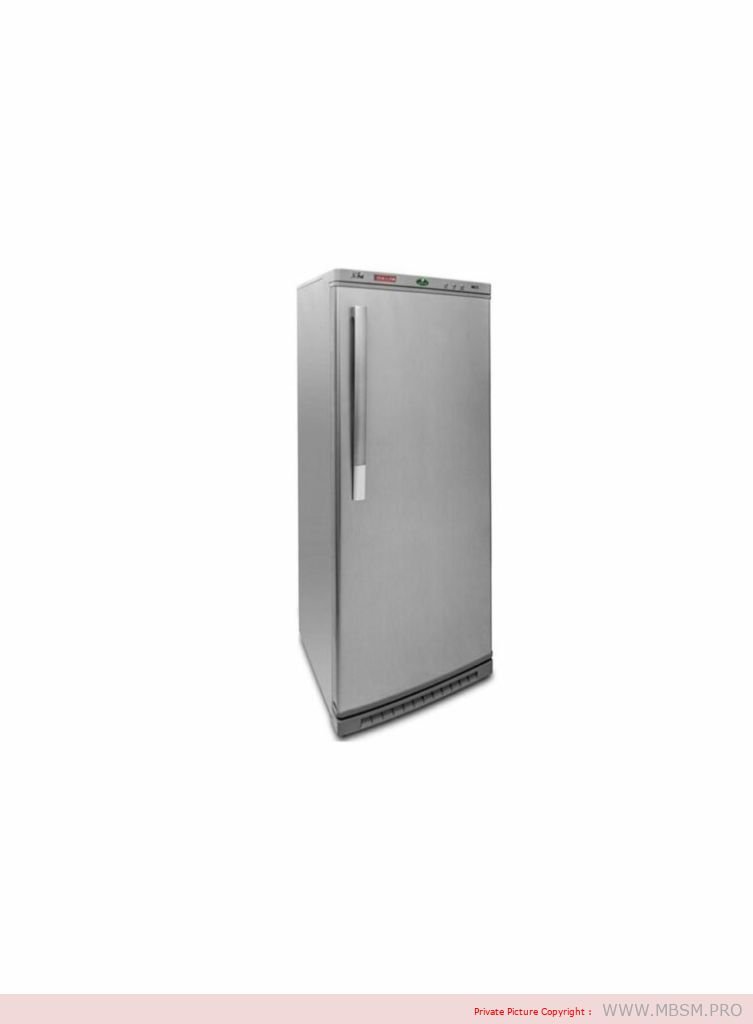

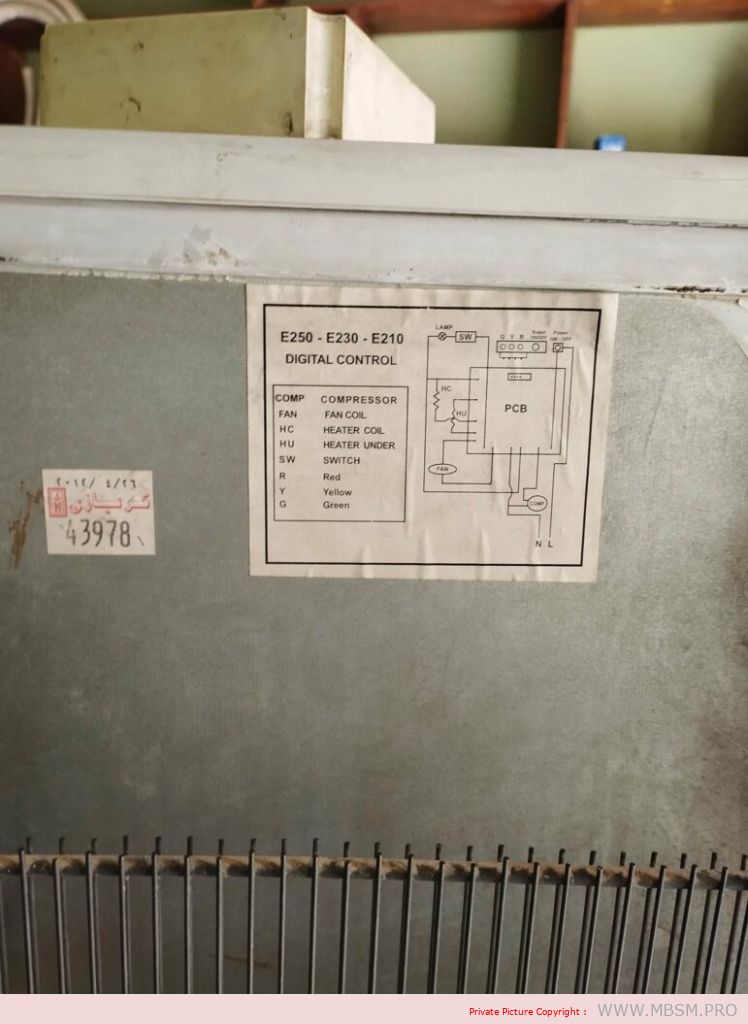

Mbsm.pro, Kiriazi, No Frost, Digital, Deep Freezer, 6 Drawers , 250 L, E250N, E250N 6/3, compressor, gl60an, 1/6, hmbp, r134a, 125g

Category: compressor,Freezer
written by www.mbsm.pro | 11 March 2025

Compressor, ACC, Cubigel, GL60AN, R134a, 220-240V, HMBP, 1/6HP

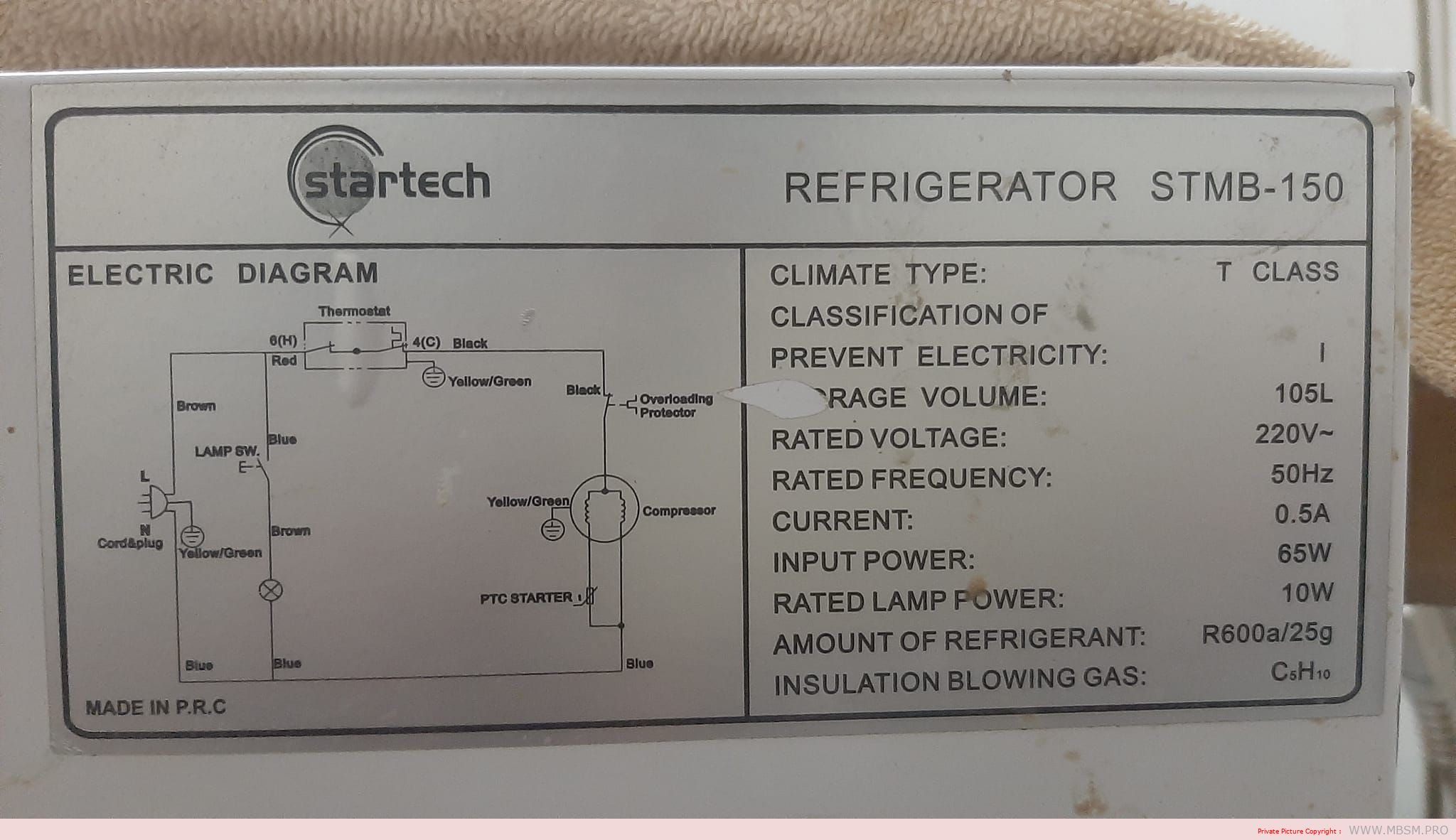

Mbsm.pro, Refrigeration, compressor, CSB Series, freezer, 100W, R600a, 5.7cm3, 1PH, Beko, Candy, LG, CSB057NJEG (1/10HP), CSB069NJEG (1/8HP), Lbp, small compressor, Water Purifier Commercial Refrigeration, SMTB-150, 105 L, r600a/25 g, T class, 0.5 A

Category: compressor,Freezer
written by www.mbsm.pro | 11 March 2025

Parameter

Product type Reciprocating Compressor
Series CSB Series
Speed type Fixed speed
Size Small
Displacement 5.7 cc/rev
Refrigerants R600a
Improvement order Al Wire
Rated voltage 220-240 V
Frequency 50 Hz
Operating type RSIR
Cooling Capacity 100 W
Application LBP, Water Purifier Commercial Refrigeration
Test condition ASHRAE
Evaporating temperature -23.3°C
Condensing temperature 54.4°C
Ambient temperature 32.2°C
