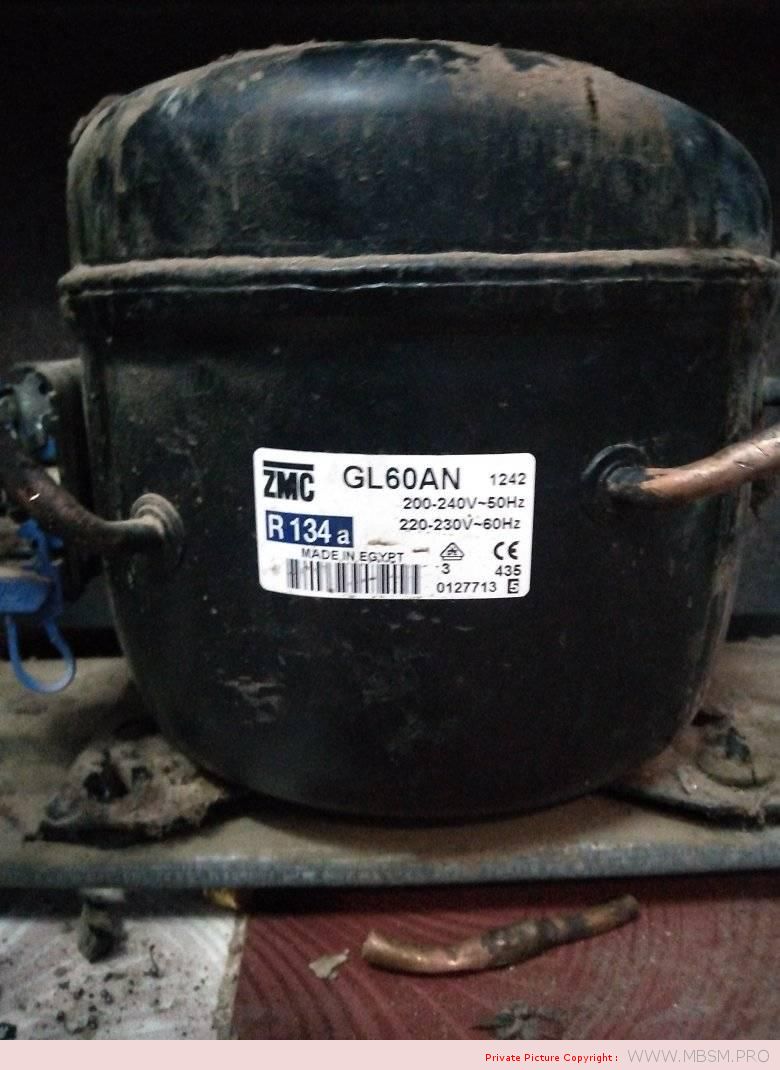

Compressor, ACC, Cubigel, GL60AN, R134a, 220-240V, HMBP, 1/6HP

compressor-acc-cubigel-gl60an-r134a-220240v-hmbp-16hp-mbsm-dot-procompressor-acc-cubigel-gl60an-r134a-220240v-hmbp-16hp-mbsm-dot-pro

Type: Hermetic piston compressorsProducer: ACC Series: HMBP
Model: GL60AN
General data

Refrigerant:R134a
Discharge element:C
Cooling:S
Maximum ambient temperature [ºC]:50

Compressor’s data

Cylinder capacity [cm³]:6
Displacement [m³/h]:1
Weight [kg]:9,9
Oil charge [cm³]:345
Oil type:ISO VG 19 ESTER

Engine’s data

Engine type:RSIR
Power [KM]:1/6
Starting element:LST
Power supply:220V 50Hz
Voltage range:170-264
Locked rotor current [A]:14,6
Running winding resistance (25ºC) [Ω]:9,33
Starting winding resistance (25ºC) [Ω]:10,81

Electrical data

Relays:3003
Shielding element:MRA38085, T0515, AF11BJ
Starting capacitor volume [μF]:

Connections

milimetersinches
Suction tube:6,5
Service tube:6,5
Discharge tube:4,9
