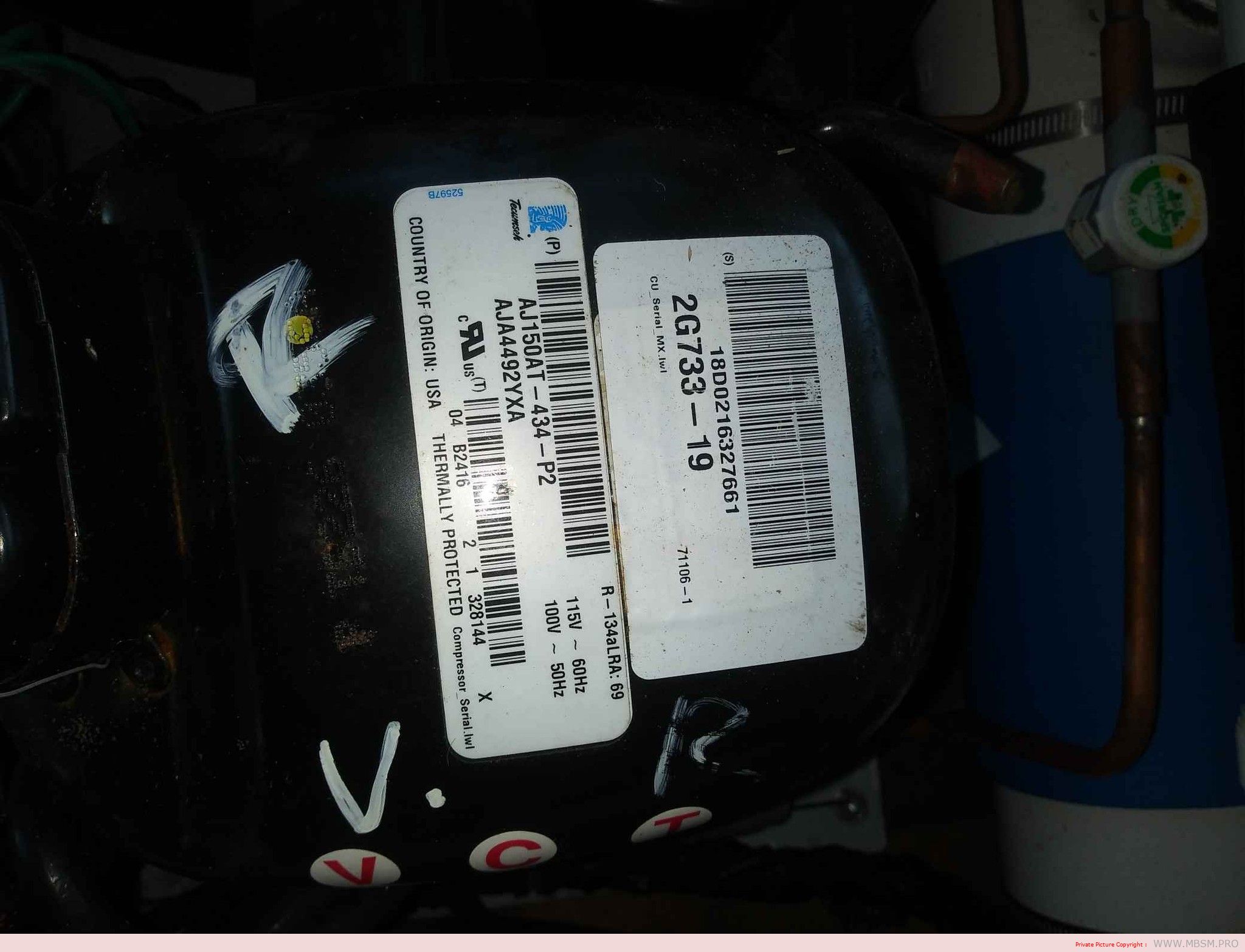

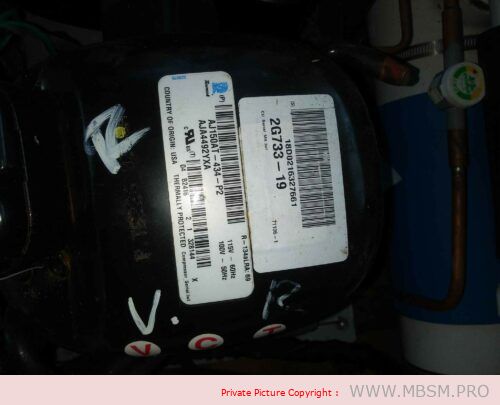

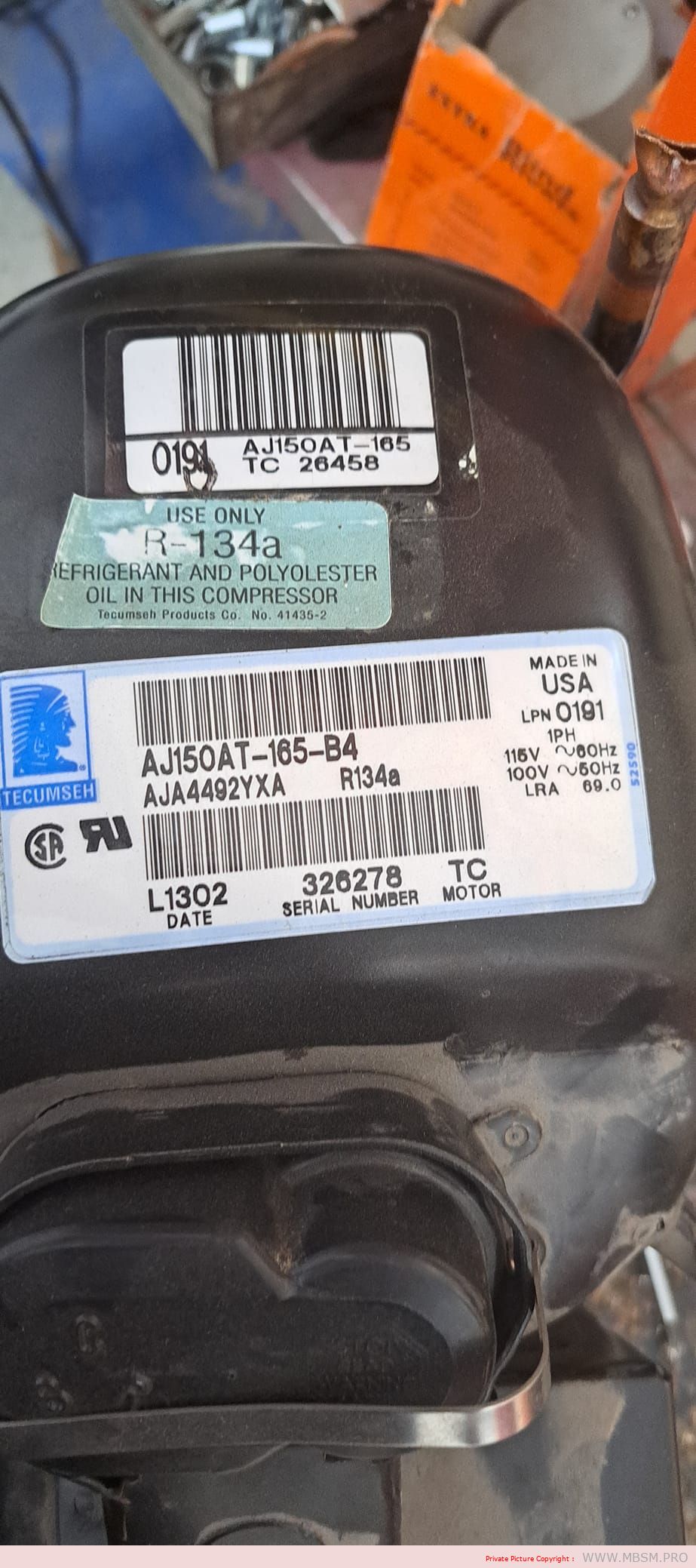

Mbsm.pro, Compressor, Tecumseh, AJA4492YXA, High Back Pressure, 3/4 hp, R-134a/R-12++, 9000 BTU, CSIR

image_pdfimage_print

Type: Reciprocating

Application: HBP – High Back Pressure

Voltage/Frequency: 115V ~60Hz 100V ~50Hz

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)

Motor Torque: High Start Torque (HST)

Compressor Cooling: Fan

Oil Type: Polyolester

Viscosity (cSt): 32

Oil Charge (cc): 782

Voltage Range (50Hz): 90-110

Voltage Range (60Hz): 103-127

Locked Rotor Amps (LRA): 69

Rated Load Amps (RLA 50Hz): 0

Rated Load Amps (RLA 60Hz): 13

Max. Continuous Current (MCC in Amps): 17.9

Motor Resistance (Ohm) – Main: .433

Motor Resistance (Ohm) – Start: 3.085

Motor Type: CSIR

cURus Recognized

Refrigerant: R-134a

SPECIFICATIONS

More Information
Capacity air conditioning @ 45 °F BTU/H 8800
Application High temperature
Compressor type Reciprocating
Discharge size type 5/16″ sweat
Motor power range 0.75 (3/4) HP
Suction size type 1″ rotolock
Brand Tecumseh
Origin country United States – US
Package Weight 49
Product Weight 49
Manufacturer part number AJ4YL1AF643J70
MASTER part number AJA4492YXA
Characteristics Capacity air conditioning @ 45 °F BTU/H: 8800
Supply Voltage 115VAC
Nominal Capacity 9 000 BTU
Product Family Compressors
Capacity: 9000 BTU
