Mbsm.pro, AJA4461AXA, Tecumseh, Compressors, AJ311AT-141-J7, 115V, 1/2HP, R12, high temperature, 6100 BTU,

Download Attachments

mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro
mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro

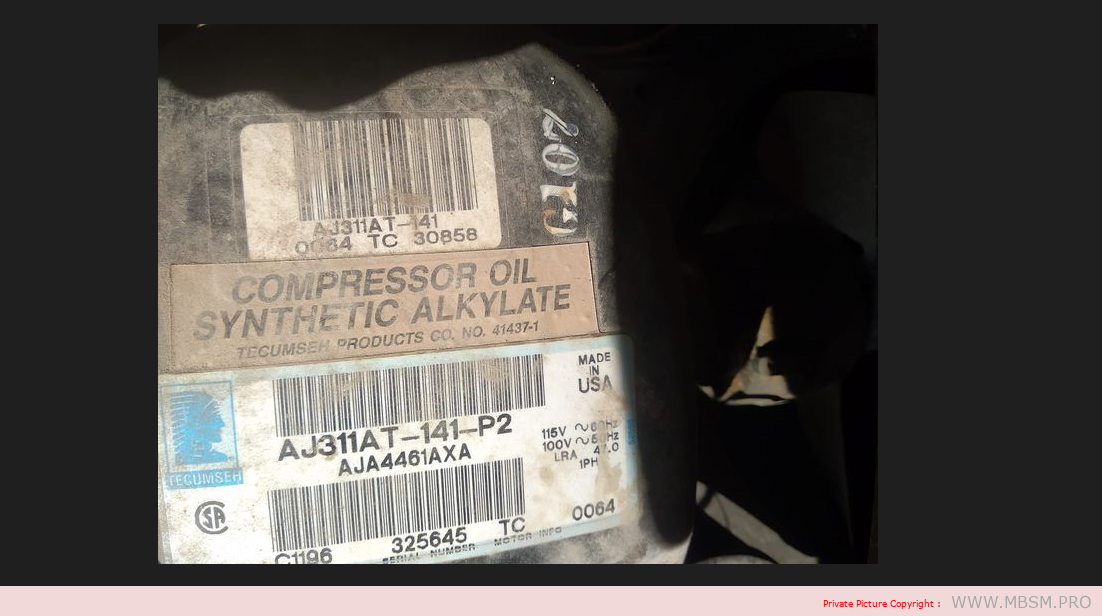

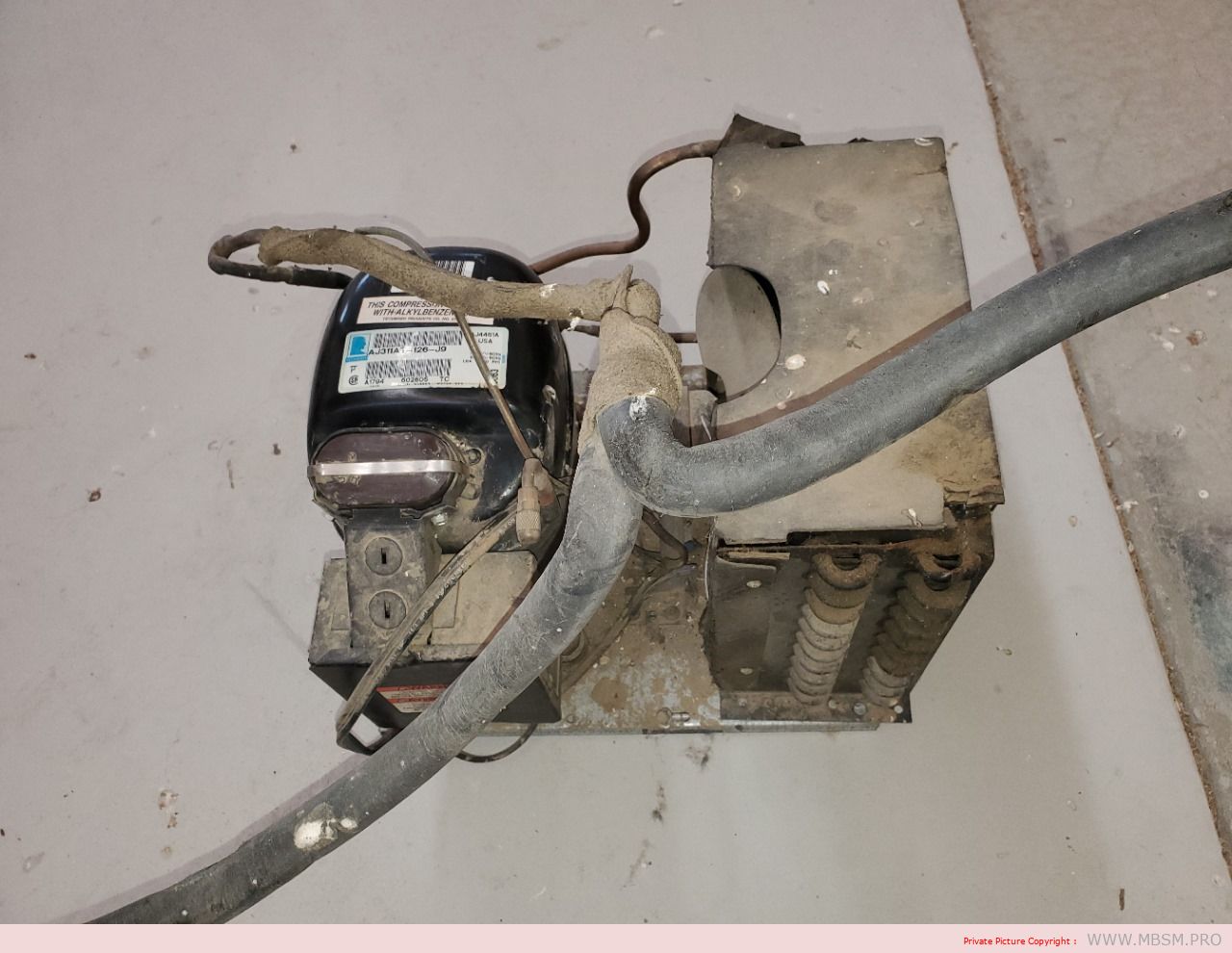

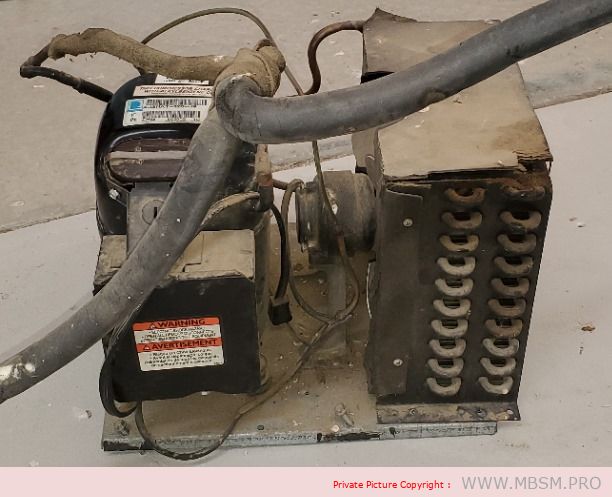

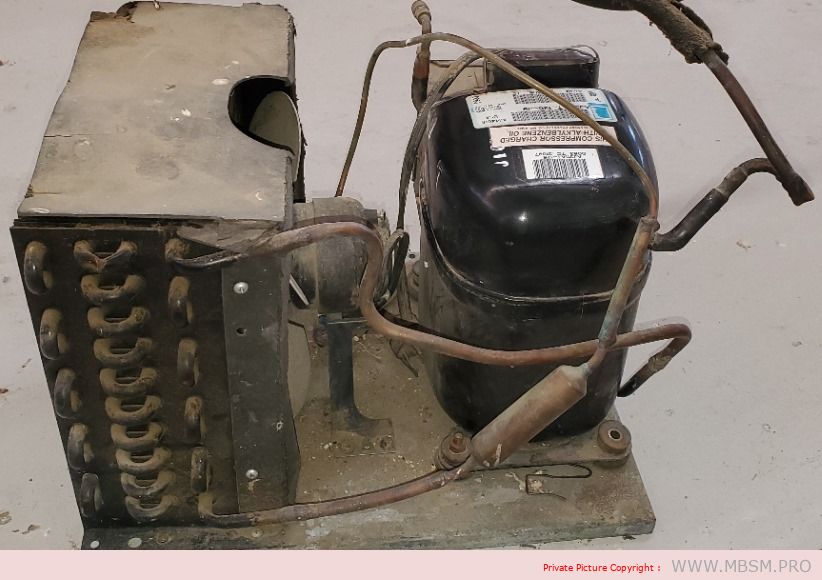

Tecumseh® Reciprocating Compressor, Series: AJ, Model: AJA4461AXA, 6100 BTU/hr, 115 VAC, 9.1 Amp, 60 Hz, 1 PH, 1/2 hp, 900 Watt, R-12 Refrigerant, Synthetic Alkylate Oil, 3/4 inch suction, 5/16 inch discharge, 45 degree F evaporator, 130 degree F condensing, 95 degree F return gas, ambient temperature, 115 degree F liquid, 11.774 inch length x 6.594 inches x 10.219 inches tall

Mbsm_dot_pro_private_PDF_aj311at-141-p2-
mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro

Mbsm_dot_pro_private_PDF_aj311at-141-p2
mbsmpro-aja4461axa-tecumseh-compressors-aj311at141j7-115v-12hp-r12-high-temperature-6100-btu-mbsm-dot-pro
