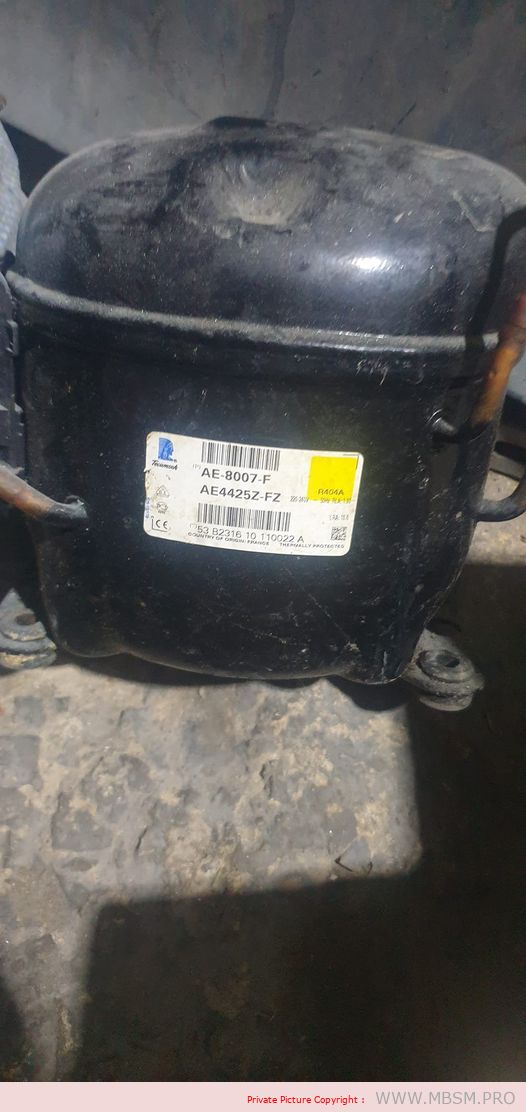

Mbsm.pro, Compressor Tecumseh, AE 4425 Z , AE-8007-f, AE4425Z-FZ, H/MBP, AE 4425 Z, AEZ 4425 Z, 1/5 hp++, 1/4 hp–, r404a

24 April 2023
 |  No Comments

Download Attachments

image_pdfimage_print

Mbsm_dot_pro_private_PDF___ae4425 Mbsm_dot_pro_private_PDF__ae4425 Mbsm_dot_pro_private_PDF_ae4425

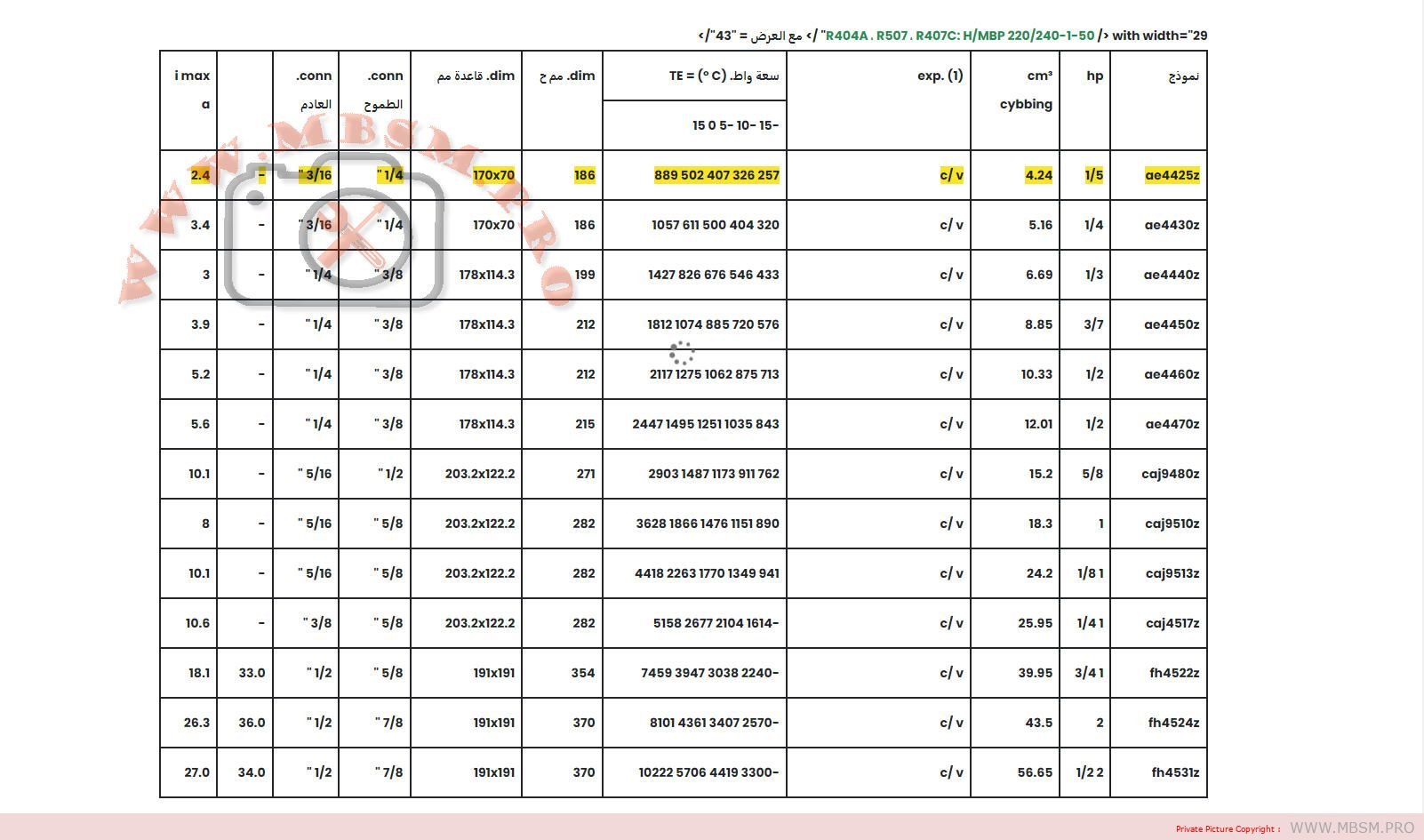

R404A, R507, R407C : H/MBP 220/240-1-50



Modello HP Cilindra-ta cm³ Exp.        (1) Capacità                                             Watt. Te=(°C) Dim.          mm           H Dim. Mm Basamento Conn.  Aspira-zione Conn. Scarico Peso   netto        Kg I             max           A
-15     -10     -5       0         15
AE4425Z 1/5 4,24 C/V 257  326  407  502   889 186 170×70 1/4″ 3/16″ – 2,4
AE4430Z 1/4 5,16 C/V 320  404  500  611  1057 186 170×70 1/4″ 3/16″ – 3,4
AE4440Z 1/3 6,69 C/V 433  546  676  826  1427 199 178×114,3 3/8″ 1/4″ – 3
AE4450Z 3/7 8,85 C/V 576 720 885 1074 1812 212 178×114,3 3/8″ 1/4″ – 3,9
AE4460Z 1/2 10,33 C/V 713 875 1062 1275 2117 212 178×114,3 3/8″ 1/4″ – 5,2
AE4470Z 1/2 12,01 C/V 843 1035 1251 1495 2447 215 178×114,3 3/8″ 1/4″ – 5,6
CAJ9480Z 5/8 15,2 C/V 762 911 1173 1487 2903 271 203,2×122,2 1/2″ 5/16″ – 10,1
CAJ9510Z 1 18,3 C/V 890 1151 1476 1866 3628 282 203,2×122,2 5/8″ 5/16″ – 8
CAJ9513Z 1 1/8 24,2 C/V 941 1349 1770 2263 4418 282 203,2×122,2 5/8″ 5/16″ – 10,1
CAJ4517Z 1 1/4 25,95 C/V –       1614 2104 2677 5158 282 203,2×122,2 5/8″ 3/8″ – 10,6
FH4522Z 1 3/4 39,95 C/V –       2240 3038 3947 7459 354 191×191 5/8″ 1/2″ 33,0 18,1
FH4524Z 2 43,5 C/V –      2570 3407 4361 8101 370 191×191 7/8″ 1/2″ 36,0 26,3
FH4531Z 2 1/2 56,65 C/V –       3300 4419 5706 10222 370 191×191 7/8″ 1/2″ 34,0 27,0
