Product Description
1.Product Performance

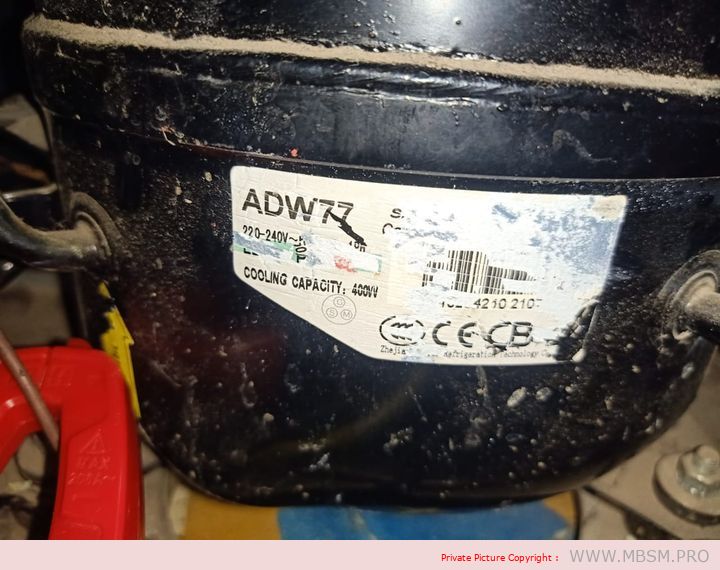

1)ADW77, MS series, use R134A refrigerant;
2)Voltage application 220V to 240V;
3)Frequency for 50/60HZ;
4)Motor type: RSIR;
5)Cooling type: ST;
6)Starting device is PTC/current Relay;
7)Application: Low Back Pressure;
8)Nominal power is 1/4HP;
9)COP is 1.25 with the cooling capacity 185W.
Basing on Test Condition(ASHRAE)
Evaporating Temperature: -23.3 degree
Ambient Temperature: 32.2 degree
Subcooling Temperature: 32.2 degree
Condensing Temperature: 54.4 degree
Suction Temperature: 32.2 degree

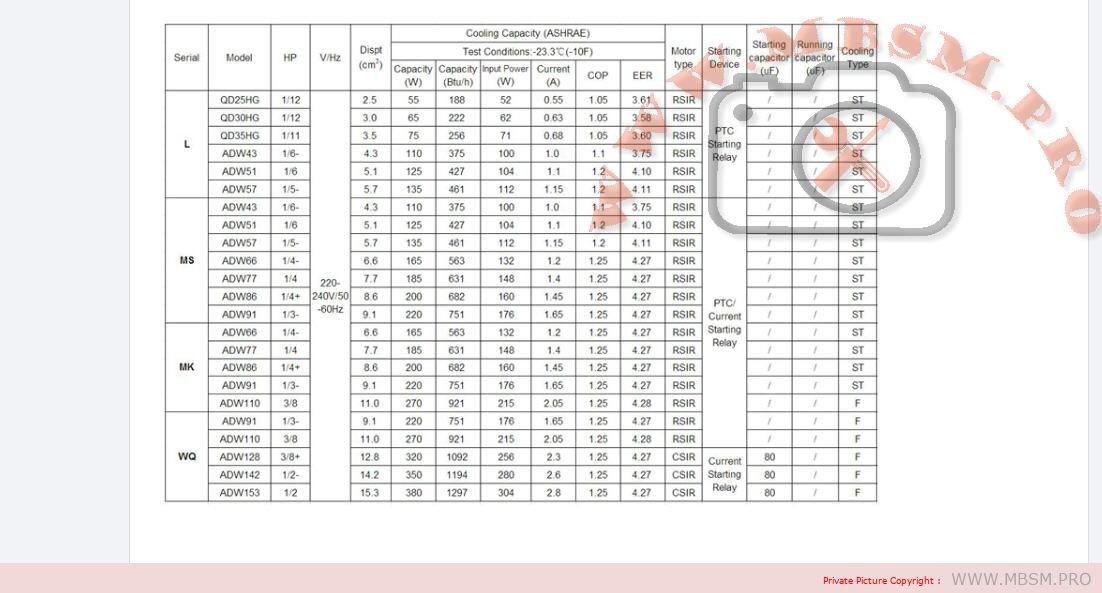

Compressor Specification
| Serial | Model | HP | V/Hz | Dispt (cm3) | Cooling Capacity (ASHRAE) | Motor type | Starting Device | Starting capacitor (uF) | Running capacitor (uF) | Cooling Type | |||||
| Test Conditions:-23.3℃(-10F) | |||||||||||||||
| Capacity (W) | Capacity (Btu/h) | lnput Power(W) | Current (A) | COP | EER | ||||||||||
| L | QD25HG | 1/12 | 220-240V/50-60Hz | 2.5 | 55 | 188 | 52 | 0.55 | 1.05 | 3.61 | RSIR | PTC Starting Relay | / | / | ST |
| QD30HG | 1/12 | 3.0 | 65 | 222 | 62 | 0.63 | 1.05 | 3.58 | RSIR | / | / | ST | |||
| QD35HG | 1/11 | 3.5 | 75 | 256 | 71 | 0.68 | 1.05 | 3.60 | RSIR | / | / | ST | |||
| ADW43 | 1/6- | 4.3 | 110 | 375 | 100 | 1.0 | 1.1 | 3.75 | RSIR | / | / | ST | |||
| ADW51 | 1/6 | 5.1 | 125 | 427 | 104 | 1.1 | 1.2 | 4.10 | RSIR | / | / | ST | |||
| ADW57 | 1/5- | 5.7 | 135 | 461 | 112 | 1.15 | 1.2 | 4.11 | RSIR | / | / | ST | |||
| MS | ADW43 | 1/6- | 4.3 | 110 | 375 | 100 | 1.0 | 1.1 | 3.75 | RSIR | PTC/Current Starting Relay | / | / | ST | |
| ADW51 | 1/6 | 5.1 | 125 | 427 | 104 | 1.1 | 1.2 | 4.10 | RSIR | / | / | ST | |||
| ADW57 | 1/5- | 5.7 | 135 | 461 | 112 | 1.15 | 1.2 | 4.11 | RSIR | / | / | ST | |||
| ADW66 | 1/4- | 6.6 | 165 | 563 | 132 | 1.2 | 1.25 | 4.27 | RSIR | / | / | ST | |||
| ADW77 | 1/4 | 7.7 | 185 | 631 | 148 | 1.4 | 1.25 | 4.27 | RSIR | / | / | ST | |||
| ADW86 | 1/4+ | 8.6 | 200 | 682 | 160 | 1.45 | 1.25 | 4.27 | RSIR | / | / | ST | |||
| ADW91 | 1/3- | 9.1 | 220 | 751 | 176 | 1.65 | 1.25 | 4.27 | RSIR | / | / | ST | |||
| LM | ADW43 | 1/6- | 4.3 | 110 | 375 | 100 | 1.0 | 1.1 | 3.75 | RSIR | / | / | ST | ||
| ADW51 | 1/6 | 5.1 | 125 | 427 | 104 | 1.1 | 1.2 | 4.10 | RSIR | / | / | ST | |||
| ADW57 | 1/5- | 5.7 | 135 | 461 | 112 | 1.15 | 1.2 | 4.11 | RSIR | / | / | ST | |||
| ADW66 | 1/4- | 6.6 | 165 | 563 | 132 | 1.2 | 1.25 | 4.27 | RSIR | / | / | ST | |||
| ADW77 | 1/4 | 7.7 | 185 | 631 | 148 | 1.4 | 1.25 | 4.27 | RSIR | / | / | ST | |||
| MK | ADW66 | 1/4- | 6.6 | 165 | 563 | 132 | 1.2 | 1.25 | 4.27 | RSIR | / | / | ST | ||
| ADW77 | 1/4 | 7.7 | 185 | 631 | 148 | 1.4 | 1.25 | 4.27 | RSIR | / | / | ST | |||
| ADW86 | 1/4+ | 8.6 | 200 | 682 | 160 | 1.45 | 1.25 | 4.27 | RSIR | / | / | ST | |||
| ADW91 | 1/3- | 9.1 | 220 | 751 | 176 | 1.65 | 1.25 | 4.27 | RSIR | / | / | ST | |||
| ADW110 | 3/8 | 11.0 | 270 | 921 | 215 | 2.05 | 1.25 | 4.28 | RSIR | / | / | F | |||
| WQ | ADW91 | 1/3- | 9.1 | 220 | 751 | 176 | 1.65 | 1.25 | 4.27 | RSIR | / | / | F | ||
| ADW110 | 3/8 | 11.0 | 270 | 921 | 215 | 2.05 | 1.25 | 4.28 | RSIR | / | / | F | |||
| ADW128 | 3/8+ | 12.8 | 320 | 1092 | 256 | 2.3 | 1.25 | 4.27 | CSIR | Current Starting Relay | 80 | / | F | ||
| ADW142 | 1/2- | 14.2 | 350 | 1194 | 280 | 2.6 | 1.25 | 4.27 | CSIR | 80 | / | F | |||
| ADW153 | 1/2 | 15.3 | 380 | 1297 | 304 | 2.8 | 1.25 | 4.27 | CSIR | 80 | / | F | |||
